HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

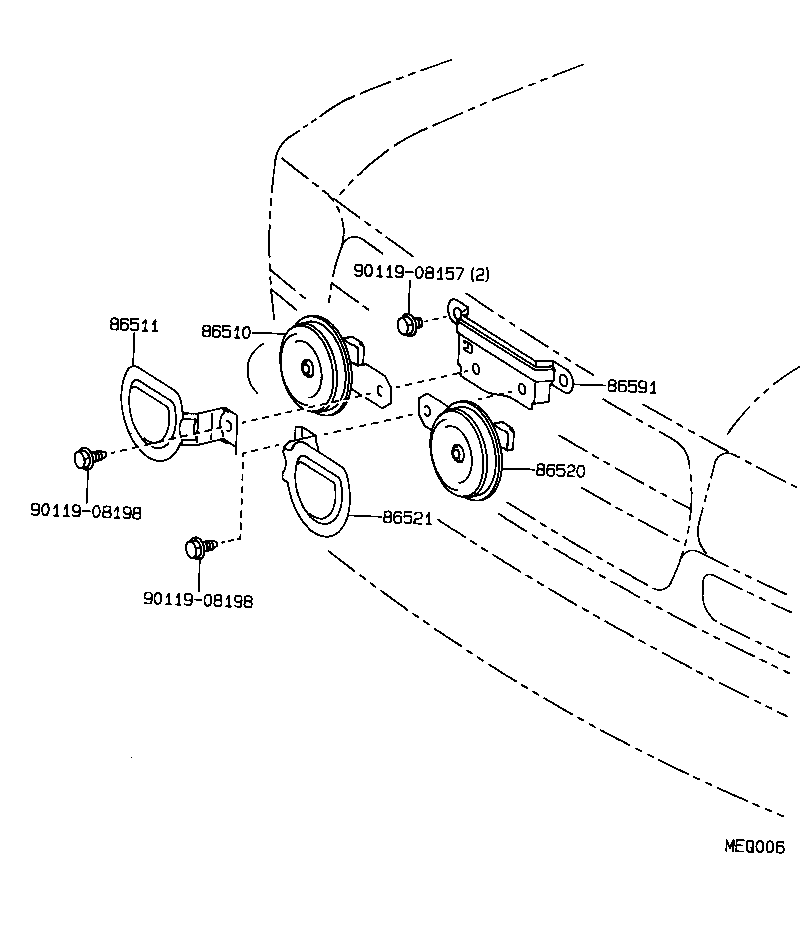

Click highlighted areas on diagram

diagram 86510 86511 86520 86521 86591 9011908157 9011908198 9011908198
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-60070

FJ80,FZJ80,HDJ80,HZJ80

 1
86520 - HORN ASSY, LOW PITCHED
86520-60020

FJ80,FZJ80,HDJ80,HZJ80

 1
86591 - BRACKET, HORN
86591-60020

FJ80,FZJ80,HDJ80,HZJ80

 1
Common parts
90119-08157
90119-08198
