HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

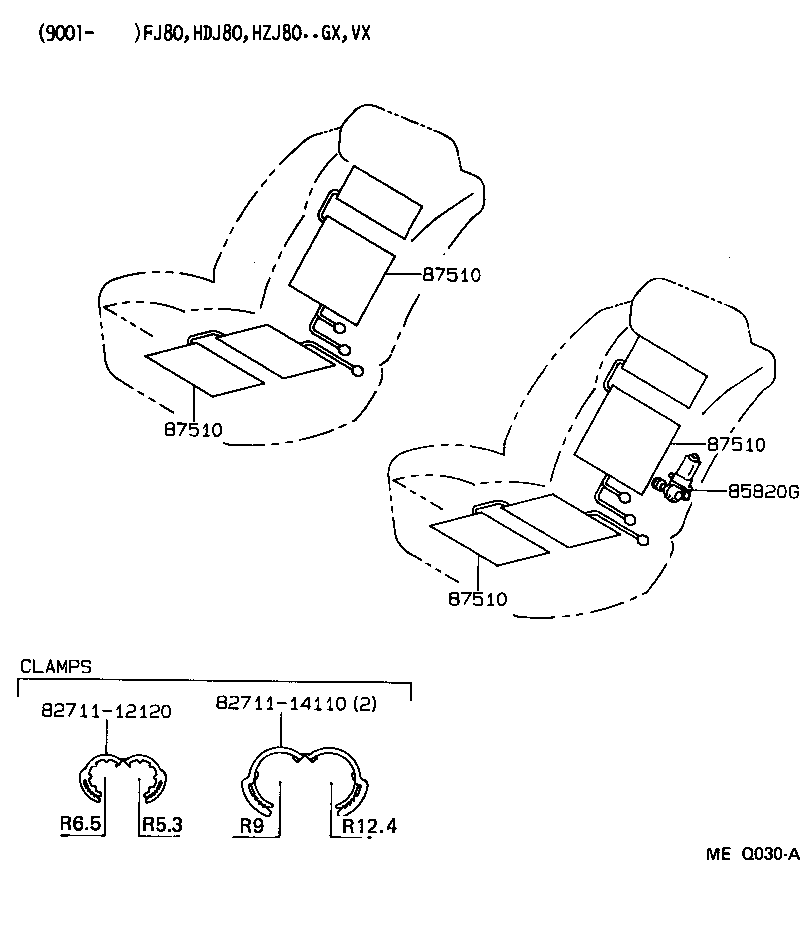

(9001- )FJ80,HDJ80,HZJ80..GX,VX

Click highlighted areas on diagram

diagram 8271112120 8271114110 85820G 87510 87510 87510 87510
Part # Description Qty Price
85820G - MOTOR ASSY, POWER SEAT
85820-30180

FJ80,HDJ80..LHD..VX

 1
87510 - HEATER ASSY, SEAT
87510-60040

FJ80,HDJ80,HZJ80..GX,VX

SEAT CUSHION,LH

 1
87510-60041

FJ80,HDJ80,HZJ80..GX,VX

SEAT CUSHION,RH

 2
87510-60010

FJ80,FZJ80,HDJ80..VX

SEAT BACK,LH

 1
87510-60011

FJ80,FZJ80,HDJ80..VX

SEAT BACK,RH

 2
87510-60041

FZJ80,HDJ80,HZJ80..GX,VX

SEAT CUSHION,RH

 2
87510-60040

FZJ80,HDJ80,HZJ80..GX,VX

SEAT CUSHION,LH

 1
87510 - HEATER ASSY, SEAT
87510-60040

FJ80,HDJ80,HZJ80..GX,VX

SEAT CUSHION,LH

 1
87510-60041

FJ80,HDJ80,HZJ80..GX,VX

SEAT CUSHION,RH

 2
87510-60010

FJ80,FZJ80,HDJ80..VX

SEAT BACK,LH

 1
87510-60011

FJ80,FZJ80,HDJ80..VX

SEAT BACK,RH

 2
87510-60041

FZJ80,HDJ80,HZJ80..GX,VX

SEAT CUSHION,RH

 2
87510-60040

FZJ80,HDJ80,HZJ80..GX,VX

SEAT CUSHION,LH

 1
87510 - HEATER ASSY, SEAT
87510-60040

FJ80,HDJ80,HZJ80..GX,VX

SEAT CUSHION,LH

 1
87510-60041

FJ80,HDJ80,HZJ80..GX,VX

SEAT CUSHION,RH

 2
87510-60010

FJ80,FZJ80,HDJ80..VX

SEAT BACK,LH

 1
87510-60011

FJ80,FZJ80,HDJ80..VX

SEAT BACK,RH

 2
87510-60041

FZJ80,HDJ80,HZJ80..GX,VX

SEAT CUSHION,RH

 2
87510-60040

FZJ80,HDJ80,HZJ80..GX,VX

SEAT CUSHION,LH

 1
87510 - HEATER ASSY, SEAT
87510-60040

FJ80,HDJ80,HZJ80..GX,VX

SEAT CUSHION,LH

 1
87510-60041

FJ80,HDJ80,HZJ80..GX,VX

SEAT CUSHION,RH

 2
87510-60010

FJ80,FZJ80,HDJ80..VX

SEAT BACK,LH

 1
87510-60011

FJ80,FZJ80,HDJ80..VX

SEAT BACK,RH

 2
87510-60041

FZJ80,HDJ80,HZJ80..GX,VX

SEAT CUSHION,RH

 2
87510-60040

FZJ80,HDJ80,HZJ80..GX,VX

SEAT CUSHION,LH

 1
Common parts
82711-12120
82711-14110

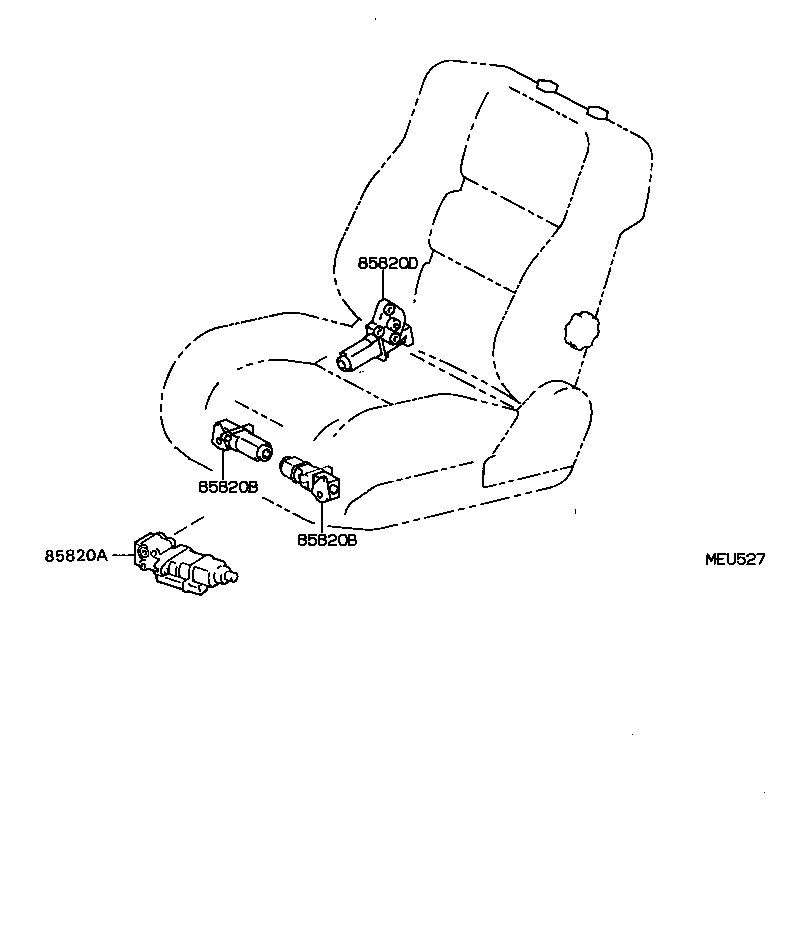

ILLUST NO. 2 OF 2(9208- )

Click highlighted areas on diagram

diagram 85820A 85820B 85820B 85820D
Part # Description Qty Price
