Toyota Land cruiser HDJ80 WINDSHIELD WASHER

HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995

Engine 1HDT

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

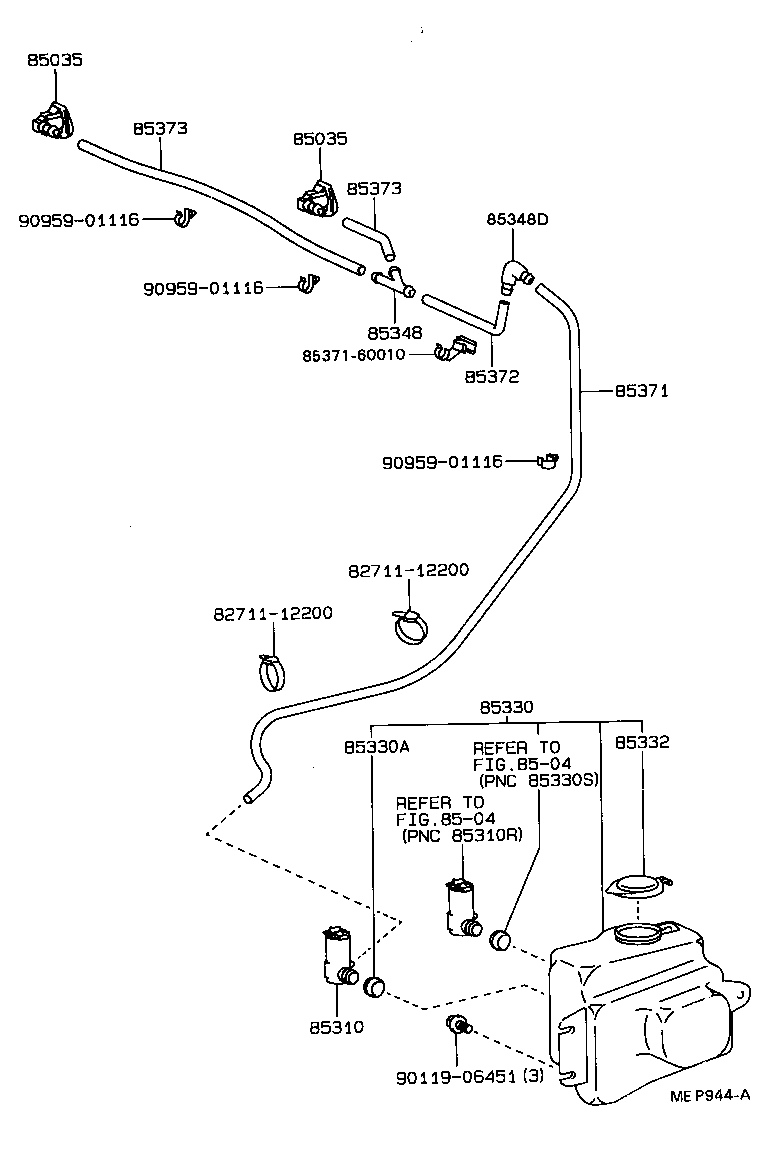

(9001- )FJ80,HDJ80,HZJ80..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
85035 - NOZZLE SUB-ASSY, WASHER
85382-60010	FJ80,HDJ80,HZJ80..LHD	01/1990 - 08/1992	2
85035 - NOZZLE SUB-ASSY, WASHER
85382-60010	FJ80,HDJ80,HZJ80..LHD	01/1990 - 08/1992	2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-16050	FJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
85330 - JAR ASSY, WINDSHIELD WASHER
85325-60010	FJ80,HDJ80,HZJ80..LHD..(GX,VX)	01/1990 - 08/1992	1
85351-60050	HDJ80,HZJ80..LHD..(GX,VX) COLD SPEC & W(HEADLAMP CLEANER)	01/1990 - 08/1992	1
85351-60050	HDJ80,HZJ80..LHD W(HEADALMP CLEANER),NO.2	08/1992 - 01/1995	1
85315-60140	HDJ80,HZJ80..LHD W(HEADALMP CLEANER),NO.1	08/1992 - 01/1995	1
85325-60010	HDJ80,HZJ80..LHD..(GX,VX)	08/1992 - 01/1995	1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089	FJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
85332 - CAP, WINDSHIELD WASHER JAR
85332-12660	FZJ80,HDJ80,HZJ80	08/1992 - 10/1993	1
85332-12660	FJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-14390	HDJ80,HZJ80	01/1992 - 08/1992	1
85348-14390	FJ80,HDJ80,HZJ80	01/1990 - 01/1992	1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20200	HDJ80,HZJ80	01/1992 - 08/1992	1
85355-20200	HDJ80,HZJ80	05/1993 - 01/1995	1
85355-20200	FZJ80,HDJ80,HZJ80	08/1992 - 05/1993	1
85355-20200	FJ80,HDJ80,HZJ80	01/1990 - 01/1992	1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06006	FJ80,HDJ80,HZJ80	01/1990 - 01/1992	1
90099-33382	HDJ80,HZJ80..GX,VX COLD SPEC)	08/1992 - 01/1995	1
90446-06006	HDJ80,HZJ80	01/1992 - 01/1995	1
90099-33382	HDJ80,HZJ80 COLD SPEC	01/1990 - 08/1992	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-07001	FJ80,HDJ80,HZJ80	01/1990 - 01/1992	1
90446-07001	HDJ80,HZJ80	01/1992 - 01/1995	1
90099-33080	HDJ80,HZJ80..GX,VX L=1450,COLD SPEC OR W(*66)	08/1992 - 01/1995	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013	FJ80,HDJ80,HZJ80 L=450,LH,RH	01/1990 - 01/1992	1
90099-33080	HDJ80,HZJ80..GX,VX L=1450,COLD SPEC OR W(*66),LH	08/1992 - 01/1995	1
90099-33080	HDJ80,HZJ80..LHD..(GX,VX) L=1450,COLD SPEC OR W(*66)	08/1992 - 01/1995	1
90446-06013	HDJ80,HZJ80 L=450,LH,RH	01/1992 - 01/1995	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013	FJ80,HDJ80,HZJ80 L=450,LH,RH	01/1990 - 01/1992	1
90099-33080	HDJ80,HZJ80..GX,VX L=1450,COLD SPEC OR W(*66),LH	08/1992 - 01/1995	1
90099-33080	HDJ80,HZJ80..LHD..(GX,VX) L=1450,COLD SPEC OR W(*66)	08/1992 - 01/1995	1
90446-06013	HDJ80,HZJ80 L=450,LH,RH	01/1992 - 01/1995	1
Common parts
82711-12200
85371-60010
90119-06451
90959-01116
Linked diagrams
8504

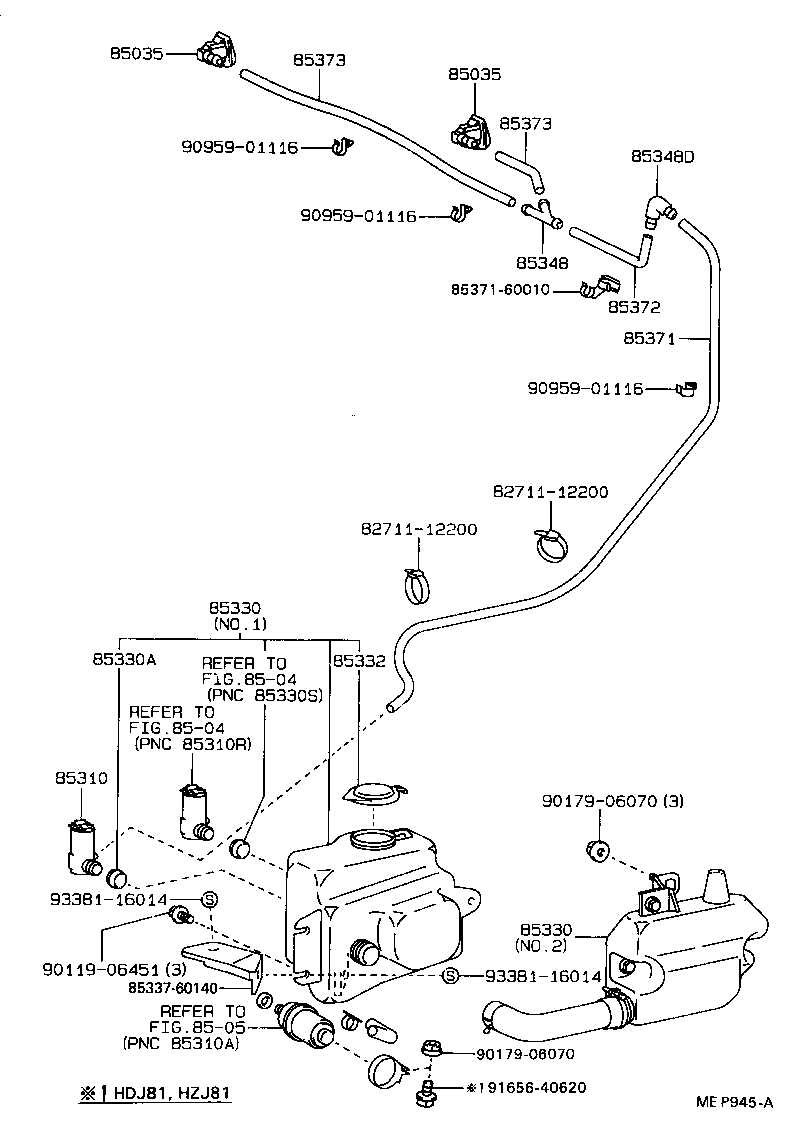

(9001- )FJ80,HDJ80,HZJ80

Click highlighted areas on diagram

W(HEADLAMP CLEANER)

Part #	Description	Period	Qty
85035 - NOZZLE SUB-ASSY, WASHER
85382-60010	FJ80,HDJ80,HZJ80..LHD	01/1990 - 08/1992	2
85035 - NOZZLE SUB-ASSY, WASHER
85382-60010	FJ80,HDJ80,HZJ80..LHD	01/1990 - 08/1992	2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-16050	FJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
85330 - JAR ASSY, WINDSHIELD WASHER
85325-60010	FJ80,HDJ80,HZJ80..LHD..(GX,VX)	01/1990 - 08/1992	1
85351-60050	HDJ80,HZJ80..LHD..(GX,VX) COLD SPEC & W(HEADLAMP CLEANER)	01/1990 - 08/1992	1
85351-60050	HDJ80,HZJ80..LHD W(HEADALMP CLEANER),NO.2	08/1992 - 01/1995	1
85315-60140	HDJ80,HZJ80..LHD W(HEADALMP CLEANER),NO.1	08/1992 - 01/1995	1
85325-60010	HDJ80,HZJ80..LHD..(GX,VX)	08/1992 - 01/1995	1
85330 - JAR ASSY, WINDSHIELD WASHER
85325-60010	FJ80,HDJ80,HZJ80..LHD..(GX,VX)	01/1990 - 08/1992	1
85351-60050	HDJ80,HZJ80..LHD..(GX,VX) COLD SPEC & W(HEADLAMP CLEANER)	01/1990 - 08/1992	1
85351-60050	HDJ80,HZJ80..LHD W(HEADALMP CLEANER),NO.2	08/1992 - 01/1995	1
85315-60140	HDJ80,HZJ80..LHD W(HEADALMP CLEANER),NO.1	08/1992 - 01/1995	1
85325-60010	HDJ80,HZJ80..LHD..(GX,VX)	08/1992 - 01/1995	1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089	FJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
85332 - CAP, WINDSHIELD WASHER JAR
85332-12660	FZJ80,HDJ80,HZJ80	08/1992 - 10/1993	1
85332-12660	FJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-14390	HDJ80,HZJ80	01/1992 - 08/1992	1
85348-14390	FJ80,HDJ80,HZJ80	01/1990 - 01/1992	1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20200	HDJ80,HZJ80	01/1992 - 08/1992	1
85355-20200	HDJ80,HZJ80	05/1993 - 01/1995	1
85355-20200	FZJ80,HDJ80,HZJ80	08/1992 - 05/1993	1
85355-20200	FJ80,HDJ80,HZJ80	01/1990 - 01/1992	1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06006	FJ80,HDJ80,HZJ80	01/1990 - 01/1992	1
90099-33382	HDJ80,HZJ80..GX,VX COLD SPEC)	08/1992 - 01/1995	1
90446-06006	HDJ80,HZJ80	01/1992 - 01/1995	1
90099-33382	HDJ80,HZJ80 COLD SPEC	01/1990 - 08/1992	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-07001	FJ80,HDJ80,HZJ80	01/1990 - 01/1992	1
90446-07001	HDJ80,HZJ80	01/1992 - 01/1995	1
90099-33080	HDJ80,HZJ80..GX,VX L=1450,COLD SPEC OR W(*66)	08/1992 - 01/1995	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013	FJ80,HDJ80,HZJ80 L=450,LH,RH	01/1990 - 01/1992	1
90099-33080	HDJ80,HZJ80..GX,VX L=1450,COLD SPEC OR W(*66),LH	08/1992 - 01/1995	1
90099-33080	HDJ80,HZJ80..LHD..(GX,VX) L=1450,COLD SPEC OR W(*66)	08/1992 - 01/1995	1
90446-06013	HDJ80,HZJ80 L=450,LH,RH	01/1992 - 01/1995	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013	FJ80,HDJ80,HZJ80 L=450,LH,RH	01/1990 - 01/1992	1
90099-33080	HDJ80,HZJ80..GX,VX L=1450,COLD SPEC OR W(*66),LH	08/1992 - 01/1995	1
90099-33080	HDJ80,HZJ80..LHD..(GX,VX) L=1450,COLD SPEC OR W(*66)	08/1992 - 01/1995	1
90446-06013	HDJ80,HZJ80 L=450,LH,RH	01/1992 - 01/1995	1
Common parts
82711-12200
85337-60140
85371-60010
90119-06451
90179-06070
90959-01116
91656-40620
93381-16014
Linked diagrams
8504
8505

HDJ80L-GNPEXW (1990)

(9001- )FJ80,HDJ80,HZJ80..LHD

(9001- )FJ80,HDJ80,HZJ80
