HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )LUB

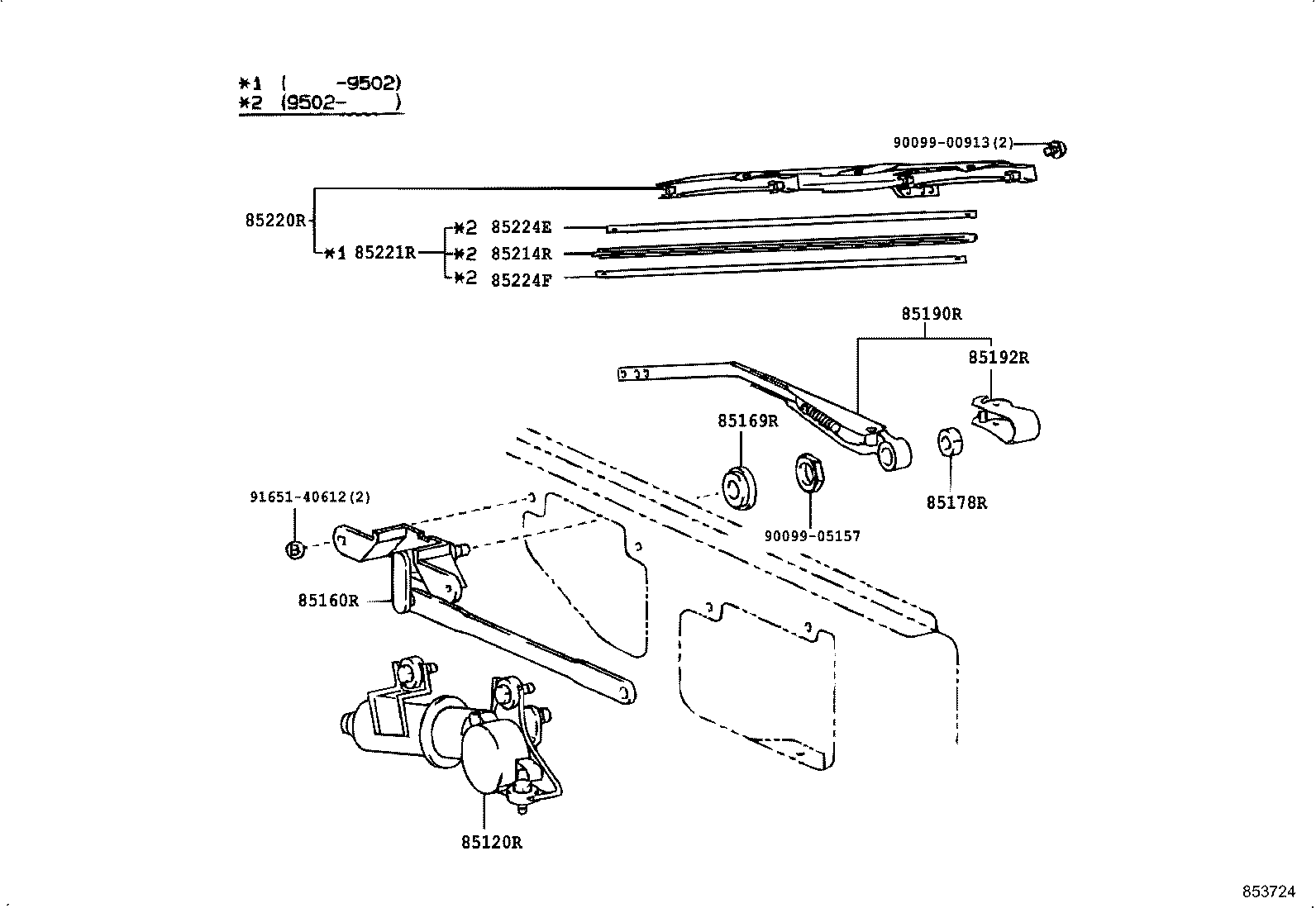

Click highlighted areas on diagram

diagram 85120R 85160R 85169R 85178R 85190R 85192R 85214R 85220R 85221R 85224E 85224F 9009900913 9009905157 9165140612
Part # Description Qty Price
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85080-60150

FJ80,HDJ80,HZJ80..LUB

 1
85160R - LINK ASSY, REAR WIPER
85170-60070

FJ80,HDJ80,HZJ80..LUB

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85179-16150

FJ80,HDJ80,HZJ80..LUB

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06070

FJ80,HDJ80,HZJ80..LUB

 1
85190R - ARM ASSY, REAR WIPER
85241-60010

FJ80,HDJ80,HZJ80..LUB

 1
85192R - COVER, REAR WIPER ARM
85192-13060

FJ80,HDJ80,HZJ80..LUB

 1
85220R - BLADE ASSY, REAR WIPER
85242-60030

FJ80,HDJ80,HZJ80..LUB

 1
85221R - BLADE, REAR WIPER
85221-10060

FJ80,HDJ80,HZJ80..LUB

 1
Common parts
90099-00913
90099-05157
91651-40612
