HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

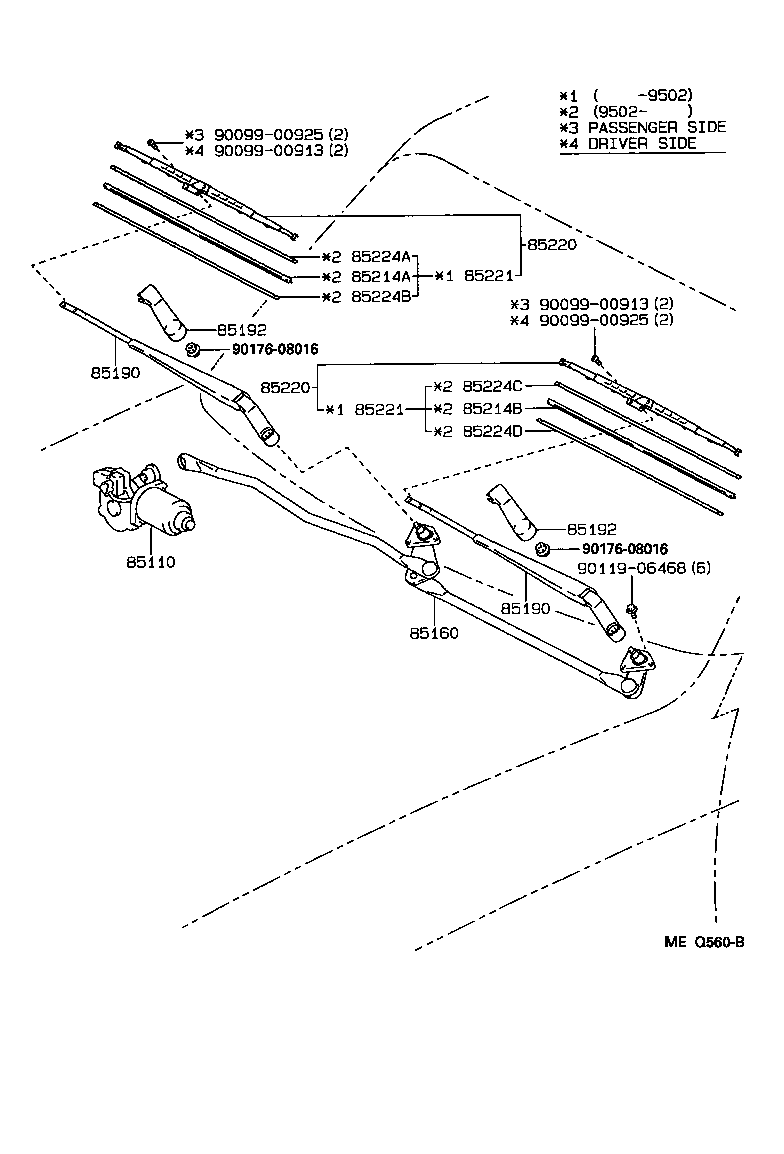

Click highlighted areas on diagram

diagram 85110 85160 85190 85190 85192 85192 85214A 85214B 85220 85220 85221 85221 85224A 85224B 85224C 85224D 9009900913 9009900913 9009900925 9009900925 9011906468 9017608016 9017608016
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-60130

FJ80,HDJ80,HZJ80..LHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-60100

FJ80,HDJ80,HZJ80..LHD

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85221-60010

FJ80,HDJ80,HZJ80..LHD

RH

 1
85221-60030

FJ80,HDJ80,HZJ80..LHD

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85221-60010

FJ80,HDJ80,HZJ80..LHD

RH

 1
85221-60030

FJ80,HDJ80,HZJ80..LHD

LH

 1
85192 - COVER, WINDSHIELD WIPER ARM
85261-90K02

FJ80,HDJ80,HZJ80..LHD

 2
85192 - COVER, WINDSHIELD WIPER ARM
85261-90K02

FJ80,HDJ80,HZJ80..LHD

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16340

FJ80,HDJ80,HZJ80..LHD

RH

 1
85222-60040

FJ80,HDJ80,HZJ80..LHD

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16340

FJ80,HDJ80,HZJ80..LHD

RH

 1
85222-60040

FJ80,HDJ80,HZJ80..LHD

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30100

FJ80,HDJ80,HZJ80..LHD

 2
85221 - BLADE, WINDSHIELD WIPER
85221-30100

FJ80,HDJ80,HZJ80..LHD

 2
Common parts
90099-00913
90099-00925
90119-06468
90176-08016
