HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

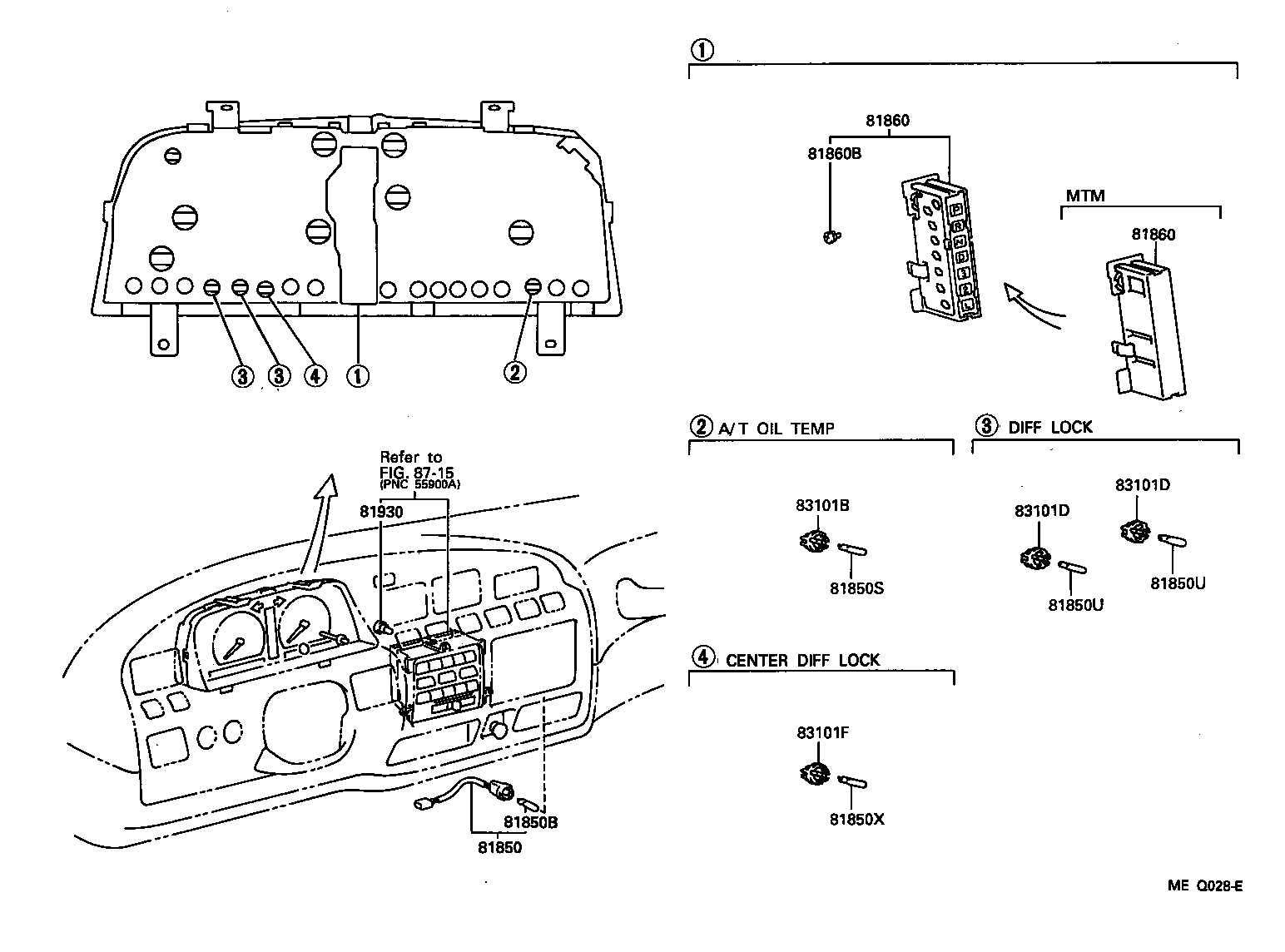

Click highlighted areas on diagram

diagram 81850 81850B 81850S 81850U 81850U 81850X 81860 81860 81860B 81930 83101B 83101D 83101D 83101F 8715
Part # Description Qty Price
81850 - LAMP ASSY, INDICATOR
81850-60480

FJ80,HDJ80,HZJ80

 1
81850-60481

FZJ80,HDJ80,HZJ80

 1
81850B - BULB, INDICATOR LAMP
90981-11014

FJ80,HDJ80,HZJ80

14V 1.4W

 1
81850S - BULB(FOR AUTOMATIC OIL INDICATOR LAMP)
90981-11018

FZJ80,HDJ80..ATM

 1
90981-11018

FJ80,HDJ80,HZJ80..ATM

 1
81850U - BULB(FOR DIFFERENTIAL LOCK INDICATOR LAMP)
90981-11018

FZJ80,HDJ80,HZJ80

 2
90981-11018

FJ80,HDJ80,HZJ80

 2
81850U - BULB(FOR DIFFERENTIAL LOCK INDICATOR LAMP)
90981-11018

FZJ80,HDJ80,HZJ80

 2
90981-11018

FJ80,HDJ80,HZJ80

 2
81860 - LAMP ASSY, TRANSMISSION INDICATOR
81860-60060

FZJ80,HDJ80..ATM

 1
81860-60040

FJ80,HDJ80,HZJ80..ATM

 1
81860-33010

FZJ80,HDJ80..ATM

 1
81860 - LAMP ASSY, TRANSMISSION INDICATOR
81860-60060

FZJ80,HDJ80..ATM

 1
81860-60040

FJ80,HDJ80,HZJ80..ATM

 1
81860-33010

FZJ80,HDJ80..ATM

 1
81860B - BULB, TRANSMISSION INDICATOR LAMP
84999-50180

FJ80,HDJ80,HZJ80..ATM

12V 1.2W

 7
84999-50190

FJ80,HDJ80,HZJ80..ATM

12V 1.2W,GREEN CAP

 1
90072-02005

FZJ80,HDJ80..ATM

14V 1.12W

 8
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81930-60020

FJ80,FZJ80,HDJ80..VX

 3
83101B - SOCKET SUB-ASSY, AUTOMATIC OIL INDICATOR LAMP
83101-14040

FJ80,HDJ80,HZJ80..ATM

 1
83101-14040

FZJ80,HDJ80..ATM

 1
83101D - SOCKET SUB-ASSY, DIFFERENTIAL LOCK INDICATOR LAMP
83101-14040

FJ80,HDJ80,HZJ80

 2
83101-14040

FZJ80,HDJ80,HZJ80

 2
83101D - SOCKET SUB-ASSY, DIFFERENTIAL LOCK INDICATOR LAMP
83101-14040

FJ80,HDJ80,HZJ80

 2
83101-14040

FZJ80,HDJ80,HZJ80

 2
Linked diagrams
8715
