HDJ80L-GNPEXW (1990)
Toyota Land Cruiser

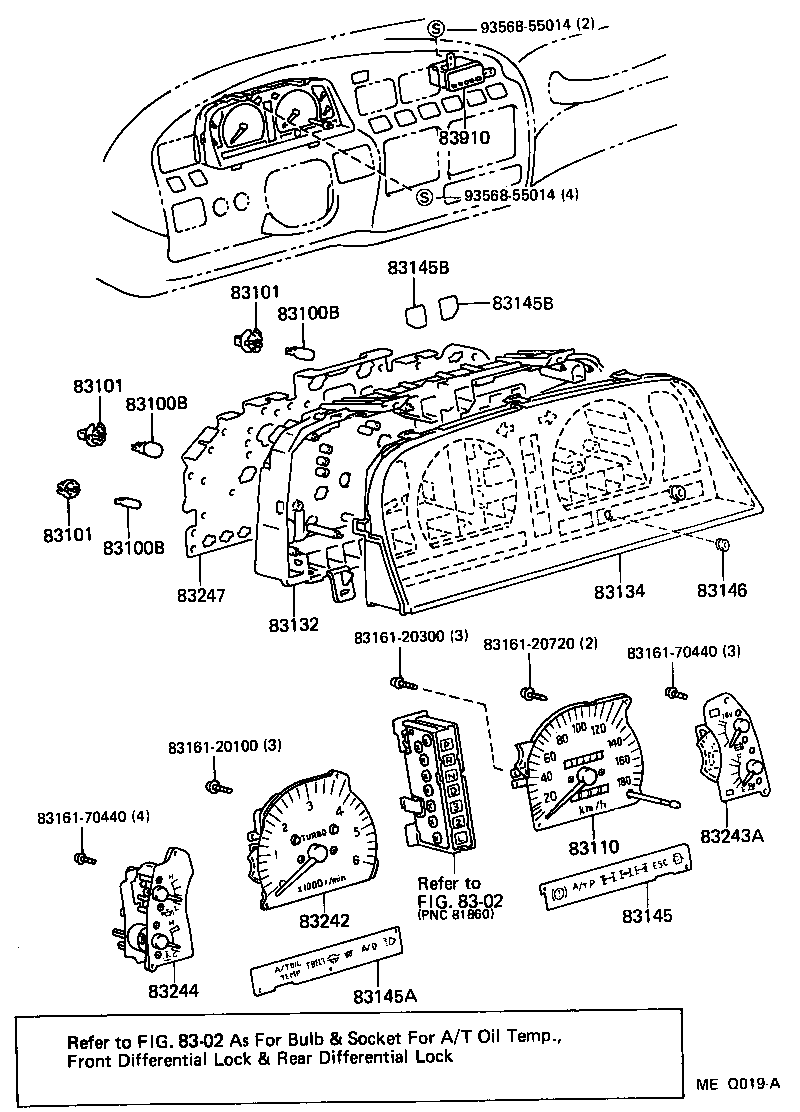

ILLUST NO. 1 OF 3(9001-9208)GX,VX
SPEEDMETER & CLOCK W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
FJ80,HDJ80,HZJ80..GX,VX 12V 3.4W |
3 | ||
| 90981-11018 |
HDJ80..LHD 12V 1.2W W/O SOCKET |
9 | ||
| 90981-11018 |
HDJ80,HZJ80 12V 1.2W W/O SOCKET |
12 | ||
| 99132-12034 |
HDJ80 12V 3.4W |
3 | ||
| 90981-11035 |
FJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
7 | ||
| 90981-11018 |
HDJ80..LHD..VX 12V 1.2W W/O SOCKET,POWER STEERING---PPS |
12 | ||
| 90981-11018 |
FZJ80,HDJ80,HZJ80 12V 1.2W W/O SOCKET |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
FJ80,HDJ80,HZJ80..GX,VX 12V 3.4W |
3 | ||
| 90981-11018 |
HDJ80..LHD 12V 1.2W W/O SOCKET |
9 | ||
| 90981-11018 |
HDJ80,HZJ80 12V 1.2W W/O SOCKET |
12 | ||
| 99132-12034 |
HDJ80 12V 3.4W |
3 | ||
| 90981-11035 |
FJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
7 | ||
| 90981-11018 |
HDJ80..LHD..VX 12V 1.2W W/O SOCKET,POWER STEERING---PPS |
12 | ||
| 90981-11018 |
FZJ80,HDJ80,HZJ80 12V 1.2W W/O SOCKET |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
FJ80,HDJ80,HZJ80..GX,VX 12V 3.4W |
3 | ||
| 90981-11018 |
HDJ80..LHD 12V 1.2W W/O SOCKET |
9 | ||
| 90981-11018 |
HDJ80,HZJ80 12V 1.2W W/O SOCKET |
12 | ||
| 99132-12034 |
HDJ80 12V 3.4W |
3 | ||
| 90981-11035 |
FJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
7 | ||
| 90981-11018 |
HDJ80..LHD..VX 12V 1.2W W/O SOCKET,POWER STEERING---PPS |
12 | ||
| 90981-11018 |
FZJ80,HDJ80,HZJ80 12V 1.2W W/O SOCKET |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HDJ80..LHD..VX POWER STEERING---PPS,1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
HDJ80,HZJ80 1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
HDJ80..LHD 1.2W OR 1.4W BULB |
9 | ||
| 83101-14040 |
HDJ80..ATM 3.4W BULB GREEN CAP |
14 | ||
| 83101-20040 |
FJ80,HDJ80,HZJ80..GX,VX 3.4W BULB GREEN CAP |
7 | ||
| 83101-14040 |
FZJ80,HDJ80,HZJ80 1.2W OR 1.4W BULB |
1 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HDJ80..LHD..VX POWER STEERING---PPS,1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
HDJ80,HZJ80 1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
HDJ80..LHD 1.2W OR 1.4W BULB |
9 | ||
| 83101-14040 |
HDJ80..ATM 3.4W BULB GREEN CAP |
14 | ||
| 83101-20040 |
FJ80,HDJ80,HZJ80..GX,VX 3.4W BULB GREEN CAP |
7 | ||
| 83101-14040 |
FZJ80,HDJ80,HZJ80 1.2W OR 1.4W BULB |
1 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HDJ80..LHD..VX POWER STEERING---PPS,1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
HDJ80,HZJ80 1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
HDJ80..LHD 1.2W OR 1.4W BULB |
9 | ||
| 83101-14040 |
HDJ80..ATM 3.4W BULB GREEN CAP |
14 | ||
| 83101-20040 |
FJ80,HDJ80,HZJ80..GX,VX 3.4W BULB GREEN CAP |
7 | ||
| 83101-14040 |
FZJ80,HDJ80,HZJ80 1.2W OR 1.4W BULB |
1 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-60370 |
HDJ80..LHD..VX W(POWER STEERING---PPS) |
1 | ||
| 83110-60370 |
HDJ80..LHD..VX W(POWER STEERING---PPS) |
1 | ||
| 83110-60370 |
HDJ80..LHD..VX W(DIFFERENTIAL LOCK) OR W(POWER STEERING---PPS) |
1 | ||
| 83110-60350 |
HDJ80..LHD |
1 | ||
| 83110-60201 |
HDJ80,HZJ80..LHD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-60100 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 83132-60720 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-60120 |
HDJ80,HZJ80..GX,VX |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-60100 |
HDJ80..LHD..VX W(POWER STEERING) |
1 | ||
| 83146-60440 |
FZJ80,HDJ80..ATM |
1 | ||
| 83145-60120 |
HDJ80..LHD |
1 | ||
| 83145-60100 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-60400 |
HDJ80,HZJ80..GX,VX |
1 | ||
| 83145-60220 |
HDJ80..LHD |
1 | ||
| 83145-60400 |
HDJ80..LHD..VX W(POWER STEERING) |
1 | ||
| 83146-60420 |
HDJ80..ATM |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2B460 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2B460 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 83146 - GROMMET, METER GLASS | ||||
| 83145-89318 |
HDJ80,HZJ80 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-60300 |
HDJ80 |
1 | ||
| 83242-60880 |
HDJ80..ATM |
1 | ||
| 83242-60300 |
HDJ80..LHD..VX W(POWER STEERING) |
1 | ||
| 83242-6A180 |
HDJ80..ATM |
1 | ||
| 83242-60280 |
HDJ80,HZJ80..LHD..(GX,VX) |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-60040 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-60020 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 83244-60240 |
HDJ80,HZJ80..GX,VX |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83149-60720 |
HDJ80..ATM |
1 | ||
| 83247-60200 |
HDJ80..LHD..VX W(POWER STEERING) |
1 | ||
| 83247-60120 |
HDJ80..LHD |
1 | ||
| 83247-60200 |
HDJ80,HZJ80..GX,VX |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-60030 |
FJ80,FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 83910-60050 |
FJ80,FZJ80,HDJ80,HZJ80..LHD..(GX,VX) MULTIPLEX TYPE |
1 | ||
| Common parts | ||||
| 83161-20100 | ||||
| 83161-20300 | ||||
| 83161-20720 | ||||
| 83161-70440 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8302 | ||||

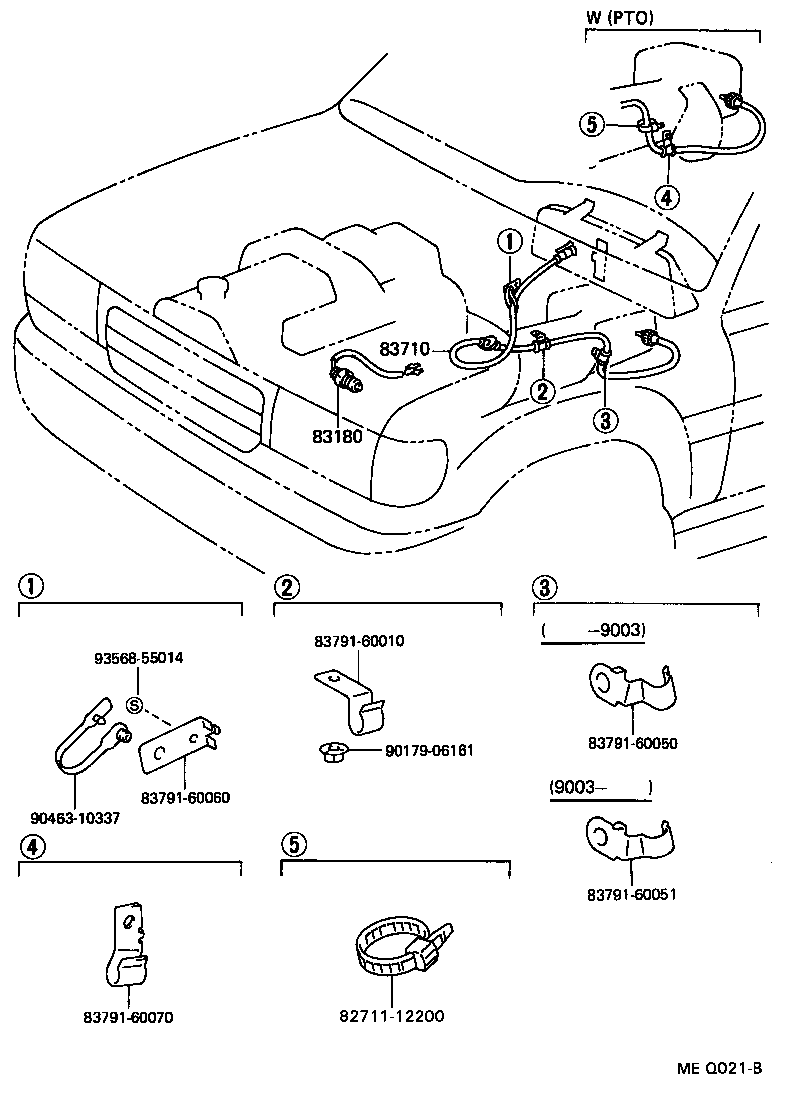

ILLUST NO. 2 OF 3(9001- )FJ80,HDJ80,HZJ80..LHD
SPEEDMETER CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-32020 |
HDJ80,HZJ80..GX,VX |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-60210 |
HDJ80,HZJ80..LHD..ATM |
1 | ||
| 83710-60310 |
HDJ80,HZJ80..LHD..ATM W(POWER TAKE OFF) |
1 | ||
| 83710-60211 |
HDJ80,HZJ80..LHD..ATM |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 83791-60010 | ||||
| 83791-60050 | ||||
| 83791-60051 | ||||
| 83791-60060 | ||||
| 83791-60070 | ||||
| 90179-06161 | ||||
| 90463-10337 | ||||
| 93568-55014 | ||||

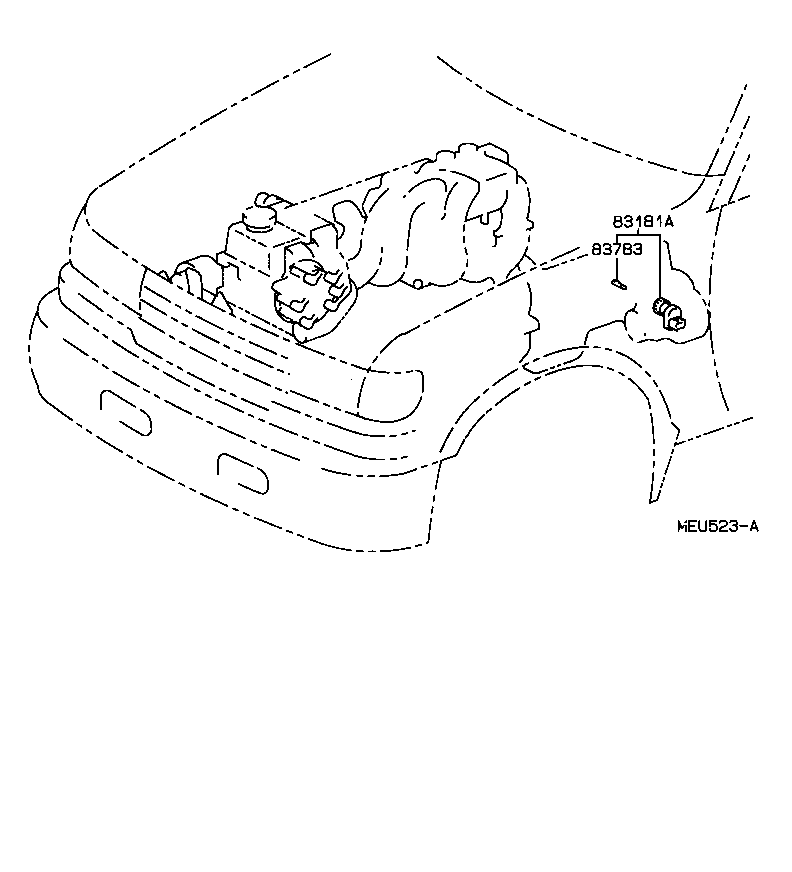

ILLUST NO. 3 OF 3(9208- )
| Part # | Description | Qty | Price |
|---|

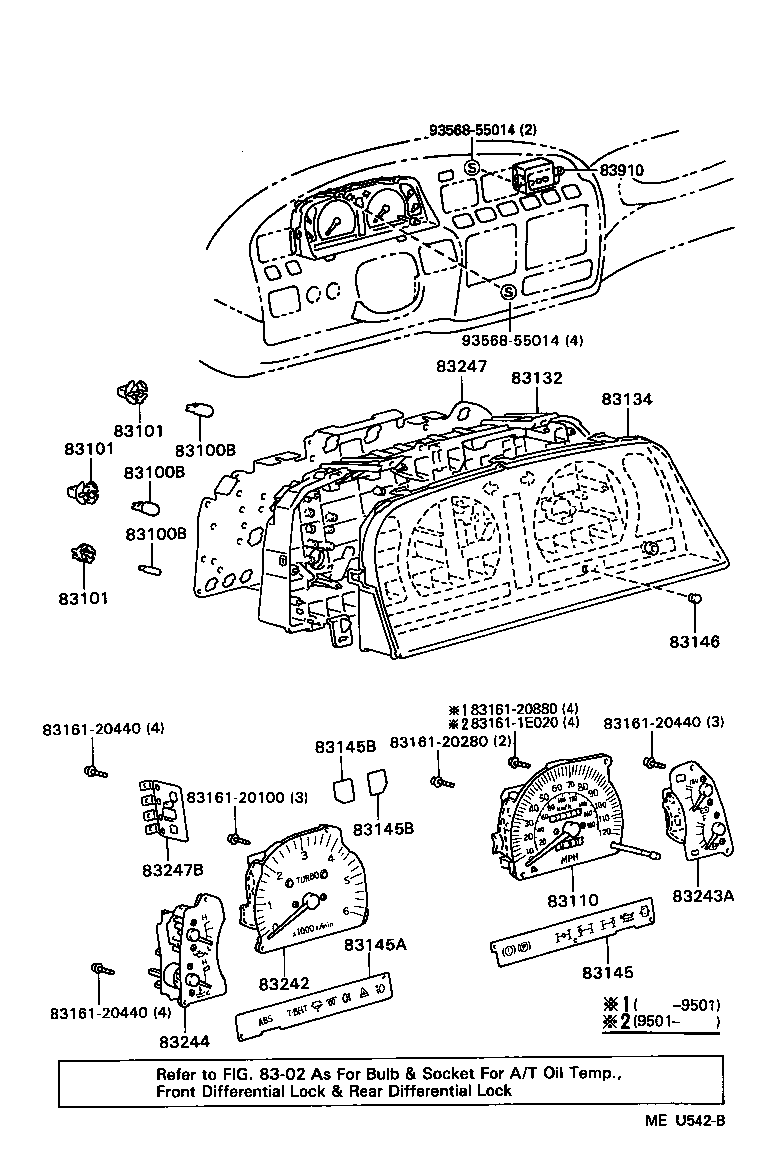

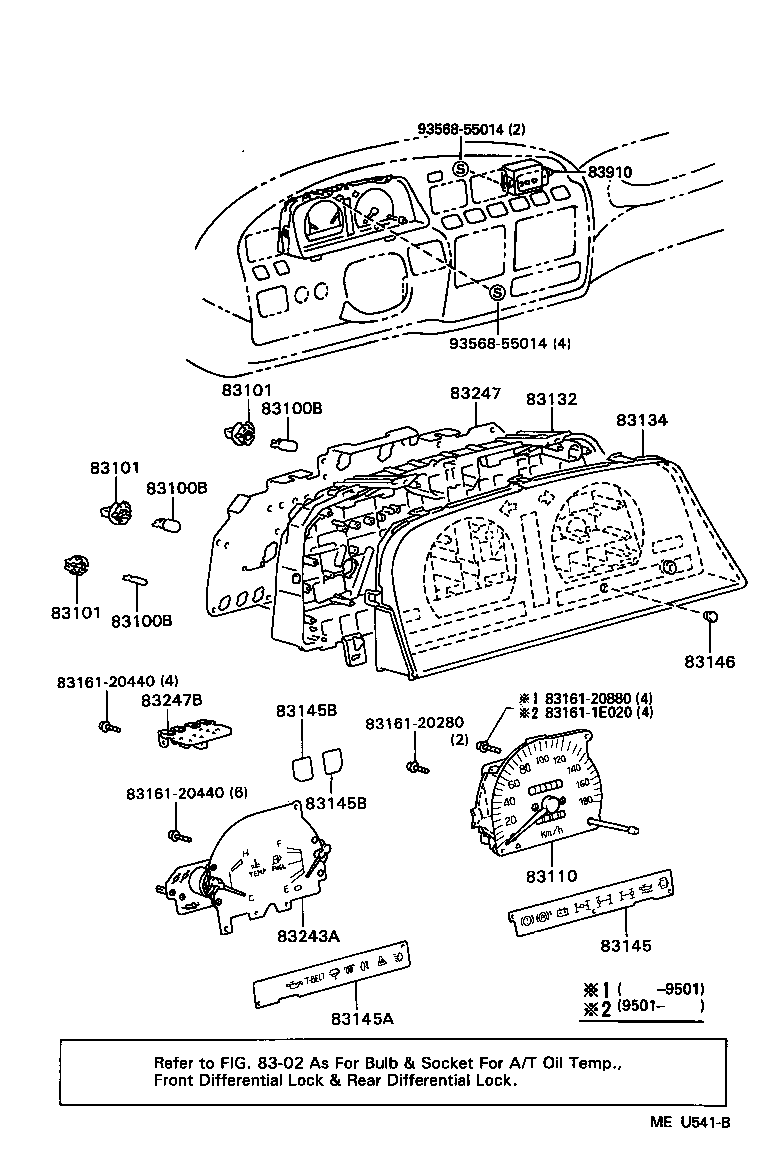

ILLUST NO. 1 OF 3(9208- )
SPEEDMETER & CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
FJ80,HDJ80,HZJ80..GX,VX 12V 3.4W |
3 | ||
| 90981-11018 |
HDJ80..LHD 12V 1.2W W/O SOCKET |
9 | ||
| 90981-11018 |
HDJ80,HZJ80 12V 1.2W W/O SOCKET |
12 | ||
| 99132-12034 |
HDJ80 12V 3.4W |
3 | ||
| 90981-11035 |
FJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
7 | ||
| 90981-11018 |
HDJ80..LHD..VX 12V 1.2W W/O SOCKET,POWER STEERING---PPS |
12 | ||
| 90981-11018 |
FZJ80,HDJ80,HZJ80 12V 1.2W W/O SOCKET |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
FJ80,HDJ80,HZJ80..GX,VX 12V 3.4W |
3 | ||
| 90981-11018 |
HDJ80..LHD 12V 1.2W W/O SOCKET |
9 | ||
| 90981-11018 |
HDJ80,HZJ80 12V 1.2W W/O SOCKET |
12 | ||
| 99132-12034 |
HDJ80 12V 3.4W |
3 | ||
| 90981-11035 |
FJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
7 | ||
| 90981-11018 |
HDJ80..LHD..VX 12V 1.2W W/O SOCKET,POWER STEERING---PPS |
12 | ||
| 90981-11018 |
FZJ80,HDJ80,HZJ80 12V 1.2W W/O SOCKET |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
FJ80,HDJ80,HZJ80..GX,VX 12V 3.4W |
3 | ||
| 90981-11018 |
HDJ80..LHD 12V 1.2W W/O SOCKET |
9 | ||
| 90981-11018 |
HDJ80,HZJ80 12V 1.2W W/O SOCKET |
12 | ||
| 99132-12034 |
HDJ80 12V 3.4W |
3 | ||
| 90981-11035 |
FJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
7 | ||
| 90981-11018 |
HDJ80..LHD..VX 12V 1.2W W/O SOCKET,POWER STEERING---PPS |
12 | ||
| 90981-11018 |
FZJ80,HDJ80,HZJ80 12V 1.2W W/O SOCKET |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HDJ80..LHD..VX POWER STEERING---PPS,1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
HDJ80,HZJ80 1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
HDJ80..LHD 1.2W OR 1.4W BULB |
9 | ||
| 83101-14040 |
HDJ80..ATM 3.4W BULB GREEN CAP |
14 | ||
| 83101-20040 |
FJ80,HDJ80,HZJ80..GX,VX 3.4W BULB GREEN CAP |
7 | ||
| 83101-14040 |
FZJ80,HDJ80,HZJ80 1.2W OR 1.4W BULB |
1 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HDJ80..LHD..VX POWER STEERING---PPS,1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
HDJ80,HZJ80 1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
HDJ80..LHD 1.2W OR 1.4W BULB |
9 | ||
| 83101-14040 |
HDJ80..ATM 3.4W BULB GREEN CAP |
14 | ||
| 83101-20040 |
FJ80,HDJ80,HZJ80..GX,VX 3.4W BULB GREEN CAP |
7 | ||
| 83101-14040 |
FZJ80,HDJ80,HZJ80 1.2W OR 1.4W BULB |
1 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HDJ80..LHD..VX POWER STEERING---PPS,1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
HDJ80,HZJ80 1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
HDJ80..LHD 1.2W OR 1.4W BULB |
9 | ||
| 83101-14040 |
HDJ80..ATM 3.4W BULB GREEN CAP |
14 | ||
| 83101-20040 |
FJ80,HDJ80,HZJ80..GX,VX 3.4W BULB GREEN CAP |
7 | ||
| 83101-14040 |
FZJ80,HDJ80,HZJ80 1.2W OR 1.4W BULB |
1 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-60370 |
HDJ80..LHD..VX W(POWER STEERING---PPS) |
1 | ||
| 83110-60370 |
HDJ80..LHD..VX W(POWER STEERING---PPS) |
1 | ||
| 83110-60370 |
HDJ80..LHD..VX W(DIFFERENTIAL LOCK) OR W(POWER STEERING---PPS) |
1 | ||
| 83110-60350 |
HDJ80..LHD |
1 | ||
| 83110-60201 |
HDJ80,HZJ80..LHD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-60100 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 83132-60720 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-60120 |
HDJ80,HZJ80..GX,VX |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-60100 |
HDJ80..LHD..VX W(POWER STEERING) |
1 | ||
| 83146-60440 |
FZJ80,HDJ80..ATM |
1 | ||
| 83145-60120 |
HDJ80..LHD |
1 | ||
| 83145-60100 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-60400 |
HDJ80,HZJ80..GX,VX |
1 | ||
| 83145-60220 |
HDJ80..LHD |
1 | ||
| 83145-60400 |
HDJ80..LHD..VX W(POWER STEERING) |
1 | ||
| 83146-60420 |
HDJ80..ATM |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2B460 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2B460 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 83146 - GROMMET, METER GLASS | ||||
| 83145-89318 |
HDJ80,HZJ80 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-60040 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83149-60720 |
HDJ80..ATM |
1 | ||
| 83247-60200 |
HDJ80..LHD..VX W(POWER STEERING) |
1 | ||
| 83247-60120 |
HDJ80..LHD |
1 | ||
| 83247-60200 |
HDJ80,HZJ80..GX,VX |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83247-95N29 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-60030 |
FJ80,FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 83910-60050 |
FJ80,FZJ80,HDJ80,HZJ80..LHD..(GX,VX) MULTIPLEX TYPE |
1 | ||
| Common parts | ||||
| 83161-1E020 | ||||
| 83161-20280 | ||||
| 83161-20440 | ||||
| 83161-20880 | ||||
| 93568-55014 | ||||
ILLUST NO. 1 OF 3(9208- )
SPEEDMETER & CLOCK W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
FJ80,HDJ80,HZJ80..GX,VX 12V 3.4W |
3 | ||
| 90981-11018 |
HDJ80..LHD 12V 1.2W W/O SOCKET |
9 | ||
| 90981-11018 |
HDJ80,HZJ80 12V 1.2W W/O SOCKET |
12 | ||
| 99132-12034 |
HDJ80 12V 3.4W |
3 | ||
| 90981-11035 |
FJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
7 | ||
| 90981-11018 |
HDJ80..LHD..VX 12V 1.2W W/O SOCKET,POWER STEERING---PPS |
12 | ||
| 90981-11018 |
FZJ80,HDJ80,HZJ80 12V 1.2W W/O SOCKET |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
FJ80,HDJ80,HZJ80..GX,VX 12V 3.4W |
3 | ||
| 90981-11018 |
HDJ80..LHD 12V 1.2W W/O SOCKET |
9 | ||
| 90981-11018 |
HDJ80,HZJ80 12V 1.2W W/O SOCKET |
12 | ||
| 99132-12034 |
HDJ80 12V 3.4W |
3 | ||
| 90981-11035 |
FJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
7 | ||
| 90981-11018 |
HDJ80..LHD..VX 12V 1.2W W/O SOCKET,POWER STEERING---PPS |
12 | ||
| 90981-11018 |
FZJ80,HDJ80,HZJ80 12V 1.2W W/O SOCKET |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
FJ80,HDJ80,HZJ80..GX,VX 12V 3.4W |
3 | ||
| 90981-11018 |
HDJ80..LHD 12V 1.2W W/O SOCKET |
9 | ||
| 90981-11018 |
HDJ80,HZJ80 12V 1.2W W/O SOCKET |
12 | ||
| 99132-12034 |
HDJ80 12V 3.4W |
3 | ||
| 90981-11035 |
FJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
7 | ||
| 90981-11018 |
HDJ80..LHD..VX 12V 1.2W W/O SOCKET,POWER STEERING---PPS |
12 | ||
| 90981-11018 |
FZJ80,HDJ80,HZJ80 12V 1.2W W/O SOCKET |
1 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HDJ80..LHD..VX POWER STEERING---PPS,1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
HDJ80,HZJ80 1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
HDJ80..LHD 1.2W OR 1.4W BULB |
9 | ||
| 83101-14040 |
HDJ80..ATM 3.4W BULB GREEN CAP |
14 | ||
| 83101-20040 |
FJ80,HDJ80,HZJ80..GX,VX 3.4W BULB GREEN CAP |
7 | ||
| 83101-14040 |
FZJ80,HDJ80,HZJ80 1.2W OR 1.4W BULB |
1 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HDJ80..LHD..VX POWER STEERING---PPS,1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
HDJ80,HZJ80 1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
HDJ80..LHD 1.2W OR 1.4W BULB |
9 | ||
| 83101-14040 |
HDJ80..ATM 3.4W BULB GREEN CAP |
14 | ||
| 83101-20040 |
FJ80,HDJ80,HZJ80..GX,VX 3.4W BULB GREEN CAP |
7 | ||
| 83101-14040 |
FZJ80,HDJ80,HZJ80 1.2W OR 1.4W BULB |
1 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HDJ80..LHD..VX POWER STEERING---PPS,1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
HDJ80,HZJ80 1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
HDJ80..LHD 1.2W OR 1.4W BULB |
9 | ||
| 83101-14040 |
HDJ80..ATM 3.4W BULB GREEN CAP |
14 | ||
| 83101-20040 |
FJ80,HDJ80,HZJ80..GX,VX 3.4W BULB GREEN CAP |
7 | ||
| 83101-14040 |
FZJ80,HDJ80,HZJ80 1.2W OR 1.4W BULB |
1 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-60370 |
HDJ80..LHD..VX W(POWER STEERING---PPS) |
1 | ||
| 83110-60370 |
HDJ80..LHD..VX W(POWER STEERING---PPS) |
1 | ||
| 83110-60370 |
HDJ80..LHD..VX W(DIFFERENTIAL LOCK) OR W(POWER STEERING---PPS) |
1 | ||
| 83110-60350 |
HDJ80..LHD |
1 | ||
| 83110-60201 |
HDJ80,HZJ80..LHD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-60100 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 83132-60720 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-60120 |
HDJ80,HZJ80..GX,VX |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-60100 |
HDJ80..LHD..VX W(POWER STEERING) |
1 | ||
| 83146-60440 |
FZJ80,HDJ80..ATM |
1 | ||
| 83145-60120 |
HDJ80..LHD |
1 | ||
| 83145-60100 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-60400 |
HDJ80,HZJ80..GX,VX |
1 | ||
| 83145-60220 |
HDJ80..LHD |
1 | ||
| 83145-60400 |
HDJ80..LHD..VX W(POWER STEERING) |
1 | ||
| 83146-60420 |
HDJ80..ATM |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2B460 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2B460 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 83146 - GROMMET, METER GLASS | ||||
| 83145-89318 |
HDJ80,HZJ80 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-60300 |
HDJ80 |
1 | ||
| 83242-60880 |
HDJ80..ATM |
1 | ||
| 83242-60300 |
HDJ80..LHD..VX W(POWER STEERING) |
1 | ||
| 83242-6A180 |
HDJ80..ATM |
1 | ||
| 83242-60280 |
HDJ80,HZJ80..LHD..(GX,VX) |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-60040 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-60020 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 83244-60240 |
HDJ80,HZJ80..GX,VX |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83149-60720 |
HDJ80..ATM |
1 | ||
| 83247-60200 |
HDJ80..LHD..VX W(POWER STEERING) |
1 | ||
| 83247-60120 |
HDJ80..LHD |
1 | ||
| 83247-60200 |
HDJ80,HZJ80..GX,VX |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83247-95N29 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-60030 |
FJ80,FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 83910-60050 |
FJ80,FZJ80,HDJ80,HZJ80..LHD..(GX,VX) MULTIPLEX TYPE |
1 | ||
| Common parts | ||||
| 83161-1E020 | ||||
| 83161-20100 | ||||
| 83161-20280 | ||||
| 83161-20440 | ||||
| 83161-20880 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
