Toyota Land cruiser HDJ80 WIRING & CLAMP

HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995

Engine 1HDT

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 9(9001- )HDJ80,HZJ80

Click highlighted areas on diagram

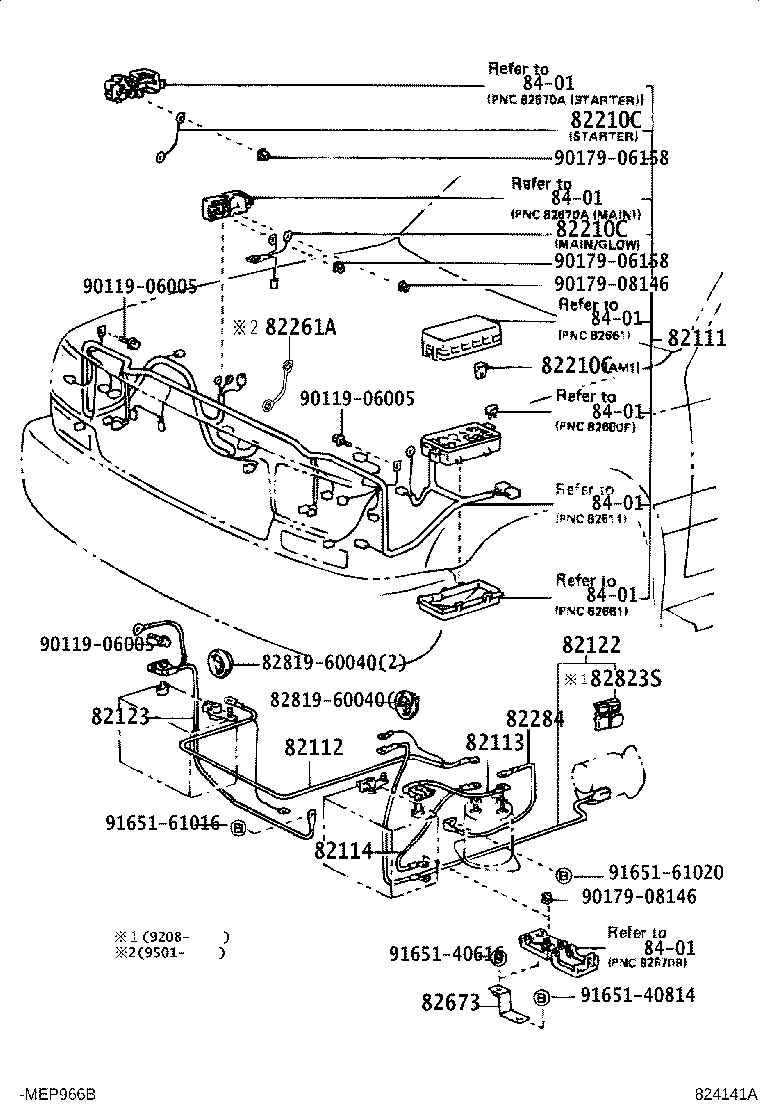

E/G ROOM WIRE

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-60180	HDJ80,HZJ80..LHD	01/1990 - 08/1991	1
82111-60181	HDJ80,HZJ80..LHD	08/1991 - 08/1992	1
82111-60182	HDJ80,HZJ80..LHD	08/1992 - 01/1995	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-60050	HDJ80,HZJ80	01/1990 - 05/1996	1
82113 - WIRE, ENGINE ROOM, NO.3
82113-60010	HDJ80,HZJ80	01/1990 - 05/1996	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-60010	HDJ80,HZJ80	01/1990 - 05/1996	1
82122 - WIRE, ENGINE, NO.2
82122-60050	HDJ80,HZJ80	01/1990 - 08/1992	1
82123 - WIRE, ENGINE, NO.3
82123-60040	HDJ80,HZJ80	08/1992 - 01/1995	1
82123-60040	HDJ80,HZJ80	01/1990 - 01/1995	1
82210C - FUSIBLE LINK
90982-08206	HDJ80..ATM GLOW RESISTER,E/G WIRE GLOW	01/1990 - 08/1992	1
90982-08265	HDJ80,HZJ80 L=110,0.5 GREEN,ST	01/1990 - 01/1995	1
90982-08227	FJ80,FZJ80,HDJ80,HZJ80 50A,TERM.:FEMALE,RED,AM1(RELAY BLOCK)	01/1990 - 01/1995	1
90982-08266	HDJ80,HZJ80 MAIN,GLOW,HEAD,AM1,MAIN/GLOW	01/1990 - 01/1995	1
90982-08206	HDJ80,HZJ80 GLOW RESISTER	08/1992 - 01/1995	1
90982-08266	HDJ80,HZJ80 MAIN,GLOW,HEAD,AM1,MAIN/GLOW	08/1992 - 01/1995	1
82210C - FUSIBLE LINK
90982-08206	HDJ80..ATM GLOW RESISTER,E/G WIRE GLOW	01/1990 - 08/1992	1
90982-08265	HDJ80,HZJ80 L=110,0.5 GREEN,ST	01/1990 - 01/1995	1
90982-08227	FJ80,FZJ80,HDJ80,HZJ80 50A,TERM.:FEMALE,RED,AM1(RELAY BLOCK)	01/1990 - 01/1995	1
90982-08266	HDJ80,HZJ80 MAIN,GLOW,HEAD,AM1,MAIN/GLOW	01/1990 - 01/1995	1
90982-08206	HDJ80,HZJ80 GLOW RESISTER	08/1992 - 01/1995	1
90982-08266	HDJ80,HZJ80 MAIN,GLOW,HEAD,AM1,MAIN/GLOW	08/1992 - 01/1995	1
82210C - FUSIBLE LINK
90982-08206	HDJ80..ATM GLOW RESISTER,E/G WIRE GLOW	01/1990 - 08/1992	1
90982-08265	HDJ80,HZJ80 L=110,0.5 GREEN,ST	01/1990 - 01/1995	1
90982-08227	FJ80,FZJ80,HDJ80,HZJ80 50A,TERM.:FEMALE,RED,AM1(RELAY BLOCK)	01/1990 - 01/1995	1
90982-08266	HDJ80,HZJ80 MAIN,GLOW,HEAD,AM1,MAIN/GLOW	01/1990 - 01/1995	1
90982-08206	HDJ80,HZJ80 GLOW RESISTER	08/1992 - 01/1995	1
90982-08266	HDJ80,HZJ80 MAIN,GLOW,HEAD,AM1,MAIN/GLOW	08/1992 - 01/1995	1
82284 - WIRE, EARTH
82284-60010	HDJ80,HZJ80 TRANSFER RELAY EARH	01/1990 - 08/1992	1
82673 - BRACKET, JUNCTION BLOCK
82673-60010	HDJ80,HZJ80	01/1990 - 08/1992	1
Common parts
82819-60040
90119-06005
90179-06158
90179-08146
91651-40616
91651-40814
91651-61016
91651-61020
Linked diagrams
8401

ILLUST NO. 3 OF 9(9001-9501)HDJ80,HZJ80

Click highlighted areas on diagram

E/G WIRE & T/M WIRE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-60161	HDJ80..LHD..ATM	08/1991 - 01/1992	1
82121-60162	HDJ80..LHD..ATM	01/1992 - 08/1992	1
82121-60160	HDJ80,HZJ80..LHD..ATM	01/1990 - 08/1991	1
82121-60163	HDJ80..LHD..ATM	08/1992 - 01/1995	1
82125 - WIRE, TRANSMISSION
82125-60070	FJ80,HDJ80,HZJ80..ATM	01/1990 - 08/1991	1
82125-60081	FZJ80,HDJ80..ATM	08/1992 - 01/1995	1
82125-60080	FJ80,HDJ80..ATM	08/1991 - 08/1992	1
82210C - FUSIBLE LINK
90982-08206	HDJ80..ATM GLOW RESISTER,E/G WIRE GLOW	01/1990 - 08/1992	1
90982-08265	HDJ80,HZJ80 L=110,0.5 GREEN,ST	01/1990 - 01/1995	1
90982-08227	FJ80,FZJ80,HDJ80,HZJ80 50A,TERM.:FEMALE,RED,AM1(RELAY BLOCK)	01/1990 - 01/1995	1
90982-08266	HDJ80,HZJ80 MAIN,GLOW,HEAD,AM1,MAIN/GLOW	01/1990 - 01/1995	1
90982-08206	HDJ80,HZJ80 GLOW RESISTER	08/1992 - 01/1995	1
90982-08266	HDJ80,HZJ80 MAIN,GLOW,HEAD,AM1,MAIN/GLOW	08/1992 - 01/1995	1
82251 - WIRE, SPEED SENSOR
82251-60050	FZJ80,HDJ80,HZJ80..GX,VX W(TRANSFER HF2AV TYPE)	08/1992 - 01/1995	1
82822 - BRACKET,CONNECTOR BLOCK
82822-60010	FZJ80,HDJ80,HZJ80	08/1992 - 01/1995	1
Common parts
82711-12200
82711-1A310
82711-22270
82711-60130
82711-60140
82711-60150
82711-60230
82711-60340
82711-60510
90119-08197
90170-04002
90189-04024
90461-08187
90464-00598
91651-40614
91651-40814
91651-61016

ILLUST NO. 6 OF 9(9001- )

Click highlighted areas on diagram

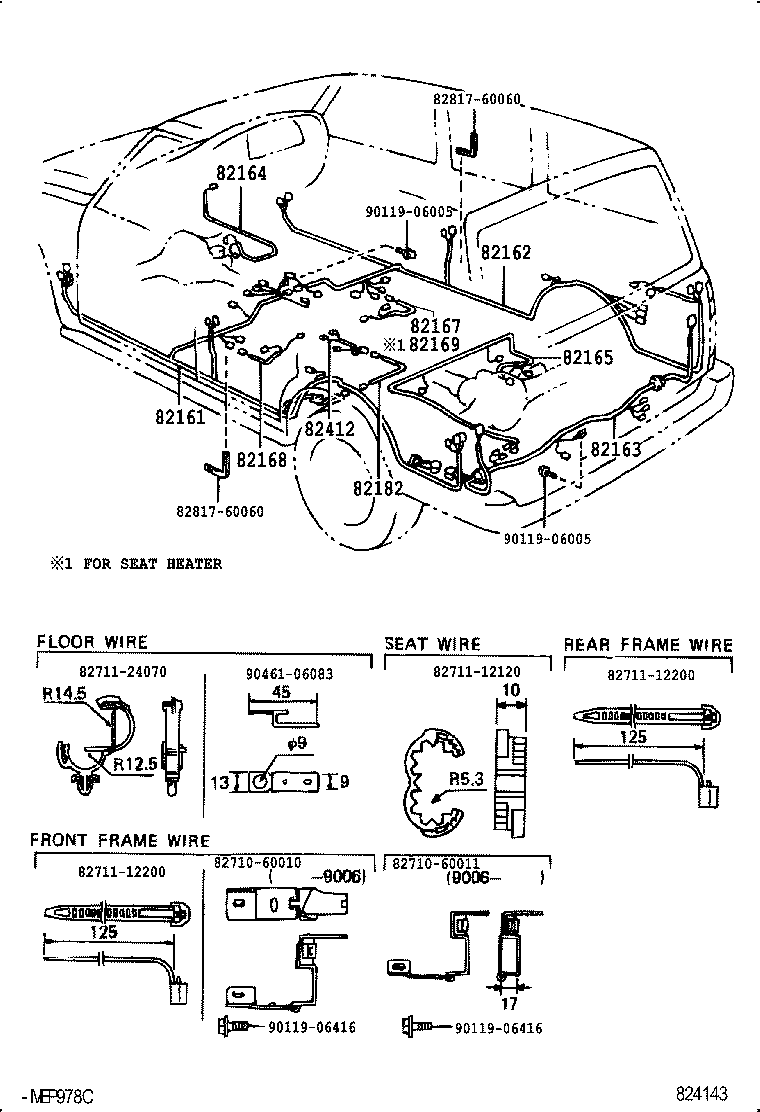

FLOOR,FRAME & SEAT WIRE

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-60090	FJ80,HDJ80,HZJ80..STD,VX W(DIFFERENTIAL LOCK)	01/1990 - 08/1991	1
82161-60080	FJ80,HDJ80..VX	01/1990 - 08/1991	1
82161-60081	FJ80,HDJ80..VX	08/1991 - 08/1992	1
82161-60091	FJ80,HDJ80..VX W(DIFFERENTIAL LOCK)	08/1991 - 08/1992	1
82161-60082	FZJ80,HDJ80..VX	08/1992 - 01/1995	1
82161-60092	FZJ80,HDJ80,HZJ80 W(DIFFERENTIAL LOCK)	08/1992 - 01/1995	1
82162 - WIRE, FLOOR, NO.2
82162-60050	FJ80,HDJ80..VX	01/1990 - 08/1992	1
82162-60051	FZJ80,HDJ80..VX	08/1992 - 01/1995	1
82163 - WIRE, FLOOR, NO.3
82163-60071	HZJ80..STD;FZJ80,HDJ80,HZJ80..LUB	08/1992 - 01/1995	1
82163-60100	FJ80,HDJ80,HZJ80..GX,VX W(DIFFERENTIAL LOCK)	01/1990 - 08/1992	1
82163-60080	HZJ80..STD;FJ80,HDJ80,HZJ80..LUB W(WIRE FOR TRAILER SOCKET)	01/1990 - 03/1990	1
82163-60080	HZJ80..STD;FJ80,HDJ80,HZJ80..LUB TOWING PACKAGE	03/1990 - 08/1992	1
82163-60081	HZJ80..STD;FZJ80,HDJ80,HZJ80..LUB TOWING PACKAGE	08/1992 - 01/1995	1
82163-60070	HZJ80..STD;FJ80,HDJ80,HZJ80..LUB	01/1990 - 08/1992	1
82163-60101	FZJ80,HDJ80,HZJ80..LUB W(DIFFERENTIAL LOCK)	08/1992 - 01/1995	1
82163-60091	FZJ80,HDJ80,HZJ80..LUB W(*66)	08/1992 - 01/1995	1
82164 - WIRE, FRAME
82164-60010	FJ80,HDJ80,HZJ80..LHD	01/1990 - 06/1990	1
82164-60011	FJ80,FZJ80,HDJ80,HZJ80..LHD	06/1990 - 11/1992	1
82164-60011	FZJ80,HDJ80,HZJ80..LHD	08/1992 - 11/1992	1
82164-60012	HDJ80,HZJ80..LHD	11/1992 - 05/1993	1
82164-60011	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
82164-60012	FZJ80,HDJ80,HZJ80..LHD	11/1992 - 05/1993	1
82165 - WIRE, FRAME, NO.2
82165-60080	FZJ80,HDJ80,HZJ80..GX,VX W(*66 & DIFFERENTIAL LOCK)	08/1992 - 01/1995	1
82165-60010	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 01/1995	1
82165-60070	FZJ80,HDJ80,HZJ80..GX,VX W(*66)	08/1992 - 01/1995	1
82165-60010	FJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
82167 - WIRE, SEAT, NO.1
82167-60020	FJ80,FZJ80,HDJ80..LHD..VX	01/1990 - 01/1998	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-60010	HDJ80,HZJ80	01/1990 - 01/1998	1
82412 - WIRE, FUEL GAGE
82412-60040	HDJ80,HZJ80..GX,VX	01/1990 - 08/1992	1
Common parts
82710-60010
82710-60011
82711-12120
82711-12200
82711-24070
82817-60060
90119-06005
90119-06416
90461-06083

ILLUST NO. 9 OF 9(9208- )

Click highlighted areas on diagram

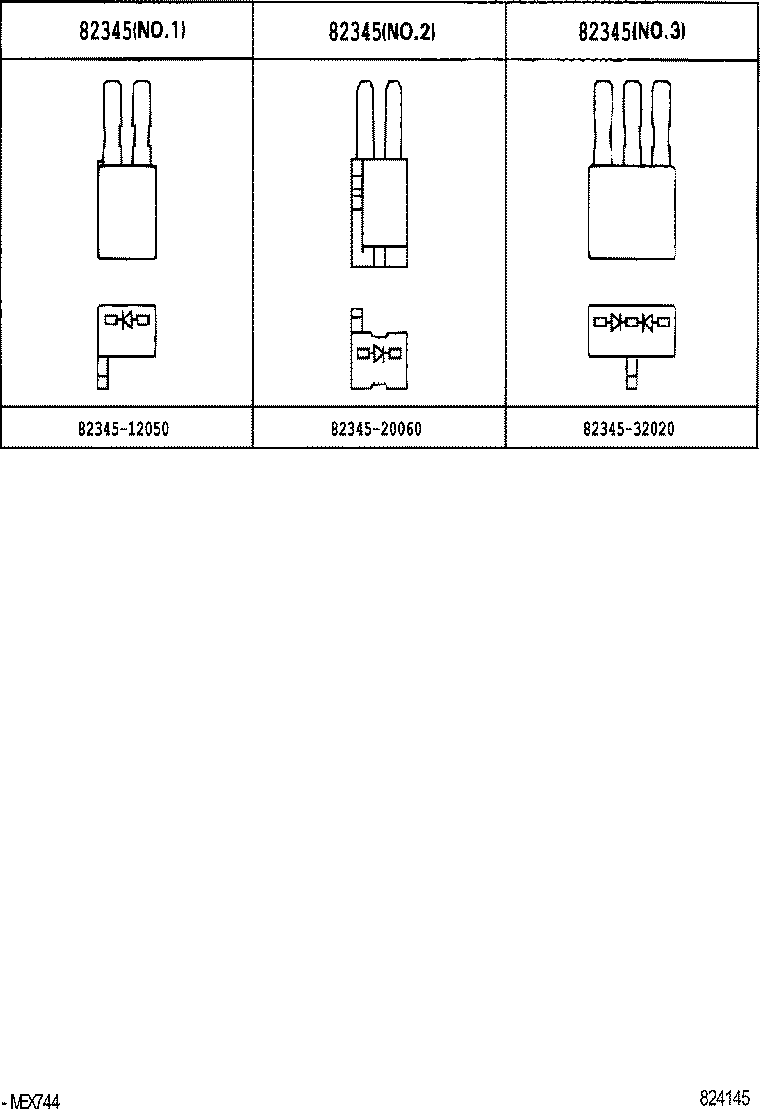

DIODE

Part #	Description	Period	Qty	Price

ILLUST NO. 4 OF 9(9001-9501)LHD

Click highlighted areas on diagram

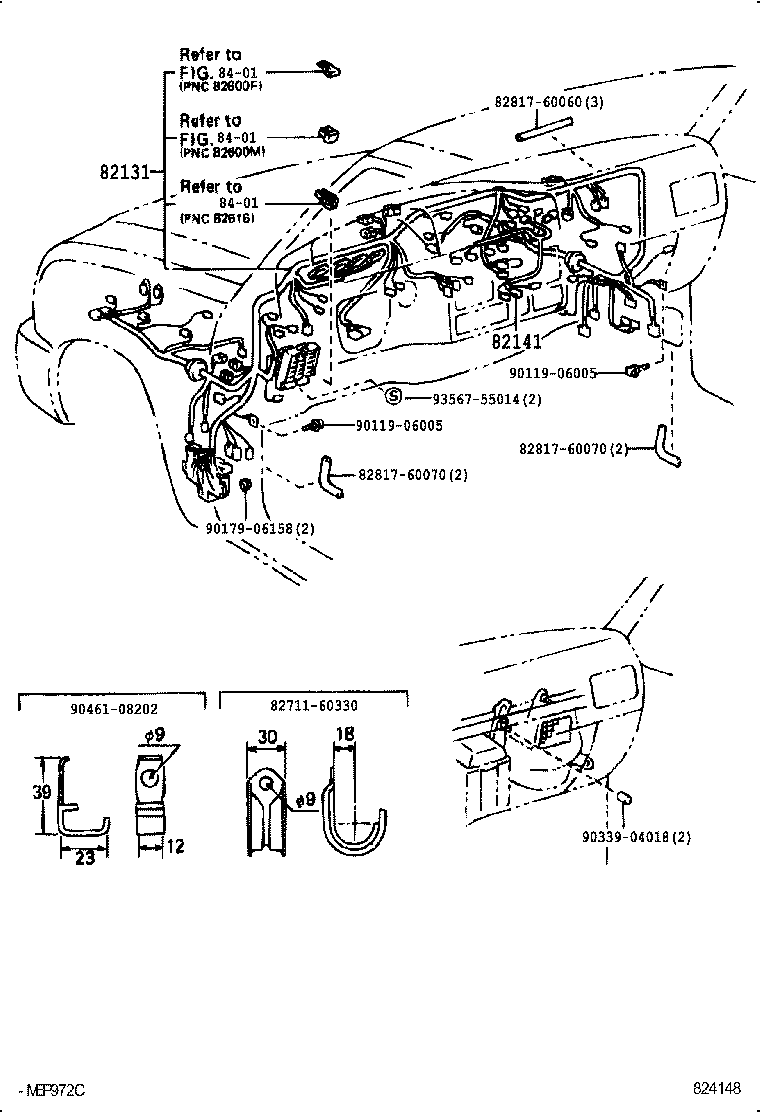

COWL & INSTRUMENT WIRE

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-60340	HDJ80..LHD..VX	01/1990 - 08/1991	1
82131-60342	HDJ80..LHD..VX	08/1992 - 08/1993	1
82131-60341	HDJ80..LHD..VX	08/1991 - 08/1992	1
82131-60343	HDJ80..LHD..VX	08/1993 - 01/1995	1
82141 - WIRE, INSTRUMENT PANEL
82141-60120	FJ80,HDJ80,HZJ80..LHD	01/1990 - 08/1992	1
82141-60131	FZJ80,HDJ80..LHD..ATM	08/1992 - 01/1995	1
Common parts
82711-60330
82817-60060
82817-60070
90119-06005
90179-06158
90339-04018
90461-08202
93567-55014
Linked diagrams
8401

ILLUST NO. 5 OF 9(9001- )

Click highlighted areas on diagram

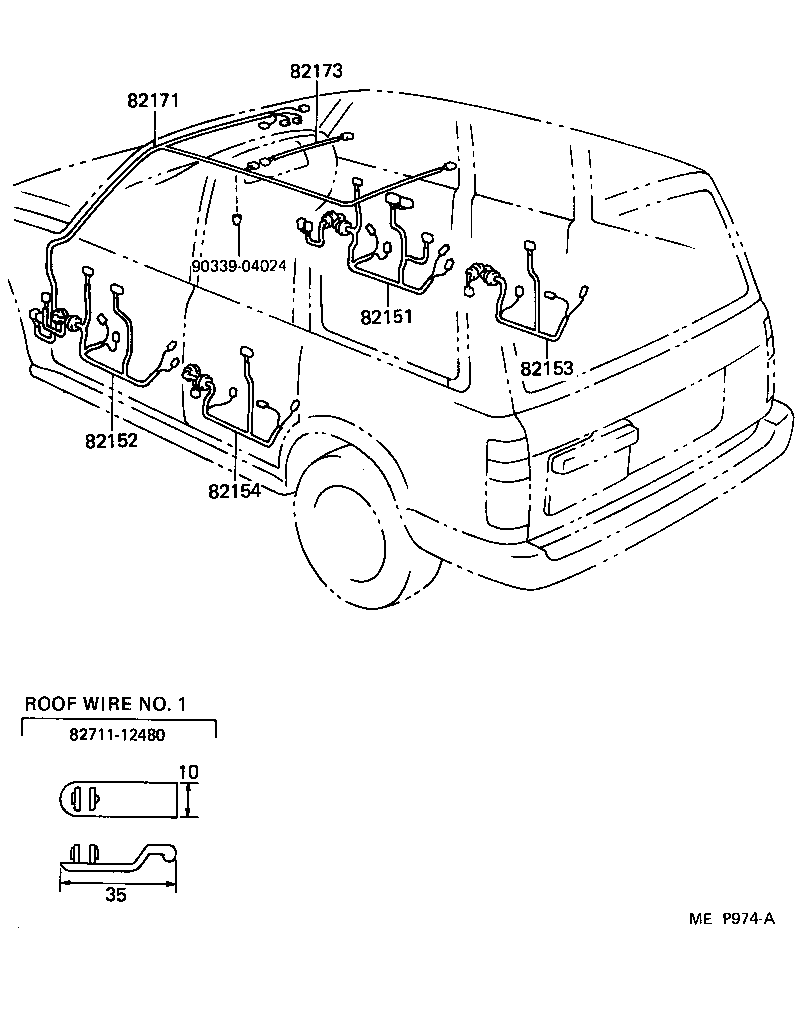

DOOR & ROOF WIRE

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-60070	FJ80,HDJ80..LHD..VX	01/1990 - 08/1992	1
82152-60041	FZJ80,HDJ80..VX	07/1994 - 01/1995	1
82152-60041	FZJ80,HDJ80..LHD..VX	08/1992 - 08/1993	1
82152 - WIRE, FRONT DOOR, LH
82152-60040	FJ80,HDJ80..VX	01/1990 - 08/1991	1
82152-60041	FZJ80,HDJ80..VX	08/1993 - 07/1994	1
82152-60041	FJ80,HDJ80..VX	08/1991 - 08/1992	1
82153 - WIRE, REAR DOOR, NO.1
82153-60020	FZJ80,HDJ80..VX W(5 SPEAKERS)	05/1993 - 01/1995	1
82153-60020	FJ80,FZJ80,HDJ80..VX	01/1990 - 05/1993	1
82153-60060	FZJ80,HDJ80..VX	05/1993 - 01/1995	1
82154 - WIRE, REAR DOOR, NO.2
82153-60020	FZJ80,HDJ80..VX W(5 SPEAKERS)	05/1993 - 01/1995	1
82153-60060	FZJ80,HDJ80..VX	05/1993 - 01/1995	1
82153-60020	FJ80,FZJ80,HDJ80..VX	01/1990 - 05/1993	1
82171 - WIRE, ROOF, NO.1
82171-60020	FJ80,FZJ80,HDJ80..VX W(3RD SEAT---TRANSVERS)	01/1990 - 01/1995	1
82171-60010	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 01/1995	1
82171-60010	FZJ80,HDJ80,HZJ80	08/1992 - 01/1995	1
82171-60050	FJ80,FZJ80,HDJ80..VX W(MOON ROOF & 3RD SEAT---TRANSVERS)	01/1990 - 01/1995	1
82171-60030	HDJ80..RHD..MTM;FJ80,HDJ80,HZJ80..LHD..(GX,VX) W(MOON ROOF)	01/1990 - 08/1992	1
82171-60030	FZJ80,HDJ80,HZJ80..GX,VX W(MOON ROOF)	08/1992 - 01/1995	1
82173 - WIRE, ROOF, NO.3
82173-60010	FJ80,FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1995	1
Common parts
82711-12480
90339-04024

ILLUST NO. 7 OF 9(9001- )

Click highlighted areas on diagram

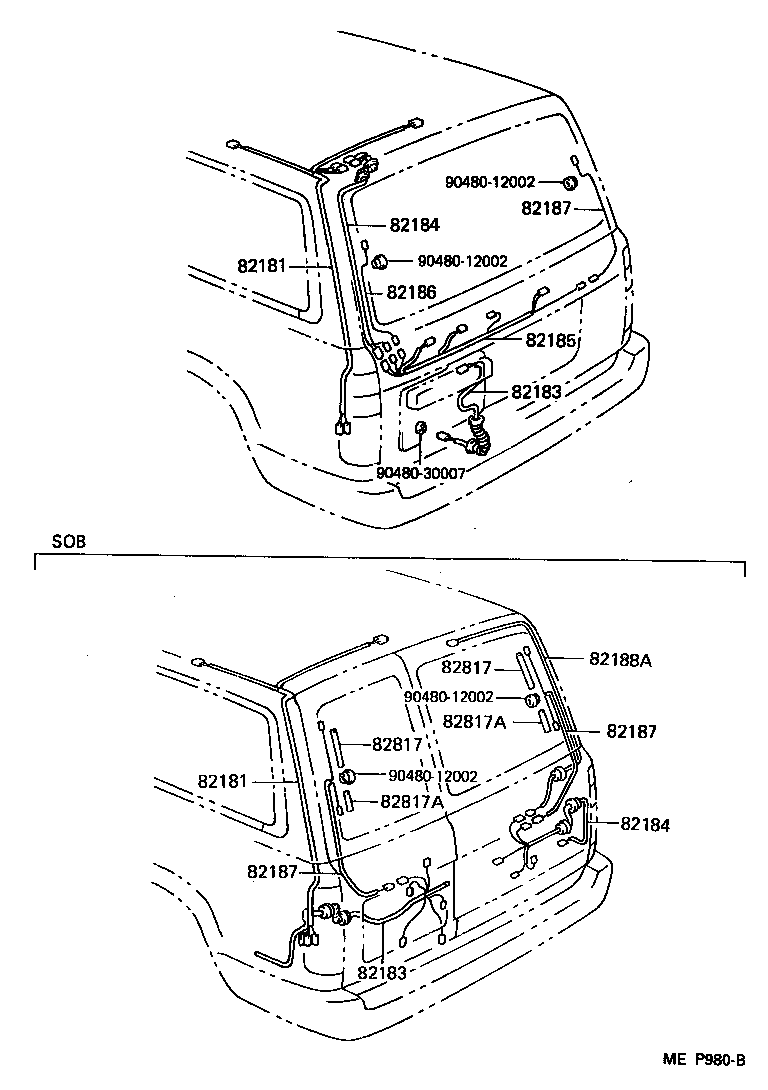

LUGGAGE & BACK DOOR WIRE

Part #	Description	Period	Qty
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-60020	FJ80,HDJ80,HZJ80..LUB	01/1990 - 08/1991	1
82181-60021	FJ80,HDJ80,HZJ80..LUB	08/1991 - 08/1992	1
82181-60022	FZJ80,HDJ80,HZJ80..LUB	08/1992 - 05/1993	1
82181-60022	FZJ80,HDJ80,HZJ80..LUB	08/1992 - 01/1995	1
82181-60022	FZJ80,HDJ80..VX	05/1993 - 01/1995	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-60020	FJ80,HDJ80,HZJ80..LUB	01/1990 - 08/1991	1
82181-60021	FJ80,HDJ80,HZJ80..LUB	08/1991 - 08/1992	1
82181-60022	FZJ80,HDJ80,HZJ80..LUB	08/1992 - 05/1993	1
82181-60022	FZJ80,HDJ80,HZJ80..LUB	08/1992 - 01/1995	1
82181-60022	FZJ80,HDJ80..VX	05/1993 - 01/1995	1
82183 - WIRE, LUGGAGE ROOM, NO.3
82183-60020	FJ80,FZJ80,HDJ80,HZJ80..LUB	01/1990 - 11/1993	1
82183-60020	FZJ80,HDJ80,HZJ80..LUB	08/1992 - 11/1993	1
82183 - WIRE, LUGGAGE ROOM, NO.3
82183-60020	FJ80,FZJ80,HDJ80,HZJ80..LUB	01/1990 - 11/1993	1
82183-60020	FZJ80,HDJ80,HZJ80..LUB	08/1992 - 11/1993	1
82184 - WIRE, BACK DOOR, NO.1
82184-60020	FJ80,HDJ80,HZJ80..LUB	01/1990 - 08/1992	1
82184 - WIRE, BACK DOOR, NO.1
82184-60020	FJ80,HDJ80,HZJ80..LUB	01/1990 - 08/1992	1
82185 - WIRE, BACK DOOR, NO.2
82185-60030	FJ80,HDJ80..VX	01/1990 - 08/1992	1
82186 - WIRE, REAR WINDOW, NO.1
82186-60010	FJ80,FZJ80,HDJ80,HZJ80..LUB	01/1990 - 01/1998	1
82187 - WIRE, REAR WINDOW, NO.2
82186-60010	FJ80,FZJ80,HDJ80,HZJ80..LUB	01/1990 - 01/1998	1
82187 - WIRE, REAR WINDOW, NO.2
82186-60010	FJ80,FZJ80,HDJ80,HZJ80..LUB	01/1990 - 01/1998	1
82187 - WIRE, REAR WINDOW, NO.2
82186-60010	FJ80,FZJ80,HDJ80,HZJ80..LUB	01/1990 - 01/1998	1
Common parts
90480-12002
90480-30007

ILLUST NO. 2 OF 9(9001- )

Click highlighted areas on diagram

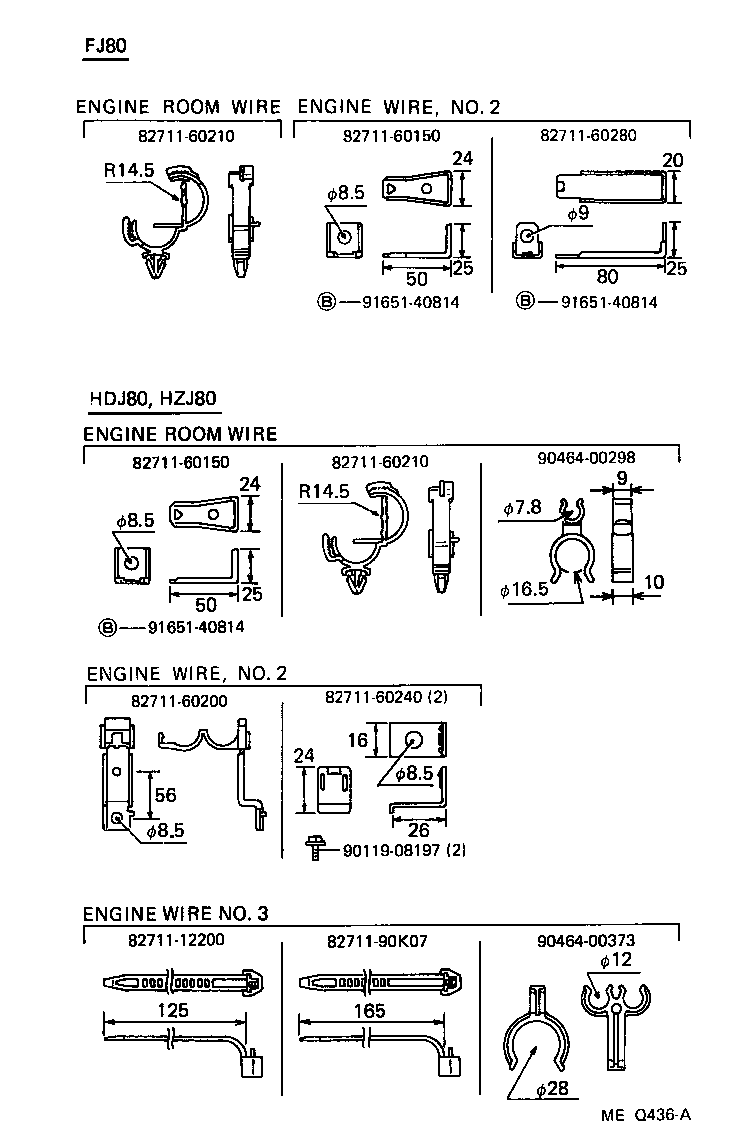

E/G ROOM WIRE CLAMPS

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-60150
82711-60200
82711-60210
82711-60240
82711-60280
82711-90K07
90119-08197
90464-00298
90464-00373
91651-40814

ILLUST NO. 8 OF 9(9208- )

Click highlighted areas on diagram

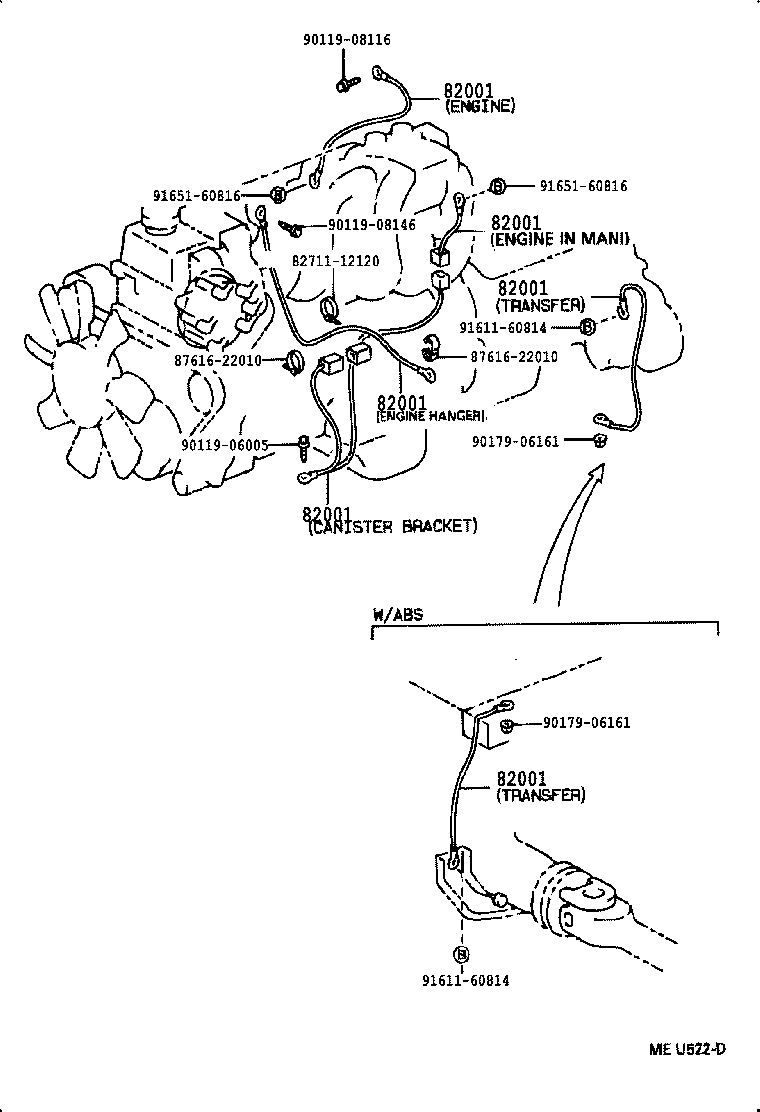

CABLE BOND

Part #	Description	Period	Qty	Price
Common parts
82711-12120
87616-22010
90119-06005
90119-08116
90119-08146
90179-06161
91611-60814
91651-60816
