HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

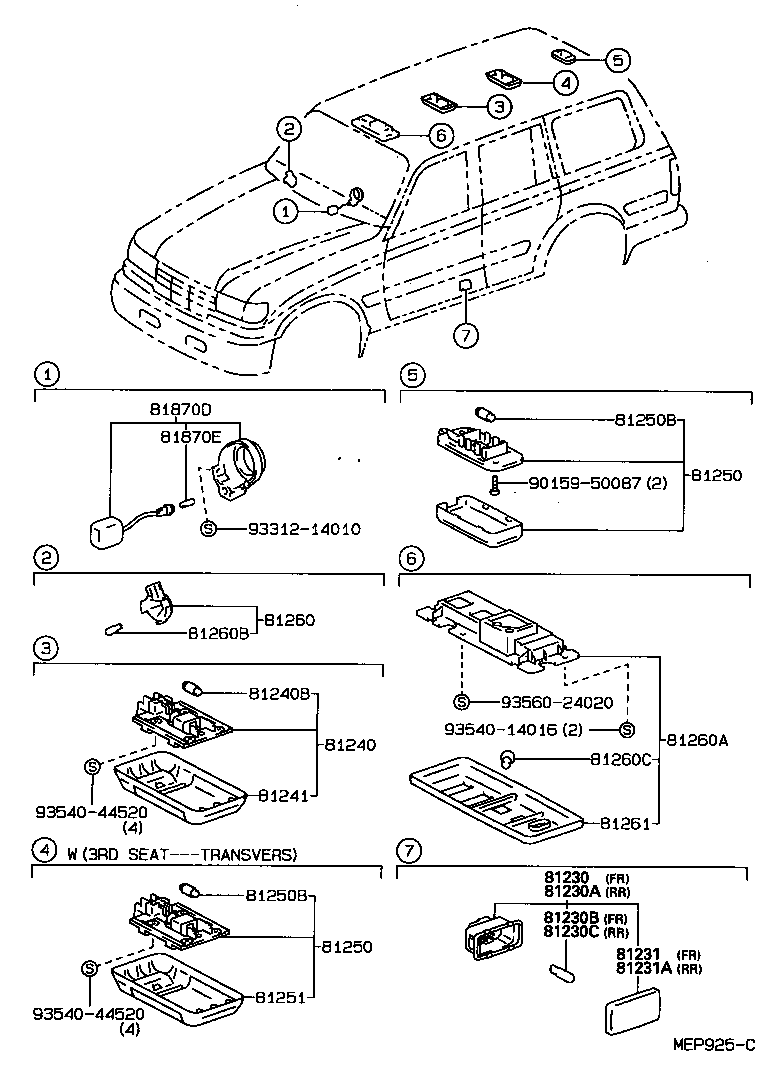

Click highlighted areas on diagram

diagram 81230 81230A 81230B 81230C 81231 81231A 81240 81240B 81241 81250 81250 81250B 81250B 81251 81260 81260A 81260B 81260C 81261 81870D 81870E 9015950087 9331214010 9354014016 9354044520 9354044520 9356024020
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-6003003

FJ80,FZJ80,HDJ80,HZJ80

GRAY,TRIM1#

 1
81240-6003006

FJ80,FZJ80,HDJ80,HZJ80

LIGHT SABLE,TRIM4#

 1
81240-6003006

FZJ80,HDJ80,HZJ80

LIGHT SABLE,TRIM4#

 1
81240-6003003

FZJ80,HDJ80,HZJ80

GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11004

FJ80,FZJ80,HDJ80,HZJ80

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-24020

FJ80,FZJ80,HDJ80,HZJ80

 1
81250 - LAMP ASSY, ROOM, NO.2
81240-6003003

FJ80,FZJ80,HDJ80..VX

W(3RD SEAT---TRANSVERS),GRAY,TRIM1#

 1
81240-9570403

FJ80,HDJ80,HZJ80

GRAY,TRIM1#

 1
81240-9570442

FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
81240-6003003

FZJ80,HDJ80,HZJ80

GRAY,TRIM1#

 1
81240-6003006

FJ80,FZJ80,HDJ80..VX

W(3RD SEAT---TRANSVERS),LIGHT SABLE,TRIM4#

 1
81240-9570416

FJ80,HDJ80,HZJ80

LIGHT SABLE,TRIM4#

 1
81240-6003006

FZJ80,HDJ80,HZJ80

LIGHT SABLE,TRIM4#

 1
81240-95704B1

FZJ80,HDJ80,HZJ80

LIGHT GRAY,TRIM1#

 1
81250 - LAMP ASSY, ROOM, NO.2
81240-6003003

FJ80,FZJ80,HDJ80..VX

W(3RD SEAT---TRANSVERS),GRAY,TRIM1#

 1
81240-9570403

FJ80,HDJ80,HZJ80

GRAY,TRIM1#

 1
81240-9570442

FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
81240-6003003

FZJ80,HDJ80,HZJ80

GRAY,TRIM1#

 1
81240-6003006

FJ80,FZJ80,HDJ80..VX

W(3RD SEAT---TRANSVERS),LIGHT SABLE,TRIM4#

 1
81240-9570416

FJ80,HDJ80,HZJ80

LIGHT SABLE,TRIM4#

 1
81240-6003006

FZJ80,HDJ80,HZJ80

LIGHT SABLE,TRIM4#

 1
81240-95704B1

FZJ80,HDJ80,HZJ80

LIGHT GRAY,TRIM1#

 1
81250B - BULB, ROOM LAMP, NO.2
90981-11004

FJ80,HDJ80,HZJ80

12V 10W

 1
90981-11004

FZJ80,HDJ80,HZJ80

12V 10W

 1
99132-12100

FJ80,FZJ80,HDJ80..VX

12V 10W,W(3RD SEAT---TRANSVERS)

 1
81250B - BULB, ROOM LAMP, NO.2
90981-11004

FJ80,HDJ80,HZJ80

12V 10W

 1
90981-11004

FZJ80,HDJ80,HZJ80

12V 10W

 1
99132-12100

FJ80,FZJ80,HDJ80..VX

12V 10W,W(3RD SEAT---TRANSVERS)

 1
81251 - LENS, ROOM LAMP, NO.2
81241-24020

FJ80,FZJ80,HDJ80..VX

W(3RD SEAT---TRANSVERS)

 1
81241-95013

FJ80,HDJ80,HZJ80

 1
81241-95013

FZJ80,HDJ80,HZJ80

 1
81260 - LAMP ASSY, GLOVE BOX
81260-32071

FJ80,HDJ80,HZJ80..GX,VX

 1
81260A - LAMP ASSY, MAP
81260-60010

FJ80,HDJ80,HZJ80..GX,VX

 1
81260-6001006

FJ80,HDJ80,HZJ80..GX,VX

LIGHT SABLE

 1
81260-60010B6

FZJ80,HDJ80,HZJ80..GX,VX

BLUEISH GRAY,TRIM1#

 1
81260-6001003

FJ80,HDJ80,HZJ80..GX,VX

LIGHT GRAY

 1
81260-6001042

FZJ80,HDJ80,HZJ80..GX,VX

SABLE,TRIM4#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

FJ80,HDJ80,HZJ80..GX,VX

12V 1.2W W/O SOCKET

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

FZJ80,HDJ80,HZJ80..GX,VX

12V 10W

 1
90981-12014

FJ80,HDJ80,HZJ80..GX,VX

12V 10W

 1
81261 - LENS AND COVER, MAP LAMP
81261-6001003

FJ80,FZJ80,HDJ80,HZJ80..GX,VX

LIGHT GRAY,TRIM1#

 1
81261-6001006

FJ80,FZJ80,HDJ80,HZJ80..GX,VX

LIGHT SABLE,TRIM4#

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-14010

FJ80,HDJ80..VX

 1
81870-60010

FJ80,HDJ80..VX

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11014

FJ80,FZJ80,HDJ80..VX

14V 1.4W

 1
Common parts
90159-50087
93312-14010
93540-14016
93540-44520
93560-24020
