HDJ80L-GNPEXW (1990)
Toyota Land Cruiser

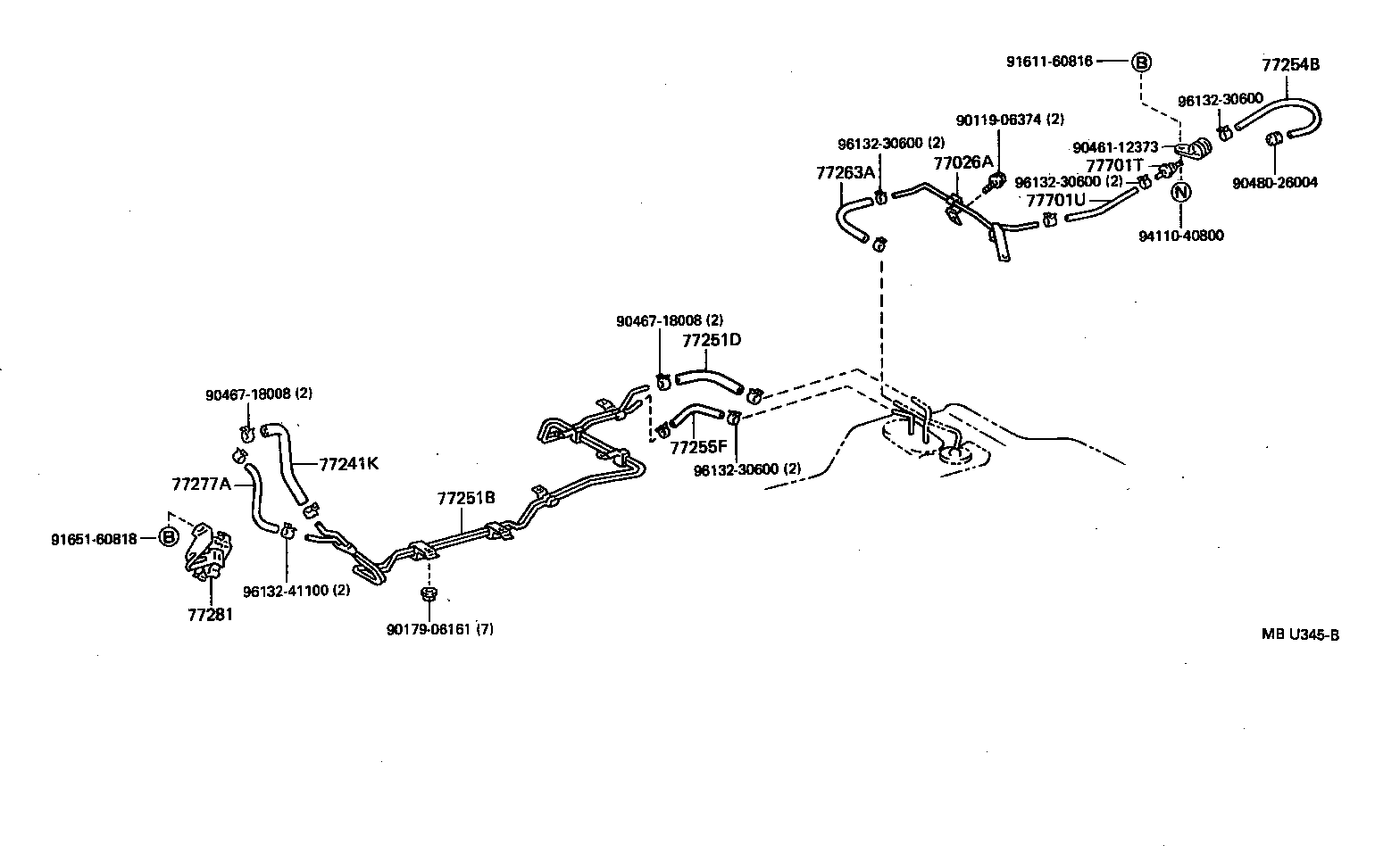

ILLUST NO. 2 OF 2(9001- )HDJ80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-60060 |
HDJ80,HZJ80 |
1 | ||
| 77241K - HOSE, FUEL, NO.9 | ||||
| 95332-12048 |
HDJ80 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-60430 |
HDJ80 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95332-12028 |
HDJ80 *H,L=280,ID=12 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 90445-12244 |
HDJ80,HZJ80 L=600 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06030 |
HDJ80,HZJ80 *H,L=300 |
1 | ||
| 77263A - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER NO.3 TUBE) | ||||
| 95333-06020 |
HDJ80,HZJ80 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06060 |
HDJ80,HZJ80 *H,L=600 |
1 | ||
| 23274-17020 |
HDJ80,HZJ80 L=460 |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-60020 |
HDJ80,HZJ80 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10069 |
HDJ80,HZJ80 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06020 |
HDJ80,HZJ80 *H,L=200 |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||
| 90179-06161 | ||||
| 90461-12373 | ||||
| 90467-18008 | ||||
| 90480-26004 | ||||
| 91611-60816 | ||||
| 91651-60818 | ||||
| 94110-40800 | ||||
| 96132-30600 | ||||
| 96132-41100 | ||||

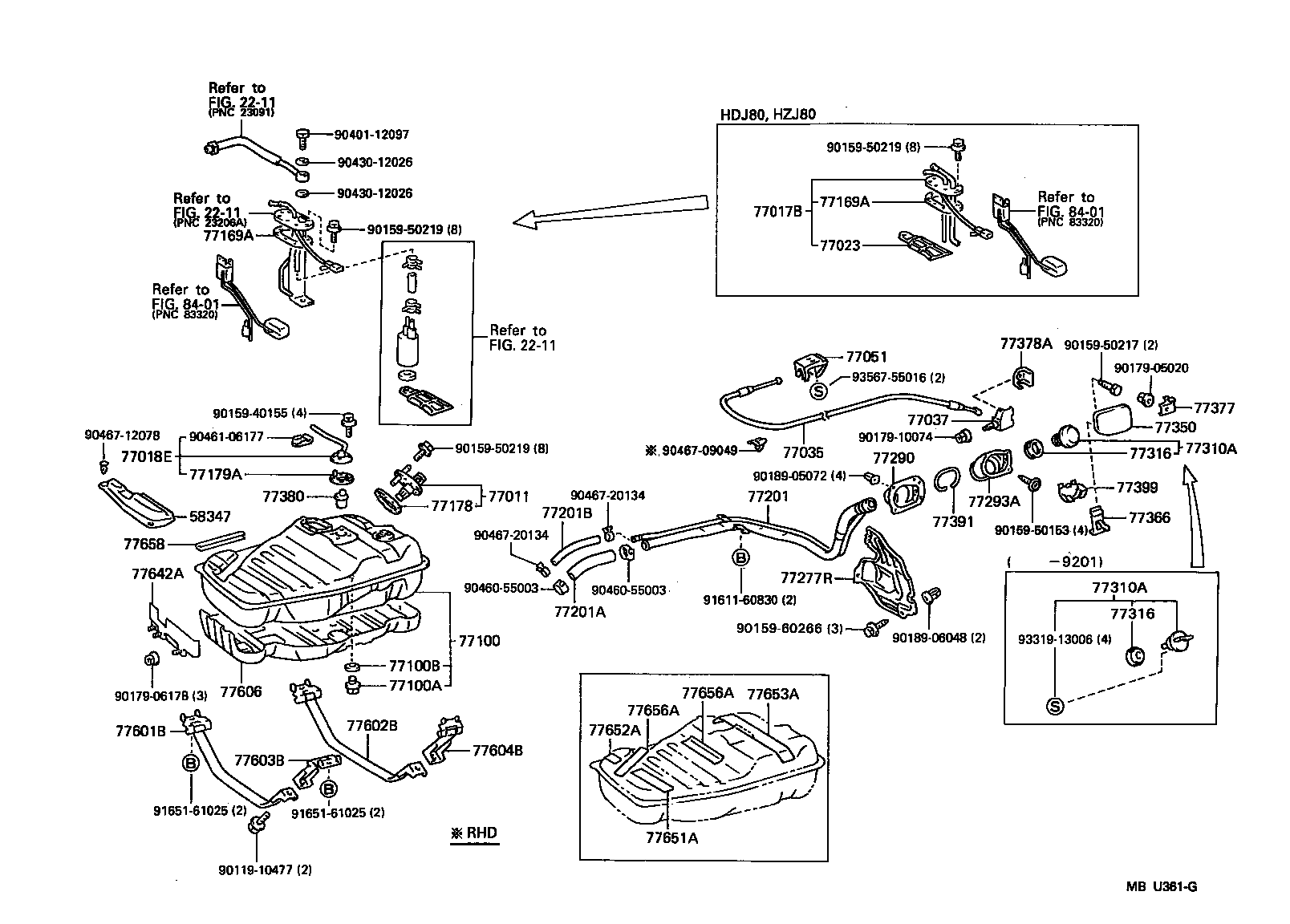

ILLUST NO. 1 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-60150 |
HDJ80 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-60010 |
HDJ80 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-60020 |
FJ80,FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-3006006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 77051-3006003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 77051-3006006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-69025 |
HDJ80,HZJ80 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-60010 |
HDJ80,HZJ80 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-60010 |
HDJ80,HZJ80 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-35030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60330 |
HDJ80,HZJ80 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77213-60090 |
FJ80,FZJ80,HDJ80,HZJ80 MARK=TANK |
1 | ||
| 77201B - HOSE, FUEL, NO.2(FOR FUEL TANK INLET PIPE) | ||||
| 95311-13022 |
FJ80,FZJ80,HDJ80,HZJ80 L=220 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-60050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-35061 |
HDJ80,HZJ80 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-35061 |
HDJ80,HZJ80 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-22020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77378A - COVER, FUEL FILLER OPENING LID LOCK | ||||
| 77378-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77399 - HANGER, FUEL TANK CAP | ||||
| 77399-22010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-60150 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-60060 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77603B - BAND SUB-ASSY, FUEL TANK, NO.2 RH | ||||
| 77603-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77604B - BAND SUB-ASSY, FUEL TANK, NO.2 LH | ||||
| 77604-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60050 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-60090 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-60050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 77656A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-60030 |
FJ80,FZJ80,HDJ80,HZJ80 80X262 |
1 | ||
| 77655-60010 |
FJ80,FZJ80,HDJ80,HZJ80 80X330 |
1 | ||
| 77656A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-60030 |
FJ80,FZJ80,HDJ80,HZJ80 80X262 |
1 | ||
| 77655-60010 |
FJ80,FZJ80,HDJ80,HZJ80 80X330 |
1 | ||
| 77658 - MOULDING, FUEL TANK EDGE | ||||
| 77658-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90119-10477 | ||||
| 90159-40155 | ||||
| 90159-50153 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90159-60266 | ||||
| 90179-05020 | ||||
| 90179-06178 | ||||
| 90179-10074 | ||||
| 90189-05072 | ||||
| 90189-06048 | ||||
| 90401-12097 | ||||
| 90430-12026 | ||||
| 90460-55003 | ||||
| 90461-06177 | ||||
| 90467-09049 | ||||
| 90467-12078 | ||||
| 90467-20134 | ||||
| 91611-60830 | ||||
| 91651-61025 | ||||
| 93319-13006 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||
