HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

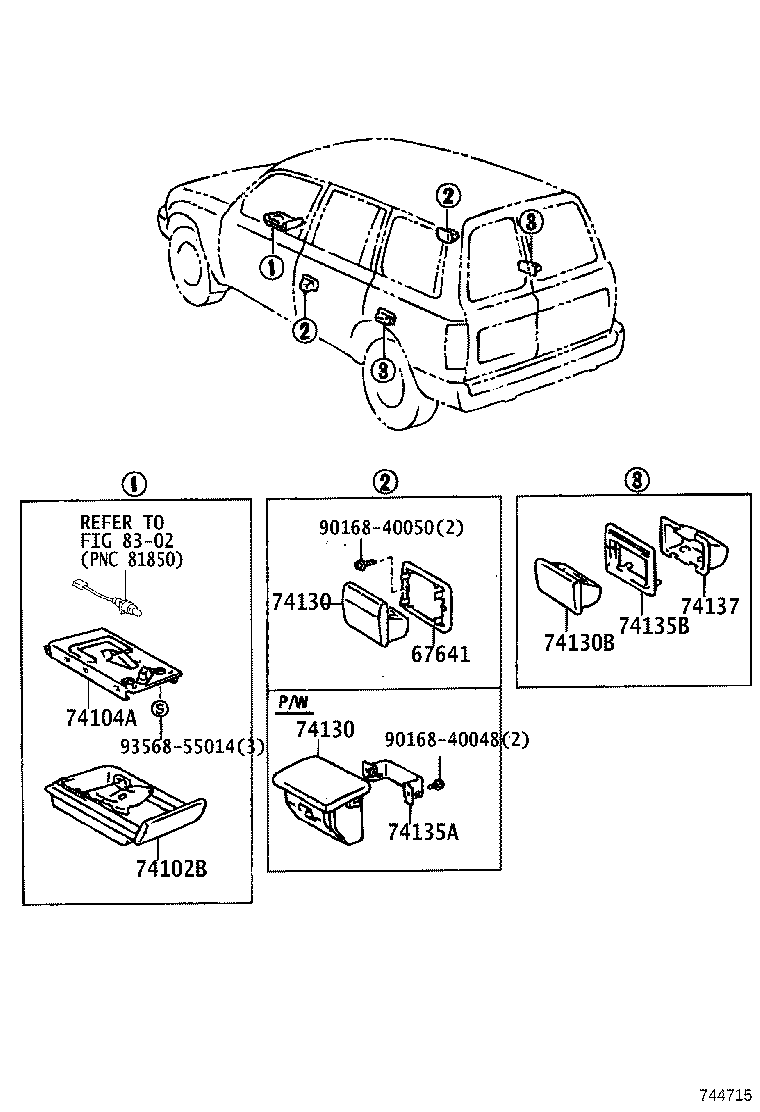

Click highlighted areas on diagram

diagram 67641 74102B 74104A 74130 74130 74130B 74135A 74135B 74137 8302 9016840048 9016840050 9356855014
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-60020

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-60010

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-3203006

FJ80,FZJ80,HDJ80..VX

SABLE,TRIM4#

 2
74130-3203013

FJ80,FZJ80,HDJ80..VX

BLUISH GRAY,TRIM1#

 2
74130 - RECEPTACLE ASSY, REAR ASH
74130-3203006

FJ80,FZJ80,HDJ80..VX

SABLE,TRIM4#

 2
74130-3203013

FJ80,FZJ80,HDJ80..VX

BLUISH GRAY,TRIM1#

 2
74130B - RECEPTACLE ASSY, REAR ASH
74105-1001030

FJ80,HDJ80,HZJ80..GX,VX

SABLE,TRIM4#

 1
74105-10010B0

HZJ80..LUB;FZJ80,HDJ80

BLUISH GRAY,TRIM1#

 1
74105-1001033

FJ80,HDJ80,HZJ80..GX,VX

GRAY,TRIM1#

 1
74105-1001030

HZJ80..LUB;FJ80,FZJ80,HDJ80

SABLE,TRIM4#

 1
74105-1001030

FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
74105-1001033

HZJ80..LUB;FJ80,FZJ80,HDJ80

GRAY,TRIM1#

 1
74135A - RETAINER, REAR ASH RECEPTACLE, NO.1
74135-32010

FJ80,FZJ80,HDJ80,HZJ80..GX,VX

 2
74135B - RETAINER, REAR ASH RECEPTACLE, NO.2
74135-60010

HZJ80..LUB;FJ80,FZJ80,HDJ80

 1
74135-60010

FJ80,HDJ80,HZJ80..GX,VX

 1
74137 - RETAINER, REAR ASH RECEPTACLE, INNER RH
74137-10030

HZJ80..LUB;FJ80,FZJ80,HDJ80

 1
74137-10030

FJ80,HDJ80,HZJ80..GX,VX

 1
Common parts
90168-40048
90168-40050
93568-55014
Linked diagrams
8302
