HDJ80L-GNPEXW (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Jan 1995
Engine
1HDT
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )

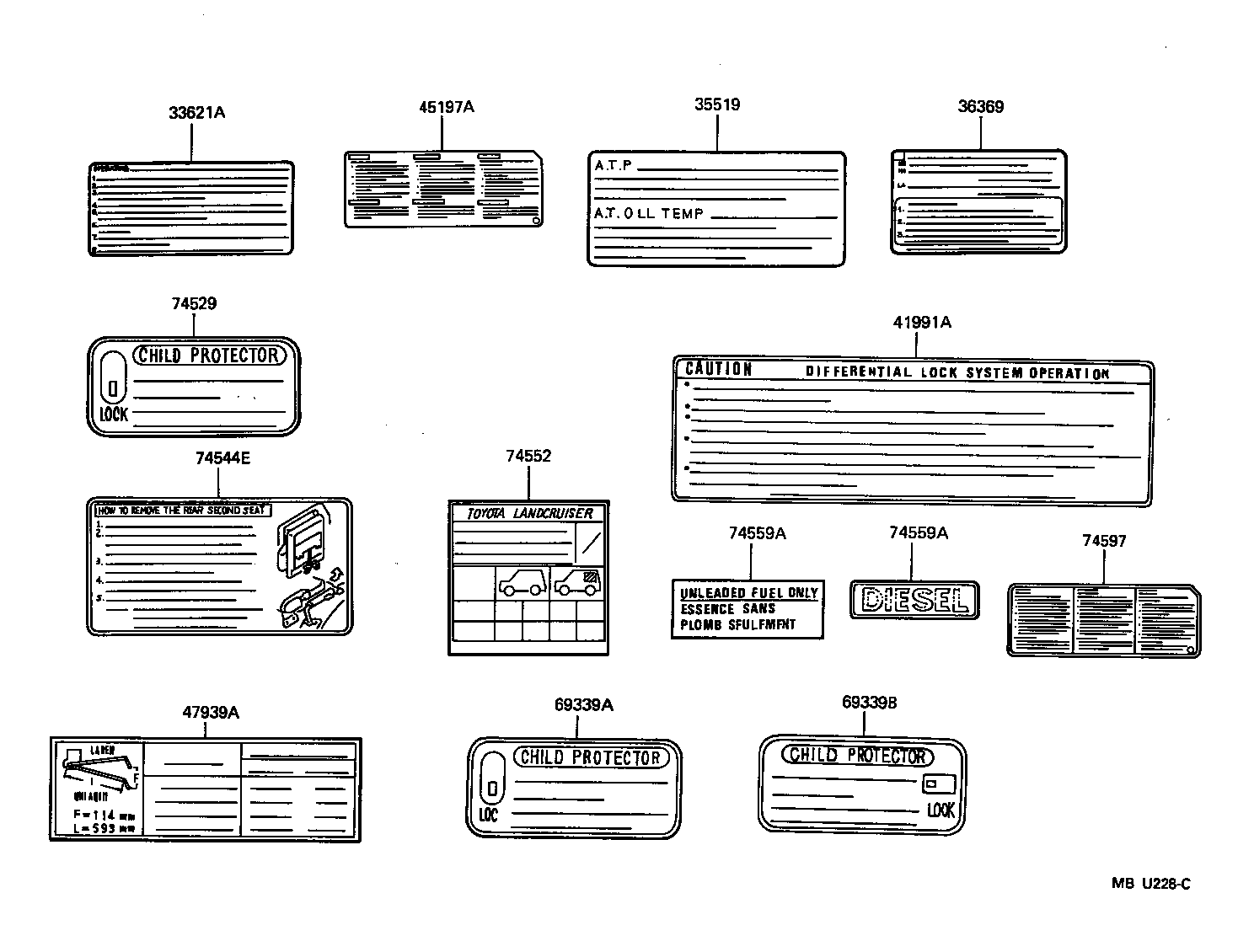

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33621A - PLATE, CONTROL LEVER CAUTION | ||||
| 33621-60310 |
FJ80,HDJ80,HZJ80..ATM |
1 | ||
| 35519 - PLATE, AUTOMATIC TRANSMISSION CAUTION | ||||
| 35519-60040 |
FJ80,HDJ80,HZJ80..ATM |
1 | ||
| 36369 - LABEL, TRANSFER INFORMATION | ||||
| 36369-60110 |
FJ80,HDJ80,HZJ80..ATM |
1 | ||
| 36369-60320 |
FZJ80,HDJ80..ATM W/O(CENTER DIFFERENTIAL LOCK) |
1 | ||
| 36369-60190 |
FJ80,HDJ80,HZJ80..LHD..ATM |
1 | ||
| 41991A - PLATE, CAUTION | ||||
| 41991-60060 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 41991-60061 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41991-60061 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 47939A - PLATE, LOAD SENSING VALVE MARKING | ||||
| 47939-60130 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 47939-60260 |
FZJ80,HDJ80..VX W(3RD TRANSVERS SEAT) |
1 | ||
| 47939-60250 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 47939-60140 |
FJ80,HDJ80..VX W(3RD TRANSVERS SEAT) |
1 | ||
| 69339B - PLATE, CHILD PROTECTOR LOCK CAUTION | ||||
| 69339-91704 |
FJ80,FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION | ||||
| 69339-12010 |
FJ80,FZJ80,HDJ80,HZJ80 DOOR ROCK |
2 | ||
| 74544E - LABEL, REAR NO.2 SEAT INFORMATION | ||||
| 74544-60090 |
FJ80;HDJ80..VX |
1 | ||
| 74544-60090 |
HZJ80..LUB;FZJ80,HDJ80 |
1 | ||
| 74552 - PLATE, SAFETY CAUTION | ||||
| 74582-60590 |
HDJ80 |
1 | ||
| 74582-60100 |
HDJ80..VX |
1 | ||
| 74559A - PLATE, FUEL CAUTION | ||||
| 74559-89101 |
HDJ80,HZJ80 |
1 | ||
| 74559A - PLATE, FUEL CAUTION | ||||
| 74559-89101 |
HDJ80,HZJ80 |
1 | ||
