HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

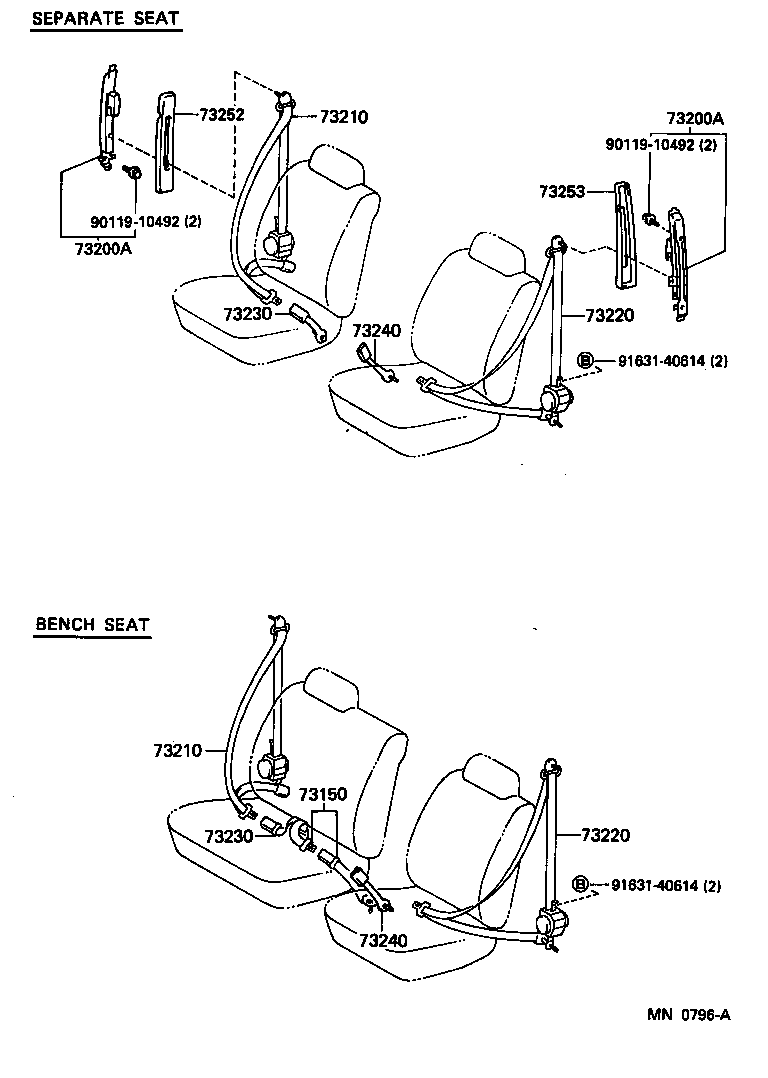

ILLUST NO. 1 OF 3(9001- )

Click highlighted areas on diagram

diagram 73150 73200A 73200A 73210 73210 73220 73220 73230 73230 73240 73240 73252 73253 9011910492 9011910492 9163140614 9163140614
Part # Description Qty Price
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-6001003

FJ80,FZJ80,HDJ80,HZJ80

LIGHT GRAY,TRIM1#

 2
73200-6001006

FJ80,FZJ80,HDJ80,HZJ80

LIGHT SABLE,TRIM4#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-6001003

FJ80,FZJ80,HDJ80,HZJ80

LIGHT GRAY,TRIM1#

 2
73200-6001006

FJ80,FZJ80,HDJ80,HZJ80

LIGHT SABLE,TRIM4#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-6002003

FJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
73210-6002006

FJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73210-60021E0

FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-6002003

FJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
73210-6002006

FJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73210-60021E0

FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-6002006

FJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73220-6002003

FJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
73220-60021E0

FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-6002006

FJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73220-6002003

FJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
73220-60021E0

FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-6001003

FJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
73230-60011E0

FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73230-6001006

FJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73230-60200E0

FZJ80,HDJ80..VX

W(POWER SEAT),SABLE,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-6001003

FJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
73230-60011E0

FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73230-6001006

FJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73230-60200E0

FZJ80,HDJ80..VX

W(POWER SEAT),SABLE,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-60011E0

FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73230-6001003

FJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
73230-6001006

FJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73230-60200E0

FZJ80,HDJ80..VX

W(POWER SEAT),SABLE,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-60011E0

FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73230-6001003

FJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
73230-6001006

FJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73230-60200E0

FZJ80,HDJ80..VX

W(POWER SEAT),SABLE,TRIM4#

 1
73252 - COVER, SHOULDER BELT ANCHOR ADJUST, RH
73252-6001006

FJ80,FZJ80,HDJ80,HZJ80

LIGHT SABLE,TRIM4#

 1
73252-6001003

FJ80,FZJ80,HDJ80,HZJ80

LIGHT GRAY,TRIM1#

 1
73253 - COVER, SHOULDER BELT ANCHOR ADJUST, LH
73253-6001006

FJ80,FZJ80,HDJ80,HZJ80

LIGHT SABLE,TRIM4#

 1
73253-6001003

FJ80,FZJ80,HDJ80,HZJ80

LIGHT GRAY,TRIM1#

 1
Common parts
90119-10492
91631-40614

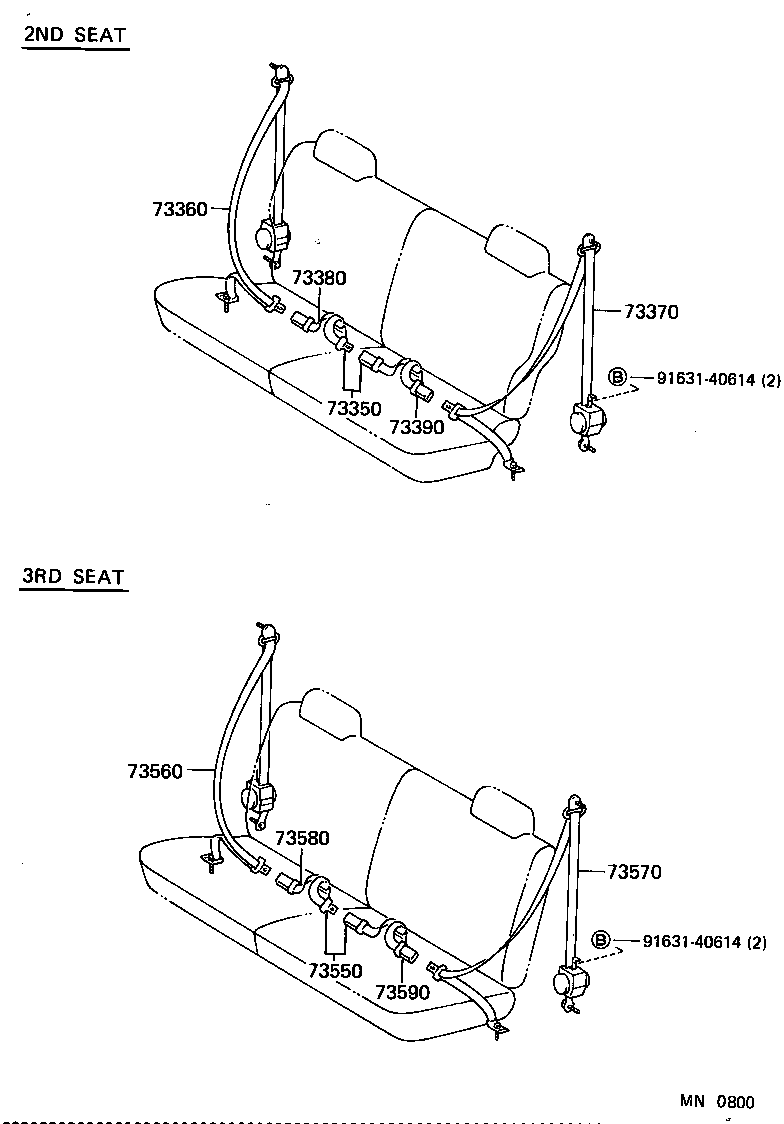

ILLUST NO. 2 OF 3(9001- )

Click highlighted areas on diagram

diagram 73350 73360 73370 73380 73390 73550 73560 73570 73580 73590 9163140614 9163140614
Part # Description Qty Price
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73330-6001006

FJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73350-60070B0

FZJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
73350-60070E0

FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73330-6001003

FJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-6002003

FJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
73360-60021E0

FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73360-60021B0

FZJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
73360-6002006

FJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-6001006

FJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73370-60011B0

FZJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
73370-6001003

FJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
73370-60011E0

FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-6002006

FJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73380-6002003

FJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
73380-60021E0

FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-6002003

FJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
73380-60021E0

FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73380-6002006

FJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
73550 - BELT ASSY, REAR NO.2 SEAT LAP TYPE, CENTER
73550-6001006

FJ80,HDJ80,HZJ80..GX,VX

SABLE,TRIM4#

 1
73550-60011B0

FZJ80,HDJ80,HZJ80..GX,VX

BLUISH GRAY,TRIM1#

 1
73550-6001003

FJ80,HDJ80,HZJ80..GX,VX

BLUISH GRAY,TRIM1#

 1
73550-60011E0

FZJ80,HDJ80,HZJ80..GX,VX

SABLE,TRIM4#

 1
73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH
73560-6004003

FJ80,HDJ80,HZJ80..GX,VX

BLUISH GRAY,TRIM1#

 1
73560-6004006

FJ80,HDJ80,HZJ80..GX,VX

SABLE,TRIM4#

 1
73560-60041B0

FZJ80,HDJ80,HZJ80..GX,VX

BLUISH GRAY,TRIM1#

 1
73560-60041E0

FZJ80,HDJ80,HZJ80..GX,VX

SABLE,TRIM4#

 1
73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH
73570-60041B0

FZJ80,HDJ80,HZJ80..GX,VX

BLUISH GRAY,TRIM1#

 1
73570-60041E0

FZJ80,HDJ80,HZJ80..GX,VX

SABLE,TRIM4#

 1
73570-6004003

FJ80,HDJ80,HZJ80..GX,VX

BLUISH GRAY,TRIM1#

 1
73570-6004006

FJ80,HDJ80,HZJ80..GX,VX

SABLE,TRIM4#

 1
73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH
73580-6001006

FJ80,HDJ80,HZJ80..GX,VX

SABLE,TRIM4#

 1
73580-6001003

FJ80,HDJ80,HZJ80..GX,VX

BLUISH GRAY,TRIM1#

 1
73580-60011E0

FZJ80,HDJ80,HZJ80..GX,VX

SABLE,TRIM4#

 1
73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH
73580-6001003

FJ80,HDJ80,HZJ80..GX,VX

BLUISH GRAY,TRIM1#

 1
73580-6001006

FJ80,HDJ80,HZJ80..GX,VX

SABLE,TRIM4#

 1
73580-60011E0

FZJ80,HDJ80,HZJ80..GX,VX

SABLE,TRIM4#

 1
Common parts
91631-40614
