HDJ80L-GNPEXW (1990)
Toyota Land Cruiser

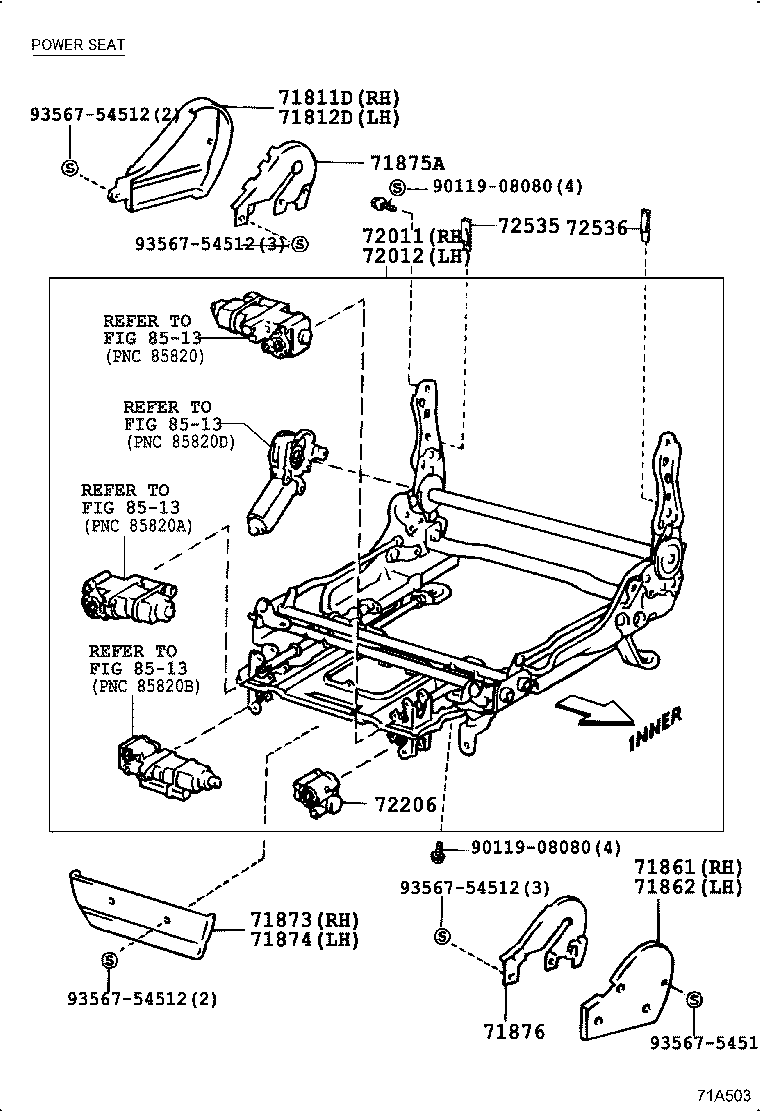

ILLUST NO. 4 OF 4(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2016013 |
HDJ80..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71811-2016006 |
HDJ80..VX COLD AREA PACKAGE,SABLE,TRIM4# |
1 | ||
| 71811-60030B0 |
HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71811-2016006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 71811-2016013 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 71811-60030E0 |
HDJ80..VX LEATHER PACKAGE,SABLE,TRIM4# |
1 | ||
| 71811-2016006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2011006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 71812-60030E0 |
HDJ80..VX LEATHER PACKAGE,SABLE,TRIM4# |
1 | ||
| 71812-2011006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 71812-2011006 |
HDJ80..VX COLD AREA PACKAGE,SABLE,TRIM4# |
1 | ||
| 71812-60030B0 |
HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71812-2011013 |
HDJ80..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71812-2011013 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60030B0 |
HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71861-60030E0 |
HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60030E0 |
HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71862-60030B0 |
HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60010E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60010E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-60030 |
FZJ80,HDJ80..LHD..VX W(POWER SEAT & SEAT HEATER) |
1 | ||
| 72010-60060 |
FZJ80,HDJ80..LHD..VX W(POWER SEAT) |
1 | ||
| 72010-60010 |
FZJ80,HDJ80..LHD..VX W(POWER SEAT) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-60010 |
FZJ80,HDJ80..LHD..VX W(POWER SEAT) |
1 | ||
| 72020-60040 |
FZJ80,HDJ80..LHD..VX W(POWER SEAT & SEAT HEATER) |
1 | ||
| 72020-60080 |
FZJ80,HDJ80..LHD..VX W(POWER SEAT) |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 93567-54512 | ||||
| Linked diagrams | ||||
| 8513 | ||||

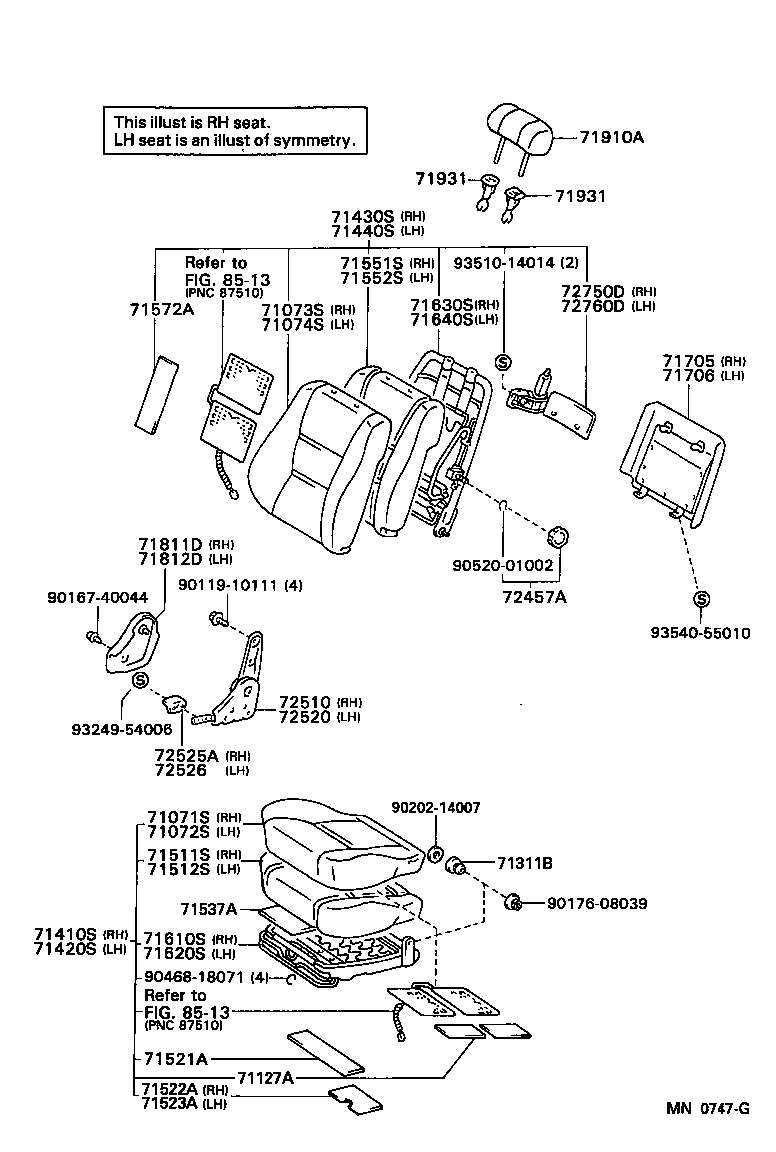

ILLUST NO. 1 OF 4(9001- )VX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-6009006 |
FJ80,FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71071-6009006 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71071-6009003 |
FJ80,FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71071-60091E0 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71071-60540B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6009003 |
HDJ80..LHD..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6009003 |
FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71071-60541B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-60091B0 |
HDJ80..LHD..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-6020006 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71072-6020003 |
HDJ80..LHD..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-6020006 |
FJ80,FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71072-60450B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-60201E0 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71072-6020003 |
FJ80,FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71072-60201B0 |
HDJ80..LHD..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-60451B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-60201B0 |
FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-6006003 |
FJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6017006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71073-6006003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6006006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71073-6017003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6017003 |
FJ80,FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6006006 |
FJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71073-6017006 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71073-60490B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6017006 |
FJ80,FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71073-6017003 |
FZJ80,HDJ80..LHD..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71074-60440B0 |
FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71073-60171B0 |
FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71073-60171B0 |
HDJ80..LHD..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-60171E0 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71073-60491B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-6007003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71074-6007006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71074-6010006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71074-6007006 |
FJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71074-6010003 |
FJ80,FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71074-6010006 |
FJ80,FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71074-6010003 |
HDJ80..LHD..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71074-6007003 |
FJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71074-6010003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71074-6010006 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71074-60440B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(POWER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71074-60101E0 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71074-60101B0 |
HDJ80..LHD..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71074-60101B0 |
FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71074-60441B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(POWER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12027 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-6008003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6018003 |
FJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6030003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6008006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71410-6030006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71410-6018006 |
FJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71410-6031003 |
HDJ80..LHD..VX FINLAND SPEC & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6031006 |
HDJ80..LHD..VX FINLAND SPEC & W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71410-6031003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6031006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71410-6A040B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6030006 |
FJ80,FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71410-6030003 |
FJ80,FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6031006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71410-6031003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6A042B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6A020B0 |
FZJ80,HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6030006 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71410-6A041B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6A021B0 |
FZJ80,HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-60311B0 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6030003 |
FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71410-60311E0 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-6009003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6009006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71420-6016006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71420-6017006 |
HDJ80..LHD..VX FINLAND SPEC & W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71420-6020003 |
FJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6016003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6017003 |
HDJ80..LHD..VX FINLAND SPEC & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6016003 |
FJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6017003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6016006 |
FJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71420-6020006 |
FJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71420-6017006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71420-60171B0 |
HDJ80..LHD..VX ***,W(SEAT HEATER),BLUISH GRAY,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-60840B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-60820B0 |
FZJ80,HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-60842B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-60171E0 |
HDJ80..LHD..VX ***,W(SEAT HEATER),SABLE,SABLE,TRIM4# |
1 | ||
| 71420-60161B0 |
FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71420-60161E0 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71420-60821B0 |
FZJ80,HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-60841B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-60172E0 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71420-60172B0 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-6009003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6009006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71430-6019006 |
FJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71430-6024006 |
HDJ80..LHD..VX FINLAND SPEC & W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71430-6024003 |
HDJ80..LHD..VX FINLAND SPEC & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6023006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71430-6019003 |
FJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6023003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6024003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6023003 |
FJ80,FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71430-60670B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6023006 |
FJ80,FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71430-6024006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71430-6024003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-60650B0 |
FZJ80,HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6024006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71430-60672B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6023003 |
FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6023006 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71430-60651B0 |
FZJ80,HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-60241E0 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71430-60241B0 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-60671B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-6008006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71440-6008003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6016003 |
HDJ80..LHD..VX FINLAND SPEC & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6015003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6016006 |
HDJ80..LHD..VX FINLAND SPEC & W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71440-6015006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71440-6019003 |
FJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6016003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6015003 |
FJ80,FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6019006 |
FJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71440-60590B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6016006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71440-6015006 |
FJ80,FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71440-6016006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71440-6016003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-60570B0 |
FZJ80,HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6015003 |
FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6015006 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71440-60592B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-60161B0 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-60591B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-60161E0 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71440-60571B0 |
FZJ80,HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-60060 |
HDJ80..VX COLD AREA PACKAGE |
1 | ||
| 71511-60130 |
HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71511-60060 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-60040 |
HDJ80..VX COLD AREA PACKAGE |
1 | ||
| 71512-60040 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 71512-60110 |
HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-60040 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 71551-60140 |
HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71551-60040 |
HDJ80..VX COLD AREA PACKAGE |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-60040 |
HDJ80..VX COLD AREA PACKAGE |
1 | ||
| 71552-60040 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 71551-60140 |
HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-60040 |
HDJ80..LHD..VX COLD AREA PACKAGE |
1 | ||
| 71610-60150 |
HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71610-60040 |
FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 71610-60020 |
FJ80,HDJ80..VX |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-60031 |
HDJ80..LHD..VX COLD AREA PACKAGE |
1 | ||
| 71620-60030 |
FJ80,HDJ80..LHD..VX |
1 | ||
| 71620-60150 |
HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-60070 |
HDJ80..LHD..VX COLD AREA PACKAGE |
1 | ||
| 71630-60080 |
HDJ80..LHD..VX LEATHER PACKAGE |
1 | ||
| 71630-60070 |
FJ80,FZJ80,HDJ80..LHD..VX |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-60070 |
HDJ80..LHD..VX LEATHER PACKAGE |
1 | ||
| 71640-60050 |
FJ80,FZJ80,HDJ80..LHD..VX |
1 | ||
| 71640-60050 |
HDJ80..LHD..VX COLD AREA PACKAGE |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-60051B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71705-6005006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71705-6005003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71705-6005006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71705-60120B0 |
HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71705-60051E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71705-6005003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71705-60051B0 |
HDJ80..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71705-6005003 |
HDJ80..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71705-60121B0 |
HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-6001003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71706-6001003 |
HDJ80..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71705-60120B0 |
HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71706-6001006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71706-6001006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71705-60121B0 |
HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71706-6001003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71706-60011E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71706-60011B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71706-60011B0 |
HDJ80..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2016013 |
HDJ80..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71811-2016006 |
HDJ80..VX COLD AREA PACKAGE,SABLE,TRIM4# |
1 | ||
| 71811-60030B0 |
HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71811-2016006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 71811-2016013 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 71811-60030E0 |
HDJ80..VX LEATHER PACKAGE,SABLE,TRIM4# |
1 | ||
| 71811-2016006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2011006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 71812-60030E0 |
HDJ80..VX LEATHER PACKAGE,SABLE,TRIM4# |
1 | ||
| 71812-2011006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 71812-2011006 |
HDJ80..VX COLD AREA PACKAGE,SABLE,TRIM4# |
1 | ||
| 71812-60030B0 |
HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71812-2011013 |
HDJ80..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71812-2011013 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-6001003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
2 | ||
| 71910-6001003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
2 | ||
| 71910-6001006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
2 | ||
| 71910-6001006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
2 | ||
| 71910-60150B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1002013 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002006 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007006 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002006 |
FZJ80,HDJ80,HZJ80 W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007006 |
FZJ80,HDJ80,HZJ80 W(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007013 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1002013 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002006 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007006 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002006 |
FZJ80,HDJ80,HZJ80 W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007006 |
FZJ80,HDJ80,HZJ80 W(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007013 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),GRAY,TRIM1# |
2 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1403057 |
HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 72457-1403059 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
2 | ||
| 72457-1403057 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
2 | ||
| 72457-1403059 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
2 | ||
| 72457-1403059 |
HDJ80..VX LEATHER PACKAGE,SABLE,TRIM4# |
1 | ||
| 72457-1403057 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209016 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72525-1209043 |
FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-1209043 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-1209016 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203043 |
FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72526-1203043 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72526-1203016 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72526-1203016 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-60010 |
FJ80,FZJ80,HDJ80..LHD..VX |
1 | ||
| Common parts | ||||
| 90119-10111 | ||||
| 90167-40044 | ||||
| 90176-08039 | ||||
| 90202-14007 | ||||
| 90468-18071 | ||||
| 90520-01002 | ||||
| 93249-54006 | ||||
| 93510-14014 | ||||
| 93540-55010 | ||||
| Linked diagrams | ||||
| 8513 | ||||
ILLUST NO. 2 OF 4(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-60020 |
FJ80;HDJ80..VX |
1 | ||
| 71015-60020 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-60010 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
1 | ||
| 71016-60010 |
FJ80;HDJ80..VX |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-60050 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-60050 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-60020 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-60020 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-6013006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71075-6013003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71075-6010003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71075-6010006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71075-6010003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71075-6010003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71075-6010006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71075-60170B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71075-60170B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71075-6010006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71075-60650B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71075-60091B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71075-60650B0 |
HDJ80..LHD..VX LEATHER PACKAGE OR FRANCE SPEC & LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71075-60091E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-6006006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71076-6006003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71076-6009006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71076-6009003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71076-6006006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71076-6006006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71076-6006003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71076-60120B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71076-60120B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71076-60280B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71076-6006003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71076-60051B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71076-60051E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71076-60280B0 |
HDJ80..LHD..VX LEATHER PACKAGE OR FRANCE SPEC & LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-6001006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71077-6001003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71077-6013003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71077-6001006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71077-6013006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71077-6001003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71077-6001003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71077-60360B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71077-6001006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71077-60240B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71077-60081E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71077-60360B0 |
HDJ80..LHD..VX LEATHER PACKAGE OR FRANCE SPEC & LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71077-60081B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-6001006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71077-6001003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71077-6013003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71077-6001006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71077-6013006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71077-6001003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71077-6001003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71077-60360B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71077-6001006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71077-60240B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71077-60081E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71077-60360B0 |
HDJ80..LHD..VX LEATHER PACKAGE OR FRANCE SPEC & LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71077-60081B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-6007006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71078-6007003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71078-6011003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71078-6011006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71078-6007003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71078-6007006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71078-6007003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71078-6007006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71078-60270B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71078-60340B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71078-60051B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71078-60051E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71078-60340B0 |
HDJ80..LHD..VX LEATHER PACKAGE OR FRANCE SPEC & LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-6007006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71078-6007003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71078-6011003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71078-6011006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71078-6007003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71078-6007006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71078-6007003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71078-6007006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71078-60270B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71078-60340B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71078-60051B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71078-60051E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71078-60340B0 |
HDJ80..LHD..VX LEATHER PACKAGE OR FRANCE SPEC & LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71321B - HINGE, REAR SEAT CUSHION, RH | ||||
| 71321-60020 |
FJ80;HDJ80..VX |
1 | ||
| 71321-60020 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
1 | ||
| 71322C - HINGE, REAR SEAT CUSHION, LH | ||||
| 71322-60020 |
FJ80;HDJ80..VX |
1 | ||
| 71322-60020 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
1 | ||
| 71324D - CUSHION, REAR SEAT, RH | ||||
| 71324-60030 |
FJ80;HDJ80..VX |
2 | ||
| 71324-60030 |
HZJ80..LUB;FZJ80,HDJ80 |
1 | ||
| 71324-60030 |
FJ80,HDJ80;HZJ80..LUB |
2 | ||
| 71324E - CUSHION, REAR SEAT, LH | ||||
| 71324-60030 |
FJ80,HDJ80;HZJ80..LUB |
2 | ||
| 71324-60030 |
HZJ80..LUB;FZJ80,HDJ80 |
1 | ||
| 71324-60030 |
FJ80;HDJ80..VX |
2 | ||
| 71325B - HINGE, REAR SEAT CUSHION LEG, RH | ||||
| 71325-60020 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
1 | ||
| 71325-60020 |
FJ80;HDJ80..VX |
1 | ||
| 71325-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 71325C - HINGE, REAR SEAT CUSHION LEG, LH | ||||
| 71325-60020 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
1 | ||
| 71325-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 71325-60020 |
FJ80;HDJ80..VX |
1 | ||
| 71329A - REINFORCEMENT, REAR SEAT CUSHION SUPPORT, RH | ||||
| 71329-60010 |
FJ80;HDJ80..VX |
1 | ||
| 71329-60010 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
1 | ||
| 71329B - REINFORCEMENT, REAR SEAT CUSHION SUPPORT, LH | ||||
| 71329-60010 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
1 | ||
| 71329-60010 |
FJ80;HDJ80..VX |
1 | ||
| 71331B - PIN, REAR SEAT HINGE, RH | ||||
| 71331-60020 |
FJ80;HDJ80..VX |
2 | ||
| 71331-60020 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
2 | ||
| 71331C - PIN, REAR SEAT HINGE, LH | ||||
| 71331-60020 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
2 | ||
| 71331-60020 |
FJ80;HDJ80..VX |
2 | ||
| 71334B - STOPPER, REAR SEAT LEG, RH | ||||
| 71334-60010 |
FJ80;HDJ80..VX |
2 | ||
| 71334-60010 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
2 | ||
| 71334C - STOPPER, REAR SEAT LEG, LH | ||||
| 71334-60010 |
FJ80;HDJ80..VX |
2 | ||
| 71334-60010 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
2 | ||
| 71335C - STAY, REAR SEAT CUSHION LINK, RH | ||||
| 71335-60030 |
FJ80;HDJ80..VX |
1 | ||
| 71335-60030 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
1 | ||
| 71336A - STAY, REAR SEAT CUSHION LINK, LH | ||||
| 71336-60030 |
FJ80;HDJ80..VX |
1 | ||
| 71336-60030 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
1 | ||
| 71345C - HINGE, REAR SEAT BACK, RH | ||||
| 71345-60020 |
HDJ80..VX |
1 | ||
| 71345-60020 |
HDJ80..VX |
1 | ||
| 71345-60020 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
1 | ||
| 71346C - HINGE, REAR SEAT BACK, LH | ||||
| 71346-60020 |
HDJ80..VX |
1 | ||
| 71346-60020 |
HDJ80..VX |
1 | ||
| 71346-60020 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
1 | ||
| 71398E - GUIDE, REAR SEAT CUSHION SUPPORT, RH | ||||
| 71398-60010 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
1 | ||
| 71398-60010 |
FJ80;HDJ80..VX |
1 | ||
| 71398F - GUIDE, REAR SEAT CUSHION SUPPORT, LH | ||||
| 71398-60010 |
FJ80;HDJ80..VX |
1 | ||
| 71398-60010 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-6008003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71460-6014003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71460-6008006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71460-6014006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71460-6014006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71460-60670B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71460-6014003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71460-6014006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71460-6014003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71460-60770B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71460-60071B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71460-60770B0 |
HDJ80..LHD..VX LEATHER PACKAGE OR LEATHER PACKAGE & FRANCE SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-6009003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71470-6005006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71470-6009006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71470-6005003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71470-6009006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71470-6009006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71470-60350B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71470-6009003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71470-60041B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71470-6009003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71470-60230B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71470-60350B0 |
HDJ80..LHD..VX LEATHER PACKAGE OR LEATHER PACKAGE & FRANCE SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71470-60041E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||

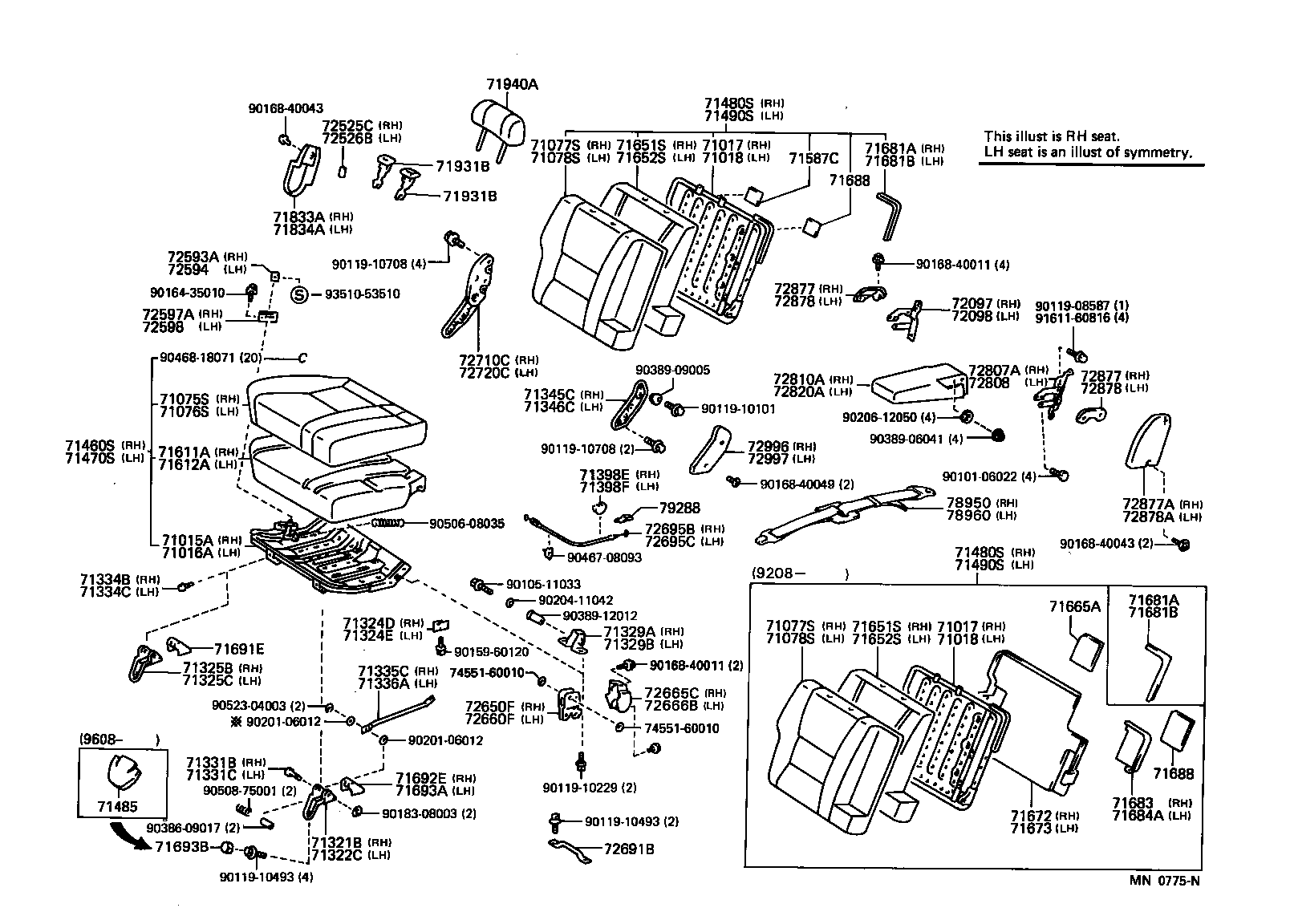

| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-6003003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71480-6022006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71480-6003006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71480-6022003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71480-6022006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71480-6022003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71480-6A081B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71480-6A080B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71480-6A050B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71480-6A050E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71480-6A081B0 |
HDJ80..LHD..VX FRANCE SPEC & LEATHER PACKAGE;LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-6003003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71480-6022006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71480-6003006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71480-6022003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71480-6022006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71480-6022003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71480-6A081B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71480-6A080B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71480-6A050B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71480-6A050E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71480-6A081B0 |
HDJ80..LHD..VX FRANCE SPEC & LEATHER PACKAGE;LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-6007003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71490-6007006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71490-6013006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71490-6013003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71490-6013006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71490-6013003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71490-60430B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71490-60431B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71490-60400B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71490-60400E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71490-60431B0 |
HDJ80..LHD..VX LEATHER PACKAGE OR LEATHER PACKAGE & FRANCE SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-6007003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71490-6007006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71490-6013006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71490-6013003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71490-6013006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71490-6013003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71490-60430B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71490-60431B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71490-60400B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71490-60400E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71490-60431B0 |
HDJ80..LHD..VX LEATHER PACKAGE OR LEATHER PACKAGE & FRANCE SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-60110 |
HDJ80..LHD..VX LEATHER PACKAGE OR LEATHER PACKAGE & FRANCE SPEC |
1 | ||
| 71611-60110 |
FZJ80,HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71611-60040 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-60080 |
HDJ80..LHD..VX LEATHER PACKAGE OR LEATHER PACKAGE & FRANCE SPEC |
1 | ||
| 71612-60080 |
FZJ80,HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71612-60030 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-60050 |
HDJ80..LHD..VX FINLAND SPEC |
1 | ||
| 71651-60130 |
HDJ80..LHD..VX LEATHER PACKAGE OR LEATHER PACKAGE & FRANCE SPEC |
1 | ||
| 71651-60130 |
FZJ80,HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71651-60080 |
FJ80,HDJ80..VX |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-60050 |
HDJ80..LHD..VX FINLAND SPEC |
1 | ||
| 71651-60130 |
HDJ80..LHD..VX LEATHER PACKAGE OR LEATHER PACKAGE & FRANCE SPEC |
1 | ||
| 71651-60130 |
FZJ80,HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71651-60080 |
FJ80,HDJ80..VX |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-60040 |
HDJ80..LHD..VX FINLAND SPEC |
1 | ||
| 71652-60060 |
FJ80,HDJ80..VX |
1 | ||
| 71652-60100 |
FZJ80,HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71652-60100 |
HDJ80..LHD..VX LEATHER PACKAGE OR FRANCE SPEC & LEATHER PACKAGE |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-60040 |
HDJ80..LHD..VX FINLAND SPEC |
1 | ||
| 71652-60060 |
FJ80,HDJ80..VX |
1 | ||
| 71652-60100 |
FZJ80,HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71652-60100 |
HDJ80..LHD..VX LEATHER PACKAGE OR FRANCE SPEC & LEATHER PACKAGE |
1 | ||
| 71665A - PAD, REAR SEAT BACK, SIDE A | ||||
| 71665-60010 |
HDJ80..LHD..VX LEATHER PACKAGE |
1 | ||
| 71665-60010 |
FZJ80,HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-60020 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 71673 - PAD, REAR SEAT BACK SILENCER, C | ||||
| 71673-60020 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 71681A - PAD, REAR SEAT BACK CORNER, RH | ||||
| 71681-60020 |
FJ80;HDJ80..VX |
1 | ||
| 71681-60020 |
FJ80,HDJ80;HZJ80..LUB |
1 | ||
| 71681A - PAD, REAR SEAT BACK CORNER, RH | ||||
| 71681-60020 |
FJ80;HDJ80..VX |
1 | ||
| 71681-60020 |
FJ80,HDJ80;HZJ80..LUB |
1 | ||
| 71681B - PAD, REAR SEAT BACK CORNER, LH | ||||
| 71682-60010 |
FJ80,HDJ80;HZJ80..LUB |
1 | ||
| 71682-60010 |
FJ80;HDJ80..VX |
1 | ||
| 71681B - PAD, REAR SEAT BACK CORNER, LH | ||||
| 71682-60010 |
FJ80,HDJ80;HZJ80..LUB |
1 | ||
| 71682-60010 |
FJ80;HDJ80..VX |
1 | ||
| 71683 - PAD, REAR SEAT BACK CORNER, C | ||||
| 71683-60010 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 71684A - PAD, REAR SEAT BACK CORNER, D | ||||
| 71684-60010 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 71688 - PAD, REAR SEAT BACK CORNER, H | ||||
| 71688-60010 |
FZJ80,HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71688-60010 |
HDJ80..LHD..VX LEATHER PACKAGE |
1 | ||
| 71688 - PAD, REAR SEAT BACK CORNER, H | ||||
| 71688-60010 |
FZJ80,HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71688-60010 |
HDJ80..LHD..VX LEATHER PACKAGE |
1 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-6001006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
2 | ||
| 71691-6001003 |
FJ80,HDJ80..VX W(REAR SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71691-6001006 |
FJ80,HDJ80..VX W(REAR SEPARATE SEAT),SABLE,TRIM4# |
1 | ||
| 71691-6001006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
2 | ||
| 71691-6001003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
2 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-6001006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71692-6001006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71692-6001003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71693A - COVER, REAR SEAT CUSHION HINGE, NO.3 | ||||
| 71693-6001003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71693-6001006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 71834-6001003 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71833-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 71834-6001006 |
HDJ80..LHD..VX LEATHER PACKAGE,SABLE,TRIM4# |
1 | ||
| 71834-6001006 |
FZJ80,HDJ80..VX LEATHER PACKAGE,SABLE,TRIM4# |
1 | ||
| 71834-6001003 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71833-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 71834-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 71834-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007006 |
FJ80;HDJ80..VX W(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007013 |
FJ80;HDJ80..VX W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
FJ80;HDJ80..VX W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007006 |
FJ80,HDJ80;HZJ80..LUB W(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007006 |
HZJ80..LUB;HZJ80..STD;FZJ80,HDJ80 W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002006 |
FJ80;HDJ80..VX W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002006 |
FJ80,HDJ80;HZJ80..LUB W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002013 |
FJ80,HDJ80;HZJ80..LUB W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002006 |
HZJ80..LUB;HZJ80..STD;FZJ80,HDJ80 W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-10070E7 |
HZJ80..LUB;HZJ80..STD;FZJ80,HDJ80 W(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007013 |
HZJ80..LUB;HZJ80..STD;FZJ80,HDJ80 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
HZJ80..LUB;HZJ80..STD;FZJ80,HDJ80 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-10020E7 |
HZJ80..LUB;HZJ80..STD;FZJ80,HDJ80 W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007013 |
FJ80,HDJ80;HZJ80..LUB W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007006 |
FJ80;HDJ80..VX W(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007013 |
FJ80;HDJ80..VX W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
FJ80;HDJ80..VX W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007006 |
FJ80,HDJ80;HZJ80..LUB W(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007006 |
HZJ80..LUB;HZJ80..STD;FZJ80,HDJ80 W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002006 |
FJ80;HDJ80..VX W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002006 |
FJ80,HDJ80;HZJ80..LUB W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002013 |
FJ80,HDJ80;HZJ80..LUB W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002006 |
HZJ80..LUB;HZJ80..STD;FZJ80,HDJ80 W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-10070E7 |
HZJ80..LUB;HZJ80..STD;FZJ80,HDJ80 W(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007013 |
HZJ80..LUB;HZJ80..STD;FZJ80,HDJ80 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
HZJ80..LUB;HZJ80..STD;FZJ80,HDJ80 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-10020E7 |
HZJ80..LUB;HZJ80..STD;FZJ80,HDJ80 W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007013 |
FJ80,HDJ80;HZJ80..LUB W(LOCK),GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-6008003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
2 | ||
| 71940-6008006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
2 | ||
| 71940-60140B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
2 | ||
| 71940-6008006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
2 | ||
| 71940-6008003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
2 | ||
| 72097 - LINK SUB-ASSY, REAR SEAT CENTER ARMREST, INNER RH | ||||
| 72097-60020 |
FJ80;HDJ80..VX |
1 | ||
| 72098 - LINK SUB-ASSY, REAR SEAT CENTER ARMREST, INNER LH | ||||
| 72098-60020 |
FJ80;HDJ80..VX |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-9570003 |
FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-9570003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-60030E0 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72525-9570006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72525-9570006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72525-9570006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72525-9570003 |
FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-9570003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-9570006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72525-60030E0 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72593A - KNOB, REMOTE CONTROL LEVER, RH | ||||
| 72593-6001003 |
FJ80;HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 72593-6001006 |
FJ80;HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72593-6001003 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72593-6001006 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 SABLE,TRIM4# |
1 | ||
| 72593-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72594 - KNOB, REMOTE CONTROL LEVER, LH | ||||
| 72593-6001003 |
FJ80;HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 72593-6001003 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72593-6001006 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 SABLE,TRIM4# |
1 | ||
| 72593-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72593-6001006 |
FJ80;HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72597A - BEZEL, RECLINING REMOTE CONTROL LEVER, RH | ||||
| 72597-6001003 |
FJ80;HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 72597-6001006 |
FJ80;HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72597-6001006 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 SABLE,TRIM4# |
1 | ||
| 72597-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72597-6001003 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72598 - BEZEL, RECLINING REMOTE CONTROL LEVER, LH | ||||
| 72597-6001003 |
FJ80;HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 72597-6001003 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72597-6001006 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 SABLE,TRIM4# |
1 | ||
| 72597-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72597-6001006 |
FJ80;HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-60030 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-60030 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 72665C - COVER, REAR SEAT LOCK, RH | ||||
| 72665-6003003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 72665-6003006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72665-6003006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72666B - COVER, REAR SEAT LOCK, LH | ||||
| 72666-6003006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72666-6003006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72666-6003003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 72691B - STRIKER, REAR SEAT CUSHION LOCK | ||||
| 72691-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 72695B - CABLE, REAR SEAT LOCK CONTROL, RH | ||||
| 72695-60020 |
FJ80;HDJ80..VX |
1 | ||
| 72695-60020 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
1 | ||
| 72695C - CABLE, REAR SEAT LOCK CONTROL, LH | ||||
| 72695-60020 |
FJ80;HDJ80..VX |
1 | ||
| 72695-60020 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
1 | ||
| 72710C - ADJUSTER ASSY, NO.1 SEAT RECLINING, RH | ||||
| 72730-6001003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 72730-6001006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72730-6001003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 72730-6001006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH | ||||
| 72740-6001003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 72740-6001006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72740-6001006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72740-6001003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 72807A - LINK SUB-ASSY, REAR SEAT CENTER ARMREST, RH | ||||
| 72807-60020 |
FJ80;HDJ80..VX |
1 | ||
| 72808 - LINK SUB-ASSY, REAR SEAT CENTER ARMREST, LH | ||||
| 72808-60020 |
FJ80;HDJ80..VX |
1 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72810-6005006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72810-6005003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 72810-60130B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 72810-6005003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 72810-60100B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 72810-60120B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 72810-6005006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72810-60130B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 72810-60120E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72820-6005003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 72820-6005006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72820-60100B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 72820-6005006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72820-60120B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 72820-6005003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 72820-60130B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 72820-60130B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 72820-60120E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 72877-6001006 |
FJ80;HDJ80..VX SABLE,TRIM4#,RH |
1 | ||
| 72877-6001006 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 SABLE,TRIM4#,RH |
1 | ||
| 72878-6001006 |
FJ80;HDJ80..VX SABLE,TRIM4#,LH |
1 | ||
| 72878-6001003 |
FJ80;HDJ80..VX BLUISH GRAY,TRIM1#,LH |
1 | ||
| 72878-6001006 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 SABLE,TRIM4#,LH |
1 | ||
| 72877-6001006 |
FZJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4#,RH |
1 | ||
| 72877-6001003 |
FJ80;HDJ80..VX BLUISH GRAY,TRIM1#,RH |
1 | ||
| 72878-6001006 |
FZJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4#,LH |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 72877-6001006 |
FJ80;HDJ80..VX SABLE,TRIM4#,RH |
1 | ||
| 72877-6001006 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 SABLE,TRIM4#,RH |
1 | ||
| 72878-6001006 |
FJ80;HDJ80..VX SABLE,TRIM4#,LH |
1 | ||
| 72878-6001003 |
FJ80;HDJ80..VX BLUISH GRAY,TRIM1#,LH |
1 | ||
| 72878-6001006 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 SABLE,TRIM4#,LH |
1 | ||
| 72877-6001006 |
FZJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4#,RH |
1 | ||
| 72877-6001003 |
FJ80;HDJ80..VX BLUISH GRAY,TRIM1#,RH |
1 | ||
| 72878-6001006 |
FZJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4#,LH |
1 | ||
| 72877A - COVER, SEAT ARMREST, NO.2 RH | ||||
| 72877-6002003 |
FJ80;HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 72877-6002006 |
FJ80;HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72877-6002006 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 SABLE,TRIM4# |
1 | ||
| 72877-6002006 |
FZJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4# |
1 | ||
| 72878 - COVER, SEAT ARMREST, LH | ||||
| 72878-6001003 |
FJ80;HDJ80..VX BLUISH GRAY,TRIM1#,LH |
1 | ||
| 72877-6001003 |
FJ80;HDJ80..VX BLUISH GRAY,TRIM1#,RH |
1 | ||
| 72878-6001006 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 SABLE,TRIM4#,LH |
1 | ||
| 72877-6001006 |
FJ80;HDJ80..VX SABLE,TRIM4#,RH |
1 | ||
| 72877-6001006 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 SABLE,TRIM4#,RH |
1 | ||
| 72877-6001006 |
FZJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4#,RH |
1 | ||
| 72878-6001006 |
FJ80;HDJ80..VX SABLE,TRIM4#,LH |
1 | ||
| 72878-6001006 |
FZJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4#,LH |
1 | ||
| 72878 - COVER, SEAT ARMREST, LH | ||||
| 72878-6001003 |
FJ80;HDJ80..VX BLUISH GRAY,TRIM1#,LH |
1 | ||
| 72877-6001003 |
FJ80;HDJ80..VX BLUISH GRAY,TRIM1#,RH |
1 | ||
| 72878-6001006 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 SABLE,TRIM4#,LH |
1 | ||
| 72877-6001006 |
FJ80;HDJ80..VX SABLE,TRIM4#,RH |
1 | ||
| 72877-6001006 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 SABLE,TRIM4#,RH |
1 | ||
| 72877-6001006 |
FZJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4#,RH |
1 | ||
| 72878-6001006 |
FJ80;HDJ80..VX SABLE,TRIM4#,LH |
1 | ||
| 72878-6001006 |
FZJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4#,LH |
1 | ||
| 72878A - COVER, SEAT ARMREST, NO.2 LH | ||||
| 72878-6002003 |
FJ80;HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 72878-6002006 |
FZJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4# |
1 | ||
| 72878-6002006 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 SABLE,TRIM4# |
1 | ||
| 72878-6002006 |
FJ80;HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-6001006 |
FJ80;HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72996-6001006 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 SABLE,TRIM4# |
1 | ||
| 72996-6001003 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72996-6001003 |
FJ80;HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 72996-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72997-6001006 |
FJ80;HDJ80..VX SABLE,TRIM4# |
1 | ||
| 72997-6001003 |
FJ80;HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 72997-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72997-6001006 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 SABLE,TRIM4# |
1 | ||
| 72997-6001003 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-6001003 |
FJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 78950-6001006 |
FJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 78950-6001106 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 78950-6001106 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 78960 - BAND ASSY, FOLD SEAT STOPPER, NO.2 | ||||
| 78950-6001106 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 SABLE,TRIM4# |
1 | ||
| 78950-6001003 |
FJ80;HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 78950-6001006 |
FJ80;HDJ80..VX SABLE,TRIM4# |
1 | ||
| 78950-6001106 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 78950-6001103 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 79288 - STOPPER, NO.2 SEAT CUSHION | ||||
| 79288-60010 |
HZJ80..LUB;FJ80,FZJ80,HDJ80 |
2 | ||
| 79288-60010 |
FJ80;HDJ80..VX |
2 | ||
| Common parts | ||||
| 74551-60010 | ||||
| 90101-06022 | ||||
| 90105-11033 | ||||
| 90119-08587 | ||||
| 90119-10101 | ||||
| 90119-10229 | ||||
| 90119-10493 | ||||
| 90119-10708 | ||||
| 90159-60120 | ||||
| 90164-35010 | ||||
| 90168-40011 | ||||
| 90168-40043 | ||||
| 90168-40049 | ||||
| 90183-08003 | ||||
| 90201-06012 | ||||
| 90204-11042 | ||||
| 90206-12050 | ||||
| 90386-09017 | ||||
| 90389-06041 | ||||
| 90389-09005 | ||||
| 90389-12012 | ||||
| 90467-08093 | ||||
| 90468-18071 | ||||
| 90506-08035 | ||||
| 90508-75001 | ||||
| 90523-04003 | ||||
| 91611-60816 | ||||
| 93510-53510 | ||||
ILLUST NO. 4 OF 4(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-60071 |
FZJ80,HDJ80..VX |
1 | ||
| 72110-60070 |
FJ80,HDJ80..VX |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-60071 |
FZJ80,HDJ80..VX |
1 | ||
| 72110-60070 |
FJ80,HDJ80..VX |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-60060 |
FJ80,HDJ80..VX |
1 | ||
| 72120-60061 |
FZJ80,HDJ80..VX |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-60060 |
FJ80,HDJ80..VX |
1 | ||
| 72120-60061 |
FZJ80,HDJ80..VX |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-60060 |
FJ80,HDJ80,HZJ80..LHD |
1 | ||
| 72130-60061 |
FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-60060 |
FJ80,HDJ80,HZJ80..LHD |
1 | ||
| 72130-60061 |
FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-6001003 |
FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72137-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72137-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72137-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-6001003 |
FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72137-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72137-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72137-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72138-6001003 |
FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72138-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72138-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72138-6001003 |
FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72138-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72138-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-60062 |
FZJ80,HDJ80..LHD..VX |
1 | ||
| 72140-60060 |
FJ80,HDJ80..LHD..VX |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-60062 |
FZJ80,HDJ80..LHD..VX |
1 | ||
| 72140-60060 |
FJ80,HDJ80..LHD..VX |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-60040E0 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
2 | ||
| 72157-60040E0 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
2 | ||
| 72157-6001003 |
FJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
2 | ||
| 72157-6001006 |
FJ80,HDJ80,HZJ80 SABLE,TRIM4# |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-60040E0 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
2 | ||
| 72157-60040E0 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
2 | ||
| 72157-6001003 |
FJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
2 | ||
| 72157-6001006 |
FJ80,HDJ80,HZJ80 SABLE,TRIM4# |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-60040E0 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
2 | ||
| 72157-60040E0 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
2 | ||
| 72157-6001003 |
FJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
2 | ||
| 72157-6001006 |
FJ80,HDJ80,HZJ80 SABLE,TRIM4# |
2 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-60040E0 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
2 | ||
| 72157-60040E0 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
2 | ||
| 72157-6001003 |
FJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
2 | ||
| 72157-6001006 |
FJ80,HDJ80,HZJ80 SABLE,TRIM4# |
2 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 72320A - ADJUSTER ASSY, FRONT SEAT VERTICAL, LH | ||||
| 72320-60010 |
FJ80,HDJ80..LHD..VX |
1 | ||
| 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH | ||||
| 72457-2201016 |
FJ80,FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 72457-2201023 |
FJ80,FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-10605 | ||||
| 90523-08001 | ||||
ILLUST NO. 3 OF 4(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71324B - CUSHION, REAR SEAT | ||||
| 71324-60080 |
FZJ80,HDJ80..VX |
2 | ||
| 71324-60080 |
FJ80,HDJ80;HZJ80..LUB |
2 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-60020 |
FZJ80,HDJ80..VX LEATHER PACKAGE |
2 | ||
| 71621-60020 |
HDJ80..LHD..VX LEATHER PACKAGE |
2 | ||
| 71665B - PAD, REAR SEAT BACK, SIDE B | ||||
| 71666-60010 |
HDJ80..LHD..VX |
1 | ||
| 71666-60010 |
FZJ80,HDJ80..VX |
1 | ||
| 71667A - PAD, REAR SEAT BACK, CENTER A | ||||
| 71667-60010 |
HDJ80..LHD..VX |
1 | ||
| 71667-60010 |
FZJ80,HDJ80..VX |
1 | ||
| 71697 - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71697-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 71697-60010 |
FZJ80,HDJ80..VX |
2 | ||
| 71697-60010 |
HDJ80..LHD..VX |
2 | ||
| 71833C - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71833-6001003 |
FJ80,HDJ80,HZJ80..GX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71833-6001006 |
FJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 71833-6001006 |
FJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4# |
1 | ||
| 71833-6001003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71833-6001006 |
HZJ80..LUB;FZJ80,HDJ80 SABLE,TRIM4# |
1 | ||
| 71833-6001006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71833-6001003 |
FJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 71833-6001003 |
HZJ80..LUB;FZJ80,HDJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 71834B - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71834-6001006 |
FJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4# |
1 | ||
| 71834-6001003 |
FJ80,HDJ80,HZJ80..GX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71834-6001006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71834-6001006 |
FJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 71834-6001003 |
FJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 71834-6001003 |
HZJ80..LUB;FZJ80,HDJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 71834-6001006 |
HZJ80..LUB;FZJ80,HDJ80 SABLE,TRIM4# |
1 | ||
| 71834-6001003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-1007013 |
HDJ80..LHD..VX W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007006 |
FJ80,HDJ80..VX W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002013 |
HDJ80..LHD..VX W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
FJ80,HDJ80..VX W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002006 |
HDJ80..LHD..VX W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002006 |
FJ80,HDJ80..VX W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007006 |
FZJ80,HDJ80..VX W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002006 |
FZJ80,HDJ80..VX W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007013 |
FJ80,HDJ80..VX W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
FZJ80,HDJ80..VX W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007006 |
HDJ80..LHD..VX W(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007013 |
FZJ80,HDJ80..VX W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-10020E7 |
FZJ80,HDJ80..VX W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-10070E7 |
FZJ80,HDJ80..VX W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-1007013 |
HDJ80..LHD..VX W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007006 |
FJ80,HDJ80..VX W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002013 |
HDJ80..LHD..VX W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
FJ80,HDJ80..VX W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002006 |
HDJ80..LHD..VX W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002006 |
FJ80,HDJ80..VX W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007006 |
FZJ80,HDJ80..VX W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002006 |
FZJ80,HDJ80..VX W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007013 |
FJ80,HDJ80..VX W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
FZJ80,HDJ80..VX W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007006 |
HDJ80..LHD..VX W(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007013 |
FZJ80,HDJ80..VX W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-10020E7 |
FZJ80,HDJ80..VX W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-10070E7 |
FZJ80,HDJ80..VX W(LOCK),SABLE,TRIM4# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71970-6004003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
2 | ||
| 71970-60100E1 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
2 | ||
| 71970-6004006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
2 | ||
| 71970-60100B1 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
2 | ||
| 71970-60090B1 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
2 | ||
| 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH | ||||
| 72525-9570003 |
FJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-9570006 |
FJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72525-9570003 |
FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-60030E0 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72525-9570006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72525-9570006 |
FJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4# |
1 | ||
| 72525-9570003 |
FJ80,HDJ80,HZJ80..GX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 72526C - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH | ||||
| 72525-9570003 |
FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-9570003 |
FJ80,HDJ80,HZJ80..GX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 72525-9570006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72525-9570006 |
FJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4# |
1 | ||
| 72525-9570006 |
FJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72525-9570003 |
FJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-60030E0 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK | ||||
| 72607-90K00 |
FJ80;HDJ80..VX |
4 | ||
| 72607-90K00 |
HZJ80..LUB;FZJ80,HDJ80 |
4 | ||
| 72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK | ||||
| 72607-90K00 |
FJ80;HDJ80..VX |
4 | ||
| 72607-90K00 |
HZJ80..LUB;FZJ80,HDJ80 |
4 | ||
| 72670B - LOCK ASSY, REAR SEAT CUSHION, RH | ||||
| 72670-60030 |
FJ80,HDJ80;HZJ80..LUB |
2 | ||
| 72670-60030 |
FZJ80,HDJ80..VX |
2 | ||
| 72670-60030 |
HDJ80..LHD..VX |
2 | ||
| 72680B - LOCK ASSY, REAR SEAT CUSHION, LH | ||||
| 72680-60030 |
FJ80,HDJ80;HZJ80..LUB |
2 | ||
| 72680-60030 |
FZJ80,HDJ80..VX |
2 | ||
| 72680-60030 |
HDJ80..LHD..VX |
2 | ||
| 72730C - ADJUSTER ASSY, NO.2 SEAT RECLINING, RH | ||||
| 72730-6002003 |
FJ80,HDJ80,HZJ80..GX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 72730-6002006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72730-6002006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72730-6002006 |
FJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4# |
1 | ||
| 72740C - ADJUSTER ASSY, NO.2 SEAT RECLINING, LH | ||||
| 72740-6002003 |
FJ80,HDJ80,HZJ80..GX,VX GRAY,TRIM1# |
1 | ||
| 72740-6002006 |
FJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4# |
1 | ||
| 72740-6002006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72740-6002006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 72966 - BRACKET, REAR SEAT TURN LOCK | ||||
| 72966-90P80 |
HDJ80..LHD..VX |
2 | ||
| 72966-90P80 |
FJ80,HDJ80;HZJ80..LUB |
2 | ||
| 72966-90P80 |
FZJ80,HDJ80..VX |
2 | ||
| 72969A - PIN, SEAT TURN LOCK GUIDE | ||||
| 72969-60010 |
HDJ80..LHD..VX |
6 | ||
| 72969-60010 |
FZJ80,HDJ80..VX |
6 | ||
| 72969-60010 |
FJ80,HDJ80;HZJ80..LUB |
6 | ||
| 78903 - STRIKER SUB-ASSY, FOLD SEAT LEG LOCK | ||||
| 78903-60010 |
FJ80,HDJ80;HZJ80..LUB |
1 | ||
| 78903-60010 |
HDJ80..LHD..VX |
1 | ||
| 78903-60010 |
FZJ80,HDJ80..VX |
1 | ||
| 78904 - STRIKER SUB-ASSY, FOLD SEAT LOCK, NO.2 | ||||
| 78904-60010 |
FJ80,HDJ80;HZJ80..LUB |
1 | ||
| 78904-60010 |
HDJ80..LHD..VX |
1 | ||
| 78904-60010 |
FZJ80,HDJ80..VX |
1 | ||
| 78910A - LOCK ASSY, FOLD SEAT, RH | ||||
| 78910-60020 |
FJ80,HDJ80;HZJ80..LUB |
1 | ||
| 78910-60020 |
FZJ80,HDJ80..VX |
1 | ||
| 78910-60020 |
HDJ80..LHD..VX |
1 | ||
| 78920A - LOCK ASSY, FOLD SEAT, LH | ||||
| 78920-60010 |
HDJ80..LHD..VX |
1 | ||
| 78920-60010 |
FJ80,HDJ80;HZJ80..LUB |
1 | ||
| 78920-60010 |
FZJ80,HDJ80..VX |
1 | ||
| 78950A - BAND ASSY, NO.2 FOLD SEAT STOPPER, NO.1 | ||||
| 78960-6001006 |
HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 78960-6001003 |
HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 78960-6001106 |
FJ80,HDJ80;HZJ80..LUB SABLE,TRIM4# |
1 | ||
| 78960-6001103 |
FJ80,HDJ80;HZJ80..LUB BLUISH GRAY,TRIM1# |
1 | ||
| 78960-6001106 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 78960-6001106 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 78960-6001103 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 78960A - BAND ASSY, NO.2 FOLD SEAT STOPPER, NO.2 | ||||
| 78960-6001003 |
HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 78960-6001106 |
FJ80,HDJ80;HZJ80..LUB SABLE,TRIM4# |
1 | ||
| 78960-6001103 |
FJ80,HDJ80;HZJ80..LUB BLUISH GRAY,TRIM1# |
1 | ||
| 78960-6001006 |
HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 78960-6001106 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 78960-6001103 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 78960-6001106 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 78970 - BAND ASSY, SEAT LOCK | ||||
| 78970-6001003 |
HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
2 | ||
| 78970-6001006 |
HDJ80..LHD..VX SABLE,TRIM4# |
2 | ||
| 78970-6001106 |
FJ80,HDJ80;HZJ80..LUB SABLE,TRIM4# |
2 | ||
| 78970-6001103 |
FJ80,HDJ80;HZJ80..LUB BLUISH GRAY,TRIM1# |
2 | ||
| 78970-6001106 |
HDJ80..LHD..VX SABLE,TRIM4# |
2 | ||
| 78970-6001103 |
HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
2 | ||
| 78970-6001103 |
FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
2 | ||
| 78970-6001106 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
2 | ||
| 79021B - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH A | ||||
| 79021-6001003 |
HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79021-6001003 |
FJ80,HDJ80;HZJ80..LUB BLUISH GRAY,TRIM1# |
1 | ||
| 79021-6001006 |
HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 79021-6001006 |
FJ80,HDJ80;HZJ80..LUB SABLE,TRIM4# |
1 | ||
| 79021-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 79022A - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH A | ||||
| 79022-6001003 |
HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79022-6001006 |
HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 79022-6001006 |
FJ80,HDJ80;HZJ80..LUB SABLE,TRIM4# |
1 | ||
| 79022-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 79022-6001003 |
FJ80,HDJ80;HZJ80..LUB BLUISH GRAY,TRIM1# |
1 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79031-6010003 |
HDJ80..LHD..VX W(RECLINING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79031-6011006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 79031-6010006 |
HDJ80..LHD..VX W(RECLINING REAR SEAT),SABLE,TRIM4# |
1 | ||
| 79031-6011003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 79031-6011006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 79031-6011006 |
FZJ80,HDJ80..VX W(RECLINING REAR SEAT),SABLE,TRIM4# |
1 | ||
| 79031-6011003 |
FZJ80,HDJ80..VX W(RECLINING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79031-60230B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79031-6011003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79031-60121B0 |
FZJ80,HDJ80..VX W(RECLINING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79031-60121E0 |
FZJ80,HDJ80..VX W(RECLINING REAR SEAT),SABLE,TRIM4# |
1 | ||
| 79031-60231B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79031-60231B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79032-6011006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 79032-6011006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 79032-6011003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79032-6010003 |
HDJ80..LHD..VX W(RECLINING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79032-6011003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 79032-6010006 |
HDJ80..LHD..VX W(RECLINING REAR SEAT),SABLE,TRIM4# |
1 | ||
| 79032-6011003 |
FZJ80,HDJ80..VX W(RECLINING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79032-6011006 |
FZJ80,HDJ80..VX W(RECLINING REAR SEAT),SABLE,TRIM4# |
1 | ||
| 79032-60230B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79032-60231B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79032-60231B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79032-60121B0 |
FZJ80,HDJ80..VX W(RECLINING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79032-60121E0 |
FZJ80,HDJ80..VX W(RECLINING REAR SEAT),SABLE,TRIM4# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79033-6003006 |
HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 79033-6007003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 79033-6003003 |
HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79033-6007006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 79033-6007003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79033-6007006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 79033-6007006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 79033-60200B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79033-6007003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79033-60111B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79033-60111E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 79033-60250B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79033-60250B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79034-6003006 |
HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 79034-6003003 |
HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79034-6007003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79034-6007006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 79034-6007006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 79034-6007003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 79034-6007003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79034-6007006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 79034-60111E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 79034-60200B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79034-60250B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79034-60250B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79034-60111B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79041B - COVER SUB ASSY, NO.3 SEAT CUSHION, RH B | ||||
| 79041-6001006 |
HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 79041-6001003 |
FJ80,HDJ80;HZJ80..LUB BLUISH GRAY,TRIM1# |
1 | ||
| 79041-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 79041-6001003 |
HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79041-6001006 |
FJ80,HDJ80;HZJ80..LUB SABLE,TRIM4# |
1 | ||
| 79042B - COVER SUB ASSY, NO.3 SEAT CUSHION, LH B | ||||
| 79042-6001003 |
HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79042-6001006 |
HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 79042-6001003 |
FJ80,HDJ80;HZJ80..LUB BLUISH GRAY,TRIM1# |
1 | ||
| 79042-6001006 |
FJ80,HDJ80;HZJ80..LUB SABLE,TRIM4# |
1 | ||
| 79042-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 79093A - STAY SUB-ASSY, SEAT LEG, NO.1 | ||||
| 79093-60010 |
FJ80,HDJ80;HZJ80..LUB |
1 | ||
| 79093-60010 |
HDJ80..LHD..VX |
1 | ||
| 79094 - STAY SUB-ASSY, SEAT LEG, NO.2 | ||||
| 79093-60010 |
HDJ80..LHD..VX |
1 | ||
| 79093-60010 |
FJ80,HDJ80;HZJ80..LUB |
1 | ||
| 79301B - FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79301-60010 |
HDJ80..LHD..VX |
1 | ||
| 79301-60010 |
FJ80,HDJ80;HZJ80..LUB |
1 | ||
| 79301-60010 |
FZJ80,HDJ80..VX |
1 | ||
| 79302 - FRAME SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79302-60010 |
FJ80,HDJ80;HZJ80..LUB |
1 | ||
| 79302-60010 |
FZJ80,HDJ80..VX |
1 | ||
| 79302-60010 |
HDJ80..LHD..VX |
1 | ||
| 79303A - FRAME SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79303-60010 |
HDJ80..LHD..VX W(RECLINING REAR SEAT) |
1 | ||
| 79303-60051 |
FZJ80,HDJ80..VX W(RECLINING REAR SEAT) |
1 | ||
| 79303-60010 |
FJ80,HDJ80..VX |
1 | ||
| 79303-60050 |
FJ80,HDJ80..VX |
1 | ||
| 79304A - FRAME SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79304-60050 |
FJ80,HDJ80..VX |
1 | ||
| 79304-60010 |
HDJ80..LHD..VX W(RECLINING REAR SEAT) |
1 | ||
| 79304-60010 |
FJ80,HDJ80..VX |
1 | ||
| 79304-60051 |
FZJ80,HDJ80..VX W(RECLINING REAR SEAT) |
1 | ||
| 79305A - LEG SUB-ASSY, NO.3 SEAT, RH | ||||
| 79305-60010 |
HDJ80..LHD..VX |
1 | ||
| 79305-60010 |
FJ80,HDJ80;HZJ80..LUB |
1 | ||
| 79305-60010 |
FZJ80,HDJ80..VX |
1 | ||
| 79306 - LEG SUB ASSY, NO.3 SEAT, LH | ||||
| 79305-60010 |
HDJ80..LHD..VX |
1 | ||
| 79306-60060 |
FJ80,HDJ80;HZJ80..LUB |
1 | ||
| 79306-60060 |
HDJ80..LHD..VX |
1 | ||
| 79306-60060 |
FZJ80,HDJ80..VX |
1 | ||
| 79320 - CUSHION ASSY, NO.3 SEAT, RH | ||||
| 79320-6005006 |
HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 79320-6024003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 79320-6005003 |
HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79320-6024006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 79320-6024006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 79320-6024006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 79320-6024003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79320-60061B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79320-60061E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 79320-60360B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79320-60361B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79320-60361B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79320-6024003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79330 - CUSHION ASSY, NO.3 SEAT, LH | ||||
| 79330-6005003 |
HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79330-6005006 |
HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 79330-6024006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 79330-6024003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 79330-6024003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79330-6024006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 79330-6024006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 79330-60360B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79330-60061E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 79330-60061B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79330-60361B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79330-60361B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79330-6024003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79335A - PAD, NO.3 SEAT CUSHION, RH | ||||
| 79335-60010 |
HDJ80..LHD..VX W(RECLINING REAR SEAT) |
1 | ||
| 79335-60010 |
FZJ80,HDJ80..VX W(RECLINING REAR SEAT) |
1 | ||
| 79335-60010 |
FJ80,HDJ80..VX |
1 | ||
| 79335-60060 |
FZJ80,HDJ80..VX LEATHER PACKAGE |
1 | ||
| 79335-60060 |
HDJ80..LHD..VX LEATHER PACKAGE |
1 | ||
| 79340 - BACK ASSY, NO.3 SEAT, RH | ||||
| 79340-6011003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 79340-6007006 |
HDJ80..LHD..VX W(RECLINING REAR SEAT),SABLE,TRIM4# |
1 | ||
| 79340-6007003 |
HDJ80..LHD..VX W(RECLINING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79340-6011006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 79340-6011003 |
FJ80,HDJ80..VX BLUISH GRAY |
1 | ||
| 79340-60210B0 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79340-6011006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 79340-60210E0 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 79340-60380B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79340-60221B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79340-60211E0 |
FZJ80,HDJ80..VX W(RECLINING REAR SEAT),SABLE,TRIM4# |
1 | ||
| 79340-60211B0 |
FZJ80,HDJ80..VX W(RECLINING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79340-60053E1 |
FZJ80,HDJ80..VX W(RECLINING REAR SEAT),SABLE,TRIM4# |
1 | ||
| 79340-60380B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79340-60053B1 |
FZJ80,HDJ80..VX W(RECLINING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79345A - PAD, NO.3 SEAT CUSHION, LH | ||||
| 79345-60010 |
FJ80,HDJ80..VX |
1 | ||
| 79345-60010 |
HDJ80..LHD..VX W(RECLINING REAR SEAT) |
1 | ||
| 79345-60060 |
FZJ80,HDJ80..VX LEATHER PACKAGE |
1 | ||
| 79345-60060 |
HDJ80..LHD..VX LEATHER PACKAGE |
1 | ||
| 79345-60010 |
FZJ80,HDJ80..VX W(RECLINING REAR SEAT) |
1 | ||
| 79350 - BACK ASSY, NO.3 SEAT, LH | ||||
| 79350-6007006 |
HDJ80..LHD..VX W(RECLINING REAR SEAT),SABLE,TRIM4# |
1 | ||
| 79350-6011003 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79350-6007003 |
HDJ80..LHD..VX W(RECLINING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79350-6011006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 79350-60210E0 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 79350-60210B0 |
FJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79350-6011006 |
FJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 79350-6011003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 79350-60211E0 |
FZJ80,HDJ80..VX W(RECLINING REAR SEAT),SABLE,TRIM4# |
1 | ||
| 79350-60211B0 |
FZJ80,HDJ80..VX W(RECLINING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79350-60380B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79350-60221B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79350-60053E1 |
FZJ80,HDJ80..VX W(RECLINING REAR SEAT),SABLE,TRIM4# |
1 | ||
| 79350-60053B1 |
FZJ80,HDJ80..VX W(RECLINING REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79350-60380B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 79365 - COVER, NO.3 SEAT LEG BRACKET | ||||
| 79365-60020 |
FZJ80,HDJ80,HZJ80..GX,VX |
4 | ||
| 79365-60020 |
FJ80;HDJ80..VX |
4 | ||
| 79366 - COVER, NO.3 SEAT LEG, NO.1 | ||||
| 79366-6001006 |
FJ80,HDJ80;HZJ80..LUB SABLE,TRIM4# |
1 | ||
| 79366-6001003 |
FJ80,HDJ80;HZJ80..LUB BLUISH GRAY,TRIM1# |
1 | ||
| 79366-6001003 |
HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79366-6001006 |
HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 79366-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 79367 - COVER, NO.3 SEAT LEG, NO.2 | ||||
| 79367-6001003 |
HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79367-6001003 |
FJ80,HDJ80;HZJ80..LUB BLUISH GRAY,TRIM1# |
1 | ||
| 79367-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 79367-6001006 |
HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 79367-6001006 |
FJ80,HDJ80;HZJ80..LUB SABLE,TRIM4# |
1 | ||
| 79375A - PAD, NO.3 SEAT BACK, RH | ||||
| 79375-60020 |
HDJ80..LHD..VX |
1 | ||
| 79375-60040 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 79375-60040 |
HDJ80..LHD..VX FINLAND SPEC |
1 | ||
| 79375-60060 |
HDJ80..LHD..VX LEATHER PACKAGE |
1 | ||
| 79375-60060 |
FZJ80,HDJ80..VX LEATHER PACKAGE |
1 | ||
| 79375-60040 |
FZJ80,HDJ80..VX |
1 | ||
| 79378A - COVER, NO.3 SEAT CUSHION HINGE, RH | ||||
| 79378-6001003 |
HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79378-6001006 |
HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 79378-6001006 |
FJ80,HDJ80;HZJ80..LUB SABLE,TRIM4# |
1 | ||
| 79378-6001003 |
FJ80,HDJ80;HZJ80..LUB BLUISH GRAY,TRIM1# |
1 | ||
| 79378-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 79378B - COVER, NO.3 SEAT CUSHION HINGE, LH | ||||
| 79378-6001003 |
FJ80,HDJ80,HZJ80..GX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 79378-6001003 |
HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 79378-6001006 |
HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 79378-6001006 |
FJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4# |
1 | ||
| 79378-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 79385A - PAD, NO.3 SEAT BACK, LH | ||||
| 79385-60040 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 79385-60020 |
HDJ80..LHD..VX |
1 | ||
| 79385-60040 |
FZJ80,HDJ80..VX |
1 | ||
| 79385-60040 |
HDJ80..LHD..VX FINLAND SPEC |
1 | ||
| 79385-60060 |
HDJ80..LHD..VX LEATHER PACKAGE |
1 | ||
| 79385-60060 |
FZJ80,HDJ80..VX LEATHER PACKAGE |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-08501 | ||||
| 90119-08887 | ||||
| 90119-10101 | ||||
| 90119-10424 | ||||
| 90119-10493 | ||||
| 90119-10708 | ||||
| 90119-11023 | ||||
| 90159-60015 | ||||
| 90159-60108 | ||||
| 90168-40043 | ||||
| 90183-08003 | ||||
| 90202-08039 | ||||
| 90204-11024 | ||||
| 90204-11042 | ||||
| 90389-10031 | ||||
ILLUST NO. 3 OF 4(9108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72966 - BRACKET, REAR SEAT TURN LOCK | ||||
| 72966-90P80 |
HDJ80..LHD..VX |
2 | ||
| 72966-90P80 |
FJ80,HDJ80;HZJ80..LUB |
2 | ||
| 72966-90P80 |
FZJ80,HDJ80..VX |
2 | ||
| 72966 - BRACKET, REAR SEAT TURN LOCK | ||||
| 72966-90P80 |
HDJ80..LHD..VX |
2 | ||
| 72966-90P80 |
FJ80,HDJ80;HZJ80..LUB |
2 | ||
| 72966-90P80 |
FZJ80,HDJ80..VX |
2 | ||
| Common parts | ||||
| 79977-60030 | ||||
| 90119-08501 | ||||
| 90119-08A05 | ||||
| 90159-60015 | ||||
| 90249-08141 | ||||
| 90468-14018 | ||||
| 90468-18071 | ||||
| 90508-20072 | ||||
| 96160-00600 | ||||
ILLUST NO. 1 OF 4(9208- )
POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71063 - COVER SUB-ASSY, FRONT SEAT BACK, REAR | ||||
| 71063-60010B0 |
HDJ80..VX BLUISH GRAY,TRIM1# |
2 | ||
| 71063A - CLIP, FRONT SEAT BACK COVER, REAR | ||||
| 90467-05020B0 |
HDJ80..VX GRAY,TRIM1# |
4 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-6009006 |
FJ80,FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71071-6009006 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71071-6009003 |
FJ80,FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71071-60091E0 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71071-60540B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6009003 |
HDJ80..LHD..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-6009003 |
FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71071-60541B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-60091B0 |
HDJ80..LHD..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-6020006 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71072-6020003 |
HDJ80..LHD..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-6020006 |
FJ80,FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71072-60450B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-60201E0 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71072-6020003 |
FJ80,FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71072-60201B0 |
HDJ80..LHD..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-60451B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-60201B0 |
FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-6006003 |
FJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6017006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71073-6006003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6006006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71073-6017003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6017003 |
FJ80,FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6006006 |
FJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71073-6017006 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71073-60490B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-6017006 |
FJ80,FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71073-6017003 |
FZJ80,HDJ80..LHD..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71074-60440B0 |
FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71073-60171B0 |
FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71073-60171B0 |
HDJ80..LHD..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-60171E0 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71073-60491B0 |
HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-6007003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71074-6007006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71074-6010006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71074-6007006 |
FJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71074-6010003 |
FJ80,FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71074-6010006 |
FJ80,FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71074-6010003 |
HDJ80..LHD..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71074-6007003 |
FJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71074-6010003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71074-6010006 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71074-60440B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(POWER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71074-60101E0 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71074-60101B0 |
HDJ80..LHD..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71074-60101B0 |
FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71074-60441B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(POWER SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-6008003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6018003 |
FJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6030003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6008006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71410-6030006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71410-6018006 |
FJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71410-6031003 |
HDJ80..LHD..VX FINLAND SPEC & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6031006 |
HDJ80..LHD..VX FINLAND SPEC & W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71410-6031003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6031006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71410-6A040B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6030006 |
FJ80,FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71410-6030003 |
FJ80,FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6031006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71410-6031003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6A042B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6A020B0 |
FZJ80,HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6030006 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71410-6A041B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6A021B0 |
FZJ80,HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-60311B0 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-6030003 |
FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71410-60311E0 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-6009003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6009006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71420-6016006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71420-6017006 |
HDJ80..LHD..VX FINLAND SPEC & W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71420-6020003 |
FJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6016003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6017003 |
HDJ80..LHD..VX FINLAND SPEC & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6016003 |
FJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6017003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6016006 |
FJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71420-6020006 |
FJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71420-6017006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71420-60171B0 |
HDJ80..LHD..VX ***,W(SEAT HEATER),BLUISH GRAY,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-60840B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-60820B0 |
FZJ80,HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-60842B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-60171E0 |
HDJ80..LHD..VX ***,W(SEAT HEATER),SABLE,SABLE,TRIM4# |
1 | ||
| 71420-60161B0 |
FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71420-60161E0 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71420-60821B0 |
FZJ80,HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-60841B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-60172E0 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71420-60172B0 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-6009003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6009006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71430-6019006 |
FJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71430-6024006 |
HDJ80..LHD..VX FINLAND SPEC & W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71430-6024003 |
HDJ80..LHD..VX FINLAND SPEC & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6023006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71430-6019003 |
FJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6023003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6024003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6023003 |
FJ80,FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71430-60670B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6023006 |
FJ80,FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71430-6024006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71430-6024003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-60650B0 |
FZJ80,HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6024006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71430-60672B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6023003 |
FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71430-6023006 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71430-60651B0 |
FZJ80,HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-60241E0 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71430-60241B0 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-60671B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-6008006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71440-6008003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6016003 |
HDJ80..LHD..VX FINLAND SPEC & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6015003 |
HDJ80..LHD..VX FINLAND SPEC,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6016006 |
HDJ80..LHD..VX FINLAND SPEC & W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71440-6015006 |
HDJ80..LHD..VX FINLAND SPEC,SABLE,TRIM4# |
1 | ||
| 71440-6019003 |
FJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6016003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6015003 |
FJ80,FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6019006 |
FJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71440-60590B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6016006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71440-6015006 |
FJ80,FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71440-6016006 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71440-6016003 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-60570B0 |
FZJ80,HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6015003 |
FZJ80,HDJ80..LHD..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71440-6015006 |
FZJ80,HDJ80..LHD..VX SABLE,TRIM4# |
1 | ||
| 71440-60592B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-60161B0 |
HDJ80..LHD..VX W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-60591B0 |
HDJ80..LHD..VX LEATHER PACKAGE & W(SEAT HEATER),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-60161E0 |
HDJ80..LHD..VX W(SEAT HEATER),SABLE,TRIM4# |
1 | ||
| 71440-60571B0 |
FZJ80,HDJ80..LHD..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-60060 |
HDJ80..VX COLD AREA PACKAGE |
1 | ||
| 71511-60130 |
HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71511-60060 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-60040 |
HDJ80..VX COLD AREA PACKAGE |
1 | ||
| 71512-60040 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 71512-60110 |
HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71513-60020 |
HDJ80..VX LEATHER PACKAGE |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-60040 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 71551-60140 |
HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71551-60040 |
HDJ80..VX COLD AREA PACKAGE |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-60040 |
HDJ80..VX COLD AREA PACKAGE |
1 | ||
| 71552-60040 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 71551-60140 |
HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-60040 |
HDJ80..LHD..VX COLD AREA PACKAGE |
1 | ||
| 71610-60150 |
HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71610-60040 |
FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 71610-60020 |
FJ80,HDJ80..VX |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-60031 |
HDJ80..LHD..VX COLD AREA PACKAGE |
1 | ||
| 71620-60030 |
FJ80,HDJ80..LHD..VX |
1 | ||
| 71620-60150 |
HDJ80..VX LEATHER PACKAGE |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-60070 |
HDJ80..LHD..VX COLD AREA PACKAGE |
1 | ||
| 71630-60080 |
HDJ80..LHD..VX LEATHER PACKAGE |
1 | ||
| 71630-60070 |
FJ80,FZJ80,HDJ80..LHD..VX |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-60070 |
HDJ80..LHD..VX LEATHER PACKAGE |
1 | ||
| 71640-60050 |
FJ80,FZJ80,HDJ80..LHD..VX |
1 | ||
| 71640-60050 |
HDJ80..LHD..VX COLD AREA PACKAGE |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-60051B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71705-6005006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71705-6005003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71705-6005006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71705-60120B0 |
HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71705-60051E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71705-6005003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71705-60051B0 |
HDJ80..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71705-6005003 |
HDJ80..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71705-60121B0 |
HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-6001003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71706-6001003 |
HDJ80..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71705-60120B0 |
HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71706-6001006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71706-6001006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71705-60121B0 |
HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71706-6001003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71706-60011E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
1 | ||
| 71706-60011B0 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
1 | ||
| 71706-60011B0 |
HDJ80..VX COLD AREA PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-6001003 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
2 | ||
| 71910-6001003 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
2 | ||
| 71910-6001006 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
2 | ||
| 71910-6001006 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
2 | ||
| 71910-60150B0 |
FZJ80,HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1002013 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002006 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007006 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002006 |
FZJ80,HDJ80,HZJ80 W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007006 |
FZJ80,HDJ80,HZJ80 W(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007013 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1002013 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002006 |
FJ80,FZJ80,HDJ80,HZJ80 W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007006 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-1002006 |
FZJ80,HDJ80,HZJ80 W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007006 |
FZJ80,HDJ80,HZJ80 W(LOCK),SABLE,TRIM4# |
2 | ||
| 71930-1007013 |
FJ80,FZJ80,HDJ80,HZJ80 W(LOCK),GRAY,TRIM1# |
2 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1403057 |
HDJ80..VX LEATHER PACKAGE,BLUISH GRAY,TRIM1# |
1 | ||
| 72457-1403059 |
FJ80,FZJ80,HDJ80..VX SABLE,TRIM4# |
2 | ||
| 72457-1403057 |
FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
2 | ||
| 72457-1403059 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
2 | ||
| 72457-1403059 |
HDJ80..VX LEATHER PACKAGE,SABLE,TRIM4# |
1 | ||
| 72457-1403057 |
FJ80,FZJ80,HDJ80..VX BLUISH GRAY,TRIM1# |
2 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-60010 |
FJ80,FZJ80,HDJ80..LHD..VX |
1 | ||
| Common parts | ||||
| 90468-04146 | ||||
| 90468-18071 | ||||
| 90520-01002 | ||||
| 93540-55010 | ||||
| 93560-53010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8513 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
