HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )LUB

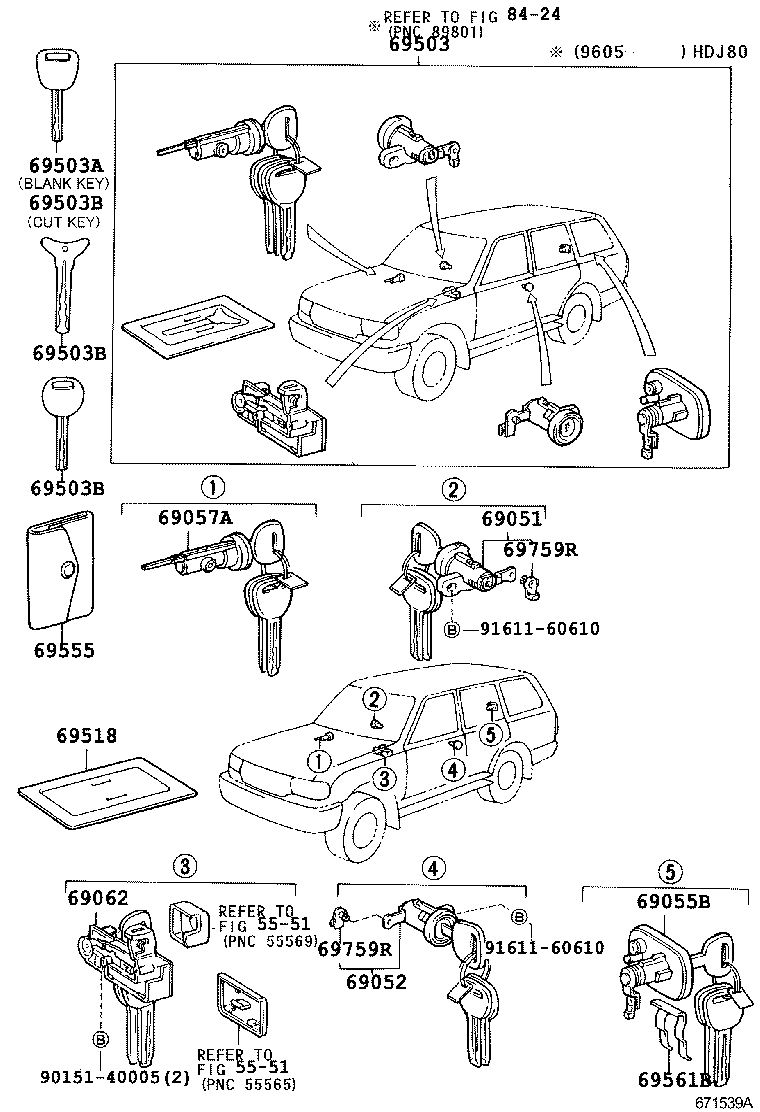

Click highlighted areas on diagram

diagram 5551 5551 69051 69052 69055B 69057A 69062 69503 69503A 69503B 69503B 69503B 69518 69555 69561B 69759R 69759R 8424 9015140005 9161160610 9161160610
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-60060

FJ80,FZJ80,HDJ80,HZJ80

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-60060

FJ80,FZJ80,HDJ80,HZJ80

 1
69055B - CYLINDER & KEY SET, BACK DOOR LOCK
69055-60080

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-60040

FJ80,FZJ80,HDJ80,HZJ80

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-60030

FJ80,FZJ80,HDJ80,HZJ80

 1
69503 - CYLINDER SET, LOCK
69005-60280

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
69503A - KEY, BLANK
90999-00177

FJ80,FZJ80,HDJ80,HZJ80

MASTER KEY

 1
69503B - KEY, CUT
69515-60030

FJ80,HDJ80,HZJ80

MASTER KEY,CARD

 1
69515-60020

FJ80,FZJ80,HDJ80,HZJ80

MASTER KEY

 3
69516-60020

FJ80,FZJ80,HDJ80,HZJ80

SUB KEY

 1
69503B - KEY, CUT
69515-60030

FJ80,HDJ80,HZJ80

MASTER KEY,CARD

 1
69515-60020

FJ80,FZJ80,HDJ80,HZJ80

MASTER KEY

 3
69516-60020

FJ80,FZJ80,HDJ80,HZJ80

SUB KEY

 1
69503B - KEY, CUT
69515-60030

FJ80,HDJ80,HZJ80

MASTER KEY,CARD

 1
69515-60020

FJ80,FZJ80,HDJ80,HZJ80

MASTER KEY

 3
69516-60020

FJ80,FZJ80,HDJ80,HZJ80

SUB KEY

 1
69518 - CARD, SPARE KEY
69518-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
69555 - COVER, KEY
69555-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
69561B - RETAINER, BACK DOOR LOCK CYLINDER
69561-10040

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-24080

FJ80,FZJ80,HDJ80,HZJ80

LH

 1
69759-24090

FJ80,HDJ80,HZJ80

RH

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-24080

FJ80,FZJ80,HDJ80,HZJ80

LH

 1
69759-24090

FJ80,HDJ80,HZJ80

RH

 1
Common parts
90151-40005
91611-60610
Linked diagrams
5551
8424
