HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )LUB

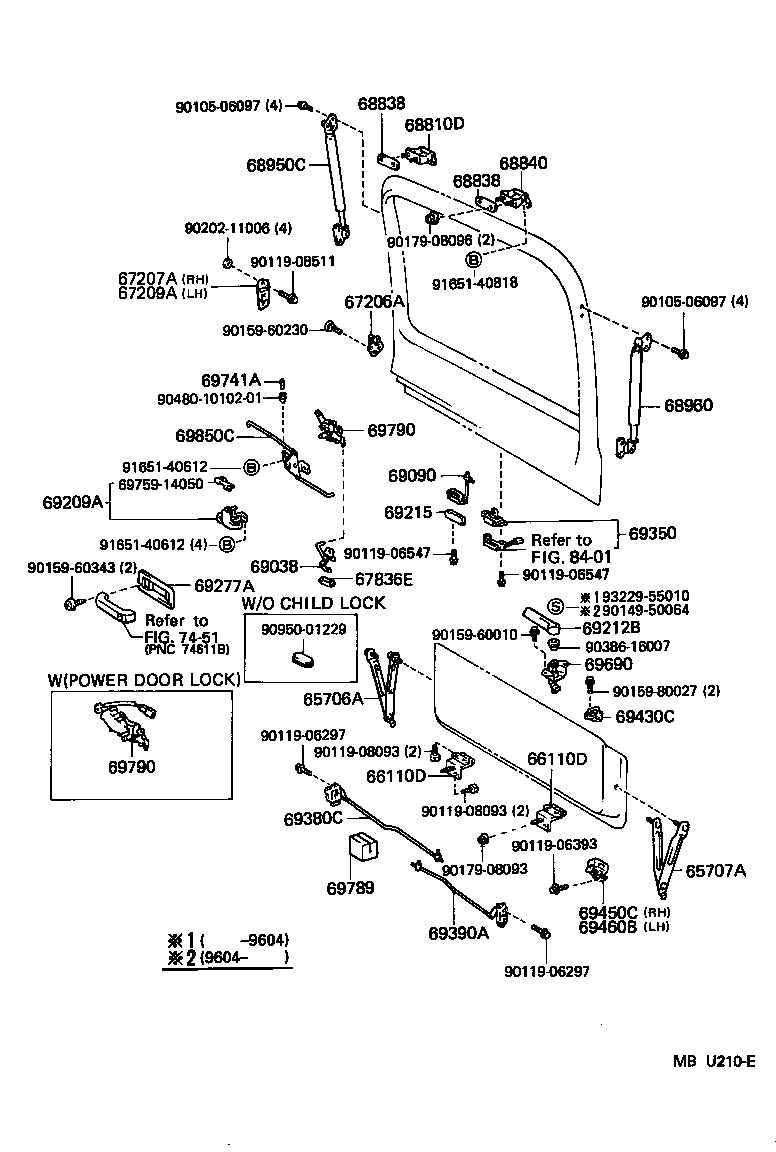

Click highlighted areas on diagram

diagram 65706A 65707A 66110D 66110D 67206A 67207A 67209A 67836E 68810D 68838 68838 68840 68950C 68960 69038 69090 69209A 69212B 69215 69277A 69350 69380C 69390A 69430C 69450C 69460B 69690 69741A 6975914050 69789 69790 69790 69850C 7451 8401 9010506097 9010506097 9011906297 9011906297 9011906393 9011906547 9011906547 9011908093 9011908093 9011908511 9014950064 9015960010 9015960230 9015960343 9015980027 9017908093 9017908096 9020211006 9038616007 904801010201 9095001229 9165140612 9165140612 9165140818 9322955010
Part # Description Qty Price
65706A - STAY SUB-ASSY, TAIL GATE, RH
65706-60010

FJ80,HDJ80,HZJ80..LUB

 1
65707A - STAY SUB-ASSY, TAIL GATE, LH
65707-60010

FJ80,HDJ80,HZJ80..LUB

 1
66110D - HINGE ASSY, TAIL GATE
66110-60010

FJ80,FZJ80,HDJ80,HZJ80..LUB

 2
66110D - HINGE ASSY, TAIL GATE
66110-60010

FJ80,FZJ80,HDJ80,HZJ80..LUB

 2
67206A - BRACKET SUB-ASSY, BACK DOOR STOPPER
67206-60020

FJ80,HDJ80,HZJ80..LUB

 2
67206-60021

FJ80,FZJ80,HDJ80,HZJ80..LUB

 2
67207A - STOPPER SUB-ASSY, BACK DOOR, RH
67207-60020

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
67209A - STOPPER SUB-ASSY, BACK DOOR, LH
67208-60020

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
67836E - COVER, REAR DOOR LOCK CHILD PROTECTION
67836-14010

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
68810D - HINGE ASSY, BACK DOOR, RH
68810-60010

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-20020

FJ80,FZJ80,HDJ80,HZJ80..LUB

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-20020

FJ80,FZJ80,HDJ80,HZJ80..LUB

 2
68840 - HINGE ASSY, BACK DOOR, LH
68810-60010

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-60030

FJ80,HDJ80,HZJ80..LUB

 1
68950-60031

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-60021

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
68960-60020

FJ80,HDJ80,HZJ80..LUB

 1
69038 - PROTECTOR SUB-ASSY, BACK DOOR CHILD
69038-60010

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
69090 - HANDLE ASSY, BACK DOOR, OUTSIDE
69090-60010

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
69209A - HANDLE SUB-ASSY, BACK DOOR, INSIDE
69209-6002006

FJ80,FZJ80,HDJ80,HZJ80..LUB

SABLE,TRIM4#

 1
69209-6002003

FJ80,FZJ80,HDJ80,HZJ80..LUB

BLUISH GRAY,TRIM1#

 1
69212B - HANDLE, BACK DOOR INSIDE
69212-90K00

FJ80,FZJ80,HDJ80,HZJ80

 1
69215 - HANDLE, BACK DOOR OUTSIDE
69215-60020

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
69277A - BEZEL, BACK DOOR INSIDE HANDLE
69277-9170103

FJ80,FZJ80,HDJ80,HZJ80..LUB

BLUISH GRAY,TRIM1#

 1
69277-9170116

FJ80,FZJ80,HDJ80,HZJ80..LUB

SABLE,TRIM4#

 1
69350 - LOCK ASSY, BACK DOOR
69350-60040

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
69380C - LOCK ASSY, BACK DOOR, LOWER
69380-60020

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
69390A - LOCK ASSY, TAIL GATE, LOWER LH
69390-60030

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-60020

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
69450C - STRIKER ASSY, BACK DOOR LOCK, RH
69450-60010

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
69460B - STRIKER ASSY, BACK DOOR LOCK, LH
69460-60010

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-60010

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
69741A - KNOB, BACK DOOR LOCK CONTROL
69741-28010C0

FJ80,FZJ80,HDJ80,HZJ80..LUB

BLACK,TRIM1#,4#

 1
69741-28010C1

FZJ80,HDJ80,HZJ80..LUB

BLACK,TRIM1#,4#

 1
69789 - SILENCER, BACK DOOR LOCK CONTROL LINK
69789-60010

FJ80,FZJ80,HDJ80,HZJ80..LUB

 2
69790 - CONTROL ASSY, BACK DOOR LOCK
69790-60020

FJ80,FZJ80,HDJ80..VX

 1
69790-60060

FJ80,FZJ80,HDJ80..VX

W(REAR SEPARATED RECLINING SEAT & 3RD TRANSVESE SEAT)

 1
69790 - CONTROL ASSY, BACK DOOR LOCK
69790-60020

FJ80,FZJ80,HDJ80..VX

 1
69790-60060

FJ80,FZJ80,HDJ80..VX

W(REAR SEPARATED RECLINING SEAT & 3RD TRANSVESE SEAT)

 1
69850C - LINK ASSY, BACK DOOR INSIDE LOCKING
69850-60010

FJ80,FZJ80,HDJ80,HZJ80..LUB

 1
Common parts
69759-14050
90105-06097
90119-06297
90119-06393
90119-06547
90119-08093
90119-08511
90149-50064
90159-60010
90159-60230
90159-60343
90159-80027
90179-08093
90179-08096
90202-11006
90386-16007
90480-1010201
90950-01229
91651-40612
91651-40818
93229-55010
