HDJ80L-GNPEXW (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Jan 1995
Engine
1HDT
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )

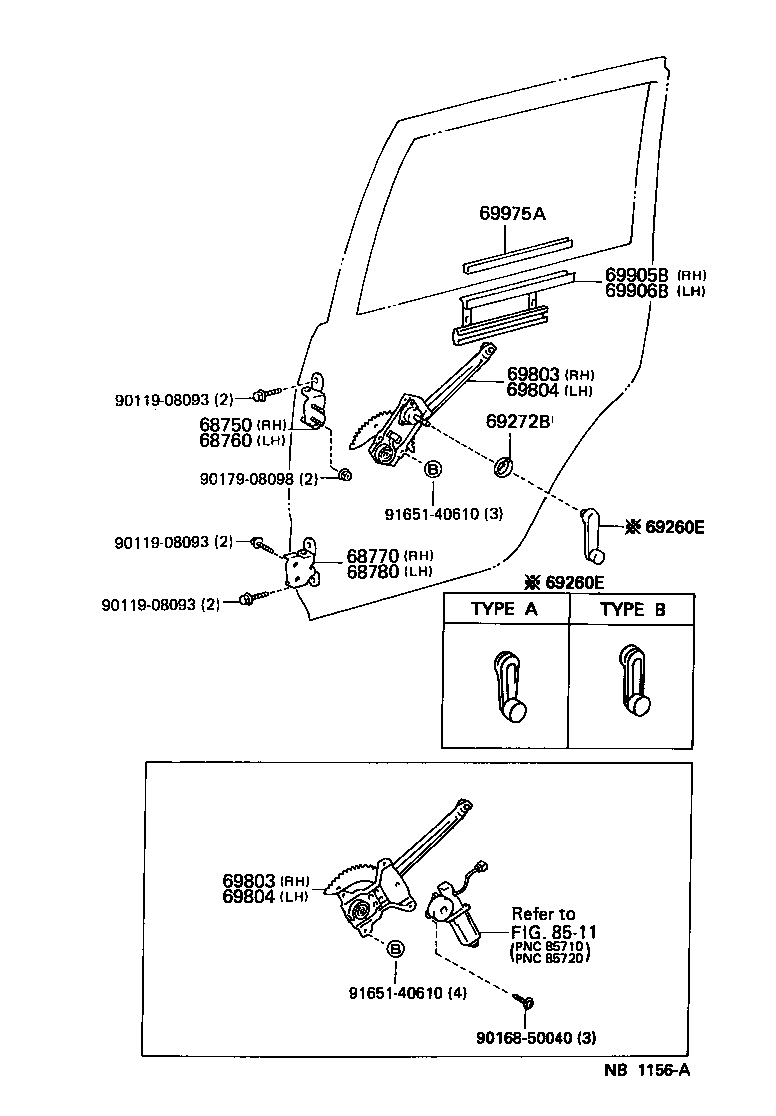

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-20040 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-20040 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-60010 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-60010 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-60010 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-60010 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH | ||||
| 69905-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH | ||||
| 69906-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 69975A - FILLER, REAR DOOR GLASS CHANNEL | ||||
| 69975-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| Common parts | ||||
| 90119-08093 | ||||
| 90168-50040 | ||||
| 90179-08098 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 8511 | ||||
