HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

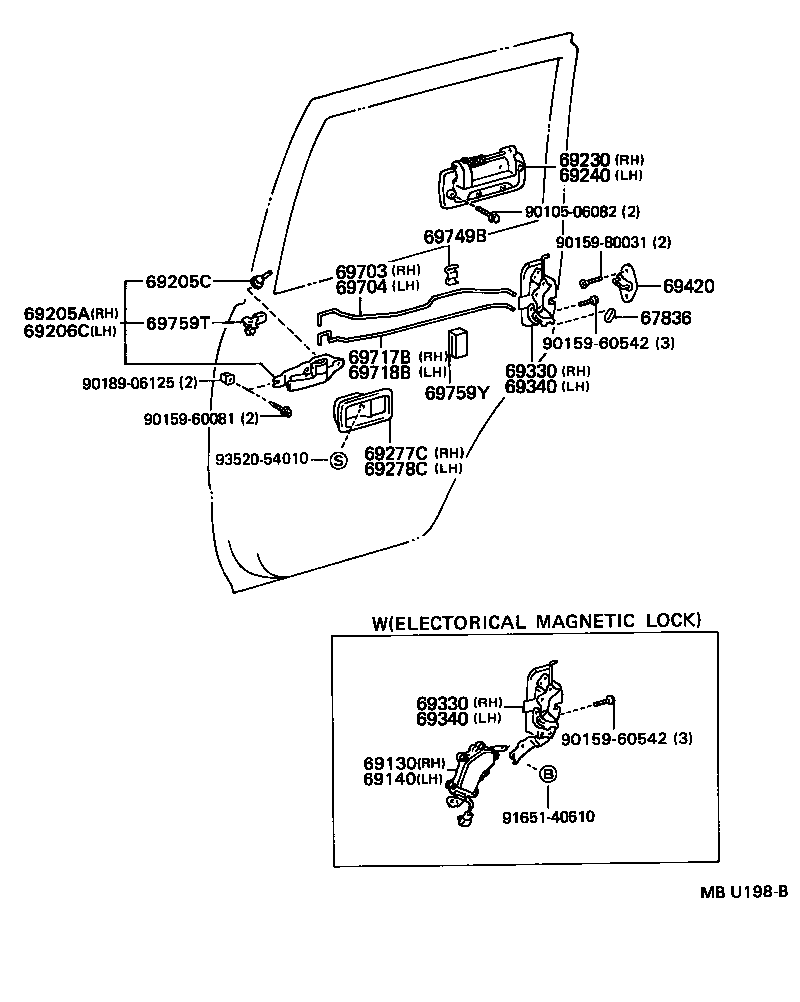

Click highlighted areas on diagram

diagram 67836 69130 69140 69205A 69205C 69206C 69230 69240 69277C 69278C 69330 69330 69340 69340 69420 69703 69704 69717B 69718B 69749B 69759T 69759Y 9010506082 9015960081 9015960542 9015960542 9015980031 9018906125 9165140610 9352054010
Part # Description Qty Price
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-14010

FJ80,FZJ80,HDJ80,HZJ80

 2
69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH
69130-60010

FJ80,FZJ80,HDJ80,HZJ80..GX,VX

 1
69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH
69140-60010

FJ80,FZJ80,HDJ80,HZJ80..GX,VX

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-6003003

FJ80,FZJ80,HDJ80,HZJ80

GRAY,TRIM1#

 1
69205-6003006

FJ80,FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04018

FJ80,FZJ80,HDJ80,HZJ80

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-6003003

FJ80,FZJ80,HDJ80,HZJ80

GRAY,TRIM1#

 1
69206-6003006

FJ80,FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-6002005

FJ80,HDJ80..VX

L. BEIGE M,27P ,4K1

 1
69230-6002003

FJ80,FZJ80,HDJ80..VX

DARK BLUISH GRAY M,183

 1
69230-6002005

FZJ80,HDJ80..VX

L. BEIGE M,4K1

 1
69230-60020G0

FZJ80,HDJ80..VX

DARK GREEN MICA,6M1

 1
69230-6002013

FJ80,FZJ80,HDJ80..VX

BLUISH SILVER M,20R ,26P

 1
69230-6002013

FZJ80,HDJ80..VX

BLUISH SILVER M,26P

 1
69230-6002002

FZJ80,HDJ80..VX

RED MICA,26W ,3H4

 1
69230-6002002

FJ80,FZJ80,HDJ80..VX

RED MICA,3H4

 1
69230-6002008

FJ80,FZJ80,HDJ80..VX

WHITE,045

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-6002005

FJ80,HDJ80..VX

L. BEIGE M,27P ,4K1

 1
69240-6002013

FZJ80,HDJ80..VX

BLUISH SILVER M,26P

 1
69240-6002013

FJ80,FZJ80,HDJ80..VX

BLUISH SILVER M,20R ,26P

 1
69240-6002008

FJ80,FZJ80,HDJ80..VX

WHITE,045

 1
69240-6002002

FZJ80,HDJ80..VX

RED MICA,26W ,3H4

 1
69240-6002002

FJ80,FZJ80,HDJ80..VX

RED MICA,3H4

 1
69240-6002003

FJ80,FZJ80,HDJ80..VX

DARK BLISH GRAY M,183

 1
69240-6002005

FZJ80,HDJ80..VX

L. BEIGE M,4K1

 1
69240-60020G0

FZJ80,HDJ80..VX

DARK GREEN MICA,6M1

 1
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69277-6001003

FJ80,FZJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
69277-6001006

FJ80,FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69278-6001006

FJ80,FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
69278-6001003

FJ80,FZJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-60050

FJ80,HDJ80..VX

 1
69330-60051

FZJ80,HDJ80..VX

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-60050

FJ80,HDJ80..VX

 1
69330-60051

FZJ80,HDJ80..VX

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-60050

FJ80,HDJ80..VX

 1
69340-60051

FZJ80,HDJ80..VX

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-60050

FJ80,HDJ80..VX

 1
69340-60051

FZJ80,HDJ80..VX

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-87001

FJ80,FZJ80,HDJ80,HZJ80

 2
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69737-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69738-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH
69713-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69714-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12030

FJ80,FZJ80,HDJ80,HZJ80

 2
69759T - SNAP, REAR DOOR INSIDE HANDLE
69759-24070

FJ80,FZJ80,HDJ80,HZJ80

RH

 2
69759-14050

FJ80,FZJ80,HDJ80,HZJ80

LH

 2
69759Y - SILENCER, REAR DOOR LOCK LINK
69759-30021

FJ80,FZJ80,HDJ80,HZJ80

 2
Common parts
90105-06082
90159-60081
90159-60542
90159-80031
90189-06125
91651-40610
93520-54010
