HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

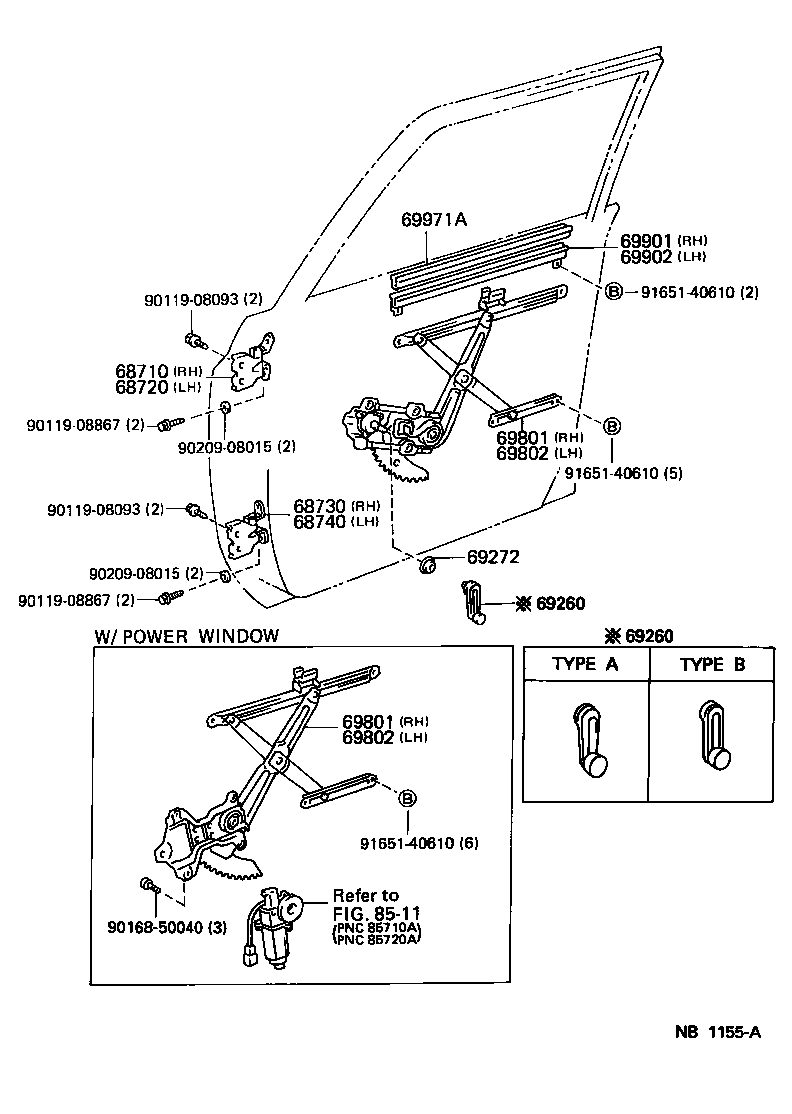

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260 69272 69801 69801 69802 69802 69901 69902 69971A 8511 9011908093 9011908093 9011908867 9011908867 9016850040 9020908015 9020908015 9165140610 9165140610 9165140610
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-60020

FJ80,HDJ80,HZJ80

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-60020

FJ80,HDJ80,HZJ80

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-12060

FJ80,HDJ80,HZJ80

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-12060

FJ80,HDJ80,HZJ80

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-60010

FJ80,FZJ80,HDJ80..VX

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-60010

FJ80,FZJ80,HDJ80..VX

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-60010

FJ80,FZJ80,HDJ80..VX

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-60010

FJ80,FZJ80,HDJ80..VX

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69902-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
69971A - FILLER, FRONT DOOR GLASS CHANNEL
69971-60010

FJ80,FZJ80,HDJ80,HZJ80

 2
Common parts
90119-08093
90119-08867
90168-50040
90209-08015
91651-40610
Linked diagrams
8511
