HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

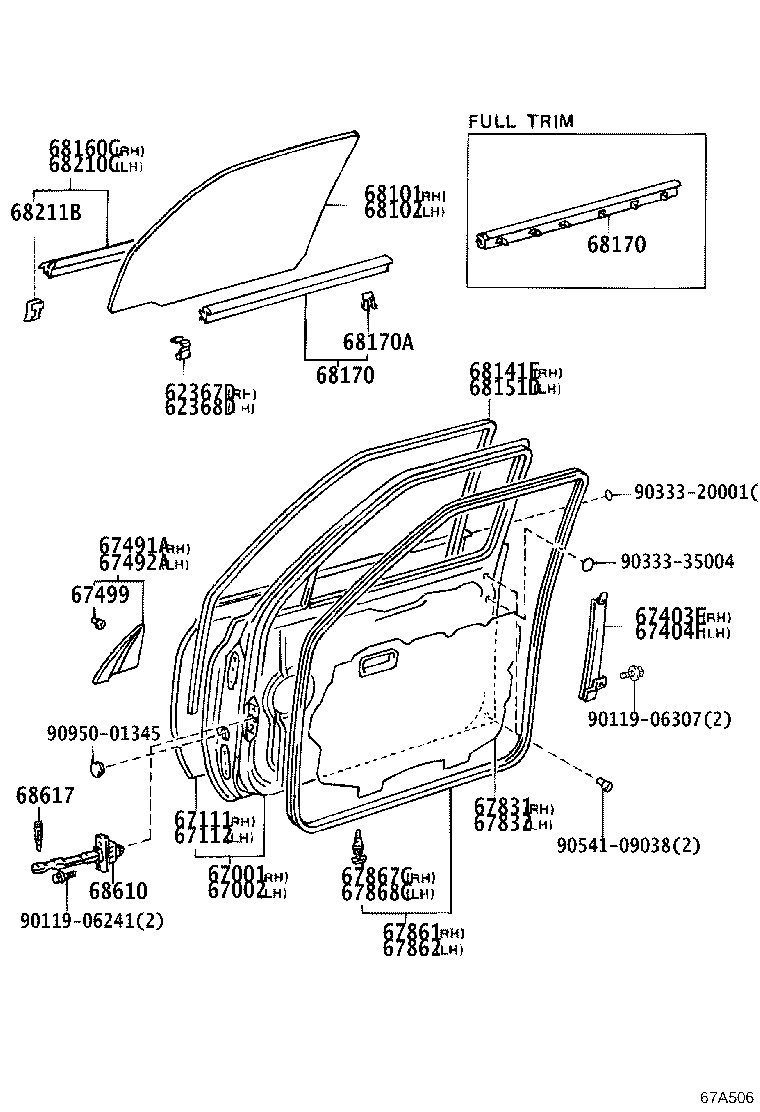

ILLUST NO. 1 OF 2(9001- )

Click highlighted areas on diagram

DOOR PANEL

diagram 62367D 62368D 67001 67002 67111 67112 67403F 67404F 67491A 67492A 67499 67831 67832 67861 67862 67867C 67868C 68101 68102 68141E 68151D 68160C 68170 68170 68170A 68210C 68211B 68610 68617 9011906241 9011906307 9033320001 9033335004 9054109038 9095001345
Part # Description Qty Price
62367D - CLIP, DOOR WINDOW GLASS, RH
62367-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
62368D - CLIP, DOOR WINDOW GLASS, LH
62367-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-60352

FJ80,HDJ80..VX

 1
67001-60350

FJ80,HDJ80..VX

 1
67001-60351

FZJ80;HDJ80..VX

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-60350

FJ80,HDJ80..VX

 1
67002-60352

FJ80,HDJ80..VX

 1
67002-60351

FZJ80;HDJ80..VX

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-60240

FZJ80;FJ80,HDJ80..VX

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-60240

FZJ80;FJ80,HDJ80..VX

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-60020

FJ80,FZJ80,HDJ80,HZJ80

 1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-60020

FJ80,FZJ80,HDJ80,HZJ80..GX,VX

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-60020

FJ80,FZJ80,HDJ80,HZJ80..GX,VX

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-30020

FJ80,FZJ80,HDJ80,HZJ80

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-60030

FJ80,FZJ80,HDJ80..VX

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-60030

FJ80,FZJ80,HDJ80..VX

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-60010

FJ80,HDJ80,HZJ80

 1
67861-60070

FJ80,HDJ80,HZJ80

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-60010

FJ80,HDJ80,HZJ80

 1
67862-60070

FJ80,HDJ80,HZJ80

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67868-22020

FJ80,FZJ80,HDJ80,HZJ80

 21
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67868-22020

FJ80,FZJ80,HDJ80,HZJ80

 21
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-60060

FJ80,FZJ80,HDJ80,HZJ80

*TT,T=4.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-60050

FJ80,FZJ80,HDJ80,HZJ80

*TT,T=4.0

 1
68141E - RUN, FRONT DOOR GLASS, RH
68141-60011

FZJ80,HDJ80,HZJ80

 1
68141-60010

FJ80,HDJ80,HZJ80

 1
68151D - RUN, FRONT DOOR GLASS, LH
68151-60010

FJ80,HDJ80,HZJ80

 1
68151-60011

FZJ80,HDJ80,HZJ80

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-60030

FJ80,FZJ80,HDJ80,HZJ80..GX,VX

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-60030

FJ80,FZJ80,HDJ80,HZJ80..GX,VX

 2
68610 - CHECK ASSY, FRONT DOOR
68610-60010

FJ80,HDJ80,HZJ80

 2
68617 - PIN, FRONT DOOR CHECK
68617-20011

FJ80,FZJ80,HDJ80,HZJ80

 2
Common parts
90119-06241
90119-06307
90333-20001
90333-35004
90541-09038
90950-01345

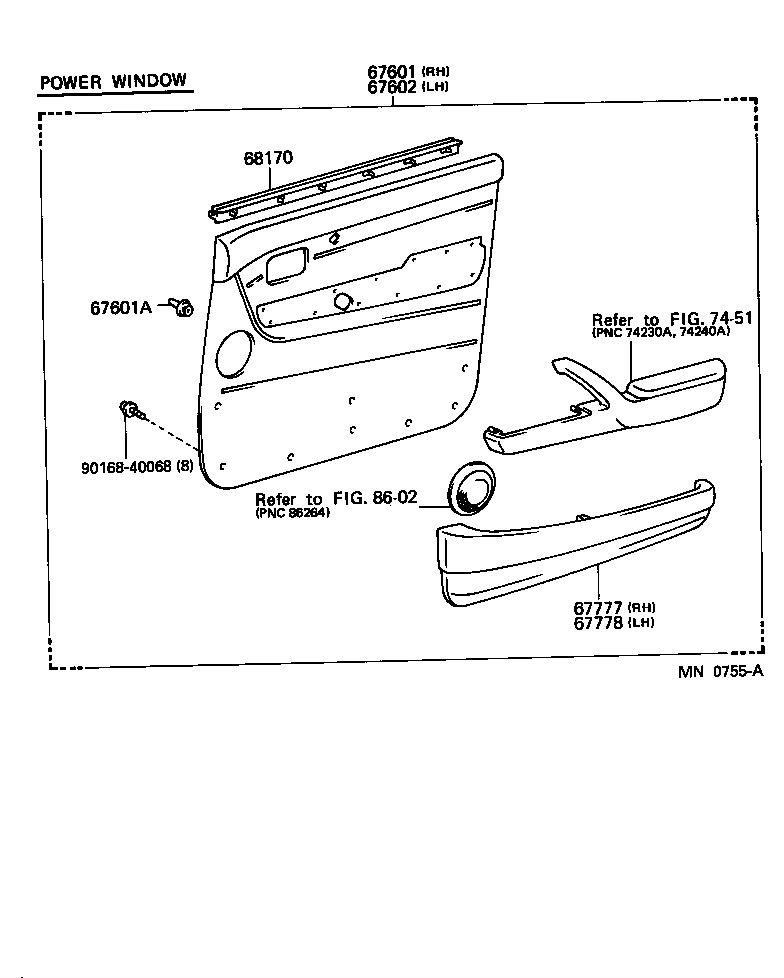

ILLUST NO. 2 OF 2(9001- )GX,VX

Click highlighted areas on diagram

DOOR TRIM,W(POWER WINDOW)

diagram 67601 67601A 67602 67777 67778 68170 7451 8602 9016840068
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-6012003

FJ80,FZJ80,HDJ80..VX

BLUISH GRAY,TRIM1#

 1
67610-60630B1

FZJ80,HDJ80..VX

LEATHER PACKAGE,BLUISH GRAY,TRIM1#

 1
67610-6012006

FJ80,FZJ80,HDJ80..VX

SABLE,TRIM4#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12040

FJ80,HDJ80..VX

GRAY

 22
67771-12040

FJ80,HDJ80,HZJ80..GX,VX

GRAY

 22
67771-12050

FJ80,HDJ80..VX

RED

 4
67771-12050

FJ80,HDJ80,HZJ80..GX,VX

RED

 26
67771-12050

FJ80,HDJ80,HZJ80..GX,VX

RED

 18
67771-30090

FJ80,HDJ80,HZJ80

YELLOW

 8
67771-12050

FJ80,HDJ80,HZJ80..GX,VX

RED

 4
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-6012006

FJ80,FZJ80,HDJ80..VX

SABLE,TRIM4#

 1
67620-6012003

FJ80,FZJ80,HDJ80..VX

BLUISH GRAY,TRIM1#

 1
67620-60650B1

FZJ80,HDJ80..VX

LEATHER PACKAGE,BLUISH GRAY,TRIM1#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67770-6001006

FZJ80,HDJ80..VX

SABLE,TRIM4#

 1
67770-6001003

FZJ80,HDJ80..VX

BLUISH GRAY,TRIM1#

 1
67770-6001006

FJ80,FZJ80,HDJ80..VX

SABLE,TRIM4#

 1
67770-6001003

FJ80,FZJ80,HDJ80..VX

BLUISH GRAY,TRIM1#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67780-6001003

FJ80,FZJ80,HDJ80..VX

BLUISH GRAY,TRIM1#

 1
67780-6001006

FJ80,FZJ80,HDJ80..VX

SABLE,TRIM4#

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-60030

FJ80,FZJ80,HDJ80,HZJ80..GX,VX

 2
Common parts
90168-40068
Linked diagrams
7451
8602
