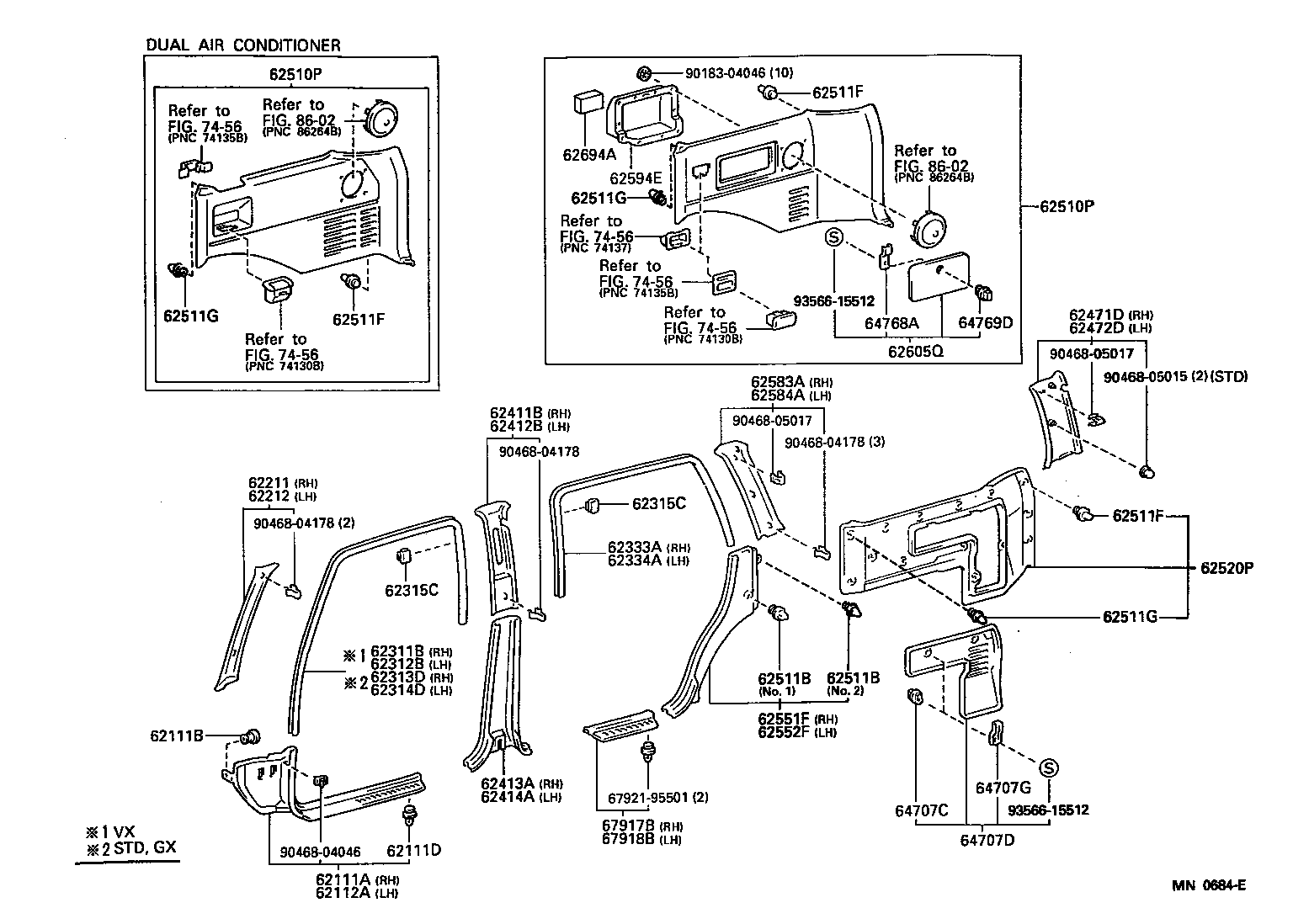

HDJ80L-GNPEXW (1990)
Toyota Land Cruiser
(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62101-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 62101-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 62101-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-0401703 |
FJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
2 | ||
| 90467-0401706 |
FJ80,HDJ80,HZJ80 SABLE,TRIM4# |
2 | ||
| 62111D - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67921-95501 |
FJ80,FZJ80,HDJ80,HZJ80 |
6 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62102-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 62102-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 62102-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-6001006 |
FJ80,FZJ80,HDJ80..VX LIGHT SABLE,TRIM4# |
1 | ||
| 62311-6001003 |
FZJ80,HDJ80..VX LIGHT GRAY,TRIM1# |
1 | ||
| 62311-6001003 |
FJ80,FZJ80,HDJ80..VX LIGHT GRAY,TRIM1# |
1 | ||
| 62311-6001006 |
FZJ80,HDJ80..VX LIGHT SABLE,TRIM4# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-6001006 |
FJ80,FZJ80,HDJ80..VX LIGHT SABLE,TRIM4# |
1 | ||
| 62312-6001003 |
FJ80,FZJ80,HDJ80..VX LIGHT GRAY,TRIM1# |
1 | ||
| 62312-6001006 |
FZJ80,HDJ80..VX LIGHT SABLE,TRIM4# |
1 | ||
| 62312-6001003 |
FZJ80,HDJ80..VX LIGHT GRAY,TRIM1# |
1 | ||
| 62315C - COVER, FRONT DOOR OPENING TRIM | ||||
| 62315-6001003 |
FZJ80,HDJ80..VX LIGHT GRAY,TRIM1# |
2 | ||
| 62315-6001006 |
FJ80,FZJ80,HDJ80..VX LIGHT SABLE,TRIM4# |
2 | ||
| 62315-6001003 |
FJ80,FZJ80,HDJ80..VX LIGHT GRAY,TRIM1# |
2 | ||
| 62315-6001006 |
FZJ80,HDJ80..VX LIGHT SABLE,TRIM4# |
2 | ||
| 62315C - COVER, FRONT DOOR OPENING TRIM | ||||
| 62315-6001003 |
FZJ80,HDJ80..VX LIGHT GRAY,TRIM1# |
2 | ||
| 62315-6001006 |
FJ80,FZJ80,HDJ80..VX LIGHT SABLE,TRIM4# |
2 | ||
| 62315-6001003 |
FJ80,FZJ80,HDJ80..VX LIGHT GRAY,TRIM1# |
2 | ||
| 62315-6001006 |
FZJ80,HDJ80..VX LIGHT SABLE,TRIM4# |
2 | ||
| 62333A - TRIM, REAR DOOR OPENING, RH | ||||
| 62333-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 LIGHT SABLE,TRIM4# |
1 | ||
| 62333-6001006 |
FZJ80,HDJ80,HZJ80 LIGHT SABLE,TRIM4# |
1 | ||
| 62333-6001003 |
FZJ80,HDJ80,HZJ80 LIGHT GRAY,TRIM1# |
1 | ||
| 62333-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 LIGHT GRAY,TRIM1# |
1 | ||
| 62334A - TRIM, REAR DOOR OPENING, LH | ||||
| 62333-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 LIGHT GRAY,TRIM1# |
1 | ||
| 62333-6001003 |
FZJ80,HDJ80,HZJ80 LIGHT GRAY,TRIM1# |
1 | ||
| 62333-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 LIGHT SABLE,TRIM4# |
1 | ||
| 62333-6001006 |
FZJ80,HDJ80,HZJ80 LIGHT SABLE,TRIM4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 62413-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 62413-6001003 |
FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 62413-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-6001003 |
FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 62414-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 62414-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 62414-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 62471D - GARNISH, REAR PILLAR, UPPER RH | ||||
| 62471-6001003 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX LIGHT GRAY,TRIM1# |
1 | ||
| 62471-6001003 |
FZJ80,HDJ80,HZJ80..GX,VX LIGHT GRAY,TRIM1# |
1 | ||
| 62471-6001006 |
FZJ80,HDJ80,HZJ80..GX,VX LIGHT SABLE,TRIM4# |
1 | ||
| 62471-6001006 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX LIGHT SABLE,TRIM4# |
1 | ||
| 62472D - GARNISH, REAR PILLAR, UPPER LH | ||||
| 62472-6001003 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX LIGHT GRAY,TRIM1# |
1 | ||
| 62472-6001006 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX LIGHT SABLE,TRIM4# |
1 | ||
| 62472-6001003 |
FZJ80,HDJ80,HZJ80..GX,VX LIGHT GRAY,TRIM1# |
1 | ||
| 62472-6001006 |
FZJ80,HDJ80,HZJ80..GX,VX LIGHT SABLE,TRIM4# |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-6002003 |
FJ80,HDJ80,HZJ80..GX,VX W(5 SPEAKER),BLUISH GRAY,TRIM1# |
1 | ||
| 62510-6002006 |
FJ80,HDJ80,HZJ80..GX,VX W(5 SPEAKER),SABLE,TRIM4# |
1 | ||
| 62510-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 62510-6009006 |
FJ80,FZJ80,HDJ80..VX W(3RD SEAT),SABLE,TRIM4# |
1 | ||
| 62510-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 62510-6002006 |
FZJ80,HDJ80,HZJ80 W(5 SPEAKER),SABLE,TRIM4# |
1 | ||
| 62510-6010006 |
FJ80,FZJ80,HDJ80..VX W(3RD SEAT & 5 SPEAKER),SABLE,TRIM4# |
1 | ||
| 62510-6002003 |
FZJ80,HDJ80,HZJ80 W(5 SPEAKER),BLUISH GRAY,TRIM1# |
1 | ||
| 62510-6009003 |
HDJ80..RHD..TD2;FJ80,FZJ80,HDJ80..LHD..VX W(3RD SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 62510-6010003 |
HDJ80..RHD..TD2;FJ80,FZJ80,HDJ80..LHD..VX W(3RD SEAT & 5 SPEAKER),BLUISH GRAY,TRIM1# |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-6002003 |
FJ80,HDJ80,HZJ80..GX,VX W(5 SPEAKER),BLUISH GRAY,TRIM1# |
1 | ||
| 62510-6002006 |
FJ80,HDJ80,HZJ80..GX,VX W(5 SPEAKER),SABLE,TRIM4# |
1 | ||
| 62510-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 62510-6009006 |
FJ80,FZJ80,HDJ80..VX W(3RD SEAT),SABLE,TRIM4# |
1 | ||
| 62510-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 62510-6002006 |
FZJ80,HDJ80,HZJ80 W(5 SPEAKER),SABLE,TRIM4# |
1 | ||
| 62510-6010006 |
FJ80,FZJ80,HDJ80..VX W(3RD SEAT & 5 SPEAKER),SABLE,TRIM4# |
1 | ||
| 62510-6002003 |
FZJ80,HDJ80,HZJ80 W(5 SPEAKER),BLUISH GRAY,TRIM1# |
1 | ||
| 62510-6009003 |
HDJ80..RHD..TD2;FJ80,FZJ80,HDJ80..LHD..VX W(3RD SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 62510-6010003 |
HDJ80..RHD..TD2;FJ80,FZJ80,HDJ80..LHD..VX W(3RD SEAT & 5 SPEAKER),BLUISH GRAY,TRIM1# |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-12040 |
FZJ80,HDJ80,HZJ80 |
4 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-12040 |
FZJ80,HDJ80,HZJ80 |
4 | ||
| 62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-12050 |
FJ80,FZJ80,HDJ80,HZJ80 RED |
28 | ||
| 67771-12050 |
FJ80,HDJ80,HZJ80 |
30 | ||
| 67771-12040 |
FJ80,HDJ80,HZJ80 |
30 | ||
| 67771-32060 |
FJ80,FZJ80,HDJ80,HZJ80 BROWN |
2 | ||
| 62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-12050 |
FJ80,FZJ80,HDJ80,HZJ80 RED |
28 | ||
| 67771-12050 |
FJ80,HDJ80,HZJ80 |
30 | ||
| 67771-12040 |
FJ80,HDJ80,HZJ80 |
30 | ||
| 67771-32060 |
FJ80,FZJ80,HDJ80,HZJ80 BROWN |
2 | ||
| 62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-12050 |
FJ80,FZJ80,HDJ80,HZJ80 RED |
28 | ||
| 67771-12050 |
FJ80,HDJ80,HZJ80 |
30 | ||
| 67771-12040 |
FJ80,HDJ80,HZJ80 |
30 | ||
| 67771-32060 |
FJ80,FZJ80,HDJ80,HZJ80 BROWN |
2 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62520-6004006 |
FJ80,FZJ80,HDJ80..VX W(3RD SEAT),SABLE,TRIM4# |
1 | ||
| 62520-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 62520-6004003 |
FJ80,FZJ80,HDJ80..VX W(3RD SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 62520-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 62551F - GARNISH, REAR SEAT SIDE, RH | ||||
| 62551-6002006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 62551-6002003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 62552F - GARNISH, REAR SEAT SIDE, LH | ||||
| 62552-6002003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 62552-6002006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 62594E - POCKET, QUARTER TRIM, RH | ||||
| 62594-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 62594-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 62594-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 62605Q - LID SUB-ASSY, QUARTER TRIM, RH | ||||
| 62605-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 62605-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 62605-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 62694A - PAD, QUARTER TRIM BOX, COVER | ||||
| 62694-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 64707C - KNOB, JACK COVER | ||||
| 64769-90K0006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
2 | ||
| 64769-90K0006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
2 | ||
| 64769-90K0003 |
FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
2 | ||
| 64769-90K0003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
2 | ||
| 64707D - COVER SUB-ASSY, QUARTER TRIM JACK | ||||
| 64707-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 64707-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 64707-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 64707G - STOPPER, JACK COVER | ||||
| 64768-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 64768A - STOPPER, QUARTER TRIM LID | ||||
| 64768-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 64769D - KNOB, JACK COVER | ||||
| 64769-90K0003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 64769-90K0006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 64769-90K0003 |
FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 64769-90K0006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 67917B - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 67917-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 67917-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 67918B - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 67918-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 67918-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67921-95501 | ||||
| 90183-04046 | ||||
| 90468-04046 | ||||
| 90468-04178 | ||||
| 90468-05015 | ||||
| 90468-05017 | ||||
| 93566-15512 | ||||
| Linked diagrams | ||||
| 7456 | ||||
| 8602 | ||||
