HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

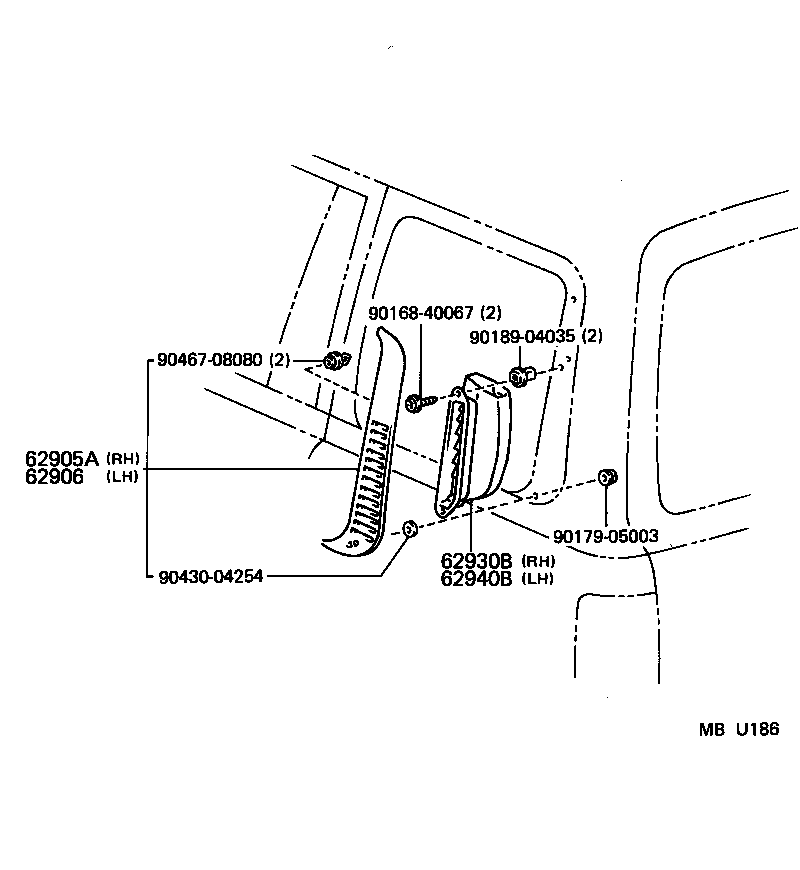

Click highlighted areas on diagram

diagram 62905A 62906 62930B 62940B 9016840067 9017905003 9018904035 9043004254 9046708080
Part # Description Qty Price
62905A - LOUVER, QUATER VENTILATION, RH
62905-60020

FJ80,FZJ80,HDJ80,HZJ80

W(REAR QUARTER SLIDE WINDOW)

 1
62905-60020

FJ80,HDJ80,HZJ80..GX,VX

W(REAR QUARTER SLIDE WINDOW)

 1
62905-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
62906 - LOUVER, QUATER VENTILATION, LH
62906-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
62906-60020

FJ80,HDJ80,HZJ80..GX,VX

W(REAR QUARTER SLIDE WINDOW)

 1
62906-60020

FJ80,FZJ80,HDJ80,HZJ80

W(REAR QUARTER SLIDE WINDOW)

 1
62930B - DUCT ASSY, QUARTER VENT, RH
62930-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
62940B - DUCT ASSY, QUARTER VENT, LH
62940-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
Common parts
90168-40067
90179-05003
90189-04035
90430-04254
90467-08080
