HDJ80L-GNPEXW (1990)
Toyota Land Cruiser

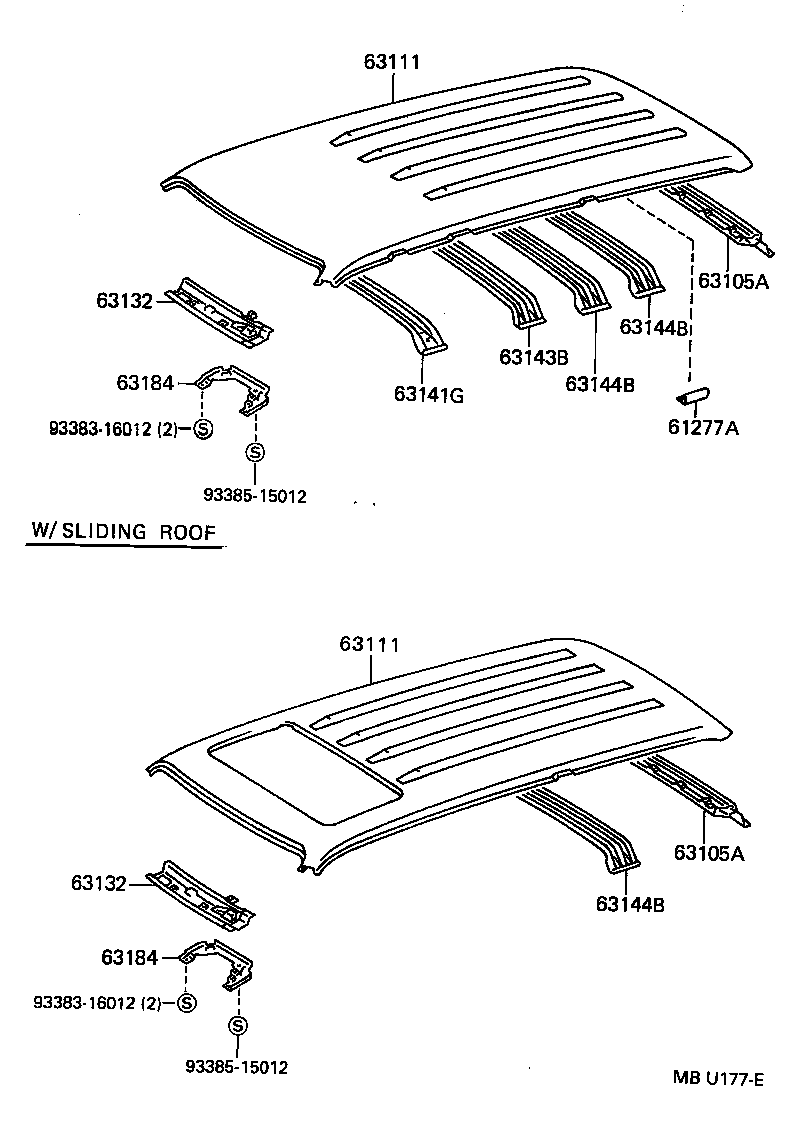

ILLUST NO. 1 OF 3(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-60100 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 63105-60060 |
FJ80,HDJ80..VX W(REAR TRANSVERS SEAT) |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-60100 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 63105-60060 |
FJ80,HDJ80..VX W(REAR TRANSVERS SEAT) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63014-60040 |
HDJ80..VX W(*MR & ROOF RACK) |
1 | ||
| 63111-60050 |
FJ80,FZJ80,HDJ80,HZJ80..LUB W(ROOF RACK) |
1 | ||
| 63014-60040 |
FJ80,FZJ80,HDJ80..VX W(*MR & ROOF RACK) |
1 | ||
| 63111-60190 |
FJ80,FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 63014-60020 |
FJ80,FZJ80,HDJ80,HZJ80..LUB W(*MR) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63014-60040 |
HDJ80..VX W(*MR & ROOF RACK) |
1 | ||
| 63111-60050 |
FJ80,FZJ80,HDJ80,HZJ80..LUB W(ROOF RACK) |
1 | ||
| 63014-60040 |
FJ80,FZJ80,HDJ80..VX W(*MR & ROOF RACK) |
1 | ||
| 63111-60190 |
FJ80,FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 63014-60020 |
FJ80,FZJ80,HDJ80,HZJ80..LUB W(*MR) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-60021 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 63102-60031 |
FZJ80,HDJ80;FJ80,HZJ80..GX W(*MR) |
1 | ||
| 63102-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 63102-60030 |
HDJ80;FJ80,HZJ80..GX W(*MR) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-60021 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 63102-60031 |
FZJ80,HDJ80;FJ80,HZJ80..GX W(*MR) |
1 | ||
| 63102-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 63102-60030 |
HDJ80;FJ80,HZJ80..GX W(*MR) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 63184 - BRACKET, ROOF CONSOLE, REAR | ||||
| 63184-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63184 - BRACKET, ROOF CONSOLE, REAR | ||||
| 63184-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| Common parts | ||||
| 93383-16012 | ||||
| 93385-15012 | ||||

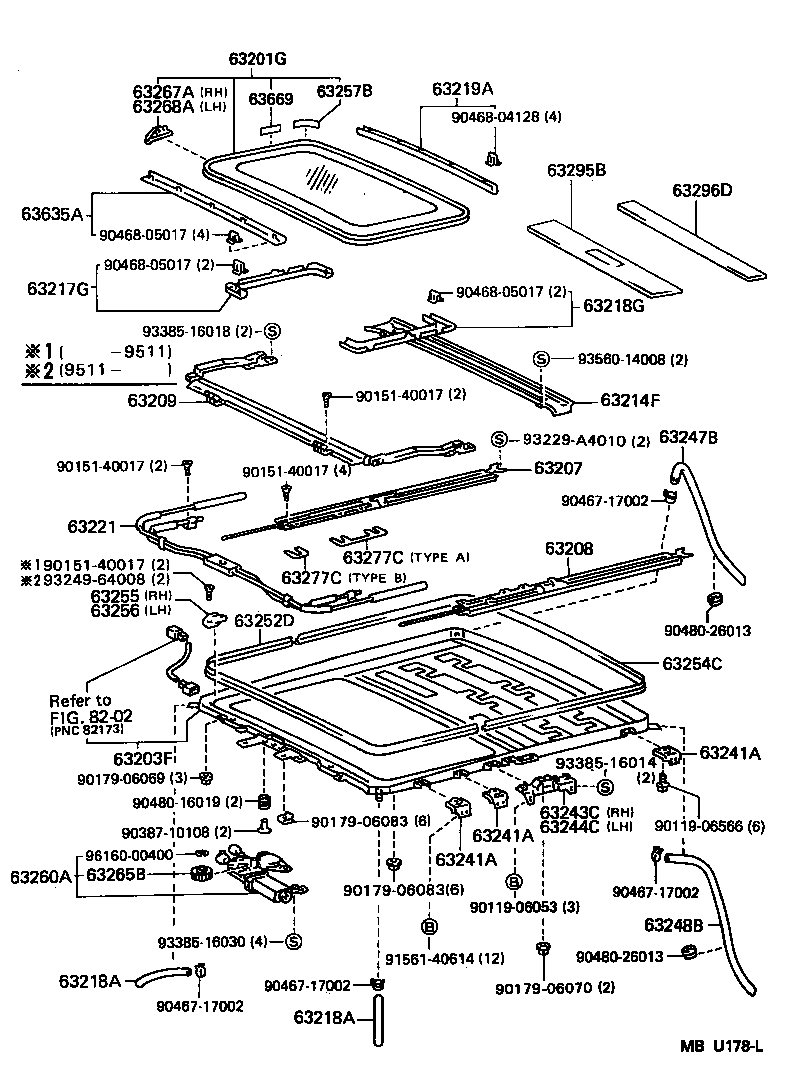

ILLUST NO. 2 OF 3(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-60020 |
HDJ80..ATM;HDJ80..MTM..GX;HDJ80..RHD..MTM;FJ80,HZJ80..GX,VX *SERT,T=4.0,BRONZE |
1 | ||
| 63201-60021 |
HDJ80..ATM;HDJ80..MTM..GX;HDJ80..RHD..MTM;FJ80,FZJ80,HZJ80..GX,VX *SERT,T=4.0,BRONZE |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-60012 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63203-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63203-60011 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63203-60013 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63203-60014 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63603-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63603-60013 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63603-60011 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63603-60014 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63604-60013 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63604-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63604-60011 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63604-60014 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 61029-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-6001003 |
HDJ80..ATM;HDJ80..MTM..GX;HDJ80..RHD..MTM;FJ80,FZJ80,HZJ80..GX,VX LIGHT GRAY,TRIM1# |
1 | ||
| 63217-6001006 |
HDJ80..ATM;HDJ80..MTM..GX;HDJ80..RHD..MTM;FJ80,FZJ80,HZJ80..GX,VX LIGHT SABLE,TRIM4# |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63238-60010 |
FZJ80,HDJ80,HZJ80..GX,VX L=1640,FR-LH |
1 | ||
| 63249-60010 |
FJ80,HDJ80,HZJ80..GX,VX L=1640 |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63238-60010 |
FZJ80,HDJ80,HZJ80..GX,VX L=1640,FR-LH |
1 | ||
| 63249-60010 |
FJ80,HDJ80,HZJ80..GX,VX L=1640 |
2 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-6001006 |
HDJ80..ATM;HDJ80..MTM..GX;HDJ80..RHD..MTM;FJ80,FZJ80,HZJ80..GX,VX LIGHT SABLE,TRIM4# |
1 | ||
| 63218-6001003 |
HDJ80..ATM;HDJ80..MTM..GX;HDJ80..RHD..MTM;FJ80,FZJ80,HZJ80..GX,VX LIGHT GRAY,TRIM1# |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-6001006 |
HDJ80..ATM;HDJ80..MTM..GX;HDJ80..RHD..MTM;FJ80,FZJ80,HZJ80..GX,VX LIGHT SABLE,TRIM4# |
1 | ||
| 63219-6001003 |
HDJ80..ATM;HDJ80..MTM..GX;HDJ80..RHD..MTM;FJ80,FZJ80,HZJ80..GX,VX LIGHT GRAY,TRIM1# |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
6 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
6 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
6 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63244-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63247B - HOSE, SLIDING ROOF | ||||
| 63247-60011 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63247-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63248B - HOSE, SLIDING ROOF | ||||
| 63248-60021 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63248-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63252D - WEATHERSTRIP, SLIDING ROOF HOUSING | ||||
| 63252-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63254C - WEATHERSTRIP, SLIDE ROOF, REAR | ||||
| 63254-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63256-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63257B - SEAL, SLIDING ROOF | ||||
| 63257-60010 |
HDJ80..ATM;HDJ80..MTM..GX;HDJ80..RHD..MTM;FJ80,FZJ80,HZJ80..GX,VX |
4 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63260-60012 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63260-60011 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-20010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH | ||||
| 63267-60010 |
HDJ80..ATM;HDJ80..MTM..GX;HDJ80..RHD..MTM;FJ80,FZJ80,HZJ80..GX,VX |
1 | ||
| 63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH | ||||
| 63268-60010 |
HDJ80..ATM;HDJ80..MTM..GX;HDJ80..RHD..MTM;FJ80,FZJ80,HZJ80..GX,VX |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20040 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX T=2.0,T=2.0,TYPE A |
1 | ||
| 63277-20050 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX T=2.0,T=2.0,TYPE B |
1 | ||
| 63277-20030 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX T=1.0,T=1.0,TYPE B |
1 | ||
| 63277-20020 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX T=1.0,T=1.0,TYPE A |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20040 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX T=2.0,T=2.0,TYPE A |
1 | ||
| 63277-20050 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX T=2.0,T=2.0,TYPE B |
1 | ||
| 63277-20030 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX T=1.0,T=1.0,TYPE B |
1 | ||
| 63277-20020 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX T=1.0,T=1.0,TYPE A |
1 | ||
| 63295B - PAD, ROOF WIND DEFLECTOR PANEL | ||||
| 63295-60010 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63296D - PAD, SLIDING ROOF HOUSING, NO.2 | ||||
| 63296-60010 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-6001006 |
HDJ80..ATM;HDJ80..MTM..GX;HDJ80..RHD..MTM;FJ80,FZJ80,HZJ80..GX,VX LIGHT SABLE,TRIM4# |
1 | ||
| 63635-6001003 |
HDJ80..ATM;HDJ80..MTM..GX;HDJ80..RHD..MTM;FJ80,FZJ80,HZJ80..GX,VX LIGHT GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06053 | ||||
| 90119-06566 | ||||
| 90151-40017 | ||||
| 90179-06069 | ||||
| 90179-06070 | ||||
| 90179-06083 | ||||
| 90387-10108 | ||||
| 90467-17002 | ||||
| 90468-04128 | ||||
| 90468-05017 | ||||
| 90480-16019 | ||||
| 90480-26013 | ||||
| 91561-40614 | ||||
| 93229-A4010 | ||||
| 93249-64008 | ||||
| 93385-16014 | ||||
| 93385-16018 | ||||
| 93385-16030 | ||||
| 93560-14008 | ||||
| 96160-00400 | ||||
| Linked diagrams | ||||
| 8202 | ||||

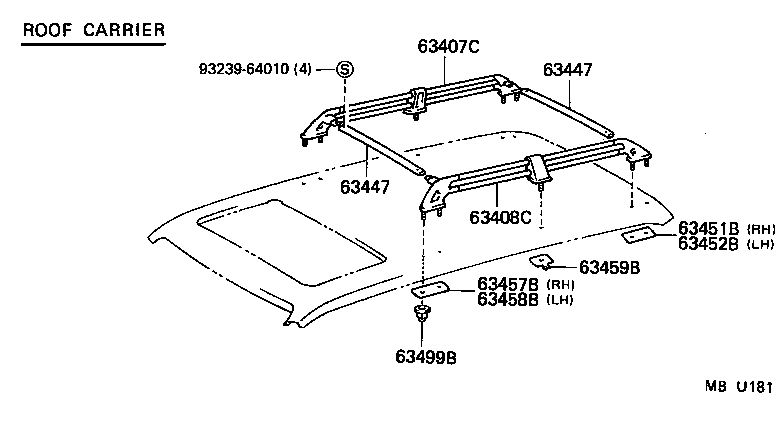

ILLUST NO. 3 OF 3(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63407C - CARRIER SUB-ASSY, ROOF, RH | ||||
| 63407-60020 |
FJ80..LUB;HDJ80,HZJ80 |
1 | ||
| 63407-60021 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 63408C - CARRIER SUB-ASSY, ROOF, LH | ||||
| 63408-60011 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 63408-60010 |
FJ80..LUB;HDJ80,HZJ80 |
1 | ||
| 63447 - BAR, ROOF CARRIER, FRONT | ||||
| 63447-60010 |
FJ80..LUB;FZJ80,HDJ80,HZJ80 |
2 | ||
| 63447 - BAR, ROOF CARRIER, FRONT | ||||
| 63447-60010 |
FJ80..LUB;FZJ80,HDJ80,HZJ80 |
2 | ||
| 63451B - REINFORCEMENT, ROOF RACK, NO.1 | ||||
| 63451-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 63452B - REINFORCEMENT, ROOF RACK, NO.2 | ||||
| 63452-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 63457B - RETAINER, ROOF CARRIER, NO.1 RH | ||||
| 63457-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 63458B - RETAINER, ROOF CARRIER, NO.1 LH | ||||
| 63458-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 63459B - RETAINER, ROOF CARRIER, NO.2 | ||||
| 63459-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 63499B - NUT, ROOF CARRIER | ||||
| 90176-06035 |
FJ80..LUB;FZJ80,HDJ80,HZJ80 |
10 | ||
| Common parts | ||||
| 93239-64010 | ||||
