HDJ80L-GNPEXW (1990)
Toyota Land Cruiser

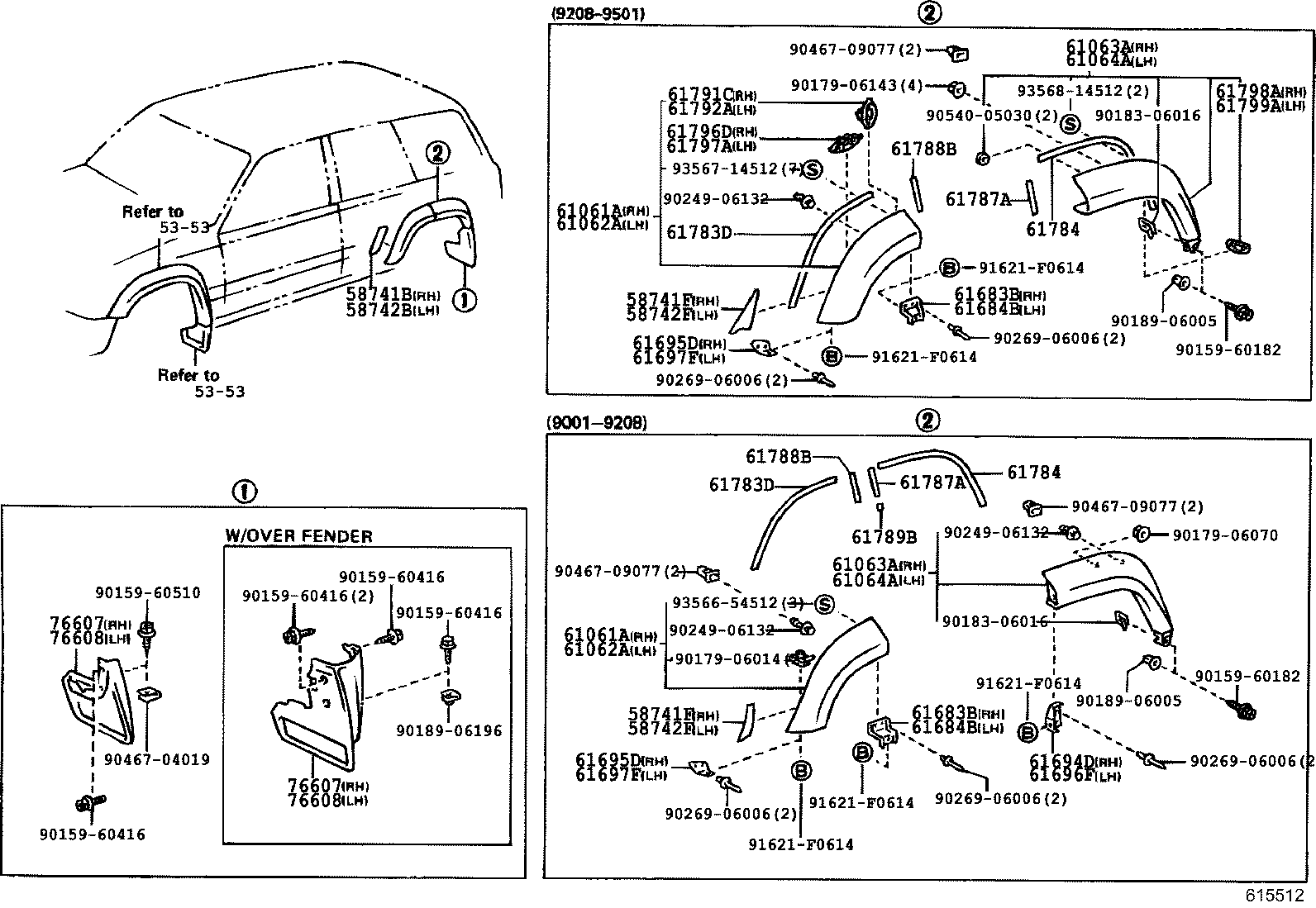

ILLUST NO. 2 OF 2(9001-9501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 58741F - PROTECTOR, REAR WHEEL EXTENSION, RH | ||||
| 58741-60030 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 58741-60031 |
FZJ80,HDJ80 |
1 | ||
| 58741F - PROTECTOR, REAR WHEEL EXTENSION, RH | ||||
| 58741-60030 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 58741-60031 |
FZJ80,HDJ80 |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 58742F - PROTECTOR, REAR WHEEL EXTENSION, LH | ||||
| 58742-60031 |
FZJ80,HDJ80 |
1 | ||
| 58742-60030 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 58742F - PROTECTOR, REAR WHEEL EXTENSION, LH | ||||
| 58742-60031 |
FZJ80,HDJ80 |
1 | ||
| 58742-60030 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61061A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 RH | ||||
| 61061-60900 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61061-60901 |
FZJ80,HDJ80 |
1 | ||
| 61061A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 RH | ||||
| 61061-60900 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61061-60901 |
FZJ80,HDJ80 |
1 | ||
| 61062A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 LH | ||||
| 61062-60901 |
FZJ80,HDJ80 |
1 | ||
| 61062-60900 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61062A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 LH | ||||
| 61062-60901 |
FZJ80,HDJ80 |
1 | ||
| 61062-60900 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61063A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 RH | ||||
| 61063-60903 |
FZJ80,HDJ80 |
1 | ||
| 61063-60901 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61063A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 RH | ||||
| 61063-60903 |
FZJ80,HDJ80 |
1 | ||
| 61063-60901 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61064A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 LH | ||||
| 61064-60901 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61064-60903 |
FZJ80,HDJ80 |
1 | ||
| 61064A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 LH | ||||
| 61064-60901 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61064-60903 |
FZJ80,HDJ80 |
1 | ||
| 61683B - BRACKET, REAR WHEEL OPENING, NO.1 RH | ||||
| 61683-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61683B - BRACKET, REAR WHEEL OPENING, NO.1 RH | ||||
| 61683-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61684B - BRACKET, REAR WHEEL OPENING, NO.1 LH | ||||
| 61684-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61684B - BRACKET, REAR WHEEL OPENING, NO.1 LH | ||||
| 61684-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61694D - BRACKET, REAR WHEEL OPENING, NO.2 | ||||
| 61694-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61695D - BRACKET, REAR WHEEL OPENING, NO.3 | ||||
| 61695-60010 |
FZJ80,HDJ80 |
1 | ||
| 61695-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61695D - BRACKET, REAR WHEEL OPENING, NO.3 | ||||
| 61695-60010 |
FZJ80,HDJ80 |
1 | ||
| 61695-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61696F - BRACKET, REAR WHEEL OPENING, NO.2 LH | ||||
| 61696-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61697F - BRACKET, REAR WHEEL OPENING, NO.3 LH | ||||
| 61697-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61697-60010 |
FZJ80,HDJ80 |
1 | ||
| 61697F - BRACKET, REAR WHEEL OPENING, NO.3 LH | ||||
| 61697-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61697-60010 |
FZJ80,HDJ80 |
1 | ||
| 61783D - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-6001002 |
FJ80,HDJ80..VX MAROON,20R ,27P ,3H4 |
2 | ||
| 61783-6001001 |
FJ80,HDJ80..VX BLACK,183 ,26P |
2 | ||
| 61783-6001005 |
FJ80,HDJ80..VX BEIGE,4K1 |
2 | ||
| 61783-60060A0 |
FZJ80,HDJ80..VX WHITE,045 |
2 | ||
| 61783-60060D0 |
FZJ80,HDJ80..VX MAROON,20R ,3H4 |
2 | ||
| 61783-60060C0 |
FZJ80,HDJ80..VX BLACK,183 ,26P ,26W ,6M1 |
2 | ||
| 61783-6001008 |
FJ80,HDJ80,HZJ80..GX,VX WHITE,045 |
2 | ||
| 61783-60060E0 |
FZJ80,HDJ80..VX BEIGE,4K1 |
2 | ||
| 61783-60060C0 |
FZJ80,HDJ80..VX BLACK,183 ,26P ,6M1 |
2 | ||
| 61783-60060D0 |
FZJ80,HDJ80..VX MAROON,3H4 |
2 | ||
| 61783D - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-6001002 |
FJ80,HDJ80..VX MAROON,20R ,27P ,3H4 |
2 | ||
| 61783-6001001 |
FJ80,HDJ80..VX BLACK,183 ,26P |
2 | ||
| 61783-6001005 |
FJ80,HDJ80..VX BEIGE,4K1 |
2 | ||
| 61783-60060A0 |
FZJ80,HDJ80..VX WHITE,045 |
2 | ||
| 61783-60060D0 |
FZJ80,HDJ80..VX MAROON,20R ,3H4 |
2 | ||
| 61783-60060C0 |
FZJ80,HDJ80..VX BLACK,183 ,26P ,26W ,6M1 |
2 | ||
| 61783-6001008 |
FJ80,HDJ80,HZJ80..GX,VX WHITE,045 |
2 | ||
| 61783-60060E0 |
FZJ80,HDJ80..VX BEIGE,4K1 |
2 | ||
| 61783-60060C0 |
FZJ80,HDJ80..VX BLACK,183 ,26P ,6M1 |
2 | ||
| 61783-60060D0 |
FZJ80,HDJ80..VX MAROON,3H4 |
2 | ||
| 61784 - PAD, REAR WHEEL OPENING EXTENSION, NO.2 | ||||
| 61784-6001008 |
FJ80,HDJ80,HZJ80..GX,VX WHITE,045 |
2 | ||
| 61784-60060C0 |
FZJ80,HDJ80..VX BLACK,183 ,26P ,6M1 |
2 | ||
| 61784-6001002 |
FJ80,HDJ80..VX MAROON,20R ,27P ,3H4 |
2 | ||
| 61784-60060C0 |
FZJ80,HDJ80..VX BLACK,183 ,26P ,26W ,6M1 |
2 | ||
| 61784-6001001 |
FJ80,HDJ80..VX BLACK,183 ,26P |
2 | ||
| 61784-60060E0 |
FZJ80,HDJ80..VX BEIGE,4K1 |
2 | ||
| 61784-6001005 |
FJ80,HDJ80..VX BEIGE,4K1 |
2 | ||
| 61784-60060D0 |
FZJ80,HDJ80..VX MAROON,20R ,3H4 |
2 | ||
| 61784-60060D0 |
FZJ80,HDJ80..VX MAROON,3H4 |
2 | ||
| 61784-60060A0 |
FZJ80,HDJ80..VX WHITE,045 |
2 | ||
| 61784 - PAD, REAR WHEEL OPENING EXTENSION, NO.2 | ||||
| 61784-6001008 |
FJ80,HDJ80,HZJ80..GX,VX WHITE,045 |
2 | ||
| 61784-60060C0 |
FZJ80,HDJ80..VX BLACK,183 ,26P ,6M1 |
2 | ||
| 61784-6001002 |
FJ80,HDJ80..VX MAROON,20R ,27P ,3H4 |
2 | ||
| 61784-60060C0 |
FZJ80,HDJ80..VX BLACK,183 ,26P ,26W ,6M1 |
2 | ||
| 61784-6001001 |
FJ80,HDJ80..VX BLACK,183 ,26P |
2 | ||
| 61784-60060E0 |
FZJ80,HDJ80..VX BEIGE,4K1 |
2 | ||
| 61784-6001005 |
FJ80,HDJ80..VX BEIGE,4K1 |
2 | ||
| 61784-60060D0 |
FZJ80,HDJ80..VX MAROON,20R ,3H4 |
2 | ||
| 61784-60060D0 |
FZJ80,HDJ80..VX MAROON,3H4 |
2 | ||
| 61784-60060A0 |
FZJ80,HDJ80..VX WHITE,045 |
2 | ||
| 61787A - PAD, REAR WHEEL OPENING EXTENSION, NO.3 REAR | ||||
| 61787-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 61787A - PAD, REAR WHEEL OPENING EXTENSION, NO.3 REAR | ||||
| 61787-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 61788B - PAD, REAR WHEEL OPENING EXTENSION, NO.3 | ||||
| 61788-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 61788B - PAD, REAR WHEEL OPENING EXTENSION, NO.3 | ||||
| 61788-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 61789B - PAD, REAR WHEEL OPENING EXTENSION, NO.5 | ||||
| 61789-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 61791C - BRACKET, REAR WHEEL OPENING, CENTER RH | ||||
| 61791-60010 |
FZJ80,HDJ80 |
1 | ||
| 61792A - BRACKET, REAR WHEEL OPENING, CENTER LH | ||||
| 61792-60010 |
FZJ80,HDJ80 |
1 | ||
| 61796D - BRACKET, REAR WHEEL OPENING, FRONT RH | ||||
| 61796-60010 |
FZJ80,HDJ80 |
1 | ||
| 61797A - BRACKET, REAR WHEEL OPENING, FRONT LH | ||||
| 61797-60010 |
FZJ80,HDJ80 |
1 | ||
| 61798A - BRACKET, REAR WHEEL OPENING, REAR RH | ||||
| 61798-60010 |
FZJ80,HDJ80 |
1 | ||
| 61799A - BRACKET, REAR WHEEL OPENING, REAR LH | ||||
| 61799-60010 |
FZJ80,HDJ80 |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-60010 |
FJ80,HDJ80,HZJ80..GX,VX W(OVER FENDER & MUD GUARD) |
1 | ||
| 76607-60140 |
HDJ80,HZJ80 |
1 | ||
| 76607-60011 |
HDJ80 W(OVER FENDER & MUD GUARD) |
1 | ||
| 76607-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 76607-60150 |
HDJ80 W(OVER FENDER & MUD GUARD) |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-60010 |
FJ80,HDJ80,HZJ80..GX,VX W(OVER FENDER & MUD GUARD) |
1 | ||
| 76607-60140 |
HDJ80,HZJ80 |
1 | ||
| 76607-60011 |
HDJ80 W(OVER FENDER & MUD GUARD) |
1 | ||
| 76607-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 76607-60150 |
HDJ80 W(OVER FENDER & MUD GUARD) |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 76608-60011 |
HDJ80 W(OVER FENDER & MUD GUARD) |
1 | ||
| 76608-60140 |
HDJ80,HZJ80 |
1 | ||
| 76608-60010 |
FJ80,HDJ80,HZJ80..GX,VX W(OVER FENDER & MUD GUARD) |
1 | ||
| 76608-60150 |
HDJ80 W(OVER FENDER & MUD GUARD) |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 76608-60011 |
HDJ80 W(OVER FENDER & MUD GUARD) |
1 | ||
| 76608-60140 |
HDJ80,HZJ80 |
1 | ||
| 76608-60010 |
FJ80,HDJ80,HZJ80..GX,VX W(OVER FENDER & MUD GUARD) |
1 | ||
| 76608-60150 |
HDJ80 W(OVER FENDER & MUD GUARD) |
1 | ||
| Common parts | ||||
| 90159-60182 | ||||
| 90159-60416 | ||||
| 90159-60510 | ||||
| 90179-06014 | ||||
| 90179-06070 | ||||
| 90179-06143 | ||||
| 90183-06016 | ||||
| 90189-06005 | ||||
| 90189-06196 | ||||
| 90249-06132 | ||||
| 90269-06006 | ||||
| 90467-04019 | ||||
| 90467-09077 | ||||
| 90540-05030 | ||||
| 91621-F0614 | ||||
| 93566-54512 | ||||
| 93567-14512 | ||||
| 93568-14512 | ||||
| Linked diagrams | ||||
| 5353 | ||||

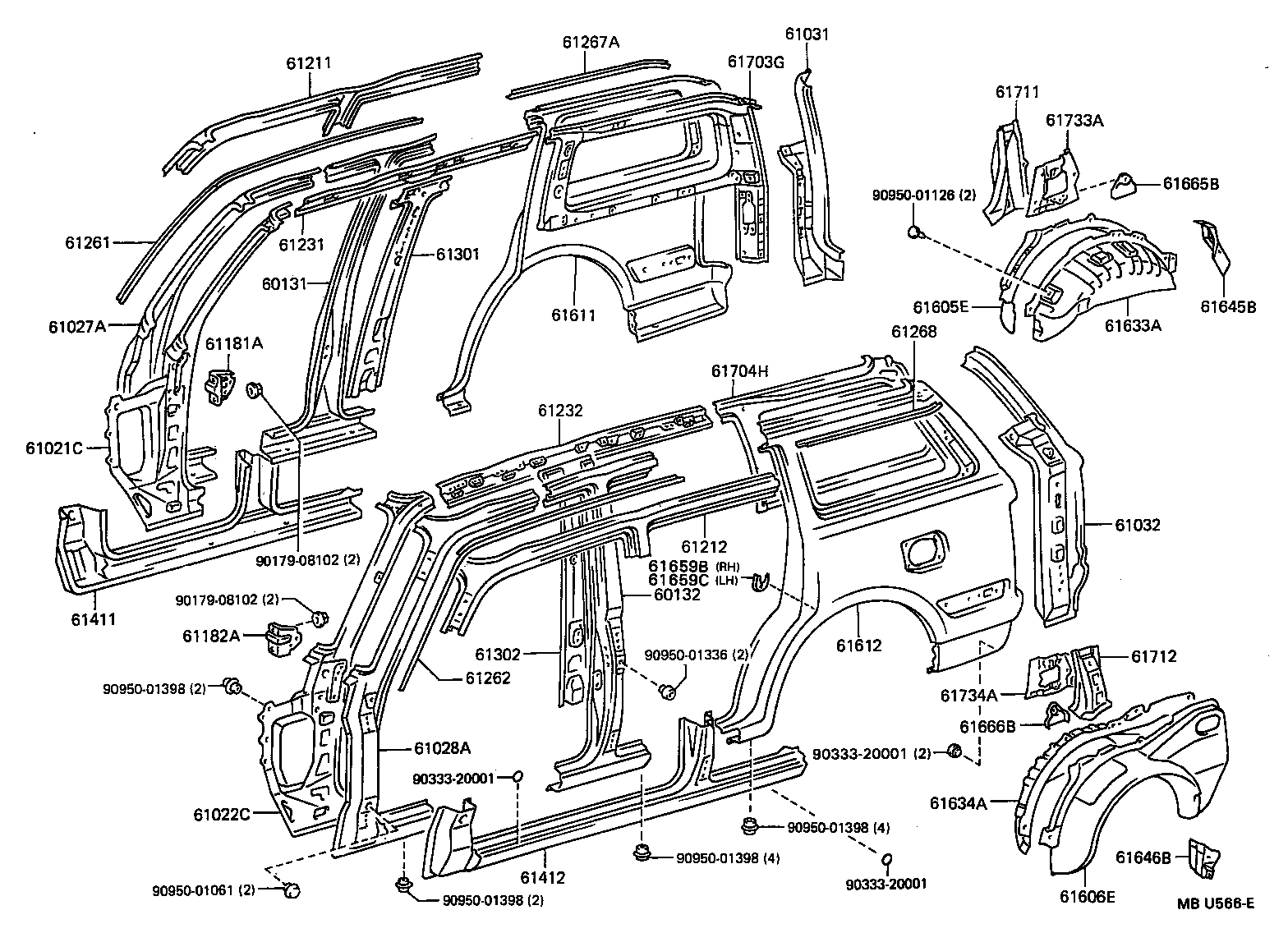

ILLUST NO. 1 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60131 - PILLAR SUB-ASSY, CENTER BODY, NO.2 RH | ||||
| 60131-60020 |
FJ80,HDJ80..VX |
1 | ||
| 60131-60020 |
FZJ80,HDJ80..VX |
1 | ||
| 60132 - PILLAR SUB-ASSY, CENTER BODY, NO.2 LH | ||||
| 60132-60020 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 61021C - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-60030 |
FJ80,HDJ80,HZJ80..LHD |
1 | ||
| 61021-60031 |
FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 61022C - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-60020 |
FJ80,HDJ80,HZJ80..LHD |
1 | ||
| 61022-60021 |
FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-60100 |
FZJ80,HDJ80..VX |
1 | ||
| 61027-60100 |
FJ80,HDJ80..VX |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-60080 |
FJ80,FZJ80,HDJ80..VX |
1 | ||
| 61031 - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH | ||||
| 61031-60010 |
FJ80,FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 61032 - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH | ||||
| 61032-60010 |
FJ80,FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 61181A - BRACKET, INSTRUMENT SIDE, RH | ||||
| 61181-60010 |
FJ80,FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61207-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61208-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-60070 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-60090 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61605E - PANEL, QUARTER, RH | ||||
| 61605-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61606E - PANEL, QUARTER, LH | ||||
| 61606-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 60161-60030 |
HDJ80..VX W(OVER FENDER & MUD GUARD) |
1 | ||
| 60161-60030 |
HDJ80;FJ80,HZJ80..GX W(OVER FENDER & MUD GUARD) |
1 | ||
| 60161-60020 |
FJ80,HDJ80..VX |
1 | ||
| 60161-60031 |
HDJ80..VX W(OVER FENDER & MUD GUARD) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 60162-60030 |
FJ80,HDJ80,HZJ80..GX,VX W(OVER FENDER & MUD GUARD) |
1 | ||
| 60162-60030 |
FJ80,HDJ80..VX W(OVER FENDER & MUD GUARD) |
1 | ||
| 60162-60031 |
HDJ80..VX W(OVER FENDER & MUD GUARD) |
1 | ||
| 60162-60020 |
FJ80,HDJ80..VX |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-60040 |
FJ80,FZJ80,HDJ80..VX W(REAR TRANSVERSE SEAT) |
1 | ||
| 61607-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-60070 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61608-60080 |
FJ80,FZJ80,HDJ80..VX W(REAR TRANSVERSE SEAT) |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61659B - RETAINER, REAR DOOR OPEN SWITCH SET, RH | ||||
| 61659-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61659C - RETAINER, REAR DOOR OPEN SWITCH SET, LH | ||||
| 61659-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61665B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, | ||||
| 61665-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61666B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, | ||||
| 61665-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61703G - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61703-60020 |
FJ80,FZJ80,HDJ80..VX W(REAR SEAT(SEPARATED,RECRINING,3RD TRANSVERSE SEAT)) |
1 | ||
| 61703-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61703-60010 |
HDJ80,HZJ80..LUB |
1 | ||
| 61703-60020 |
HDJ80..VX W(REAR SEAT(SEPARATED,RECRINING,3RD TRANSVERSE SEAT)) |
1 | ||
| 61704H - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61704-60020 |
FJ80,FZJ80,HDJ80..VX W(REAR SEAT(SEPARATED,RECRINING,3RD TRANSVERSE SEAT) |
1 | ||
| 61704-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61704-60010 |
HDJ80,HZJ80..LUB |
1 | ||
| 61704-60020 |
HDJ80..VX W(REAR SEAT(SEPARATED,RECRINING,3RD TRANSVERSE SEAT) |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90179-08102 | ||||
| 90333-20001 | ||||
| 90950-01061 | ||||
| 90950-01126 | ||||
| 90950-01336 | ||||
| 90950-01398 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
