HDJ80L-GNPEXW (1990)
Toyota Land Cruiser

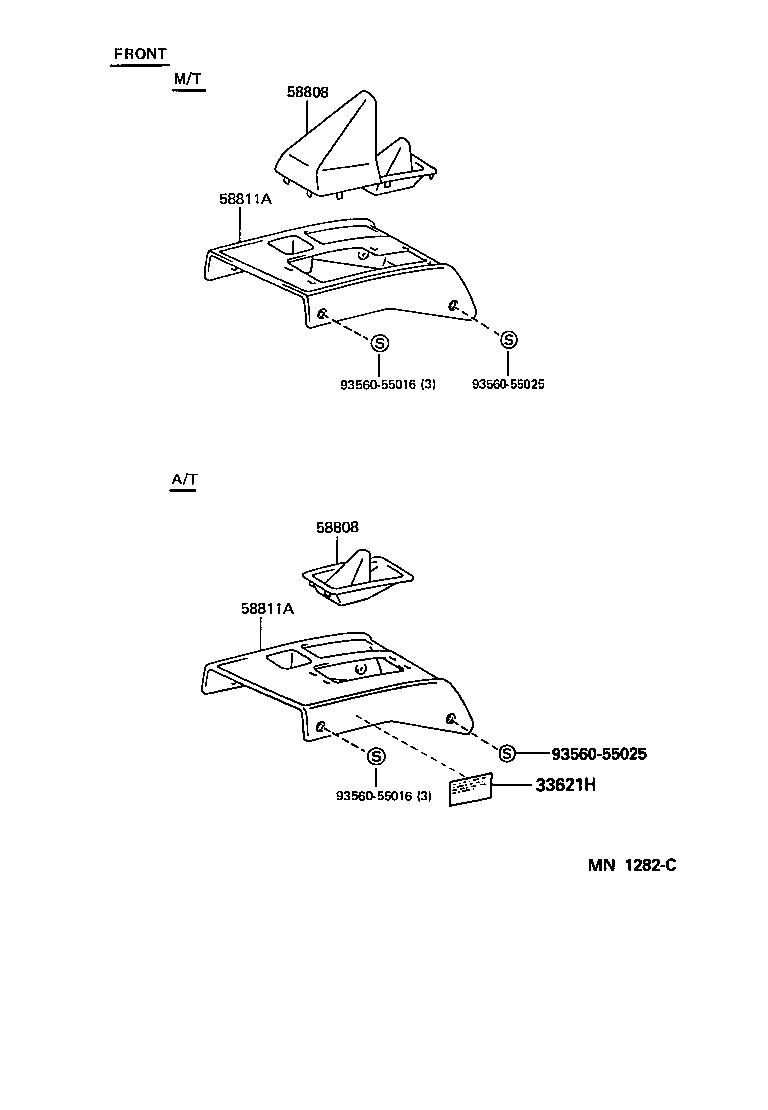

ILLUST NO. 1 OF 2(9001-9501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-60010 |
FZJ80,HDJ80..ATM |
1 | ||
| 58808-60010 |
FJ80,FZJ80,HDJ80,HZJ80..ATM |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-60010 |
FZJ80,HDJ80..ATM |
1 | ||
| 58808-60010 |
FJ80,FZJ80,HDJ80,HZJ80..ATM |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-6001003 |
FJ80,FZJ80,HDJ80,HZJ80..LHD..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 58811-6001006 |
FJ80,FZJ80,HDJ80,HZJ80..LHD..ATM SABLE,TRIM4# |
1 | ||
| 58811-6001003 |
FZJ80,HDJ80..LHD..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 58811-6001006 |
FZJ80,HDJ80..LHD..ATM SABLE,TRIM4# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-6001003 |
FJ80,FZJ80,HDJ80,HZJ80..LHD..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 58811-6001006 |
FJ80,FZJ80,HDJ80,HZJ80..LHD..ATM SABLE,TRIM4# |
1 | ||
| 58811-6001003 |
FZJ80,HDJ80..LHD..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 58811-6001006 |
FZJ80,HDJ80..LHD..ATM SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 93560-55016 | ||||
| 93560-55025 | ||||

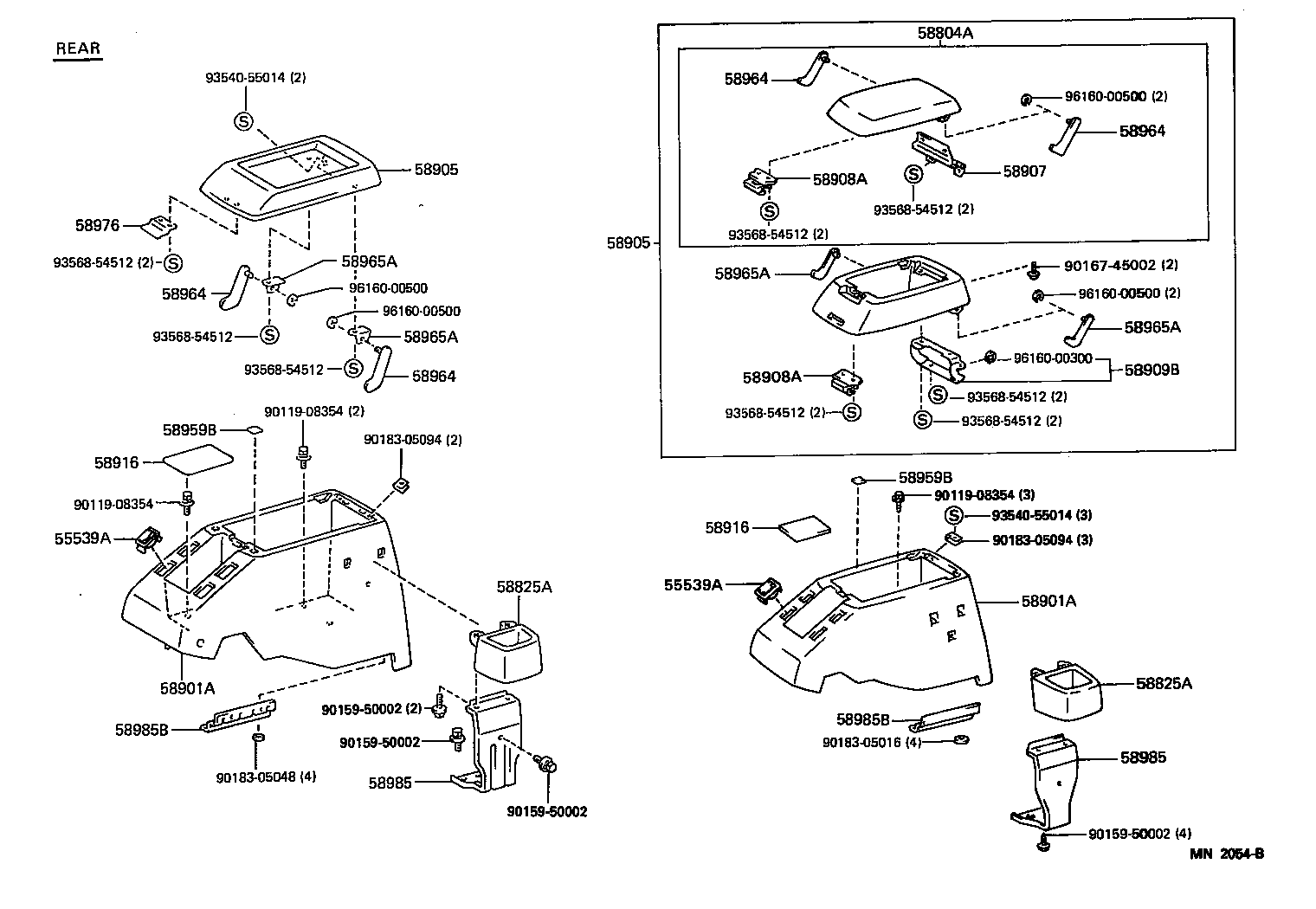

ILLUST NO. 2 OF 2(9001- )LHD
COOL BOX:REFER TO FIG 87-14
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-2002033 |
FJ80,FZJ80,HDJ80..VX W(HEATER SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 55539-2002036 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
4 | ||
| 55539-2002033 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
4 | ||
| 55539-2002036 |
FJ80,FZJ80,HDJ80..VX W(HEATER SEAT),SABLE,TRIM4# |
2 | ||
| 55539-2002036 |
HDJ80..VX W(SPORTS SEAT) OR W(POWER SEAT),SABLE,TRIM4# |
2 | ||
| 55539-2002033 |
FZJ80,HDJ80,HZJ80..GX,VX W(HEATER SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 55539-2002033 |
FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
4 | ||
| 55539-2002036 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
4 | ||
| 55539-2002033 |
HDJ80..VX W(SPORTS SEAT) OR W(POWER SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 55539-2002036 |
FZJ80,HDJ80,HZJ80..GX,VX W(HEATER SEAT),SABLE,TRIM4# |
2 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-2002033 |
FJ80,FZJ80,HDJ80..VX W(HEATER SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 55539-2002036 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
4 | ||
| 55539-2002033 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
4 | ||
| 55539-2002036 |
FJ80,FZJ80,HDJ80..VX W(HEATER SEAT),SABLE,TRIM4# |
2 | ||
| 55539-2002036 |
HDJ80..VX W(SPORTS SEAT) OR W(POWER SEAT),SABLE,TRIM4# |
2 | ||
| 55539-2002033 |
FZJ80,HDJ80,HZJ80..GX,VX W(HEATER SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 55539-2002033 |
FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
4 | ||
| 55539-2002036 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
4 | ||
| 55539-2002033 |
HDJ80..VX W(SPORTS SEAT) OR W(POWER SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 55539-2002036 |
FZJ80,HDJ80,HZJ80..GX,VX W(HEATER SEAT),SABLE,TRIM4# |
2 | ||
| 58825A - POCKET, CONSOLE BOX | ||||
| 58825-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 58825-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 58825-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 58825A - POCKET, CONSOLE BOX | ||||
| 58825-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 58825-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 58825-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58911-6002006 |
FJ80,HDJ80,HZJ80..LHD SABLE,TRIM4# |
1 | ||
| 58911-6002003 |
FJ80,HDJ80,HZJ80..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 58911-6004006 |
FJ80,HDJ80,HZJ80..LHD W(AUTO AIR CONDITIONER),SABLE,TRIM4# |
1 | ||
| 58911-6004003 |
HDJ80..LHD;FJ80,HZJ80..GX,STD W(AUTO AIR CONDITIONER),BLUISH GRAY,TRIM1# |
1 | ||
| 58911-6002006 |
HDJ80..LHD;FJ80,HZJ80..GX,STD SABLE,TRIM4# |
1 | ||
| 58911-6002003 |
HDJ80..LHD;FJ80,HZJ80..GX,STD BLUISH GRAY,TRIM1# |
1 | ||
| 58911-6004006 |
HDJ80..LHD;FJ80,HZJ80..GX,STD W(AUTO AIR CONDITIONER),SABLE,TRIM4# |
1 | ||
| 58911-6004003 |
FJ80,HDJ80,HZJ80..LHD W(AUTO AIR CONDITIONER),BLUISH GRAY,TRIM1# |
1 | ||
| 58911-6004006 |
FZJ80,HDJ80,HZJ80..LHD SABLE,TRIM4# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58911-6002006 |
FJ80,HDJ80,HZJ80..LHD SABLE,TRIM4# |
1 | ||
| 58911-6002003 |
FJ80,HDJ80,HZJ80..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 58911-6004006 |
FJ80,HDJ80,HZJ80..LHD W(AUTO AIR CONDITIONER),SABLE,TRIM4# |
1 | ||
| 58911-6004003 |
HDJ80..LHD;FJ80,HZJ80..GX,STD W(AUTO AIR CONDITIONER),BLUISH GRAY,TRIM1# |
1 | ||
| 58911-6002006 |
HDJ80..LHD;FJ80,HZJ80..GX,STD SABLE,TRIM4# |
1 | ||
| 58911-6002003 |
HDJ80..LHD;FJ80,HZJ80..GX,STD BLUISH GRAY,TRIM1# |
1 | ||
| 58911-6004006 |
HDJ80..LHD;FJ80,HZJ80..GX,STD W(AUTO AIR CONDITIONER),SABLE,TRIM4# |
1 | ||
| 58911-6004003 |
FJ80,HDJ80,HZJ80..LHD W(AUTO AIR CONDITIONER),BLUISH GRAY,TRIM1# |
1 | ||
| 58911-6004006 |
FZJ80,HDJ80,HZJ80..LHD SABLE,TRIM4# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58951-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 58951-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 58951-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58951-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 58951-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 58951-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-60010E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
2 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-60010E0 |
FZJ80,HDJ80..VX SABLE,TRIM4# |
2 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 58916-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 58916-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-6001003 |
FJ80,FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 58916-6001006 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 58916-6001006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-16010 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-16010 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30040 |
FJ80,FZJ80,HDJ80,HZJ80 LH |
1 | ||
| 58964-30050 |
FJ80,FZJ80,HDJ80,HZJ80 RH |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30040 |
FJ80,FZJ80,HDJ80,HZJ80 LH |
1 | ||
| 58964-30050 |
FJ80,FZJ80,HDJ80,HZJ80 RH |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30040 |
FJ80,FZJ80,HDJ80,HZJ80 LH |
1 | ||
| 58964-30050 |
FJ80,FZJ80,HDJ80,HZJ80 RH |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30040 |
FJ80,FZJ80,HDJ80,HZJ80 LH |
1 | ||
| 58964-30050 |
FJ80,FZJ80,HDJ80,HZJ80 RH |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-12010 |
FJ80,FZJ80,HDJ80,HZJ80 LH |
1 | ||
| 58965-20020 |
FJ80,FZJ80,HDJ80,HZJ80 RH |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-12010 |
FJ80,FZJ80,HDJ80,HZJ80 LH |
1 | ||
| 58965-20020 |
FJ80,FZJ80,HDJ80,HZJ80 RH |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-12010 |
FJ80,FZJ80,HDJ80,HZJ80 LH |
1 | ||
| 58965-20020 |
FJ80,FZJ80,HDJ80,HZJ80 RH |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-12010 |
FJ80,FZJ80,HDJ80,HZJ80 LH |
1 | ||
| 58965-20020 |
FJ80,FZJ80,HDJ80,HZJ80 RH |
1 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-20020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 58985 - RETAINER, CONSOLE BOX | ||||
| 58985-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 58985 - RETAINER, CONSOLE BOX | ||||
| 58985-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 58985B - RETAINER, CONSOLE BOX, NO.1 | ||||
| 58985-90A00 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 58985B - RETAINER, CONSOLE BOX, NO.1 | ||||
| 58985-90A00 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| Common parts | ||||
| 90119-08354 | ||||
| 90159-50002 | ||||
| 90167-45002 | ||||
| 90183-05016 | ||||
| 90183-05048 | ||||
| 90183-05094 | ||||
| 93540-55014 | ||||
| 93568-54512 | ||||
| 96160-00300 | ||||
| 96160-00500 | ||||
