HDJ80L-GNPEXW (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Jan 1995
Engine
1HDT
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )

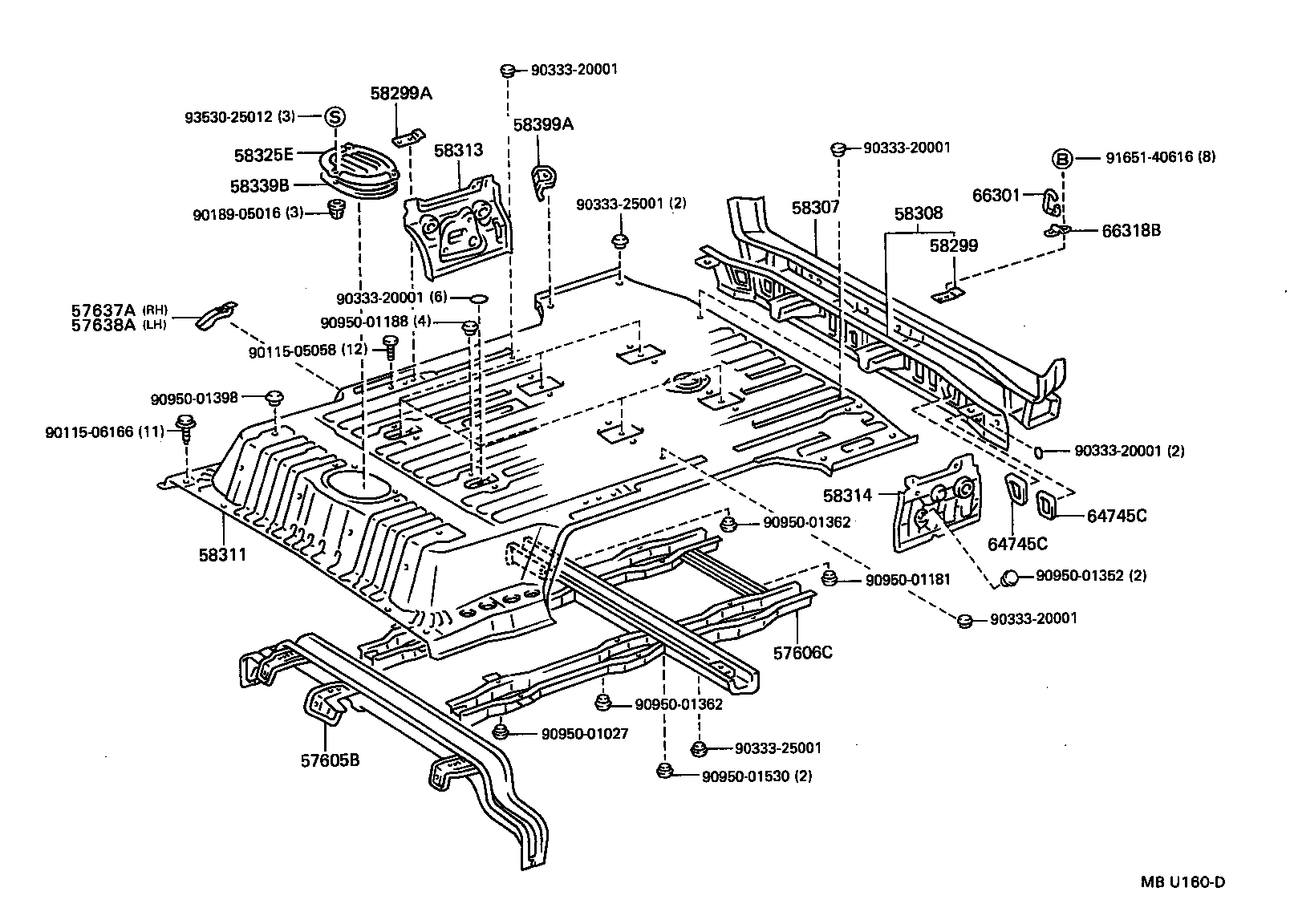

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-60050 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-60060 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 58299 - RETAINER, FLOOR ROPE HOOK | ||||
| 58299-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 58299A - RETAINER, FLOOR ROPE HOOK | ||||
| 58299-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-60010 |
FJ80,FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 58307-60010 |
FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER | ||||
| 58308-60020 |
FJ80,HDJ80,HZJ80..LUB |
1 | ||
| 58308-60021 |
FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 58308-60020 |
FZJ80,HDJ80..VX |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-60250 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 58311-60260 |
FJ80,FZJ80,HDJ80..VX W(REAR TRANSVERSE SEAT) |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-60030 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 58313-60040 |
FJ80,HDJ80,HZJ80..GX,VX W(*MR) |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58303-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 58303-60020 |
FJ80,HDJ80,HZJ80..GX,VX W(*MR) |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 58339B - PACKING, REAR FLOOR SERVICE HOLE | ||||
| 58339-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 58399A - RETAINER, NO.3 SEAT BELT ANCHOR TO FLOOR | ||||
| 58399-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 58399-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 64745C - COVER, LOWER BACK SERVICE HOLE, RH | ||||
| 64745-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 64745C - COVER, LOWER BACK SERVICE HOLE, RH | ||||
| 64745-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 66301 - HOOK SUB-ASSY, ROPE | ||||
| 66301-90A00 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 66318B - BAND, ROPE HOOK | ||||
| 66318-90A00 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| Common parts | ||||
| 90115-05058 | ||||
| 90115-06166 | ||||
| 90189-05016 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90950-01027 | ||||
| 90950-01181 | ||||
| 90950-01188 | ||||
| 90950-01352 | ||||
| 90950-01362 | ||||
| 90950-01398 | ||||
| 90950-01530 | ||||
| 91651-40616 | ||||
| 93530-25012 | ||||
