HDJ80L-GNPEXW (1990)
Toyota Land Cruiser

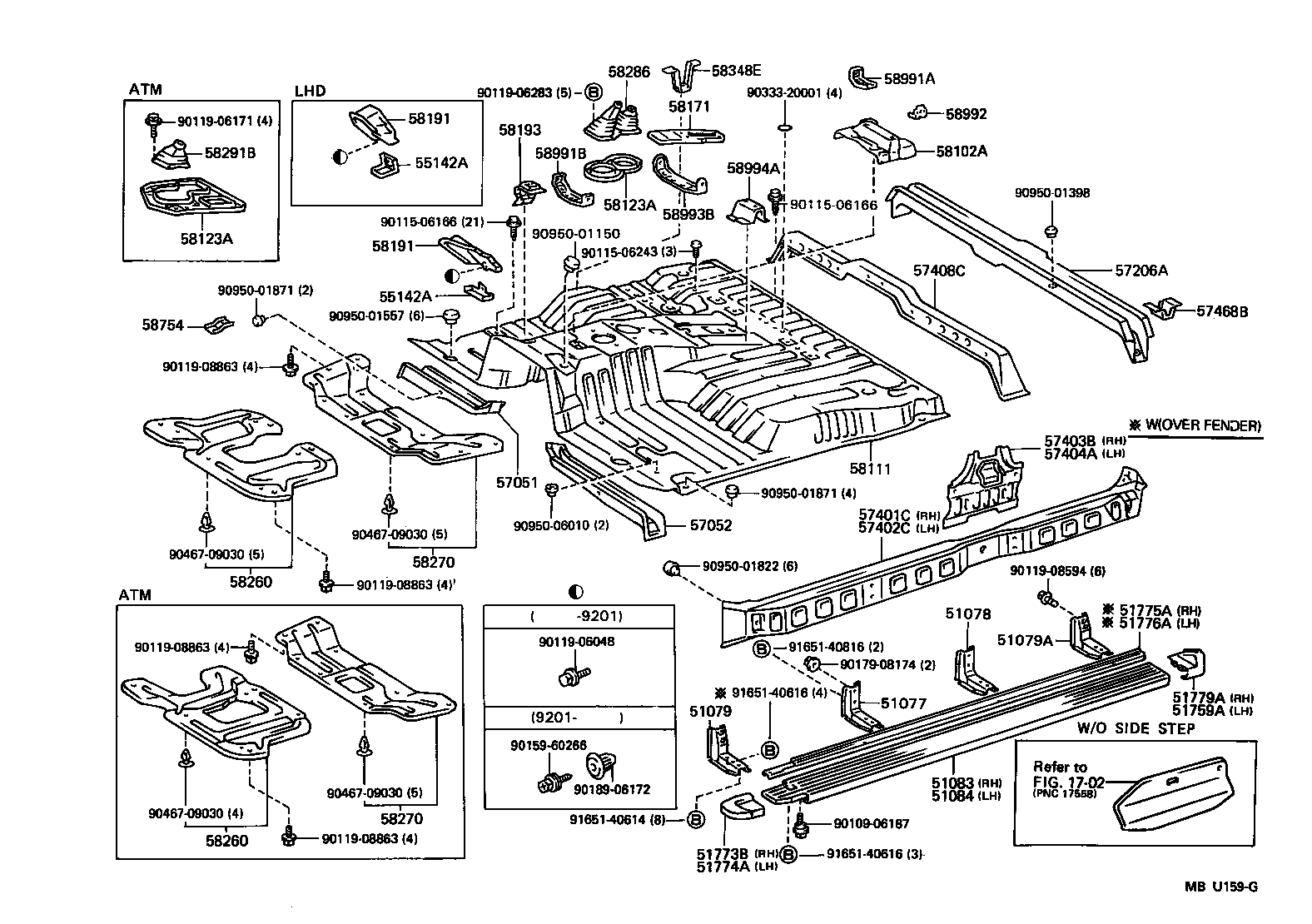

ILLUST NO. 1 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51077 - BRACKET SUB-ASSY, SIDE STEP, NO.2 | ||||
| 51077-60010 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 51077-60030 |
HDJ80 W(*OF) |
2 | ||
| 51077-60020 |
HDJ80 W(SIDE STEP) |
2 | ||
| 51077-60020 |
HDJ80,HZJ80 W(SIDE STEP) |
2 | ||
| 51077-60030 |
FZJ80,HDJ80 W(OVER FENDER & MUD GUARD & SIDE STEP) |
2 | ||
| 51078 - BRACKET SUB-ASSY, SIDE STEP, NO.3 | ||||
| 51077-60020 |
HDJ80 W(SIDE STEP) |
2 | ||
| 51077-60030 |
FZJ80,HDJ80 W(OVER FENDER & MUD GUARD & SIDE STEP) |
2 | ||
| 51077-60030 |
HDJ80 W(*OF) |
2 | ||
| 51077-60020 |
HDJ80,HZJ80 W(SIDE STEP) |
2 | ||
| 51077-60010 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 51079 - BRACKET SUB-ASSY, SIDE STEP | ||||
| 51079-60010 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 51079-60020 |
HDJ80 W(OVER FENDER) |
2 | ||
| 51079-60010 |
HDJ80 W/O(OVER FENDER) |
2 | ||
| 51079-60020 |
FZJ80,HDJ80 W(OVER FENDER) |
2 | ||
| 51079-60010 |
HDJ80,HZJ80 W(SIDE STEP) |
2 | ||
| 51079A - BRACKET SUB-ASSY, SIDE STEP, NO.3 | ||||
| 51078-60010 |
HDJ80 W(SIDE STEP) |
2 | ||
| 51079-60010 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 51078-60010 |
HDJ80,HZJ80 W(SIDE STEP) |
2 | ||
| 51078-60020 |
FZJ80,HDJ80 W(*OF) |
2 | ||
| 51078-60020 |
HDJ80 W(*OF) |
2 | ||
| 51083 - STEP SUB-ASSY, RH | ||||
| 51083-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 51083-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 51084 - STEP SUB-ASSY, LH | ||||
| 51084-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 51084-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 51759A - COVER, SIDE DOOR STEP PLATE, REAR LH | ||||
| 51759-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 51759-60050 |
HDJ80 W(OVER FENDER) |
1 | ||
| 51759-60010 |
HDJ80 W/O OVER FENDER |
1 | ||
| 51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH | ||||
| 51773-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 51773-60020 |
HDJ80 W/O OVER FENDER |
1 | ||
| 51773-60050 |
HDJ80 W(OVER FENDER) |
1 | ||
| 51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH | ||||
| 51774-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 51774-60050 |
HDJ80 W(OVER FENDER) |
1 | ||
| 51774-60020 |
HDJ80 W/O OVER FENDER |
1 | ||
| 51779A - COVER, SIDE DOOR STEP PLATE, REAR RH | ||||
| 51779-60010 |
HDJ80 W/O OVER FENDER |
1 | ||
| 51779-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 51779-60050 |
HDJ80 W(OVER FENDER) |
1 | ||
| 55142A - BRACKET, FOOT REST MOUNTING, NO.2 | ||||
| 55142-60020 |
FJ80,HDJ80,HZJ80..LHD..(GX,VX) |
1 | ||
| 55142A - BRACKET, FOOT REST MOUNTING, NO.2 | ||||
| 55142-60020 |
FJ80,HDJ80,HZJ80..LHD..(GX,VX) |
1 | ||
| 57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 57206A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2 | ||||
| 57206-60060 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-60050 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 57401-60050 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 57401-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 57402C - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-60041 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 57402-60040 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 57403B - REINFORCE SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57403-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 57404A - REINFORCE SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57404-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 57408C - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 57468B - BRACKET, FRONT SEAT, REAR | ||||
| 57468-60011 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 57468-60010 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 57468-60011 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-60290 |
FJ80,HDJ80,HZJ80..LHD..ATM |
1 | ||
| 58111-60300 |
FJ80,HDJ80,HZJ80..LHD..ATM W(FR & RR HEATER) |
1 | ||
| 58111-60300 |
FJ80..GX;HDJ80..LHD..ATM W(FR & RR HEATER) |
1 | ||
| 58111-60301 |
HDJ80..LHD..ATM W(FR & RR HEATER) |
1 | ||
| 58111-60290 |
FJ80..GX;HDJ80..LHD..ATM |
1 | ||
| 58111-60291 |
HDJ80..LHD..ATM |
1 | ||
| 58111-60301 |
FZJ80,HDJ80..LHD..ATM |
1 | ||
| 58111-60291 |
HDJ80..LHD..ATM |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-60020 |
FJ80,FZJ80,HDJ80,HZJ80..ATM |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-60020 |
FJ80,FZJ80,HDJ80,HZJ80..ATM |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58192-60020 |
FJ80,FZJ80,HDJ80,HZJ80..LHD..(GX,VX) |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58192-60020 |
FJ80,FZJ80,HDJ80,HZJ80..LHD..(GX,VX) |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 58260 - COVER ASSY, TRANSMISSION, FRONT | ||||
| 58260-60080 |
FJ80,HDJ80,HZJ80..ATM |
1 | ||
| 58260 - COVER ASSY, TRANSMISSION, FRONT | ||||
| 58260-60080 |
FJ80,HDJ80,HZJ80..ATM |
1 | ||
| 58270 - COVER ASSY, TRANSMISSION, REAR | ||||
| 58270-60090 |
FJ80,HDJ80,HZJ80..ATM |
1 | ||
| 58270 - COVER ASSY, TRANSMISSION, REAR | ||||
| 58270-60090 |
FJ80,HDJ80,HZJ80..ATM |
1 | ||
| 58291B - BOOT, TRANSFER SHIFT LEVER | ||||
| 58290-60010 |
FJ80,FZJ80,HDJ80,HZJ80..ATM |
1 | ||
| 58991B - BRACKET, CONSOLE BOX MOUNTING, FRONT | ||||
| 58991-60010 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 58991-60010 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 58991-60010 |
HDJ80..MTM..VX;FJ80,HDJ80,HZJ80..ATM |
1 | ||
| 58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4 | ||||
| 58997-60010 |
FJ80,FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| Common parts | ||||
| 90109-06187 | ||||
| 90115-06166 | ||||
| 90115-06243 | ||||
| 90119-06048 | ||||
| 90119-06171 | ||||
| 90119-06283 | ||||
| 90119-08594 | ||||
| 90119-08863 | ||||
| 90159-60266 | ||||
| 90179-08174 | ||||
| 90189-06172 | ||||
| 90333-20001 | ||||
| 90467-09030 | ||||
| 90950-01150 | ||||
| 90950-01398 | ||||
| 90950-01557 | ||||
| 90950-01822 | ||||
| 90950-01871 | ||||
| 90950-06010 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 1702 | ||||
