HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

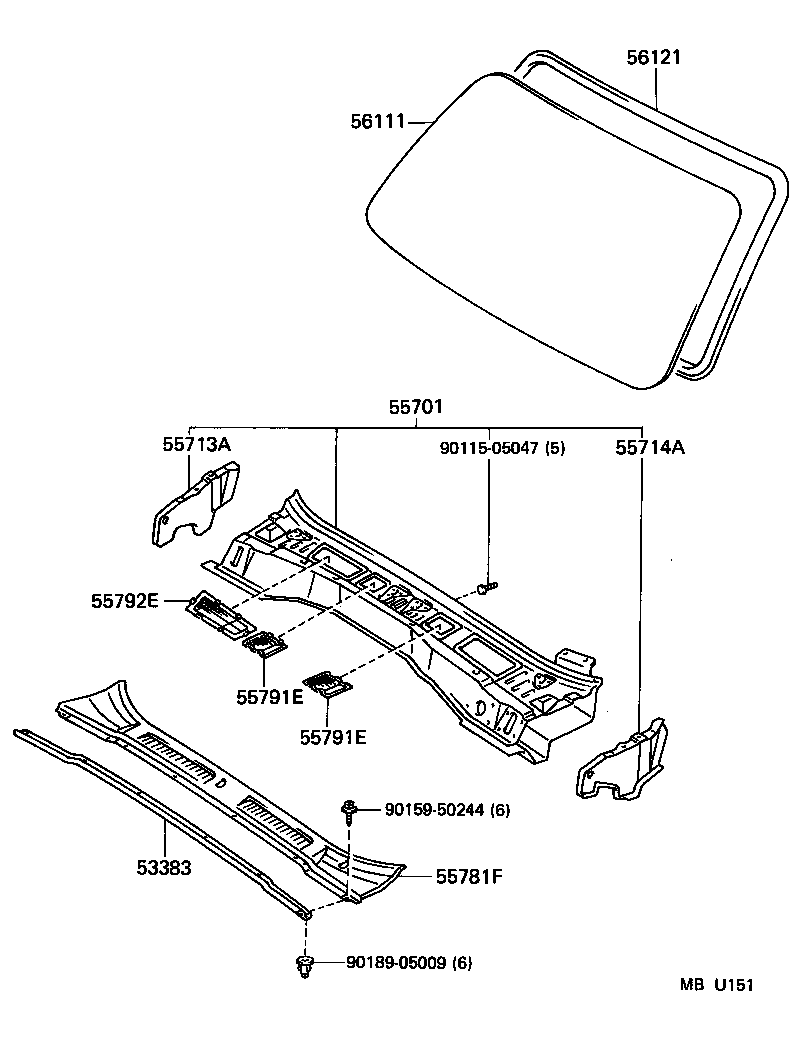

Click highlighted areas on diagram

diagram 53383 55701 55713A 55714A 55781F 55791E 55791E 55792E 56111 56121 9011505047 9015950244 9018905009
Part # Description Qty Price
53383 - SEAL, HOOD TO COWL TOP
53383-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
55701 - PANEL SUB-ASSY, COWL
55700-60230

HDJ80,HZJ80..LHD

 1
55700-6A411

FZJ80,HDJ80,HZJ80..LHD

 1
55700-6A410

FZJ80,HDJ80,HZJ80..LHD

 1
55700-6A430

HDJ80..LHD..ATM

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-60020

FJ80,FZJ80,HDJ80,HZJ80

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-60020

FJ80,FZJ80,HDJ80,HZJ80

 1
55781F - LOUVER, COWL TOP VENTILATOR
55781-60030

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
55791E - COVER, HEATER DUCT HOLE
55791-60010

FJ80,FZJ80,HDJ80,HZJ80

 2
55791E - COVER, HEATER DUCT HOLE
55791-60010

FJ80,FZJ80,HDJ80,HZJ80

 2
55792E - COVER, HEATER AIR DUCT HOLE, NO.2
55792-60020

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
56111 - GLASS, WINDSHIELD
56111-60060

FJ80,FZJ80,HDJ80,HZJ80

*TL,T=4.7,BLUE

 1
56111-60100

FJ80,FZJ80,HDJ80,HZJ80

*TL,T=4.7,BLUE,W(TOP SHADE)

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-60070

FZJ80,HDJ80,HZJ80..STD,VX

 1
56121-60040

FJ80,FZJ80,HDJ80,HZJ80..STD,VX

 1
Common parts
90115-05047
90159-50244
90189-05009
