HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

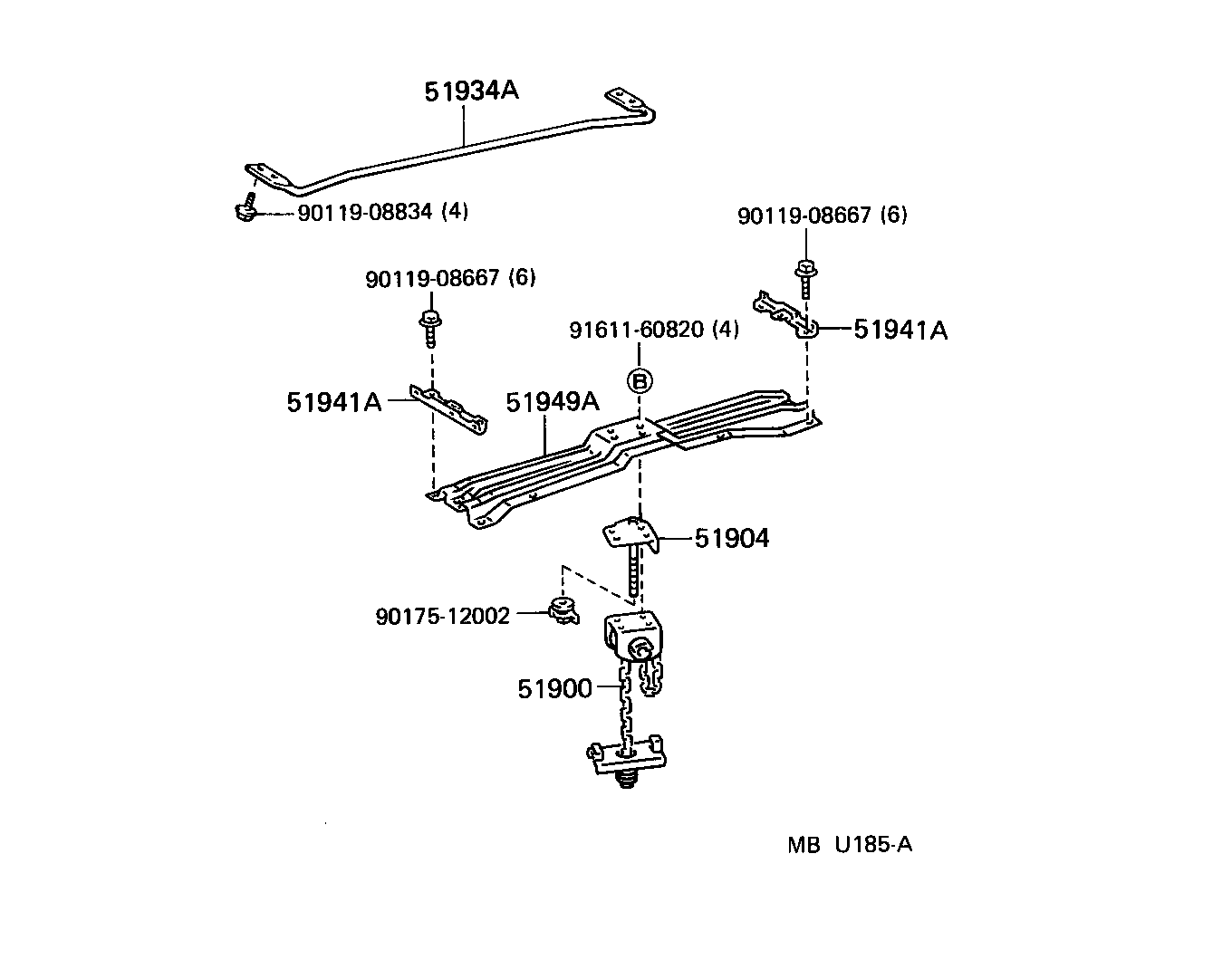

Click highlighted areas on diagram

diagram 51900 51904 51934A 51941A 51941A 51949A 9011908667 9011908667 9011908834 9017512002 9161160820
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-60140

HDJ80,HZJ80..LHD..(GX,VX)

*FRG

 1
51900-60120

FZJ80,HDJ80

W(ALUMINIUM WHEEL)

 1
51900-60140

HDJ80..LHD;HZJ80..SOB..GX

*FRG

 1
51900-60120

FJ80,HDJ80,HZJ80..GX,VX

W(ALUMINUM WHEEL)

 1
51900-60140

HDJ80..LHD

*FRG

 1
51900-60140

FJ80,FZJ80,HDJ80,HZJ80

 1
51904 - BRACKET SUB-ASSY, SPEARE WHEEL CARRIER
51904-60030

HDJ80..LHD

 1
51904-60030

HDJ80,HZJ80..LHD..(GX,VX)

 1
51904-60030

HDJ80..LHD;HZJ80..SOB..GX

 1
51904-60030

HDJ80..LHD;HZJ80..SOB..GX

 1
51941A - BRACKET, SPARE WHEEL CARRIER
51943-60040

FJ80,FZJ80,HDJ80,HZJ80

RH

 1
51944-60020

FJ80,FZJ80,HDJ80,HZJ80

LH

 1
51941A - BRACKET, SPARE WHEEL CARRIER
51943-60040

FJ80,FZJ80,HDJ80,HZJ80

RH

 1
51944-60020

FJ80,FZJ80,HDJ80,HZJ80

LH

 1
51949A - CROSSMEMBER, SPARE WHEEL CARRIER
51949-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
Common parts
90119-08667
90119-08834
90175-12002
91611-60820
