HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

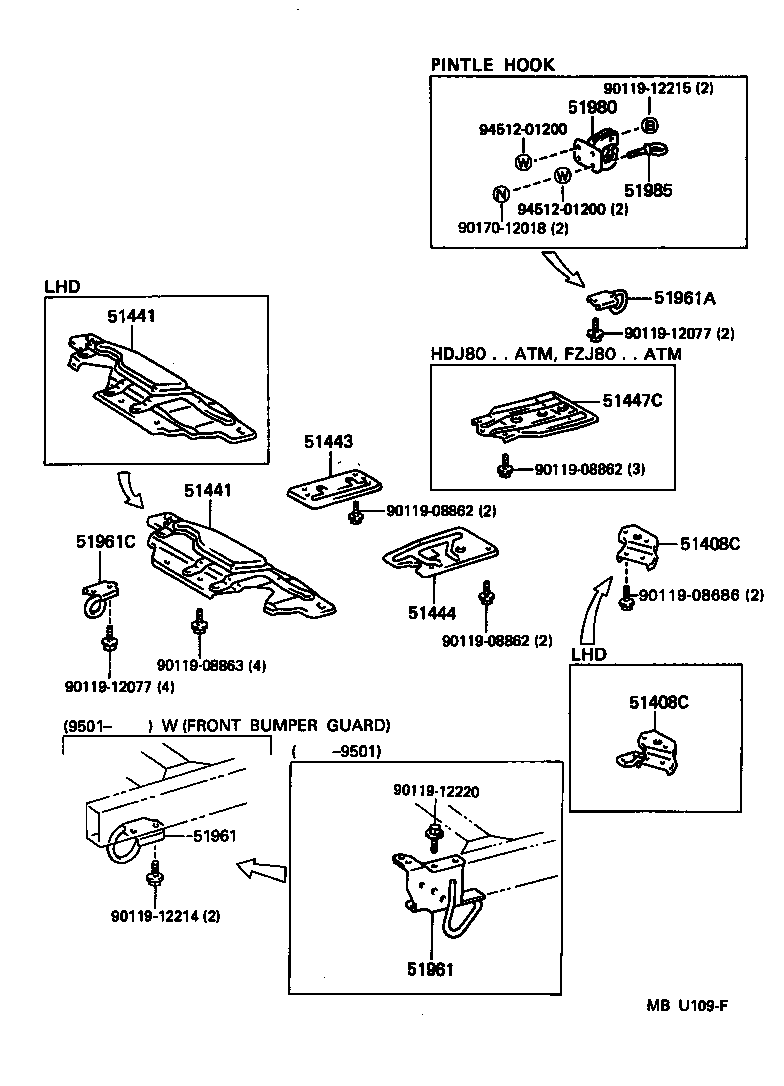

Click highlighted areas on diagram

diagram 51408C 51408C 51441 51441 51443 51444 51447C 51961 51961 51961A 51961C 51980 51985 9011908686 9011908862 9011908862 9011908862 9011908863 9011912077 9011912077 9011912214 9011912215 9011912220 9017012018 9451201200 9451201200
Part # Description Qty Price
51408C - BRACKET SUB-ASSY, FUEL FILLER MOUNTING
51408-60020

HDJ80,HZJ80..LHD

 1
51408C - BRACKET SUB-ASSY, FUEL FILLER MOUNTING
51408-60020

HDJ80,HZJ80..LHD

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-60140

HDJ80..LHD..ATM

 1
51440-60040

FJ80,HDJ80,HZJ80..LHD

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-60140

HDJ80..LHD..ATM

 1
51440-60040

FJ80,HDJ80,HZJ80..LHD

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-60130

FJ80,FZJ80,HDJ80,HZJ80

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-60090

FJ80,HDJ80,HZJ80

 1
51447C - PROTECTOR, TRANSFER CASE
51447-60010

HDJ80..ATM

 1
51961 - HOOK, NO.1
38308-60010

FZJ80,HDJ80,HZJ80

LH

 1
38307-60010

FZJ80,HDJ80,HZJ80

RH

 1
51961 - HOOK, NO.1
38308-60010

FZJ80,HDJ80,HZJ80

LH

 1
38307-60010

FZJ80,HDJ80,HZJ80

RH

 1
51961A - HOOK, NO.3
51961-60100

FJ80,HDJ80,HZJ80

 1
51961C - HOOK, FRONT
51961-60100

FJ80,HDJ80,HZJ80

 2
51980 - HOOK ASSY, PINTLE
51980-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
51985 - HOOK, EYELET PINTLE
51985-60011

FJ80,FZJ80,HDJ80,HZJ80

 2
Common parts
90119-08686
90119-08862
90119-08863
90119-12077
90119-12214
90119-12215
90119-12220
90170-12018
94512-01200
