HDJ80L-GNPEXW (1990)
Toyota Land Cruiser

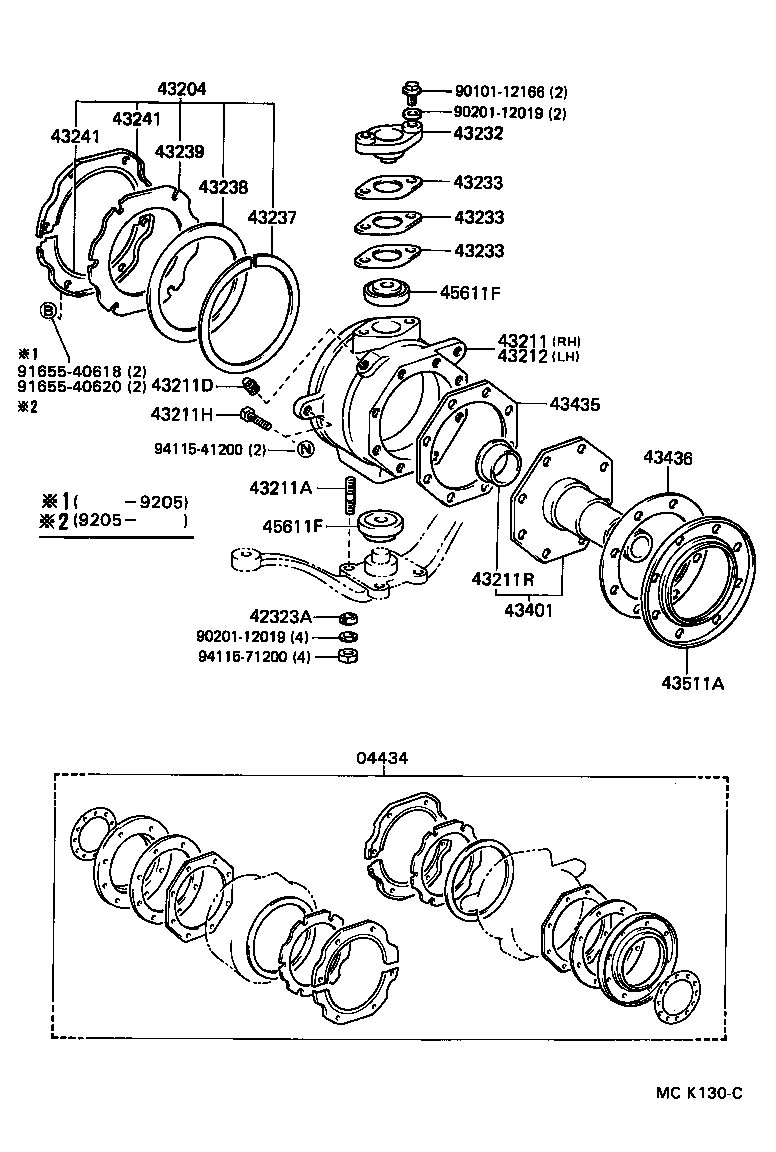

ILLUST NO. 1 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04434 - GASKET KIT, FRONT AXLE OVERHAUL | ||||
| 04434-60050 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 42323A - WASHER, CONE (FOR STEERING KNUCKLE ARM) | ||||
| 42323-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
8 | ||
| 43204 - SEAL SUB-ASSY, STEERING KNUCKLE OIL | ||||
| 43204-60030 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-60060 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 43211-60120 |
FZJ80,HDJ80,HZJ80..GX,VX W(ABS) |
1 | ||
| 43211A - BOLT, STUD (FOR STEERING SET) | ||||
| 90116-12007 |
FJ80,FZJ80,HDJ80,HZJ80 |
8 | ||
| 43211D - PLUG (FOR STEERING KNUCKLE) | ||||
| 90345-53020 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 43211H - BOLT, ROUND HEXAGON | ||||
| 90106-12005 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 43211R - BUSH (FOR STEERING KNUCKLE) | ||||
| 90381-33002 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-60120 |
FZJ80,HDJ80,HZJ80..GX,VX W(ABS) |
1 | ||
| 43212-60060 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 43232 - CAP, STEERING KNUCKLE BEARING | ||||
| 43232-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1 | ||||
| 43235-60020 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.00 |
1 | ||
| 43234-60020 |
FJ80,FZJ80,HDJ80,HZJ80 T=0.50 |
1 | ||
| 43233-60030 |
FJ80,FZJ80,HDJ80,HZJ80 T=0.20 |
1 | ||
| 43236-60020 |
FJ80,FZJ80,HDJ80,HZJ80 T=0.10 |
1 | ||
| 43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1 | ||||
| 43235-60020 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.00 |
1 | ||
| 43234-60020 |
FJ80,FZJ80,HDJ80,HZJ80 T=0.50 |
1 | ||
| 43233-60030 |
FJ80,FZJ80,HDJ80,HZJ80 T=0.20 |
1 | ||
| 43236-60020 |
FJ80,FZJ80,HDJ80,HZJ80 T=0.10 |
1 | ||
| 43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1 | ||||
| 43235-60020 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.00 |
1 | ||
| 43234-60020 |
FJ80,FZJ80,HDJ80,HZJ80 T=0.50 |
1 | ||
| 43233-60030 |
FJ80,FZJ80,HDJ80,HZJ80 T=0.20 |
1 | ||
| 43236-60020 |
FJ80,FZJ80,HDJ80,HZJ80 T=0.10 |
1 | ||
| 43237 - RING, STEERING KNUCKLE OIL SEAL, INNER | ||||
| 43237-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 43238 - SEAL, STEERING KNUCKLE OIL, INNER | ||||
| 43238-60020 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 43239 - SEAL, STEERING KNUCKLE OIL, OUTER | ||||
| 43239-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 43241 - COVER, STEERING KUNCKLE OIL SEAL | ||||
| 43241-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 43241 - COVER, STEERING KUNCKLE OIL SEAL | ||||
| 43241-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 43401 - SPINDLE SUB-ASSY, STEERING KNUCKLE | ||||
| 43401-60040 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 43435 - GASKET, KNUCKLE SPINDLE | ||||
| 43435-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 43436 - GASKET, KNUCKLE SPINDLE OIL RETAINER | ||||
| 43436-60011 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 43511A - SEAL, DUST (FOR FRONT AXLE HUB) | ||||
| 90313-93003 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 45611F - BEARING(FOR STEERING KNUCKLE ARM) | ||||
| 90366-20003 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 45611F - BEARING(FOR STEERING KNUCKLE ARM) | ||||
| 90366-20003 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| Common parts | ||||
| 90101-12166 | ||||
| 90201-12019 | ||||
| 91655-40618 | ||||
| 91655-40620 | ||||
| 94115-41200 | ||||
| 94115-71200 | ||||

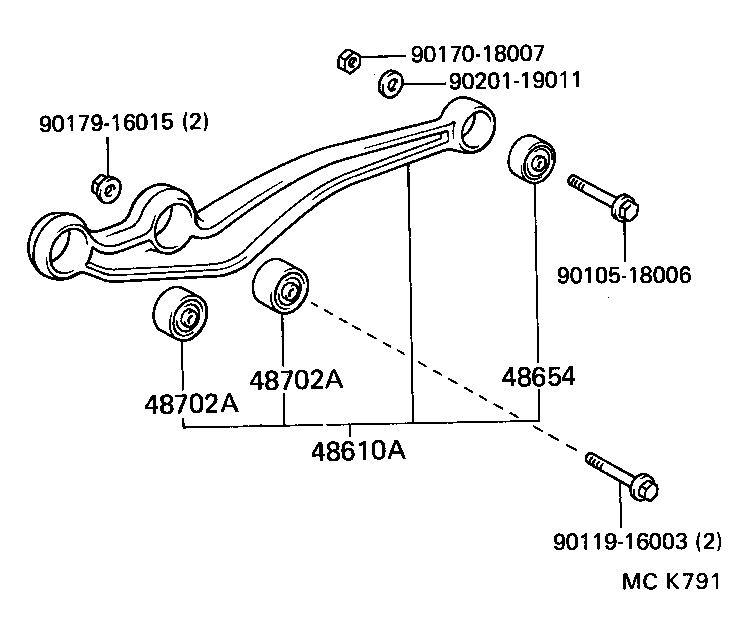

ILLUST NO. 2 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48610A - ARM ASSY, LEADING, FRONT | ||||
| 48610-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 48702A - BUSH SUB-ASSY, LEADING ARM, NO.1 | ||||
| 48702-60050 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 48702A - BUSH SUB-ASSY, LEADING ARM, NO.1 | ||||
| 48702-60050 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| Common parts | ||||
| 90105-18006 | ||||
| 90119-16003 | ||||
| 90170-18007 | ||||
| 90179-16015 | ||||
| 90201-19011 | ||||
