HDJ80L-GNPEXW (1990)
Toyota Land Cruiser

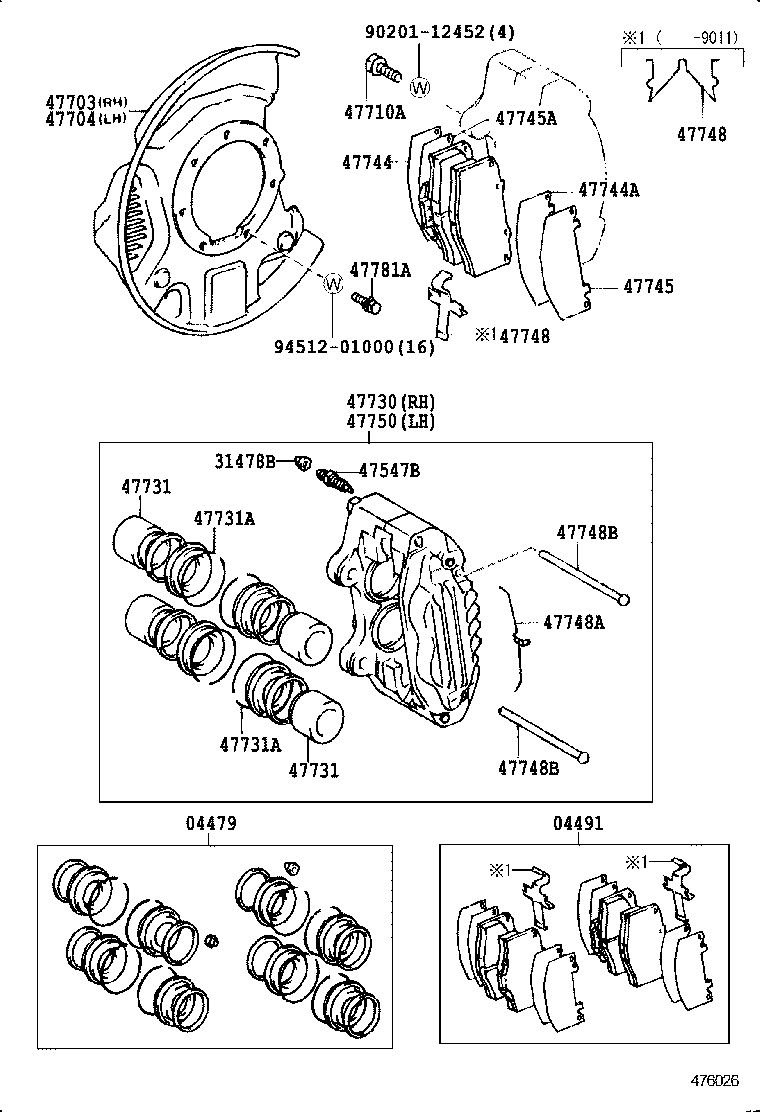

ILLUST NO. 1 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-60160 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20030 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH | ||||
| 47781-60060 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 47703-60050 |
FJ80,HDJ80,HZJ80 W(AIR SCOOP) |
1 | ||
| 47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH | ||||
| 47782-60060 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 47704-60050 |
FJ80,HDJ80,HZJ80 W(AIR SCOOP) |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12144 |
FJ80,HDJ80,HZJ80 *12-1.25PX38-23 |
4 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-60030 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
8 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-50003 |
FJ80,FZJ80,HDJ80,HZJ80 |
8 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-50003 |
FJ80,FZJ80,HDJ80,HZJ80 |
8 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47745-35020 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47744-35020 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-35020 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 47745A - SHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47744-35020 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-60030 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 47748-60020 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-60030 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 47748-60020 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90468-12015 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90240-06014 |
FJ80,HDJ80,HZJ80 |
4 | ||
| 47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90240-06014 |
FJ80,HDJ80,HZJ80 |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-60030 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90101-10166 |
FJ80,HDJ80,HZJ80 |
16 | ||
| Common parts | ||||
| 90201-12452 | ||||
| 94512-01000 | ||||
ILLUST NO. 2 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-60020 |
FJ80,FZJ80,HDJ80,HZJ80 MARK AISIN PC519 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-35040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-60080 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 04947-60040 |
FJ80,HDJ80,HZJ80 |
1 | ||
