HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

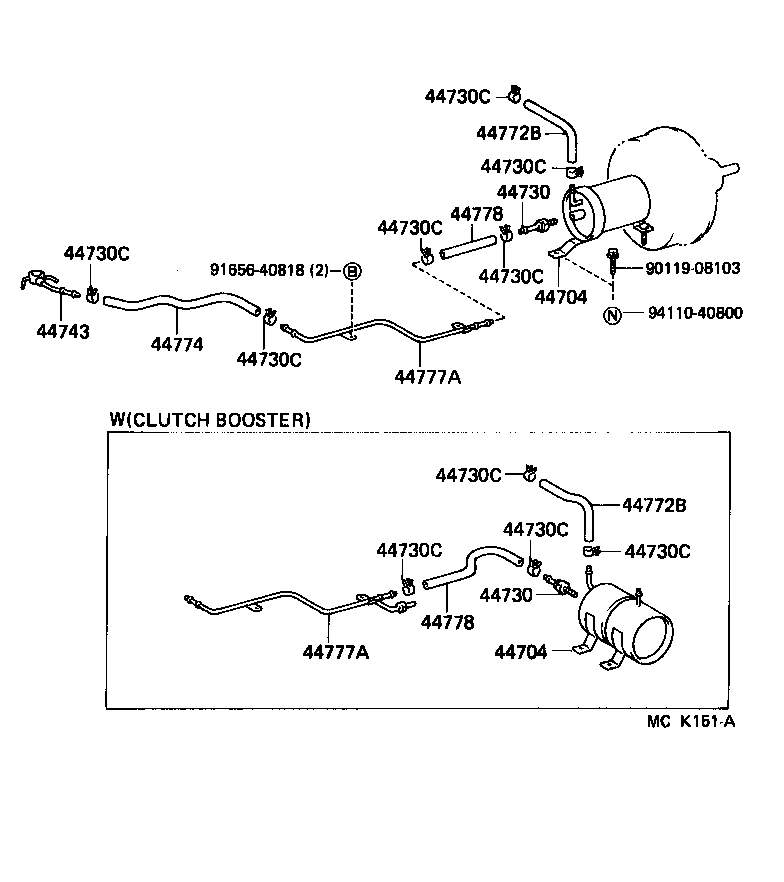

ILLUST NO. 2 OF 2(9001- )HDJ80,HZJ80..LHD

Click highlighted areas on diagram

diagram 44704 44704 44730 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44743 44772B 44772B 44774 44777A 44777A 44778 44778 9011908103 9165640818 9411040800
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-60180

HDJ80..ATM;HDJ80..MTM..GX..TD2;HDJ80,HZJ80..DSL,TD4

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-60180

HDJ80..ATM;HDJ80..MTM..GX..TD2;HDJ80,HZJ80..DSL,TD4

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60050

HDJ80..ATM;HDJ80..MTM..GX..TD2;HDJ80,HZJ80..DSL,TD4

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60050

HDJ80..ATM;HDJ80..MTM..GX..TD2;HDJ80,HZJ80..DSL,TD4

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

FJ80,HDJ80,HZJ80..LHD

 4
90467-16017

HDJ80,HZJ80..LHD

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

FJ80,HDJ80,HZJ80..LHD

 4
90467-16017

HDJ80,HZJ80..LHD

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

FJ80,HDJ80,HZJ80..LHD

 4
90467-16017

HDJ80,HZJ80..LHD

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

FJ80,HDJ80,HZJ80..LHD

 4
90467-16017

HDJ80,HZJ80..LHD

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

FJ80,HDJ80,HZJ80..LHD

 4
90467-16017

HDJ80,HZJ80..LHD

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

FJ80,HDJ80,HZJ80..LHD

 4
90467-16017

HDJ80,HZJ80..LHD

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

FJ80,HDJ80,HZJ80..LHD

 4
90467-16017

HDJ80,HZJ80..LHD

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

FJ80,HDJ80,HZJ80..LHD

 4
90467-16017

HDJ80,HZJ80..LHD

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

FJ80,HDJ80,HZJ80..LHD

 4
90467-16017

HDJ80,HZJ80..LHD

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

FJ80,HDJ80,HZJ80..LHD

 4
90467-16017

HDJ80,HZJ80..LHD

 4
44743 - UNION(FOR VACUUM PUMP)
90405-09141

HDJ80,HZJ80..DSL,TD2

 1
90405-09142

HDJ80,HZJ80

W(AIR CONDITIONER)

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-60080

HDJ80..GX..TD2;HDJ80..LHD..ATM..VX;HDJ80,HZJ80..LHD..(DSL,TD4)

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-60080

HDJ80..GX..TD2;HDJ80..LHD..ATM..VX;HDJ80,HZJ80..LHD..(DSL,TD4)

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-60120

HDJ80,HZJ80

 1
44777A - CONNECTOR, VACUUM HOSE, NO.2
44777-60260

HDJ80..ATM;HDJ80,HZJ80..MTM..GX

W(*66)

 1
44777-60160

HDJ80..ATM;HDJ80..MTM..GX..TD2;HDJ80,HZJ80..DSL,TD4

 1
44777A - CONNECTOR, VACUUM HOSE, NO.2
44777-60260

HDJ80..ATM;HDJ80,HZJ80..MTM..GX

W(*66)

 1
44777-60160

HDJ80..ATM;HDJ80..MTM..GX..TD2;HDJ80,HZJ80..DSL,TD4

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-60110

HDJ80..LHD..ATM;HDJ80,HZJ80..MTM..GX

W(*66)

 1
44778-60080

HDJ80..GX..TD2;HDJ80..LHD..ATM..VX;HDJ80,HZJ80..LHD..(DSL,TD4)

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-60110

HDJ80..LHD..ATM;HDJ80,HZJ80..MTM..GX

W(*66)

 1
44778-60080

HDJ80..GX..TD2;HDJ80..LHD..ATM..VX;HDJ80,HZJ80..LHD..(DSL,TD4)

 1
Common parts
90119-08103
91656-40818
94110-40800

ILLUST NO. 1 OF 2(9001- )

Click highlighted areas on diagram

diagram 44610 44696 44730 44758 44785 47289 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-60580

HDJ80,HZJ80..LHD

 1
44610-60781

HDJ80,HZJ80..LHD

 1
44610-60780

HDJ80,HZJ80..LHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60050

HDJ80..ATM;HDJ80..MTM..GX..TD2;HDJ80,HZJ80..DSL,TD4

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

FJ80,FZJ80,HDJ80,HZJ80

 1
47289 - LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION
47289-60010

HDJ80,HZJ80

 1
Common parts
90179-08038
