HDJ80L-GNPEXW (1990)
Toyota Land Cruiser

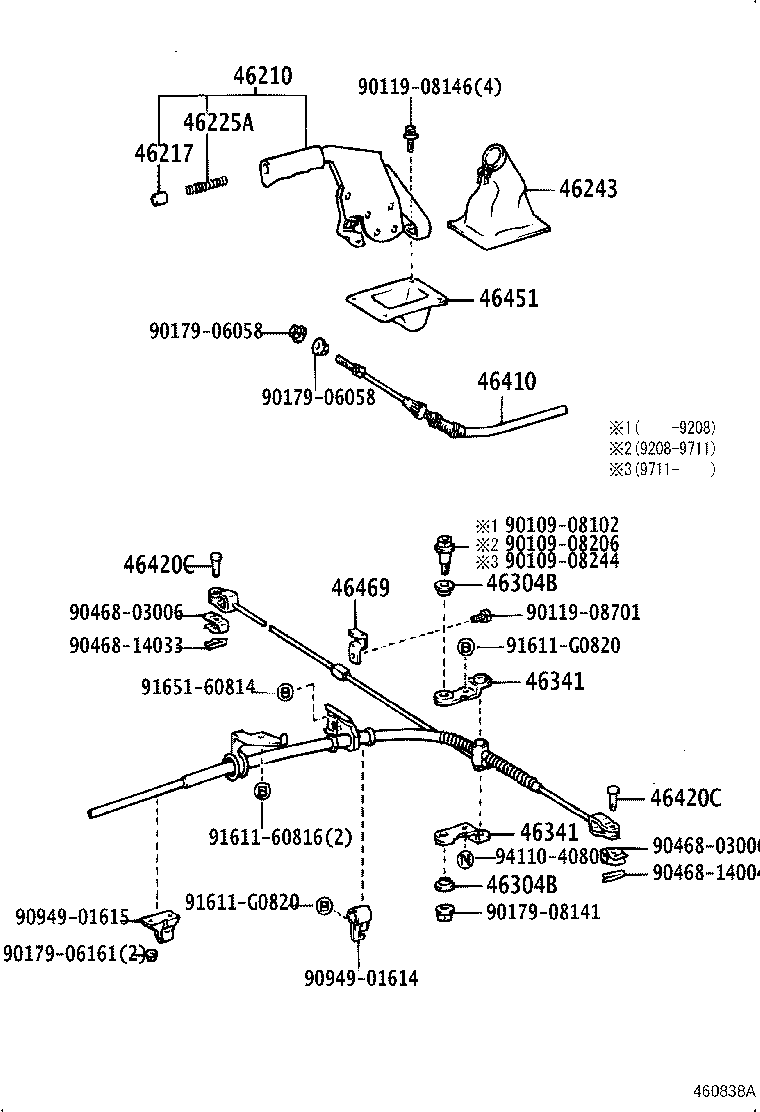

ILLUST NO. 1 OF 2(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-6009003 |
FJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 46210-6009006 |
FJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 46210-6009106 |
FJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 46210-60150B0 |
FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 46210-60150E0 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 46210-60150E0 |
FJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 46210-6009103 |
FJ80,HDJ80,HZJ80 BLUSH GRAY,TRIM1# |
1 | ||
| 46210-60150B0 |
FJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-2002046 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 46217-2002053 |
FZJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 46217-10020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 46217-2002046 |
FJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 46217-2002053 |
FJ80,HDJ80,HZJ80 BLUISH GRAY,TRIM1# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10138 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-6004006 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 46243-6004003 |
FJ80,HDJ80,HZJ80 BLUEISH GRAY,TRIM1# |
1 | ||
| 46243-6004006 |
FJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 46243-6004003 |
FZJ80,HDJ80,HZJ80 BLUEISH GRAY,TRIM1# |
1 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12012 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12012 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-35030 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-35030 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-60430 |
FJ80,HDJ80,HZJ80..LHD W(FULL FLOATING) |
1 | ||
| 46410-60420 |
FJ80,HDJ80,HZJ80..LHD |
1 | ||
| 46410-60450 |
FJ80,HDJ80,HZJ80..LHD..(GX,VX) W(FULL FLOATING & REAR DISC BRAKE) |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08042 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08042 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-60101 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 46451-60100 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90109-08102 | ||||
| 90109-08206 | ||||
| 90109-08244 | ||||
| 90119-08146 | ||||
| 90119-08701 | ||||
| 90179-06058 | ||||
| 90179-06161 | ||||
| 90179-08141 | ||||
| 90468-03006 | ||||
| 90468-14004 | ||||
| 90468-14033 | ||||
| 90949-01614 | ||||
| 90949-01615 | ||||
| 91611-60816 | ||||
| 91611-G0820 | ||||
| 91651-60814 | ||||
| 94110-40800 | ||||

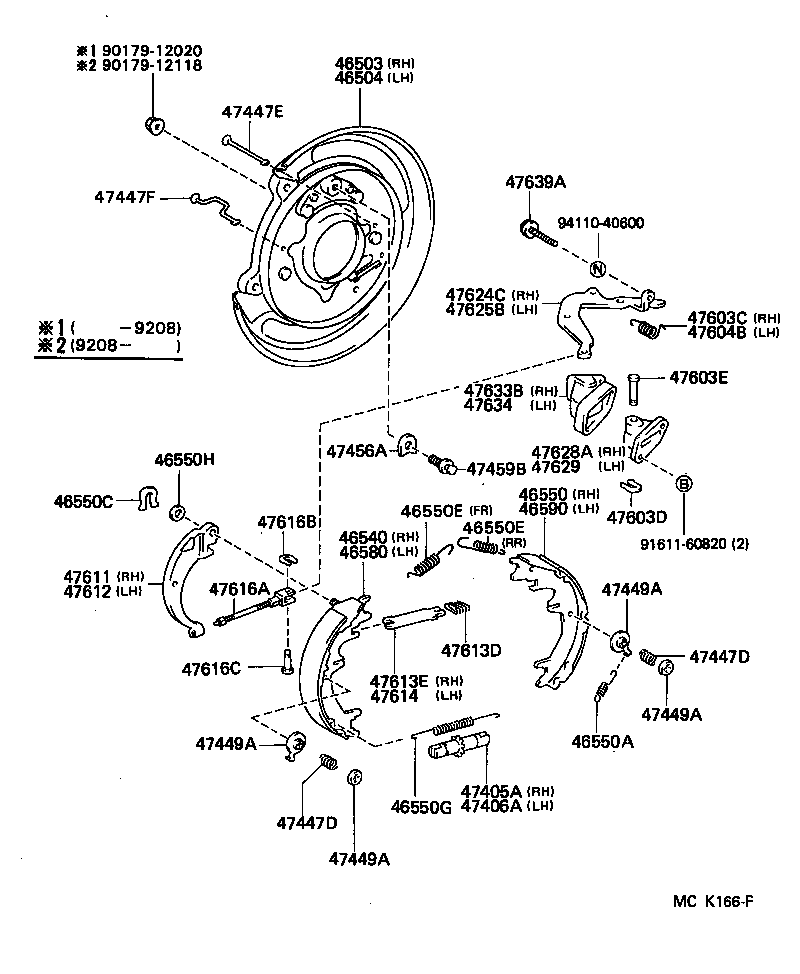

ILLUST NO. 2 OF 2(9001-9208)GX,VX ; (9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-60051 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 46503-60050 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 46503-60080 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 46503-60080 |
FZJ80,HDJ80 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-60011 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 46504-60040 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 46504-60040 |
FZJ80,HDJ80 |
1 | ||
| 46504-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-60030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 46540-60020 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 46540-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-60020 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 46550-60040 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 46550-60030 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12029 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 90506-12029 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 90213-07018 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 90213-07018 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-23014 |
FZJ80,HDJ80,HZJ80 FR |
2 | ||
| 90507-20016 |
FJ80,HDJ80,HZJ80..GX,VX |
4 | ||
| 90507-20016 |
FZJ80,HDJ80,HZJ80 RR |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-23014 |
FZJ80,HDJ80,HZJ80 FR |
2 | ||
| 90507-20016 |
FJ80,HDJ80,HZJ80..GX,VX |
4 | ||
| 90507-20016 |
FZJ80,HDJ80,HZJ80 RR |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12068 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 90506-12061 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09184 |
FJ80,HDJ80,HZJ80..GX,VX T=0.3 |
2 | ||
| 90564-09184 |
FZJ80,HDJ80,HZJ80 T=0.3 |
2 | ||
| 90564-09185 |
FZJ80,HDJ80,HZJ80 T=0.6 |
2 | ||
| 90564-09185 |
FJ80,HDJ80,HZJ80..GX,VX T=0.6 |
2 | ||
| 90564-09186 |
FZJ80,HDJ80,HZJ80 T=0.9 |
2 | ||
| 90564-09186 |
FJ80,HDJ80,HZJ80..GX,VX T=0.9 |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46580-60020 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 46580-60030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 46580-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46550-60030 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 46550-60040 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 46550-60020 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 47405-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 47406-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-16053 |
FJ80,HDJ80,HZJ80..GX,VX |
4 | ||
| 90501-16053 |
FZJ80,HDJ80,HZJ80 |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-16053 |
FJ80,HDJ80,HZJ80..GX,VX |
4 | ||
| 90501-16053 |
FZJ80,HDJ80,HZJ80 |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-30020 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 47447-30020 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-50010 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 47447-50010 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-40010 |
FJ80,HDJ80,HZJ80..GX,VX INNER |
4 | ||
| 47449-30030 |
FJ80,HDJ80,HZJ80..GX,VX OUTER |
4 | ||
| 47449-40010 |
FZJ80,HDJ80,HZJ80 INNER |
4 | ||
| 47449-30030 |
FZJ80,HDJ80,HZJ80 OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-40010 |
FJ80,HDJ80,HZJ80..GX,VX INNER |
4 | ||
| 47449-30030 |
FJ80,HDJ80,HZJ80..GX,VX OUTER |
4 | ||
| 47449-40010 |
FZJ80,HDJ80,HZJ80 INNER |
4 | ||
| 47449-30030 |
FZJ80,HDJ80,HZJ80 OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-40010 |
FJ80,HDJ80,HZJ80..GX,VX INNER |
4 | ||
| 47449-30030 |
FJ80,HDJ80,HZJ80..GX,VX OUTER |
4 | ||
| 47449-40010 |
FZJ80,HDJ80,HZJ80 INNER |
4 | ||
| 47449-30030 |
FZJ80,HDJ80,HZJ80 OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-40010 |
FJ80,HDJ80,HZJ80..GX,VX INNER |
4 | ||
| 47449-30030 |
FJ80,HDJ80,HZJ80..GX,VX OUTER |
4 | ||
| 47449-40010 |
FZJ80,HDJ80,HZJ80 INNER |
4 | ||
| 47449-30030 |
FZJ80,HDJ80,HZJ80 OUTER |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-20030 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 47456-20030 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 47459-30010 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 47603C - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RH) | ||||
| 90506-20033 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 90506-20033 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 47603D - WASHER, TYPE C(FOR PARKING BRAKE BELL CRANK) | ||||
| 90213-06013 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 90213-06013 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 47603E - PIN(FOR PARKING BRAKE BELL CRANK) | ||||
| 90249-08075 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 90249-08075 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 47604B - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK LH) | ||||
| 90506-20033 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 90506-20033 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-60020 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 47611-60030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-60020 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 47612-60030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 90504-14002 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-60020 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 47613-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47613-60020 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 47613-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 47616A - WIRE, PARKING BRAKE | ||||
| 47616-60020 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 47616-60020 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 47616B - WASHER, TYPE C(FOR PARKING BRAKE WIRE) | ||||
| 90213-04008 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 90213-04001 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 90213-04001 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 47616C - PIN(FOR PARKING BRAKE WIRE) | ||||
| 90249-07074 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 90249-07074 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 47624C - CRANK, PARKING BRAKE BELL, RH | ||||
| 47624-60020 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 47624-60021 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 47624-60021 |
FZJ80,HDJ80 |
1 | ||
| 47624-60021 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 47625B - CRANK, PARKING BRAKE BELL, LH | ||||
| 47625-60021 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 47625-60021 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 47625-60021 |
FZJ80,HDJ80 |
1 | ||
| 47625-60020 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 47628A - BRACKET, BELLCRANK, RH(FOR PARKING BRAKE) | ||||
| 47628-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 47628-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 47629 - BRACKET, BELLCRANK, LH(FOR PARKING BRAKE) | ||||
| 47629-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 47629-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 47633B - BOOT, BELLCRANK, RH(FOR PARKING BRAKE) | ||||
| 47633-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 47633-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 47634 - BOOT, BELLCRANK, LH(FOR PARKING BRAKE) | ||||
| 47634-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 47634-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 47639A - BOLT, BELLCRANK STOPPER(FOR PARKING BRAKE) | ||||
| 47639-30020 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 47639-30020 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 90143-60002 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| Common parts | ||||
| 90179-12020 | ||||
| 90179-12118 | ||||
| 91611-60820 | ||||
| 94110-40600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
