HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )GX,VX

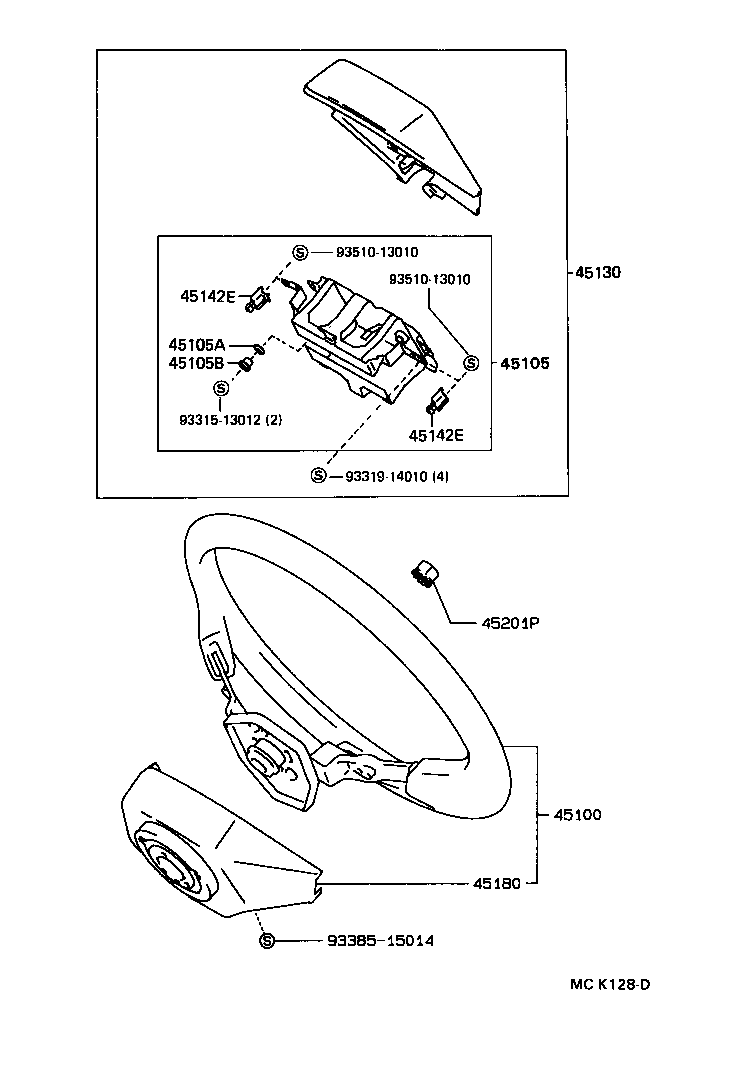

Click highlighted areas on diagram

diagram 45100 45105 45105A 45105B 45130 45142E 45142E 45180 45201P 9331513012 9331914010 9338515014 9351013010 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-6018001

FZJ80,HDJ80..VX

3-SPOKE,LEATHER,BLACK,TRIM1#,4#

 1
45100-6018001

FJ80,HDJ80..VX

3-SPOKE,LEATHER,BLACK,TRIM1#,4#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-60050

FJ80,FZJ80,HDJ80,HZJ80..GX,VX

 1
45105A - CUSHION(FOR HORN BUTTON CONTACT PLATE)
90540-08014

FJ80,FZJ80,HDJ80,HZJ80..GX,VX

 2
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-03001

FJ80,FZJ80,HDJ80,HZJ80..GX,VX

 2
45130 - BUTTON ASSY, HORN
45130-6016001

FZJ80,HDJ80,HZJ80..GX,VX

BLACK,TRIM1#,4#

 1
45130-6016001

FJ80,HDJ80,HZJ80..GX,VX

BLACK,TRIM1#,4#

 1
45142E - PIECE, HORN CONTACT
45142-12090

FJ80,FZJ80,HDJ80,HZJ80..GX,VX

 2
45142E - PIECE, HORN CONTACT
45142-12090

FJ80,FZJ80,HDJ80,HZJ80..GX,VX

 2
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-6004001

FJ80,FZJ80,HDJ80,HZJ80..GX,VX

BLACK,TRIM1#,4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

FJ80,FZJ80,HDJ80,HZJ80

 1
Common parts
93315-13012
93319-14010
93385-15014
93510-13010
