Toyota Land cruiser HDJ80 POWER STEERING TUBE

HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995

Engine 1HDT

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

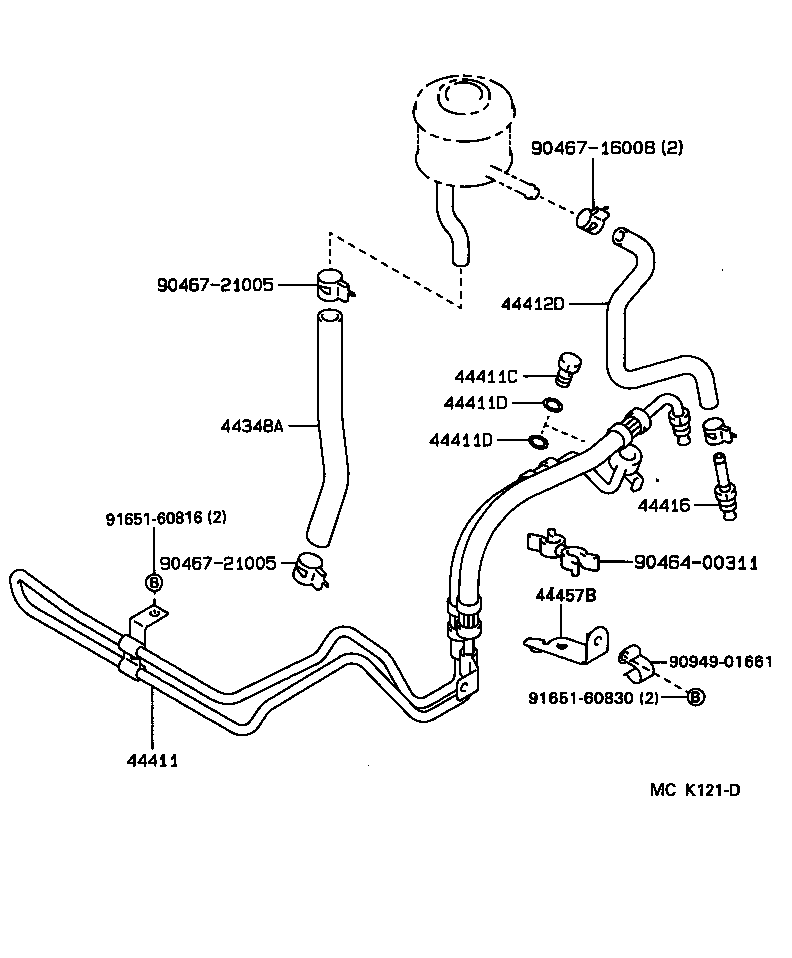

(9001-9208)HDJ80,HZJ80..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60120	HDJ80,HZJ80	01/1990 - 01/1998	1
44411 - HOSE, PRESSURE FEED
44411-60360	HDJ80,HZJ80..LHD	01/1990 - 08/1992	1
44411-60420	HDJ80..LHD..VX W(PROGRESSIVE POWER STEERING)	01/1990 - 01/1995	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027	HDJ80..VX W(PROGRESSIVE POWER STEERING)	05/1992 - 01/1995	2
90401-16008	HDJ80,HZJ80	01/1990 - 05/1992	1
90401-16008	HDJ80..VX W(PROGRESSIVE POWER STEERING)	01/1990 - 05/1992	2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242	HDJ80..VX W(PROGRESSIVE POWER STEERING)	01/1990 - 05/1992	4
90430-16242	HDJ80,HZJ80	01/1990 - 05/1992	2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242	HDJ80..VX W(PROGRESSIVE POWER STEERING)	01/1990 - 05/1992	4
90430-16242	HDJ80,HZJ80	01/1990 - 05/1992	2
44412D - HOSE, RETURN, NO.1
44412-60190	HDJ80,HZJ80..LHD	01/1990 - 08/1992	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-35020	HDJ80,HZJ80..LHD	01/1990 - 08/1992	1
44416-60320	HDJ80..LHD..VX W(PROGRESSIVE POWER STEERING)	01/1990 - 01/1998	1
44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2
44457-60171	HDJ80..VX	01/1990 - 04/1992	1
Common parts
90464-00311
90467-16008
90467-21005
90949-01661
91651-60816
91651-60830

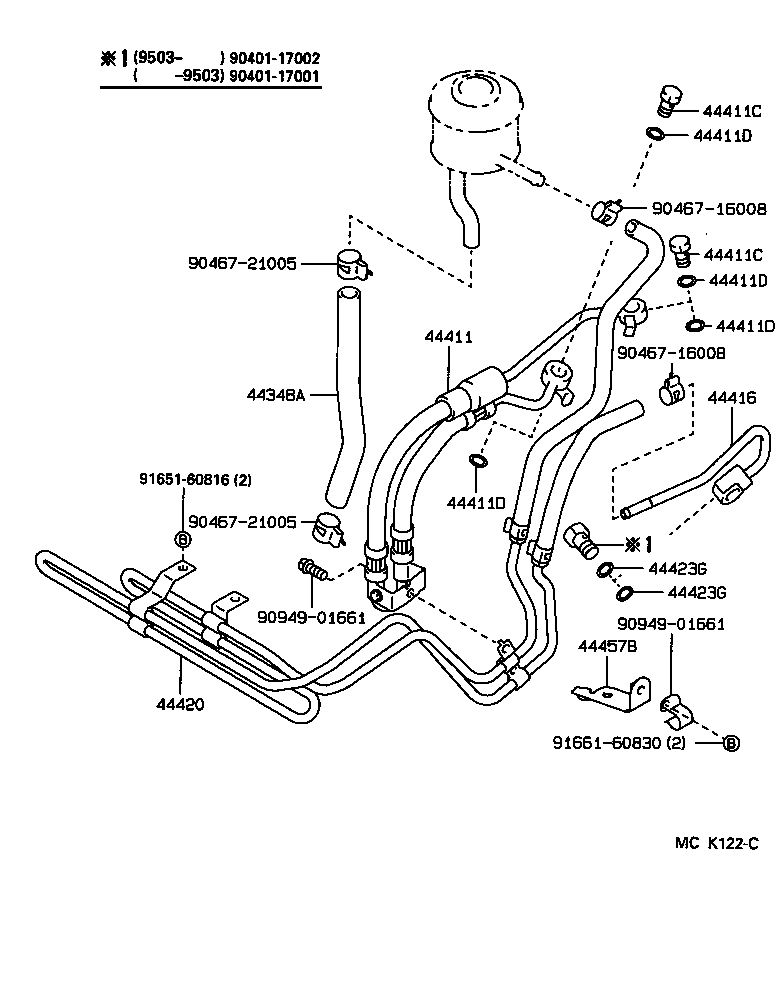

(9001- )HDJ80..LHD..VX

Click highlighted areas on diagram

W/PROGRESSIVE POWER STEERING

Part #	Description	Period	Qty
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60120	HDJ80,HZJ80	01/1990 - 01/1998	1
44411 - HOSE, PRESSURE FEED
44411-60360	HDJ80,HZJ80..LHD	01/1990 - 08/1992	1
44411-60420	HDJ80..LHD..VX W(PROGRESSIVE POWER STEERING)	01/1990 - 01/1995	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027	HDJ80..VX W(PROGRESSIVE POWER STEERING)	05/1992 - 01/1995	2
90401-16008	HDJ80,HZJ80	01/1990 - 05/1992	1
90401-16008	HDJ80..VX W(PROGRESSIVE POWER STEERING)	01/1990 - 05/1992	2
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027	HDJ80..VX W(PROGRESSIVE POWER STEERING)	05/1992 - 01/1995	2
90401-16008	HDJ80,HZJ80	01/1990 - 05/1992	1
90401-16008	HDJ80..VX W(PROGRESSIVE POWER STEERING)	01/1990 - 05/1992	2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242	HDJ80..VX W(PROGRESSIVE POWER STEERING)	01/1990 - 05/1992	4
90430-16242	HDJ80,HZJ80	01/1990 - 05/1992	2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242	HDJ80..VX W(PROGRESSIVE POWER STEERING)	01/1990 - 05/1992	4
90430-16242	HDJ80,HZJ80	01/1990 - 05/1992	2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242	HDJ80..VX W(PROGRESSIVE POWER STEERING)	01/1990 - 05/1992	4
90430-16242	HDJ80,HZJ80	01/1990 - 05/1992	2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242	HDJ80..VX W(PROGRESSIVE POWER STEERING)	01/1990 - 05/1992	4
90430-16242	HDJ80,HZJ80	01/1990 - 05/1992	2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-35020	HDJ80,HZJ80..LHD	01/1990 - 08/1992	1
44416-60320	HDJ80..LHD..VX W(PROGRESSIVE POWER STEERING)	01/1990 - 01/1998	1
44420 - COOLER ASSY, OIL
44420-60230	HDJ80..LHD..VX	01/1990 - 08/1992	1
44423G - GASKET, UNION BOLT
90430-17002	HDJ80..VX	01/1990 - 01/1998	2
44423G - GASKET, UNION BOLT
90430-17002	HDJ80..VX	01/1990 - 01/1998	2
44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2
44457-60171	HDJ80..VX	01/1990 - 04/1992	1
Common parts
90401-17001
90401-17002
90467-16008
90467-21005
90949-01661
91651-60816
91661-60830

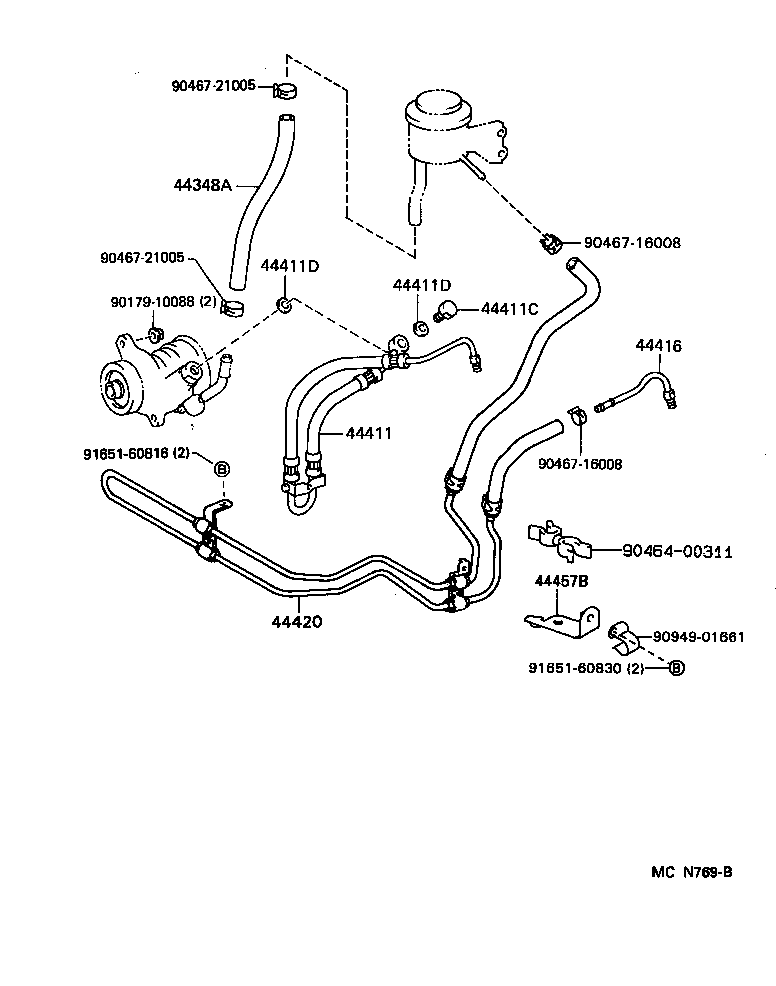

(9208- )HDJ80,HZJ80..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60120	HDJ80,HZJ80	01/1990 - 01/1998	1
44411 - HOSE, PRESSURE FEED
44411-60360	HDJ80,HZJ80..LHD	01/1990 - 08/1992	1
44411-60420	HDJ80..LHD..VX W(PROGRESSIVE POWER STEERING)	01/1990 - 01/1995	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027	HDJ80..VX W(PROGRESSIVE POWER STEERING)	05/1992 - 01/1995	2
90401-16008	HDJ80,HZJ80	01/1990 - 05/1992	1
90401-16008	HDJ80..VX W(PROGRESSIVE POWER STEERING)	01/1990 - 05/1992	2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242	HDJ80..VX W(PROGRESSIVE POWER STEERING)	01/1990 - 05/1992	4
90430-16242	HDJ80,HZJ80	01/1990 - 05/1992	2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242	HDJ80..VX W(PROGRESSIVE POWER STEERING)	01/1990 - 05/1992	4
90430-16242	HDJ80,HZJ80	01/1990 - 05/1992	2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-35020	HDJ80,HZJ80..LHD	01/1990 - 08/1992	1
44416-60320	HDJ80..LHD..VX W(PROGRESSIVE POWER STEERING)	01/1990 - 01/1998	1
44420 - COOLER ASSY, OIL
44420-60230	HDJ80..LHD..VX	01/1990 - 08/1992	1
44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2
44457-60171	HDJ80..VX	01/1990 - 04/1992	1
Common parts
90179-10088
90464-00311
90467-16008
90467-21005
90949-01661
91651-60816
91651-60830

HDJ80L-GNPEXW (1990)

(9001-9208)HDJ80,HZJ80..LHD

(9001- )HDJ80..LHD..VX

(9208- )HDJ80,HZJ80..LHD
