HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

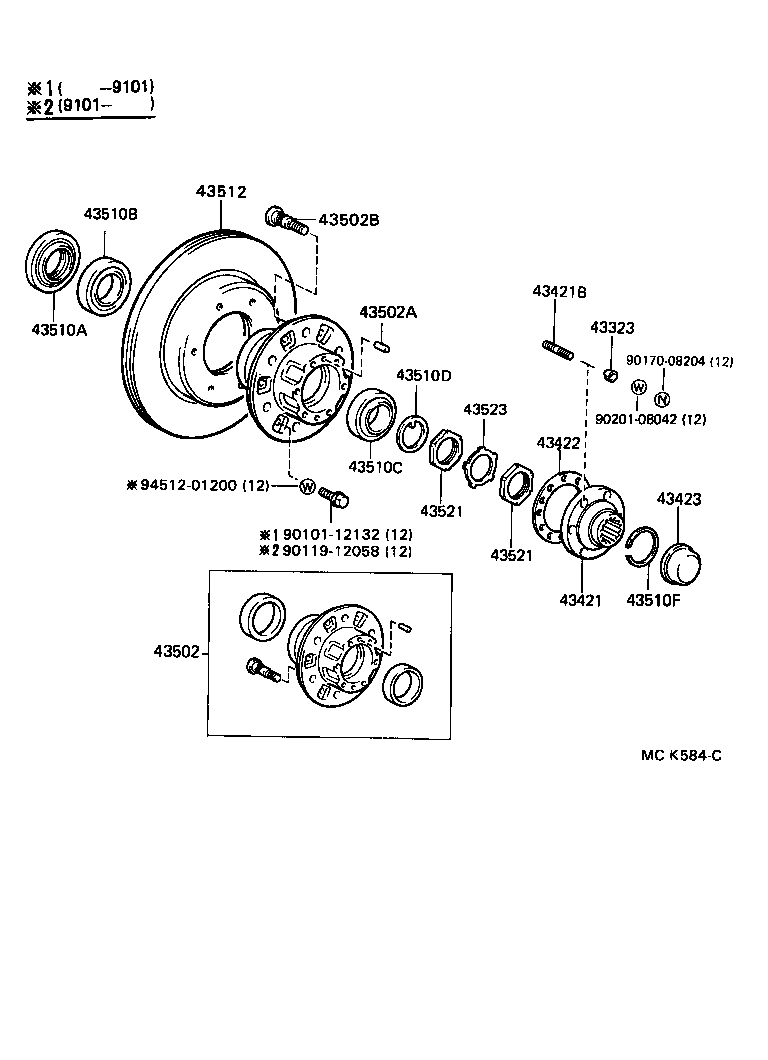

Click highlighted areas on diagram

diagram 43323 43421 43421B 43422 43423 43502 43502A 43502B 43510A 43510B 43510C 43510D 43510F 43512 43521 43521 43523 9010112132 9011912058 9017008204 9020108042 9451201200
Part # Description Qty Price
43323 - WASHER, CONE (FOR FRONT AXLE SHAFT)
42323-60010

FJ80,FZJ80,HDJ80,HZJ80

 12
43421 - FLANGE, FRONT AXLE OUTER SHAFT
43421-60020

FJ80,FZJ80,HDJ80,HZJ80

 2
43421-60021

FZJ80,HDJ80,HZJ80

 2
43421B - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE)
90116-08325

FJ80,FZJ80,HDJ80,HZJ80

 12
43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE
43422-60030

FJ80,FZJ80,HDJ80,HZJ80

 2
43422-60031

FZJ80,HDJ80,HZJ80

 2
43423 - CAP, FRONT AXLE OUTER SHAFT FLANGE
43423-35010

FJ80,FZJ80,HDJ80,HZJ80

 2
43502 - HUB SUB-ASSY, FRONT AXLE
43502-60040

FJ80,FZJ80,HDJ80,HZJ80

 2
43502-69045

HDJ80..LHD..ATM;FZJ80,HZJ80..GX,VX

W(*66)

 2
43502A - PIN, STRAIGHT (FOR FRONT AXLE HUB)
90250-07057

FJ80,FZJ80,HDJ80,HZJ80

 4
43502B - BOLT, HUB (FOR FRONT AXLE)
90942-02049

FJ80,FZJ80,HDJ80,HZJ80

 12
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-62001

FJ80,FZJ80,HDJ80,HZJ80

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-49084

FJ80,FZJ80,HDJ80,HZJ80

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-45087

FJ80,FZJ80,HDJ80,HZJ80

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-42030

FJ80,FZJ80,HDJ80,HZJ80

 2
43510F - RING, SHAFT SNAP (FOR FRONT AXLE HUB)
90520-31001

FJ80,FZJ80,HDJ80,HZJ80

T=2.5

 2
43512 - DISC, FRONT
43512-60050

FJ80,HDJ80,HZJ80

 2
43521 - NUT, FRONT WHEEL ADJUSTING
43521-60011

FJ80,FZJ80,HDJ80,HZJ80

 4
43521 - NUT, FRONT WHEEL ADJUSTING
43521-60011

FJ80,FZJ80,HDJ80,HZJ80

 4
43523 - WASHER, FRONT WHEEL ADJUSTING LOCK
90215-42025

FJ80,FZJ80,HDJ80,HZJ80

 2
Common parts
90101-12132
90119-12058
90170-08204
90201-08042
94512-01200
