HDJ80L-GNPEXW (1990)
Toyota Land Cruiser

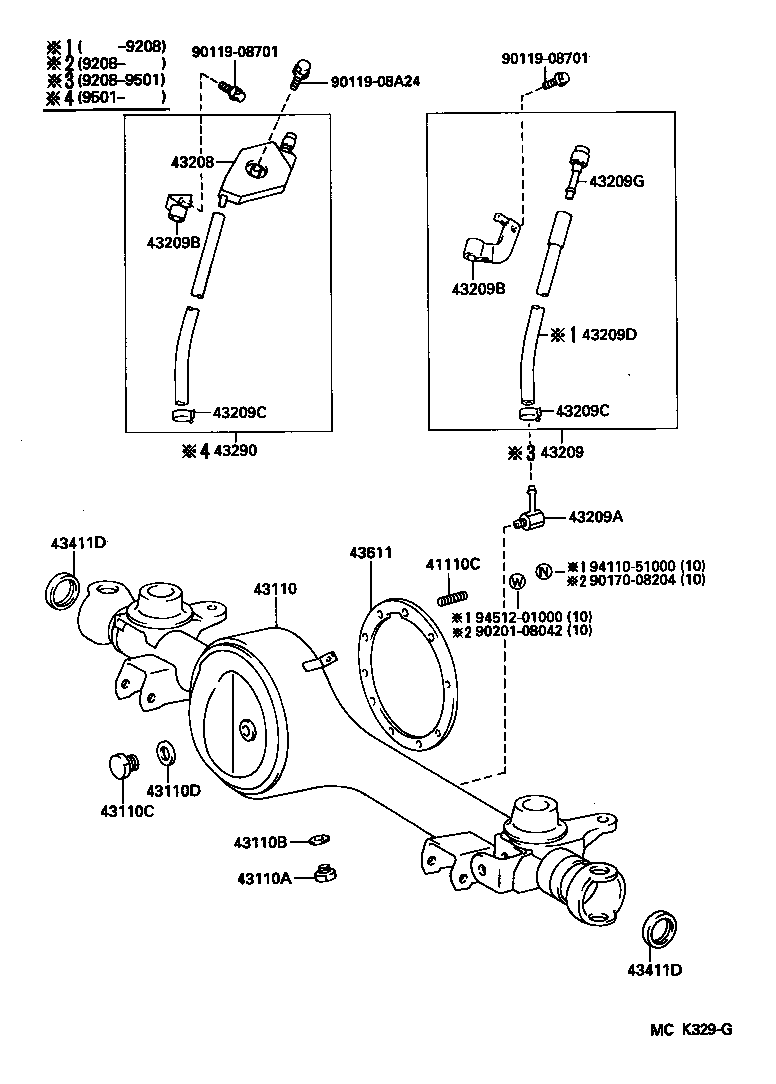

ILLUST NO. 1 OF 3(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110C - BOLT, STUD (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90116-08330 |
HZJ80;FJ80,HDJ80..ATM S=17 & 12,L=111,W(DIFFERENTIAL LOCK) |
2 | ||
| 90116-08329 |
FZJ80,HDJ80,HZJ80 S=17 & 12,L=37,W(*FDL) |
7 | ||
| 90116-08330 |
FZJ80,HDJ80,HZJ80 S=17 & 12,L=111,W(*FDL) |
2 | ||
| 90116-08329 |
HZJ80;FJ80,HDJ80..ATM S=17 & 12,L=37,W(DIFFERENTIAL LOCK) |
7 | ||
| 90116-08329 |
FJ80,FZJ80,HDJ80,HZJ80 S=17 & 12,L=37 |
8 | ||
| 90116-08233 |
FJ80,FZJ80,HDJ80,HZJ80 S=14 & 14,L=42 |
2 | ||
| 43110 - HOUSING ASSY, FRONT AXLE | ||||
| 43110-60280 |
FJ80,HDJ80,HZJ80..LHD |
1 | ||
| 43110-60280 |
HZJ80..LUB;FJ80,HDJ80..LHD..ATM W(LSD) |
1 | ||
| 43110-60380 |
FZJ80,HDJ80,HZJ80..LHD..(GX,VX) W(WINCH OR *66) |
1 | ||
| 43110-60400 |
FZJ80,HDJ80,HZJ80..LHD W(*FDL) |
1 | ||
| 43110-60380 |
FZJ80,HDJ80,HZJ80..LHD..(GX,VX) W(WINCH OR *66) |
1 | ||
| 43110-60300 |
FJ80,HZJ80;HDJ80..LHD..ATM W(*FDL) |
1 | ||
| 43110A - PLUG SUB-ASSY, DRAIN | ||||
| 90341-18040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 43110B - GASKET, DRAIN | ||||
| 12157-10010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 43110C - PLUG (FOR FRONT AXLE HOUSING) | ||||
| 90341-18006 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 43110D - GASKET (FOR FRONT AXLE HOUSING PLUG) | ||||
| 12157-10010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 43209 - HOSE SUB-ASSY, FRONT AXLE BREATHER | ||||
| 43209-60160 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 43209-60170 |
FZJ80,HDJ80,HZJ80 W(*MW) |
1 | ||
| 43209A - UNION (FOR FRONT AXLE BREATHER HOSE) | ||||
| 90404-10019 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 43209B - CLAMP (FOR FRONT AXLE BREATHER HOSE) | ||||
| 90461-10387 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 43209B - CLAMP (FOR FRONT AXLE BREATHER HOSE) | ||||
| 90461-10387 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 43209C - CLIP, HOSE (FOR FRONT AXLE BREATHER HOSE) | ||||
| 96132-30600 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 43209C - CLIP, HOSE (FOR FRONT AXLE BREATHER HOSE) | ||||
| 96132-30600 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 43209D - HOSE, NO.1 (FOR FRONT AXLE BREATHER) | ||||
| 95333-06040 |
FJ80,HDJ80,HZJ80 *H,L=400 |
1 | ||
| 90445-12248 |
FJ80,HDJ80,HZJ80 L=350,W(WINCH) |
1 | ||
| 90445-12249 |
FJ80,HDJ80,HZJ80 L=390 |
1 | ||
| 43209G - PLUG, BREATHER (FOR FRONT AXLE) | ||||
| 90930-03097 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 43411D - SEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT) | ||||
| 90310-35005 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 43411D - SEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT) | ||||
| 90310-35005 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 43611 - GASKET, FRONT AXLE DIFFERENTIAL CARRIER | ||||
| 42181-60040 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 42181-60040 |
HZJ80..LUB;FJ80,HDJ80..ATM W(LSD) |
1 | ||
| 42181-60080 |
FZJ80,HDJ80,HZJ80 W(*FFA & *FDL) |
1 | ||
| 42181-60090 |
FZJ80,HDJ80,HZJ80..GX,VX W(WINCH OR *66) |
1 | ||
| 42181-60050 |
HZJ80;FJ80,HDJ80..ATM W(*FDL) |
1 | ||
| 42181-60090 |
FZJ80,HDJ80,HZJ80..GX,VX W(WINCH OR *66) |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90119-08A24 | ||||
| 90170-08204 | ||||
| 90201-08042 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||

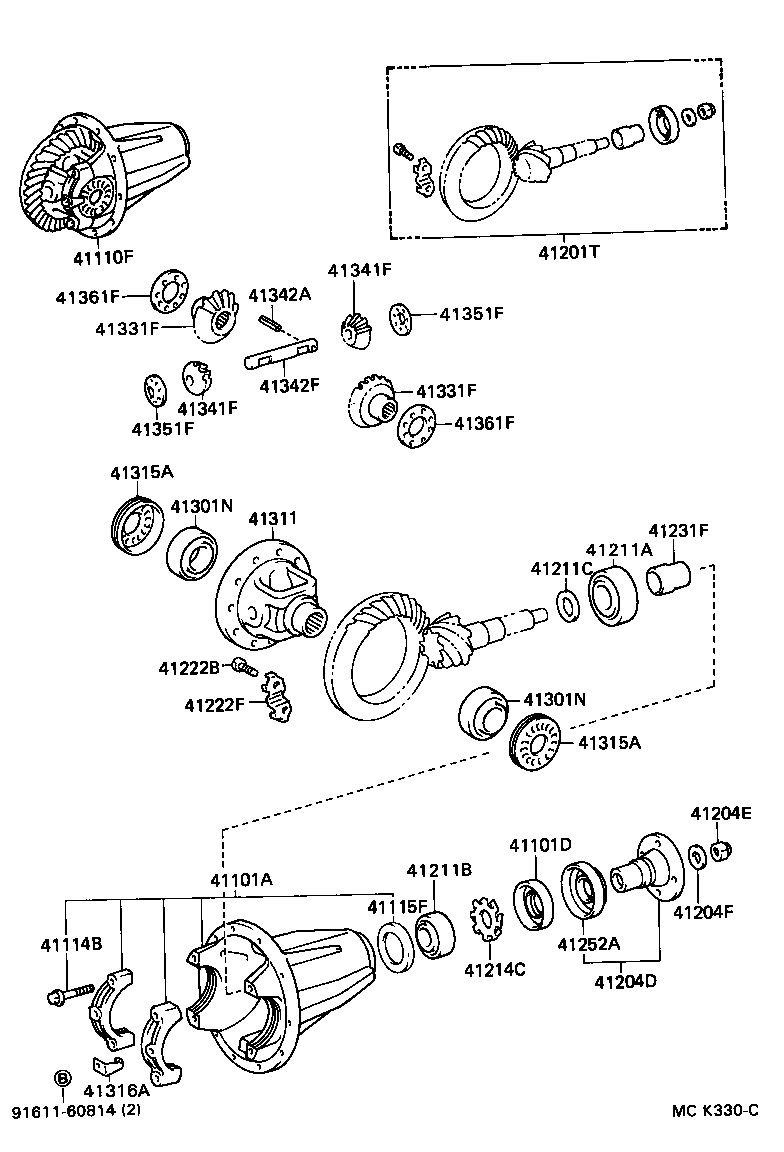

ILLUST NO. 2 OF 3(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-60090 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41101-60110 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK) |
1 | ||
| 41101-60110 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK) |
1 | ||
| 41101D - SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90311-38035 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-60280 |
HZJ80;FJ80,FZJ80,HDJ80..ATM *FGR=41:10=4.100 |
1 | ||
| 41110-60370 |
HZJ80;FJ80,FZJ80,HDJ80..ATM *FGR=41:10=4.100,W(*FDL) |
1 | ||
| 41110-60370 |
HZJ80;FZJ80,HDJ80..ATM *FGR=41:10=4.100,W(*FDL) |
1 | ||
| 41110-60280 |
HZJ80;FZJ80,HDJ80..ATM *FGR=41:10=4.100 |
1 | ||
| 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 41115F - RING, FRONT DIFFERENTIAL OIL STORAGE | ||||
| 41115-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-69235 |
HZJ80;FJ80,FZJ80,HDJ80..ATM *FGR=41:10=4.100 |
1 | ||
| 41201-69395 |
HZJ80;FJ80,FZJ80,HDJ80..ATM *FGR=41:10=4.100,W(DIFFERENTIAL LOCK) |
1 | ||
| 41201-69235 |
HZJ80;FZJ80,HDJ80..ATM *FGR=41:10=4.100 |
1 | ||
| 41201-69395 |
HZJ80;FZJ80,HDJ80..ATM *FGR=41:10=4.100,W(DIFFERENTIAL LOCK) |
1 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-35040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90179-20001 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90179-20018 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 41204F - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90201-20005 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-35028 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-30025 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 41211C - GEAR, DIFFERENTIAL RING | ||||
| 90201-35504 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=1.91 |
1 | ||
| 90201-35498 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=1.73 |
1 | ||
| 90201-35500 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=1.79 |
1 | ||
| 90201-35506 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=1.97 |
1 | ||
| 90201-35505 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=1.94 |
1 | ||
| 90201-35507 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.00 |
1 | ||
| 90201-35503 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=1.88 |
1 | ||
| 90201-35497 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=1.70 |
1 | ||
| 90201-35499 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=1.76 |
1 | ||
| 90201-35511 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.12 |
1 | ||
| 90201-35501 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=1.82 |
1 | ||
| 90201-35513 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.18 |
1 | ||
| 90201-35502 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=1.85 |
1 | ||
| 90201-35508 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.03 |
1 | ||
| 90201-35517 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35518 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35514 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.21 |
1 | ||
| 90201-35515 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35509 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.06 |
1 | ||
| 90201-35510 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.09 |
1 | ||
| 90201-35516 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35512 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.15 |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
FJ80,FZJ80,HDJ80,HZJ80 |
10 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-60010 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK) |
5 | ||
| 41222-35020 |
FJ80,FZJ80,HDJ80,HZJ80 |
5 | ||
| 41222-60010 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK) |
5 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) | ||||
| 41252-35010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41252-35020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 41301N - BEARING(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-50007 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 90366-75001 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 90366-75001 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 90366-50007 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 90366-50007 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41301N - BEARING(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-50007 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 90366-75001 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 90366-75001 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 90366-50007 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 90366-50007 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-60060 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK) |
1 | ||
| 41301-60060 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK) |
1 | ||
| 41311-60060 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41315A - NUT, FRONT DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41315-35020 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41315-35020 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41315-60010 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41315-60010 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41315A - NUT, FRONT DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41315-35020 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41315-35020 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41315-60010 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41315-60010 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41316A - LOCK, FRONT DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-35040 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41331-60040 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41331-35011 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41331-60040 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41331-35040 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-35040 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41331-60040 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41331-35011 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41331-60040 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41331-35040 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30020 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-35020 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41341-30020 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK) |
4 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30020 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-35020 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41341-30020 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK) |
4 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06085 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-39610 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
HZJ80;FZJ80,HDJ80..ATM W(*FDL) |
4 | ||
| 41351-30060 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(*FDL) |
4 | ||
| 41351-30052 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
HZJ80;FZJ80,HDJ80..ATM W(*FDL) |
4 | ||
| 41351-30060 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(*FDL) |
4 | ||
| 41351-30052 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60290 |
HZJ80;FJ80,FZJ80,HDJ80..ATM T=0.90,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60300 |
HZJ80;FJ80,FZJ80,HDJ80..ATM T=1.00,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-40021 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.6 |
2 | ||
| 41361-60310 |
HZJ80;FJ80,FZJ80,HDJ80..ATM T=1.10,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60330 |
HZJ80;FJ80,FZJ80,HDJ80..ATM T=1.30,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60320 |
HZJ80;FJ80,FZJ80,HDJ80..ATM T=1.20,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60320 |
HZJ80;FZJ80,HDJ80..ATM T=1.20,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60330 |
HZJ80;FZJ80,HDJ80..ATM T=1.30,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60290 |
HZJ80;FZJ80,HDJ80..ATM T=0.90,W(DIFFERENTIAL LOCK) |
2 | ||
| 41363-40021 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.8 |
2 | ||
| 41362-40021 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.7 |
2 | ||
| 41361-60310 |
HZJ80;FZJ80,HDJ80..ATM T=1.10,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60300 |
HZJ80;FZJ80,HDJ80..ATM T=1.00,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60290 |
HZJ80;FJ80,FZJ80,HDJ80..ATM T=0.90,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60300 |
HZJ80;FJ80,FZJ80,HDJ80..ATM T=1.00,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-40021 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.6 |
2 | ||
| 41361-60310 |
HZJ80;FJ80,FZJ80,HDJ80..ATM T=1.10,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60330 |
HZJ80;FJ80,FZJ80,HDJ80..ATM T=1.30,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60320 |
HZJ80;FJ80,FZJ80,HDJ80..ATM T=1.20,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60320 |
HZJ80;FZJ80,HDJ80..ATM T=1.20,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60330 |
HZJ80;FZJ80,HDJ80..ATM T=1.30,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60290 |
HZJ80;FZJ80,HDJ80..ATM T=0.90,W(DIFFERENTIAL LOCK) |
2 | ||
| 41363-40021 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.8 |
2 | ||
| 41362-40021 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.7 |
2 | ||
| 41361-60310 |
HZJ80;FZJ80,HDJ80..ATM T=1.10,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60300 |
HZJ80;FZJ80,HDJ80..ATM T=1.00,W(DIFFERENTIAL LOCK) |
2 | ||
| Common parts | ||||
| 91611-60814 | ||||
ILLUST NO. 2 OF 3(9001- )
W(DIFFERENTIAL LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT | ||||
| 41101-60090 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41101-60110 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK) |
1 | ||
| 41101-60110 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK) |
1 | ||
| 41101D - SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER) | ||||
| 90311-38035 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-60280 |
HZJ80;FJ80,FZJ80,HDJ80..ATM *FGR=41:10=4.100 |
1 | ||
| 41110-60370 |
HZJ80;FJ80,FZJ80,HDJ80..ATM *FGR=41:10=4.100,W(*FDL) |
1 | ||
| 41110-60370 |
HZJ80;FZJ80,HDJ80..ATM *FGR=41:10=4.100,W(*FDL) |
1 | ||
| 41110-60280 |
HZJ80;FZJ80,HDJ80..ATM *FGR=41:10=4.100 |
1 | ||
| 41114B - BOLT, FRONT DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
FJ80,FZJ80,HDJ80,HZJ80 |
4 | ||
| 41115F - RING, FRONT DIFFERENTIAL OIL STORAGE | ||||
| 41115-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-69235 |
HZJ80;FJ80,FZJ80,HDJ80..ATM *FGR=41:10=4.100 |
1 | ||
| 41201-69395 |
HZJ80;FJ80,FZJ80,HDJ80..ATM *FGR=41:10=4.100,W(DIFFERENTIAL LOCK) |
1 | ||
| 41201-69235 |
HZJ80;FZJ80,HDJ80..ATM *FGR=41:10=4.100 |
1 | ||
| 41201-69395 |
HZJ80;FZJ80,HDJ80..ATM *FGR=41:10=4.100,W(DIFFERENTIAL LOCK) |
1 | ||
| 41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT | ||||
| 41204-35040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90179-20001 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90179-20018 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 41204F - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE FRONT) | ||||
| 90201-20005 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-35028 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-30025 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 41211C - GEAR, DIFFERENTIAL RING | ||||
| 90201-35504 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=1.91 |
1 | ||
| 90201-35498 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=1.73 |
1 | ||
| 90201-35500 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=1.79 |
1 | ||
| 90201-35506 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=1.97 |
1 | ||
| 90201-35505 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=1.94 |
1 | ||
| 90201-35507 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.00 |
1 | ||
| 90201-35503 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=1.88 |
1 | ||
| 90201-35497 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=1.70 |
1 | ||
| 90201-35499 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=1.76 |
1 | ||
| 90201-35511 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.12 |
1 | ||
| 90201-35501 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=1.82 |
1 | ||
| 90201-35513 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.18 |
1 | ||
| 90201-35502 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=1.85 |
1 | ||
| 90201-35508 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.03 |
1 | ||
| 90201-35517 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35518 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35514 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.21 |
1 | ||
| 90201-35515 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35509 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.06 |
1 | ||
| 90201-35510 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.09 |
1 | ||
| 90201-35516 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35512 |
FJ80,FZJ80,HDJ80,HZJ80 OD=47,T=2.15 |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
FJ80,FZJ80,HDJ80,HZJ80 |
10 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-60010 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK) |
5 | ||
| 41222-35020 |
FJ80,FZJ80,HDJ80,HZJ80 |
5 | ||
| 41222-60010 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK) |
5 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL) | ||||
| 41252-35010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41252-35020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 41301N - BEARING(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-50007 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 90366-75001 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 90366-75001 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 90366-50007 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 90366-50007 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41301N - BEARING(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-50007 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 90366-75001 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 90366-75001 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 90366-50007 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 90366-50007 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-60060 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK) |
1 | ||
| 41301-60060 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK) |
1 | ||
| 41311-60060 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41315A - NUT, FRONT DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41315-35020 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41315-35020 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41315-60010 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41315-60010 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41315A - NUT, FRONT DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41315-35020 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41315-35020 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41315-60010 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41315-60010 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41316A - LOCK, FRONT DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-35040 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41331-60040 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41331-35011 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41331-60040 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41331-35040 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-35040 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41331-60040 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41331-35011 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41331-60040 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41331-35040 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30020 |
HZJ80;FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-35020 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41341-30020 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(DIFFERENTIAL LOCK) |
4 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
HZJ80;FZJ80,HDJ80..ATM W(*FDL) |
4 | ||
| 41351-30060 |
HZJ80;FJ80,FZJ80,HDJ80..ATM W(*FDL) |
4 | ||
| 41351-30052 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60290 |
HZJ80;FJ80,FZJ80,HDJ80..ATM T=0.90,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60300 |
HZJ80;FJ80,FZJ80,HDJ80..ATM T=1.00,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-40021 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.6 |
2 | ||
| 41361-60310 |
HZJ80;FJ80,FZJ80,HDJ80..ATM T=1.10,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60330 |
HZJ80;FJ80,FZJ80,HDJ80..ATM T=1.30,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60320 |
HZJ80;FJ80,FZJ80,HDJ80..ATM T=1.20,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60320 |
HZJ80;FZJ80,HDJ80..ATM T=1.20,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60330 |
HZJ80;FZJ80,HDJ80..ATM T=1.30,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60290 |
HZJ80;FZJ80,HDJ80..ATM T=0.90,W(DIFFERENTIAL LOCK) |
2 | ||
| 41363-40021 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.8 |
2 | ||
| 41362-40021 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.7 |
2 | ||
| 41361-60310 |
HZJ80;FZJ80,HDJ80..ATM T=1.10,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60300 |
HZJ80;FZJ80,HDJ80..ATM T=1.00,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60290 |
HZJ80;FJ80,FZJ80,HDJ80..ATM T=0.90,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60300 |
HZJ80;FJ80,FZJ80,HDJ80..ATM T=1.00,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-40021 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.6 |
2 | ||
| 41361-60310 |
HZJ80;FJ80,FZJ80,HDJ80..ATM T=1.10,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60330 |
HZJ80;FJ80,FZJ80,HDJ80..ATM T=1.30,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60320 |
HZJ80;FJ80,FZJ80,HDJ80..ATM T=1.20,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60320 |
HZJ80;FZJ80,HDJ80..ATM T=1.20,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60330 |
HZJ80;FZJ80,HDJ80..ATM T=1.30,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60290 |
HZJ80;FZJ80,HDJ80..ATM T=0.90,W(DIFFERENTIAL LOCK) |
2 | ||
| 41363-40021 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.8 |
2 | ||
| 41362-40021 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.7 |
2 | ||
| 41361-60310 |
HZJ80;FZJ80,HDJ80..ATM T=1.10,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60300 |
HZJ80;FZJ80,HDJ80..ATM T=1.00,W(DIFFERENTIAL LOCK) |
2 | ||
| 41371F - SPIDER, FRONT DIFFERENTIAL | ||||
| 41371-35020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 41371-35020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||

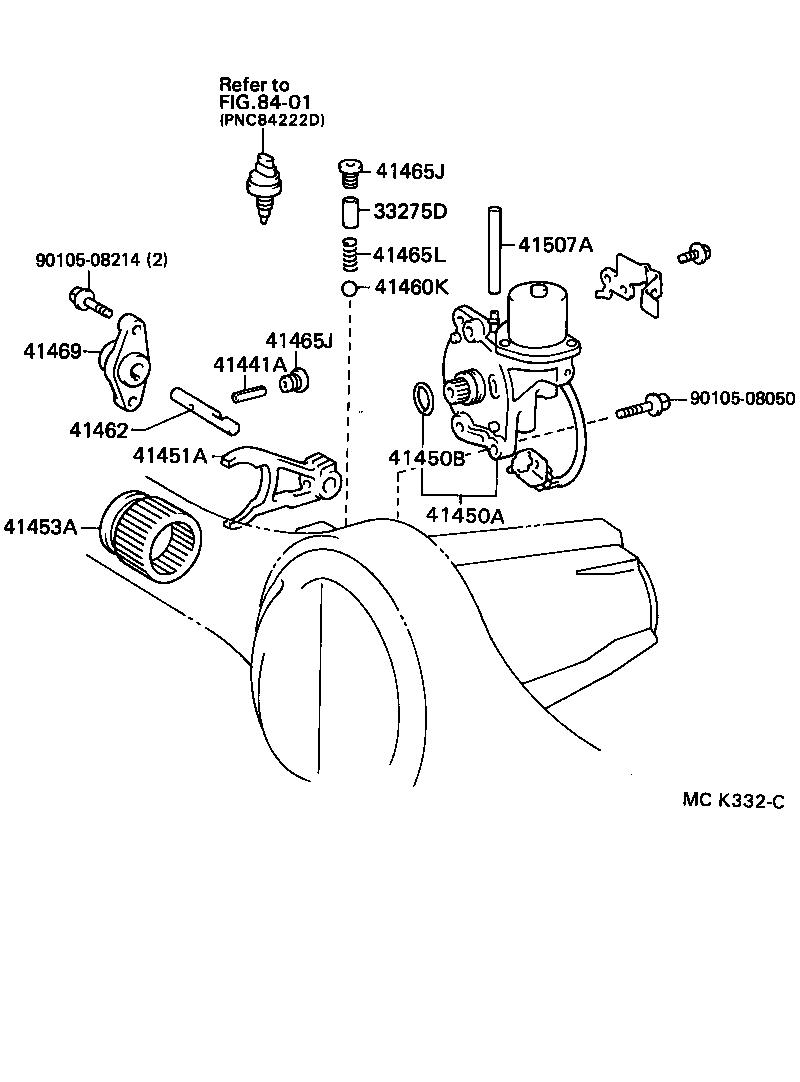

ILLUST NO. 3 OF 3(9001- )
W(DIFFERENTIAL LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33275D - SEAT, SHIFT DETENT BALL SPRING | ||||
| 33275-16010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 33275-16010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 41441A - PIN, SLOTTED SPRING (FOR DIFFERENTIAL SHIFT FORK) | ||||
| 90254-05016 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90254-05016 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 41450A - ACTUATOR, DIFFERENTIAL LOCK SHIFT, NO.2 | ||||
| 41450-60060 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 41450-60060 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41450B - RING, O (FOR DIFFERENTIAL LOCK SHAFT RETAINER) | ||||
| 90301-20005 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90301-20005 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 41451A - FORK, FRONT DIFFERENTIAL LOCK SHIFT | ||||
| 41451-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41451-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 41453A - SLEEVE, FRONT DIFFERENTIAL LOCK | ||||
| 41453-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 41453-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41460K - BALL (FOR FRONT DIFFERENTIAL LOCK CYLINDER) | ||||
| 90360-08009 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 90360-08009 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41462 - SHAFT, FRONT DIFFERENTIAL LOCK SHIFT FORK | ||||
| 41462-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41462-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 41465J - PLUG (FOR FRONT DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-10065 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 90341-10065 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 41465J - PLUG (FOR FRONT DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-10065 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 90341-10065 |
FZJ80,HDJ80,HZJ80 |
2 | ||
| 41465L - SPRING, COMPRESSION(FOR FRONT DIFFERENTIAL LOCK RETAINE | ||||
| 90501-12110 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90501-12110 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 41469 - RETAINER, DIFFERENTIAL LOCK SHAFT | ||||
| 41469-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41469-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 41507A - TUBE, FRONT DIFFERENTIAL LOCK ACTUATOR BREATHER, NO.2 | ||||
| 41507-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41507-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90105-08050 | ||||
| 90105-08214 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
