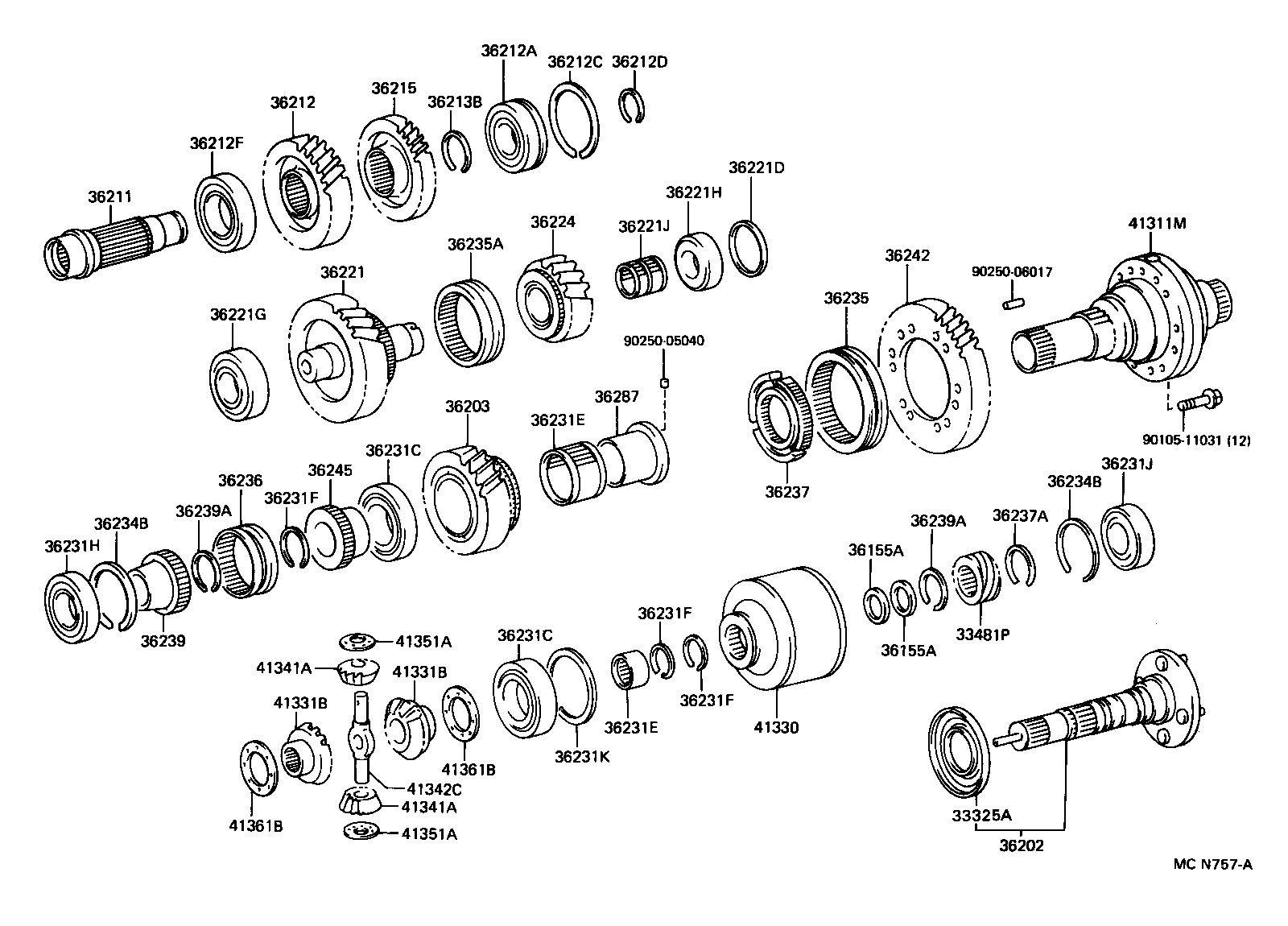

HDJ80L-GNPEXW (1990)
Toyota Land Cruiser
(9001- )ATM
HF2A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33325A - DEFLECTOR, DUST (FOR TRANSFER OUTPUT REAR SHAFT) | ||||
| 33325-60060 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-60100 |
HDJ80..ATM N=12,MARK 12:31-33 |
1 | ||
| 33481-60100 |
HZJ80..GX;FJ80,HDJ80..ATM N=12,MARK 12:31-33 |
1 | ||
| 33481-60090 |
HZJ80;FJ80,HDJ80..ATM N=11,MARK 11:31-33 |
1 | ||
| 36155A - RING, TRANSFER OIL SEAL | ||||
| 36155-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 36155A - RING, TRANSFER OIL SEAL | ||||
| 36155-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 36202 - SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR | ||||
| 36202-60050 |
HDJ80 W(*CDL & PTO DRIVE GEAR) |
1 | ||
| 36202-60010 |
FZJ80,HDJ80,HZJ80..GX,VX W(*VCD) |
1 | ||
| 36202-60051 |
HDJ80 W(*CDL & PTO DRIVE GEAR) |
1 | ||
| 36202-60050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36203 - GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT | ||||
| 36203-60080 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 36211 - SHAFT, TRANSFER INPUT | ||||
| 36211-60040 |
FJ80,HDJ80,HZJ80 W(CENTER DIFFERENTIAL LOCK) |
1 | ||
| 36211-60040 |
FZJ80,HDJ80,HZJ80..GX,VX W(FULL TIME 4WD) |
1 | ||
| 36211-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36212 - GEAR, TRANSFER INPUT | ||||
| 36212-60100 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36212A - BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR) | ||||
| 90363-35029 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 36212C - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR) | ||||
| 90520-82001 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.65 |
1 | ||
| 36212D - RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING) | ||||
| 90520-32006 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.1,MARK B |
1 | ||
| 90520-32007 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.2,MARK C |
1 | ||
| 90520-32005 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.0,MARK A |
1 | ||
| 90520-32008 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.3,MARK D |
1 | ||
| 90520-32009 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.4,MARK E |
1 | ||
| 36212F - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT) | ||||
| 90363-50003 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36213B - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90520-44026 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.4,MARK E |
1 | ||
| 90520-44029 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.7,MARK H |
1 | ||
| 90520-44023 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.1,MARK B |
1 | ||
| 90520-44027 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.5,MARK F |
1 | ||
| 90520-44028 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.6,MARK G |
1 | ||
| 90520-44025 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.3,MARK D |
1 | ||
| 90520-44030 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.8,MARK J |
1 | ||
| 90520-44022 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.0,MARK A |
1 | ||
| 90520-44024 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.2,MARK C |
1 | ||
| 36221 - GEAR, TRANSFER IDLER | ||||
| 36221-60120 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 36221D - WASHER, PLATE(FOR TRANSFER IDLER GEAR) | ||||
| 90201-57012 |
FJ80,FZJ80,HDJ80,HZJ80 T=3.99-4.01,MARK 12 |
1 | ||
| 90201-57003 |
FJ80,FZJ80,HDJ80,HZJ80 T=0.44-0.46,MARK 3 |
1 | ||
| 90201-57011 |
FJ80,FZJ80,HDJ80,HZJ80 T=3.79-3.81,MARK 11 |
1 | ||
| 90201-57008 |
FJ80,FZJ80,HDJ80,HZJ80 T=3.19-3.21,MARK 8 |
1 | ||
| 90201-57004 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.39-2.41,MARK 4 |
1 | ||
| 90201-57001 |
FJ80,HDJ80,HZJ80 T=0.14-0.16,MARK 1 |
1 | ||
| 90201-57002 |
FJ80,FZJ80,HDJ80,HZJ80 T=0.29-0.31,MARK 2 |
1 | ||
| 90201-57009 |
FJ80,FZJ80,HDJ80,HZJ80 T=3.39-3.41,MARK 9 |
1 | ||
| 90201-57010 |
FJ80,FZJ80,HDJ80,HZJ80 T=3.59-3.61,MARK 10 |
1 | ||
| 90201-57006 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.79-2.81,MARK 6 |
1 | ||
| 90201-57007 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.99-3.01,MARK 7 |
1 | ||
| 90201-57005 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.59-2.61,MARK 5 |
1 | ||
| 36221G - BEARING (FOR TRANSFER ILDER GEAR), FRONT | ||||
| 90366-35060 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36221H - BEARING (FOR TRANSFER ILDER GEAR), REAR | ||||
| 90366-33002 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36221J - BEARING (FOR TRANSFER IDLER GEAR LOWER) | ||||
| 90364-38016 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36224 - GEAR, TRANSFER IDLER LOWER | ||||
| 36224-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90366-48001 |
FJ80,FZJ80,HDJ80,HZJ80 FR |
1 | ||
| 90366-60008 |
FJ80,FZJ80,HDJ80,HZJ80 RR |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90366-48001 |
FJ80,FZJ80,HDJ80,HZJ80 FR |
1 | ||
| 90366-60008 |
FJ80,FZJ80,HDJ80,HZJ80 RR |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-56001 |
FZJ80,HDJ80,HZJ80..GX,VX RR |
1 | ||
| 90364-56001 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 90364-33010 |
FZJ80,HDJ80,HZJ80..GX,VX FR |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-44027 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.5,MARK F |
1 | ||
| 90520-44022 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.0,MARK A |
1 | ||
| 90520-44029 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.7,MARK H |
1 | ||
| 90520-44030 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.8,MARK J |
1 | ||
| 90520-44023 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.1,MARK B |
1 | ||
| 90520-44031 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.80,MARK A |
1 | ||
| 90520-44028 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.6,MARK G |
1 | ||
| 90520-44026 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.4,MARK E |
1 | ||
| 90520-44025 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.3,MARK D |
1 | ||
| 90520-44024 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.2,MARK C |
1 | ||
| 90520-44032 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.95,MARK B |
1 | ||
| 90520-39022 |
FZJ80,HDJ80,HZJ80..GX,VX T=1.20,W(FULL TIME 4WD) |
1 | ||
| 36231H - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT) | ||||
| 90363-40044 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90363-50005 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36231K - WASHER, PLATE(FOR TRANSFER OUTPUT REAR CASE) | ||||
| 90201-82015 |
FJ80,FZJ80,HDJ80,HZJ80 T=0.415-0.485,MARK C |
1 | ||
| 90201-82016 |
FJ80,FZJ80,HDJ80,HZJ80 T=0.99-1.01,MARK D |
1 | ||
| 90201-82013 |
FJ80,HDJ80,HZJ80 T=0.135-0.165,MARK A |
1 | ||
| 90201-82012 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.59-2.61,MARK M |
1 | ||
| 90201-82014 |
FJ80,FZJ80,HDJ80,HZJ80 T=0.27-0.33,MARK B |
1 | ||
| 90201-82011 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.39-2.41,MARK L |
1 | ||
| 90201-82022 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.19-2.21,MARK K |
1 | ||
| 90201-82019 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.59-1.61,MARK G |
1 | ||
| 90201-82017 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.19-1.21,MARK E |
1 | ||
| 90201-82018 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.39-1.41,MARK F |
1 | ||
| 90201-82021 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.99-2.01,MARK J |
1 | ||
| 90201-82020 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.79-1.81,MARK H |
1 | ||
| 36234B - RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING) | ||||
| 90521-84003 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.8,MARK B |
2 | ||
| 90521-84002 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.7,MARK A |
2 | ||
| 36234B - RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING) | ||||
| 90521-84003 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.8,MARK B |
2 | ||
| 90521-84002 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.7,MARK A |
2 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36235A - SLEEVE (FOR TRANSFER IDLER GEAR) | ||||
| 36235-60050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-60060 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36237A - RING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB) | ||||
| 90520-47006 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.05,MARK 2 |
1 | ||
| 90520-47008 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.25,MARK 4 |
1 | ||
| 90520-47007 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.15,MARK 3 |
1 | ||
| 90520-47005 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.95,MARK 1 |
1 | ||
| 36239 - HUB, TRANSFER DRIVE CLUTCH | ||||
| 36239-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36239A - RING, SHAFT SNAP(FOR TRANSFER DRIVE CLUTCH HUB) | ||||
| 90520-36020 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.9,MARK B |
1 | ||
| 90520-36022 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.1,MARK D |
1 | ||
| 90520-36019 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.8,MARK A |
1 | ||
| 90520-36023 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.2,MARK E |
1 | ||
| 90520-40009 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.5 |
1 | ||
| 90520-36021 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.0,MARK C |
1 | ||
| 36239A - RING, SHAFT SNAP(FOR TRANSFER DRIVE CLUTCH HUB) | ||||
| 90520-36020 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.9,MARK B |
1 | ||
| 90520-36022 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.1,MARK D |
1 | ||
| 90520-36019 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.8,MARK A |
1 | ||
| 90520-36023 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.2,MARK E |
1 | ||
| 90520-40009 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.5 |
1 | ||
| 90520-36021 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.0,MARK C |
1 | ||
| 36242 - GEAR, TRANSFER LOW | ||||
| 36242-60150 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36245 - PIECE, TRANSFER FRONT DRIVE GEAR | ||||
| 36245-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36287 - BUSH, TRANSFER HIGH SPEED OUTPUT GEAR | ||||
| 36287-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 41311M - CASE, CENTER DIFFERENTIAL | ||||
| 41301-60070 |
FZJ80,HDJ80,HZJ80..GX,VX W(FULL TIME 4WD) |
1 | ||
| 41301-60031 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41301-60030 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 41301-60031 |
HDJ80 W(FULL TIME 4WD & *MW) |
1 | ||
| 41301-60032 |
HDJ80 W(FULL TIME 4WD & *MW) |
1 | ||
| 41331B - GEAR, CENTER DIFFERENTIAL SIDE | ||||
| 41331-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41331B - GEAR, CENTER DIFFERENTIAL SIDE | ||||
| 41331-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41341A - PINION, CENTER DIFFERENTIAL | ||||
| 41341-30011 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 41341A - PINION, CENTER DIFFERENTIAL | ||||
| 41341-30011 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 41342C - SHAFT, CENTER DIFFERENTIAL PINION | ||||
| 41342-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41351A - WASHER, CENTER DIFFERENTIAL PINION TRUST | ||||
| 41351-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41351A - WASHER, CENTER DIFFERENTIAL PINION TRUST | ||||
| 41351-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41361B - WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60270 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.9 |
1 | ||
| 41361-60260 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.75 |
1 | ||
| 41361-60280 |
FJ80,FZJ80,HDJ80,HZJ80 T=3.05 |
1 | ||
| 41361-60190 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.7 |
1 | ||
| 41361-60250 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.6 |
1 | ||
| 41361-60230 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.3 |
1 | ||
| 41361-60240 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.45 |
1 | ||
| 41361-60220 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.15 |
1 | ||
| 41361-60210 |
FJ80,FZJ80,HDJ80,HZJ80 T=2 |
1 | ||
| 41361-60200 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.85 |
1 | ||
| 41361B - WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60270 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.9 |
1 | ||
| 41361-60260 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.75 |
1 | ||
| 41361-60280 |
FJ80,FZJ80,HDJ80,HZJ80 T=3.05 |
1 | ||
| 41361-60190 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.7 |
1 | ||
| 41361-60250 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.6 |
1 | ||
| 41361-60230 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.3 |
1 | ||
| 41361-60240 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.45 |
1 | ||
| 41361-60220 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.15 |
1 | ||
| 41361-60210 |
FJ80,FZJ80,HDJ80,HZJ80 T=2 |
1 | ||
| 41361-60200 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.85 |
1 | ||
| Common parts | ||||
| 90105-11031 | ||||
| 90250-05040 | ||||
| 90250-06017 | ||||
(9208- )ATM
HF2AV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33325A - DEFLECTOR, DUST (FOR TRANSFER OUTPUT REAR SHAFT) | ||||
| 33325-60060 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-60100 |
HDJ80..ATM N=12,MARK 12:31-33 |
1 | ||
| 33481-60100 |
HZJ80..GX;FJ80,HDJ80..ATM N=12,MARK 12:31-33 |
1 | ||
| 33481-60090 |
HZJ80;FJ80,HDJ80..ATM N=11,MARK 11:31-33 |
1 | ||
| 36155A - RING, TRANSFER OIL SEAL | ||||
| 36155-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 36155A - RING, TRANSFER OIL SEAL | ||||
| 36155-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 36202 - SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR | ||||
| 36202-60050 |
HDJ80 W(*CDL & PTO DRIVE GEAR) |
1 | ||
| 36202-60010 |
FZJ80,HDJ80,HZJ80..GX,VX W(*VCD) |
1 | ||
| 36202-60051 |
HDJ80 W(*CDL & PTO DRIVE GEAR) |
1 | ||
| 36202-60050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36203 - GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT | ||||
| 36203-60080 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 36211 - SHAFT, TRANSFER INPUT | ||||
| 36211-60040 |
FJ80,HDJ80,HZJ80 W(CENTER DIFFERENTIAL LOCK) |
1 | ||
| 36211-60040 |
FZJ80,HDJ80,HZJ80..GX,VX W(FULL TIME 4WD) |
1 | ||
| 36211-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36212 - GEAR, TRANSFER INPUT | ||||
| 36212-60100 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36212A - BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR) | ||||
| 90363-35029 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 36212C - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR) | ||||
| 90520-82001 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.65 |
1 | ||
| 36212D - RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING) | ||||
| 90520-32006 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.1,MARK B |
1 | ||
| 90520-32007 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.2,MARK C |
1 | ||
| 90520-32005 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.0,MARK A |
1 | ||
| 90520-32008 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.3,MARK D |
1 | ||
| 90520-32009 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.4,MARK E |
1 | ||
| 36212F - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT) | ||||
| 90363-50003 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36213B - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90520-44026 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.4,MARK E |
1 | ||
| 90520-44029 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.7,MARK H |
1 | ||
| 90520-44023 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.1,MARK B |
1 | ||
| 90520-44027 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.5,MARK F |
1 | ||
| 90520-44028 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.6,MARK G |
1 | ||
| 90520-44025 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.3,MARK D |
1 | ||
| 90520-44030 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.8,MARK J |
1 | ||
| 90520-44022 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.0,MARK A |
1 | ||
| 90520-44024 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.2,MARK C |
1 | ||
| 36215 - GEAR, POWER TAKE-OFF DRIVE | ||||
| 36215-60040 |
HZJ80..MTM;FZJ80,HDJ80 |
1 | ||
| 36221 - GEAR, TRANSFER IDLER | ||||
| 36221-60120 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 36221D - WASHER, PLATE(FOR TRANSFER IDLER GEAR) | ||||
| 90201-57012 |
FJ80,FZJ80,HDJ80,HZJ80 T=3.99-4.01,MARK 12 |
1 | ||
| 90201-57003 |
FJ80,FZJ80,HDJ80,HZJ80 T=0.44-0.46,MARK 3 |
1 | ||
| 90201-57011 |
FJ80,FZJ80,HDJ80,HZJ80 T=3.79-3.81,MARK 11 |
1 | ||
| 90201-57008 |
FJ80,FZJ80,HDJ80,HZJ80 T=3.19-3.21,MARK 8 |
1 | ||
| 90201-57004 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.39-2.41,MARK 4 |
1 | ||
| 90201-57001 |
FJ80,HDJ80,HZJ80 T=0.14-0.16,MARK 1 |
1 | ||
| 90201-57002 |
FJ80,FZJ80,HDJ80,HZJ80 T=0.29-0.31,MARK 2 |
1 | ||
| 90201-57009 |
FJ80,FZJ80,HDJ80,HZJ80 T=3.39-3.41,MARK 9 |
1 | ||
| 90201-57010 |
FJ80,FZJ80,HDJ80,HZJ80 T=3.59-3.61,MARK 10 |
1 | ||
| 90201-57006 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.79-2.81,MARK 6 |
1 | ||
| 90201-57007 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.99-3.01,MARK 7 |
1 | ||
| 90201-57005 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.59-2.61,MARK 5 |
1 | ||
| 36221G - BEARING (FOR TRANSFER ILDER GEAR), FRONT | ||||
| 90366-35060 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36221H - BEARING (FOR TRANSFER ILDER GEAR), REAR | ||||
| 90366-33002 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36221J - BEARING (FOR TRANSFER IDLER GEAR LOWER) | ||||
| 90364-38016 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36224 - GEAR, TRANSFER IDLER LOWER | ||||
| 36224-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90366-48001 |
FJ80,FZJ80,HDJ80,HZJ80 FR |
1 | ||
| 90366-60008 |
FJ80,FZJ80,HDJ80,HZJ80 RR |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90366-48001 |
FJ80,FZJ80,HDJ80,HZJ80 FR |
1 | ||
| 90366-60008 |
FJ80,FZJ80,HDJ80,HZJ80 RR |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-56001 |
FZJ80,HDJ80,HZJ80..GX,VX RR |
1 | ||
| 90364-56001 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 90364-33010 |
FZJ80,HDJ80,HZJ80..GX,VX FR |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-56001 |
FZJ80,HDJ80,HZJ80..GX,VX RR |
1 | ||
| 90364-56001 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 90364-33010 |
FZJ80,HDJ80,HZJ80..GX,VX FR |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-44027 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.5,MARK F |
1 | ||
| 90520-44022 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.0,MARK A |
1 | ||
| 90520-44029 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.7,MARK H |
1 | ||
| 90520-44030 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.8,MARK J |
1 | ||
| 90520-44023 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.1,MARK B |
1 | ||
| 90520-44031 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.80,MARK A |
1 | ||
| 90520-44028 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.6,MARK G |
1 | ||
| 90520-44026 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.4,MARK E |
1 | ||
| 90520-44025 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.3,MARK D |
1 | ||
| 90520-44024 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.2,MARK C |
1 | ||
| 90520-44032 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.95,MARK B |
1 | ||
| 90520-39022 |
FZJ80,HDJ80,HZJ80..GX,VX T=1.20,W(FULL TIME 4WD) |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-44027 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.5,MARK F |
1 | ||
| 90520-44022 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.0,MARK A |
1 | ||
| 90520-44029 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.7,MARK H |
1 | ||
| 90520-44030 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.8,MARK J |
1 | ||
| 90520-44023 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.1,MARK B |
1 | ||
| 90520-44031 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.80,MARK A |
1 | ||
| 90520-44028 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.6,MARK G |
1 | ||
| 90520-44026 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.4,MARK E |
1 | ||
| 90520-44025 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.3,MARK D |
1 | ||
| 90520-44024 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.2,MARK C |
1 | ||
| 90520-44032 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.95,MARK B |
1 | ||
| 90520-39022 |
FZJ80,HDJ80,HZJ80..GX,VX T=1.20,W(FULL TIME 4WD) |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-44027 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.5,MARK F |
1 | ||
| 90520-44022 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.0,MARK A |
1 | ||
| 90520-44029 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.7,MARK H |
1 | ||
| 90520-44030 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.8,MARK J |
1 | ||
| 90520-44023 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.1,MARK B |
1 | ||
| 90520-44031 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.80,MARK A |
1 | ||
| 90520-44028 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.6,MARK G |
1 | ||
| 90520-44026 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.4,MARK E |
1 | ||
| 90520-44025 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.3,MARK D |
1 | ||
| 90520-44024 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.2,MARK C |
1 | ||
| 90520-44032 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.95,MARK B |
1 | ||
| 90520-39022 |
FZJ80,HDJ80,HZJ80..GX,VX T=1.20,W(FULL TIME 4WD) |
1 | ||
| 36231H - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT) | ||||
| 90363-40044 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90363-50005 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36231K - WASHER, PLATE(FOR TRANSFER OUTPUT REAR CASE) | ||||
| 90201-82015 |
FJ80,FZJ80,HDJ80,HZJ80 T=0.415-0.485,MARK C |
1 | ||
| 90201-82016 |
FJ80,FZJ80,HDJ80,HZJ80 T=0.99-1.01,MARK D |
1 | ||
| 90201-82013 |
FJ80,HDJ80,HZJ80 T=0.135-0.165,MARK A |
1 | ||
| 90201-82012 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.59-2.61,MARK M |
1 | ||
| 90201-82014 |
FJ80,FZJ80,HDJ80,HZJ80 T=0.27-0.33,MARK B |
1 | ||
| 90201-82011 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.39-2.41,MARK L |
1 | ||
| 90201-82022 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.19-2.21,MARK K |
1 | ||
| 90201-82019 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.59-1.61,MARK G |
1 | ||
| 90201-82017 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.19-1.21,MARK E |
1 | ||
| 90201-82018 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.39-1.41,MARK F |
1 | ||
| 90201-82021 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.99-2.01,MARK J |
1 | ||
| 90201-82020 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.79-1.81,MARK H |
1 | ||
| 36234B - RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING) | ||||
| 90521-84003 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.8,MARK B |
2 | ||
| 90521-84002 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.7,MARK A |
2 | ||
| 36234B - RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING) | ||||
| 90521-84003 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.8,MARK B |
2 | ||
| 90521-84002 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.7,MARK A |
2 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36235A - SLEEVE (FOR TRANSFER IDLER GEAR) | ||||
| 36235-60050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-60060 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36237A - RING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB) | ||||
| 90520-47006 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.05,MARK 2 |
1 | ||
| 90520-47008 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.25,MARK 4 |
1 | ||
| 90520-47007 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.15,MARK 3 |
1 | ||
| 90520-47005 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.95,MARK 1 |
1 | ||
| 36239 - HUB, TRANSFER DRIVE CLUTCH | ||||
| 36239-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36239A - RING, SHAFT SNAP(FOR TRANSFER DRIVE CLUTCH HUB) | ||||
| 90520-36020 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.9,MARK B |
1 | ||
| 90520-36022 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.1,MARK D |
1 | ||
| 90520-36019 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.8,MARK A |
1 | ||
| 90520-36023 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.2,MARK E |
1 | ||
| 90520-40009 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.5 |
1 | ||
| 90520-36021 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.0,MARK C |
1 | ||
| 36239A - RING, SHAFT SNAP(FOR TRANSFER DRIVE CLUTCH HUB) | ||||
| 90520-36020 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.9,MARK B |
1 | ||
| 90520-36022 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.1,MARK D |
1 | ||
| 90520-36019 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.8,MARK A |
1 | ||
| 90520-36023 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.2,MARK E |
1 | ||
| 90520-40009 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.5 |
1 | ||
| 90520-36021 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.0,MARK C |
1 | ||
| 36242 - GEAR, TRANSFER LOW | ||||
| 36242-60150 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36245 - PIECE, TRANSFER FRONT DRIVE GEAR | ||||
| 36245-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36287 - BUSH, TRANSFER HIGH SPEED OUTPUT GEAR | ||||
| 36287-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 41311M - CASE, CENTER DIFFERENTIAL | ||||
| 41301-60070 |
FZJ80,HDJ80,HZJ80..GX,VX W(FULL TIME 4WD) |
1 | ||
| 41301-60031 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41301-60030 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 41301-60031 |
HDJ80 W(FULL TIME 4WD & *MW) |
1 | ||
| 41301-60032 |
HDJ80 W(FULL TIME 4WD & *MW) |
1 | ||
| 41330 - COUPLING ASSY, CENTER DIFFERENTIAL CONTROL | ||||
| 41330-60010 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 41331B - GEAR, CENTER DIFFERENTIAL SIDE | ||||
| 41331-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41331B - GEAR, CENTER DIFFERENTIAL SIDE | ||||
| 41331-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41341A - PINION, CENTER DIFFERENTIAL | ||||
| 41341-30011 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 41341A - PINION, CENTER DIFFERENTIAL | ||||
| 41341-30011 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 41342C - SHAFT, CENTER DIFFERENTIAL PINION | ||||
| 41342-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 41351A - WASHER, CENTER DIFFERENTIAL PINION TRUST | ||||
| 41351-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41351A - WASHER, CENTER DIFFERENTIAL PINION TRUST | ||||
| 41351-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 41361B - WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60270 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.9 |
1 | ||
| 41361-60260 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.75 |
1 | ||
| 41361-60280 |
FJ80,FZJ80,HDJ80,HZJ80 T=3.05 |
1 | ||
| 41361-60190 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.7 |
1 | ||
| 41361-60250 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.6 |
1 | ||
| 41361-60230 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.3 |
1 | ||
| 41361-60240 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.45 |
1 | ||
| 41361-60220 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.15 |
1 | ||
| 41361-60210 |
FJ80,FZJ80,HDJ80,HZJ80 T=2 |
1 | ||
| 41361-60200 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.85 |
1 | ||
| 41361B - WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60270 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.9 |
1 | ||
| 41361-60260 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.75 |
1 | ||
| 41361-60280 |
FJ80,FZJ80,HDJ80,HZJ80 T=3.05 |
1 | ||
| 41361-60190 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.7 |
1 | ||
| 41361-60250 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.6 |
1 | ||
| 41361-60230 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.3 |
1 | ||
| 41361-60240 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.45 |
1 | ||
| 41361-60220 |
FJ80,FZJ80,HDJ80,HZJ80 T=2.15 |
1 | ||
| 41361-60210 |
FJ80,FZJ80,HDJ80,HZJ80 T=2 |
1 | ||
| 41361-60200 |
FJ80,FZJ80,HDJ80,HZJ80 T=1.85 |
1 | ||
| Common parts | ||||
| 90105-11031 | ||||
| 90250-05040 | ||||
| 90250-06017 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
