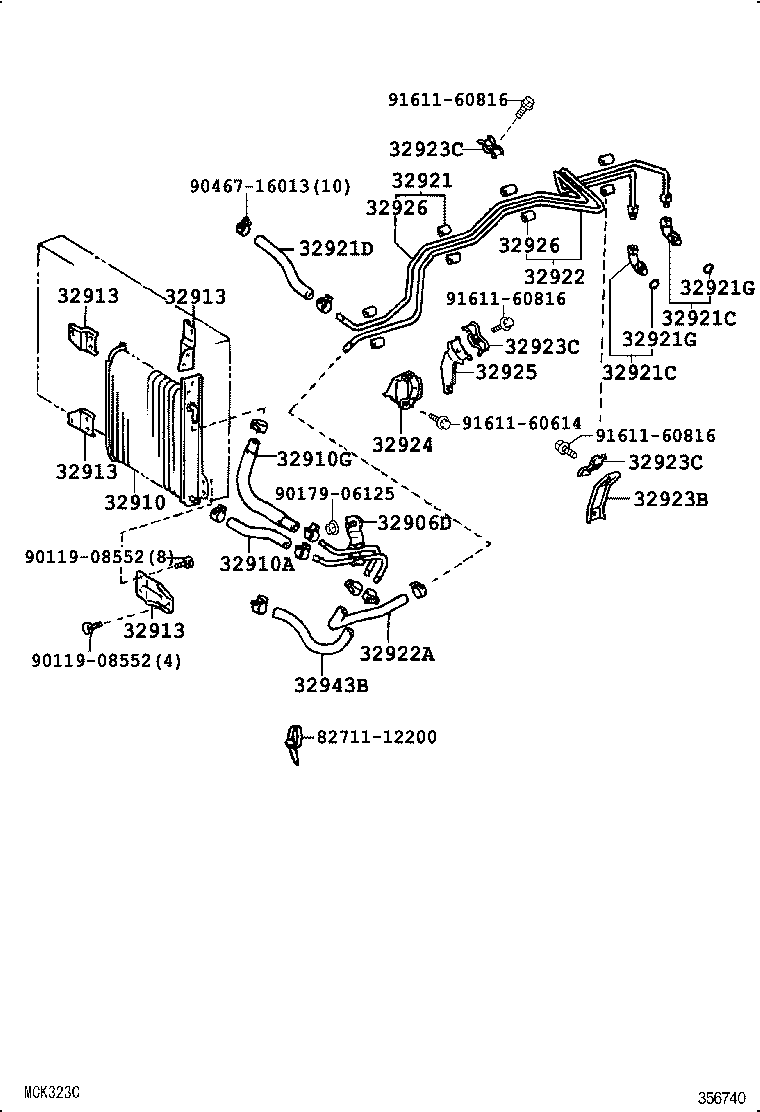

HDJ80L-GNPEXW (1990)
Toyota Land Cruiser
(9001- )FZJ80,HDJ80,HZJ80..ATM
AIR COOLED TYPE OIL COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32906D - TUBE SUB-ASSY, OIL COOLER, NO.2 | ||||
| 32906-60120 |
FJ80,FZJ80,HDJ80,HZJ80..ATM |
1 | ||
| 32906-60121 |
FZJ80,HDJ80..ATM |
1 | ||
| 32910 - COOLER ASSY, OIL | ||||
| 32910-60100 |
HDJ80..ATM |
1 | ||
| 32910-60080 |
HDJ80..ATM |
1 | ||
| 32910A - HOSE, OIL COOLER WATER OUTLET | ||||
| 90445-17102 |
FJ80,FZJ80,HDJ80,HZJ80..ATM |
1 | ||
| 32910G - HOSE, OIL COOLER OUTLET | ||||
| 32943-60051 |
FJ80,FZJ80,HDJ80,HZJ80..ATM |
1 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-60080 |
FJ80,HDJ80,HZJ80..ATM RH,UPR |
1 | ||
| 32913-60060 |
FJ80,HDJ80,HZJ80..ATM LH,LWR |
1 | ||
| 32913-60070 |
FJ80,HDJ80,HZJ80..ATM LH,UPR |
1 | ||
| 32913-60090 |
FJ80,HDJ80,HZJ80..ATM RH,LWR |
1 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-60080 |
FJ80,HDJ80,HZJ80..ATM RH,UPR |
1 | ||
| 32913-60060 |
FJ80,HDJ80,HZJ80..ATM LH,LWR |
1 | ||
| 32913-60070 |
FJ80,HDJ80,HZJ80..ATM LH,UPR |
1 | ||
| 32913-60090 |
FJ80,HDJ80,HZJ80..ATM RH,LWR |
1 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-60080 |
FJ80,HDJ80,HZJ80..ATM RH,UPR |
1 | ||
| 32913-60060 |
FJ80,HDJ80,HZJ80..ATM LH,LWR |
1 | ||
| 32913-60070 |
FJ80,HDJ80,HZJ80..ATM LH,UPR |
1 | ||
| 32913-60090 |
FJ80,HDJ80,HZJ80..ATM RH,LWR |
1 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-60080 |
FJ80,HDJ80,HZJ80..ATM RH,UPR |
1 | ||
| 32913-60060 |
FJ80,HDJ80,HZJ80..ATM LH,LWR |
1 | ||
| 32913-60070 |
FJ80,HDJ80,HZJ80..ATM LH,UPR |
1 | ||
| 32913-60090 |
FJ80,HDJ80,HZJ80..ATM RH,LWR |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-60060 |
HDJ80,HZJ80..ATM |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20006 |
HDJ80..ATM INELT |
1 | ||
| 90407-20005 |
FJ80,HDJ80,HZJ80..ATM INLET |
1 | ||
| 90407-20004 |
FJ80,FZJ80,HDJ80,HZJ80..ATM OUTLET |
1 | ||
| 90407-20006 |
HDJ80..ATM INELT |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20006 |
HDJ80..ATM INELT |
1 | ||
| 90407-20005 |
FJ80,HDJ80,HZJ80..ATM INLET |
1 | ||
| 90407-20004 |
FJ80,FZJ80,HDJ80,HZJ80..ATM OUTLET |
1 | ||
| 90407-20006 |
HDJ80..ATM INELT |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-60070 |
HDJ80,HZJ80..ATM |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
FJ80,FZJ80,HDJ80,HZJ80..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
FJ80,FZJ80,HDJ80,HZJ80..ATM |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-60060 |
HDJ80,HZJ80..ATM |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32942-60100 |
HDJ80..ATM W(AIR COOLED TYPE OIL COOLER) |
1 | ||
| 32942-60130 |
HDJ80..ATM W(AIR COOLED TYPE OIL COOLER) |
1 | ||
| 32942-60090 |
HDJ80,HZJ80..ATM |
1 | ||
| 32942-60131 |
HDJ80..ATM W(AIR COOLED TYPE OIL COOLER) |
1 | ||
| 32942-60130 |
HDJ80..ATM W(AIR COOLED TYPE OIL COOLER) |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-60050 |
FZJ80,HDJ80,HZJ80..ATM |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12076 |
HDJ80,HZJ80..ATM |
3 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12076 |
HDJ80,HZJ80..ATM |
3 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12076 |
HDJ80,HZJ80..ATM |
3 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32909-60010 |
HDJ80,HZJ80..ATM |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 32925-60070 |
HDJ80,HZJ80..ATM |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
FZJ80,HDJ80,HZJ80..ATM L=45,ID=12 |
8 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
FZJ80,HDJ80,HZJ80..ATM L=45,ID=12 |
8 | ||
| 32943B - HOSE, TRANSMISSION OIL COOLER | ||||
| 32943-60120 |
FJ80,FZJ80,HDJ80,HZJ80..ATM |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-08552 | ||||
| 90179-06125 | ||||
| 90467-16013 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||

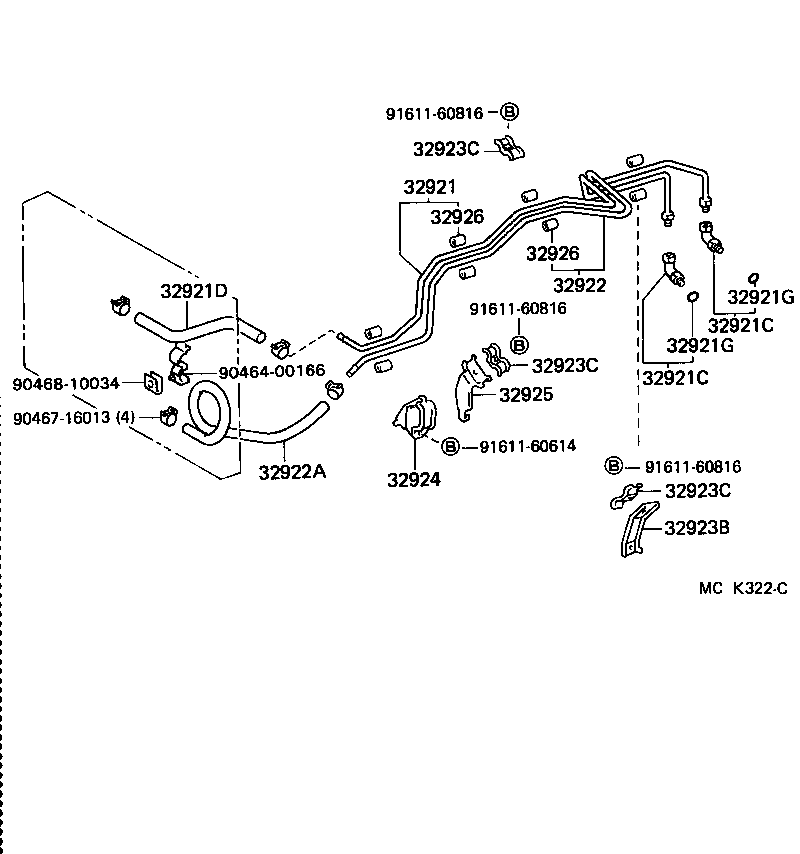

(9001- )FZJ80,HDJ80,HZJ80..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-60060 |
HDJ80,HZJ80..ATM |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20006 |
HDJ80..ATM INELT |
1 | ||
| 90407-20005 |
FJ80,HDJ80,HZJ80..ATM INLET |
1 | ||
| 90407-20004 |
FJ80,FZJ80,HDJ80,HZJ80..ATM OUTLET |
1 | ||
| 90407-20006 |
HDJ80..ATM INELT |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20006 |
HDJ80..ATM INELT |
1 | ||
| 90407-20005 |
FJ80,HDJ80,HZJ80..ATM INLET |
1 | ||
| 90407-20004 |
FJ80,FZJ80,HDJ80,HZJ80..ATM OUTLET |
1 | ||
| 90407-20006 |
HDJ80..ATM INELT |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-60070 |
HDJ80,HZJ80..ATM |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
FJ80,FZJ80,HDJ80,HZJ80..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
FJ80,FZJ80,HDJ80,HZJ80..ATM |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-60060 |
HDJ80,HZJ80..ATM |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32942-60100 |
HDJ80..ATM W(AIR COOLED TYPE OIL COOLER) |
1 | ||
| 32942-60130 |
HDJ80..ATM W(AIR COOLED TYPE OIL COOLER) |
1 | ||
| 32942-60090 |
HDJ80,HZJ80..ATM |
1 | ||
| 32942-60131 |
HDJ80..ATM W(AIR COOLED TYPE OIL COOLER) |
1 | ||
| 32942-60130 |
HDJ80..ATM W(AIR COOLED TYPE OIL COOLER) |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-60050 |
FZJ80,HDJ80,HZJ80..ATM |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12076 |
HDJ80,HZJ80..ATM |
3 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12076 |
HDJ80,HZJ80..ATM |
3 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12076 |
HDJ80,HZJ80..ATM |
3 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32909-60010 |
HDJ80,HZJ80..ATM |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 32925-60070 |
HDJ80,HZJ80..ATM |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
FZJ80,HDJ80,HZJ80..ATM L=45,ID=12 |
8 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
FZJ80,HDJ80,HZJ80..ATM L=45,ID=12 |
8 | ||
| Common parts | ||||
| 90464-00166 | ||||
| 90467-16013 | ||||
| 90468-10034 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
