HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )ATM

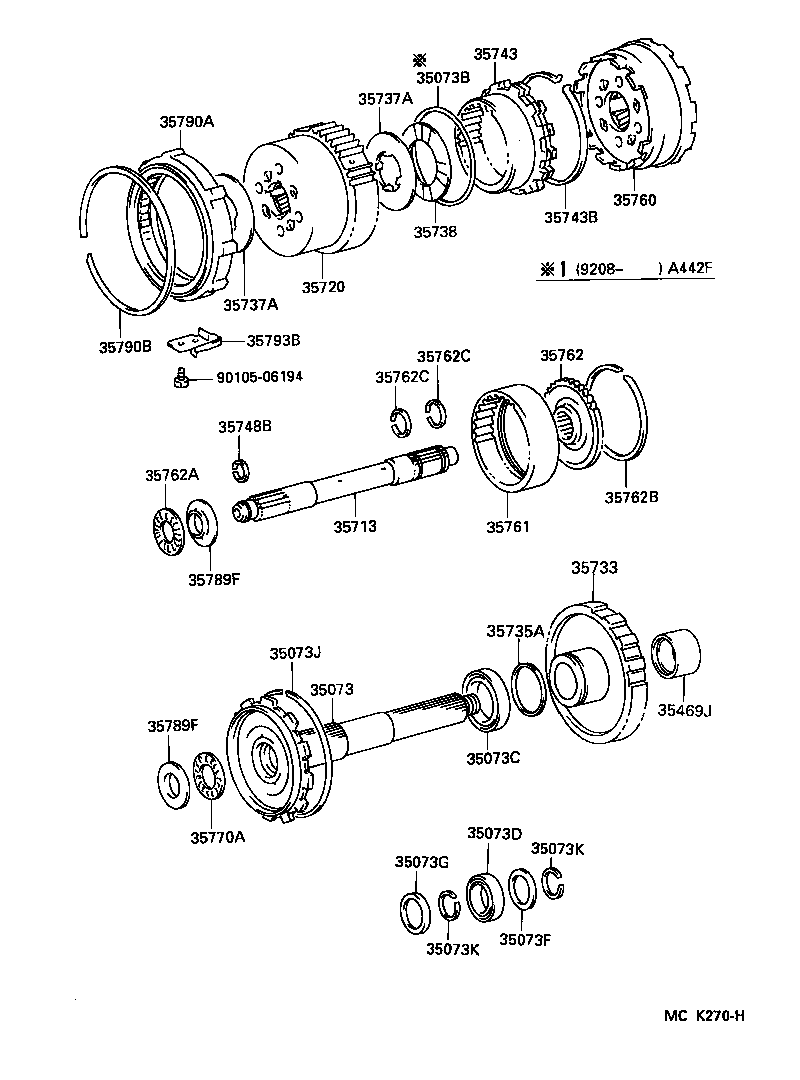

Click highlighted areas on diagram

A440F,A442F

diagram 35073 35073B 35073C 35073D 35073F 35073G 35073J 35073K 35073K 35469J 35713 35720 35733 35735A 35737A 35737A 35738 35743 35743B 35748B 35760 35761 35762 35762A 35762B 35762C 35762C 35770A 35789F 35789F 35790A 35790B 35793B 9010506194
Part # Description Qty Price
35073 - SHAFT SUB-ASSY, OUTPUT
35073-60040

FZJ80,HDJ80..ATM

 1
35073-60020

FJ80,HDJ80,HZJ80..ATM

 1
35073C - BEARING, RADIAL BALL (FOR OUTPUT SHAFT FRONT)
90363-45008

FJ80,FZJ80,HDJ80,HZJ80..ATM

 1
35073D - BEARING, RADIAL BALL (FOR OUTPUT SHAFT REAR)
90363-40046

FJ80,FZJ80,HDJ80,HZJ80..ATM

 1
35073F - SPACER, NO.1 (FOR OUTPUT SHAFT REAR BEARING)
90560-40002

FJ80,FZJ80,HDJ80,HZJ80..ATM

T=1.5,MARK 0

 1
90560-40003

FJ80,FZJ80,HDJ80,HZJ80..ATM

T=1.6,MARK 1

 1
90560-40004

FJ80,FZJ80,HDJ80,HZJ80..ATM

T=1.7,MARK 2

 1
90560-40005

FJ80,FZJ80,HDJ80,HZJ80..ATM

T=1.8,MARK 3

 1
35073G - SPACER, NO.2 (FOR OUTPUT SHAFT REAR BEARING)
90560-40006

FJ80,HDJ80,HZJ80..ATM

 1
35073J - RING, HOLE SNAP (FOR OUTPUT SHAFT)
90521-99042

FJ80,FZJ80,HDJ80,HZJ80..ATM

 1
35073K - RING, SHAFT SNAP (FOR OUTPUT SHAFT REAR BEARING)
90520-36024

FJ80,FZJ80,HDJ80,HZJ80..ATM

 2
35073K - RING, SHAFT SNAP (FOR OUTPUT SHAFT REAR BEARING)
90520-36024

FJ80,FZJ80,HDJ80,HZJ80..ATM

 2
35469J - SPACER, PARKING LOCK GEAR
35469-36010

FZJ80,HDJ80..ATM

 1
35713 - SHAFT, INTERMEDIATE
35713-60010

FZJ80,HDJ80..ATM

 1
35720 - GEAR ASSY, FRONT PLANETARY
35720-60020

FZJ80,HDJ80..ATM

 1
35733 - GEAR, PARKING LOCK
35733-36010

FZJ80,HDJ80..ATM

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-60010

HDJ80..ATM

 2
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-60010

HDJ80..ATM

 2
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-60020

HDJ80..ATM

 1
35743 - GEAR, FRONT PLANETARY RING
35743-60020

HDJ80..ATM

 1
35743B - RING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR)
90521-99018

FJ80,FZJ80,HDJ80,HZJ80..ATM

 1
35748B - RING, INTERMEDIATE SHAFT OIL SEAL
35748-36010

FJ80,FZJ80,HDJ80,HZJ80..ATM

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-36020

FZJ80,HDJ80..ATM

 1
35760-60020

HDJ80..ATM

 1
35761 - GEAR, REAR PLANETARY RING
35761-60020

HDJ80..ATM

 1
35762 - FLANGE, REAR PLANETARY RING GEAR
35762-60020

FZJ80,HDJ80..ATM

 1
35762B - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
90521-99041

FJ80,FZJ80,HDJ80,HZJ80..ATM

 1
35762C - RING, SHAFT SNAP (FOR REAR PLANETARY RING GEAR)
90520-22013

FJ80,FZJ80,HDJ80,HZJ80..ATM

 2
35762C - RING, SHAFT SNAP (FOR REAR PLANETARY RING GEAR)
90520-22013

FJ80,FZJ80,HDJ80,HZJ80..ATM

 2
35790A - CLUTCH ASSY, 1 WAY
35790-36010

FJ80,FZJ80,HDJ80,HZJ80..ATM

 1
35790B - RING, HOLE SNAP (FOR 1 WAY CLUTCH)
90521-99021

FJ80,HDJ80,HZJ80..ATM

 1
90521-99109

FZJ80,HDJ80..ATM

 1
90521-99021

FZJ80,HDJ80..ATM

 1
Common parts
90105-06194
