HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )ATM

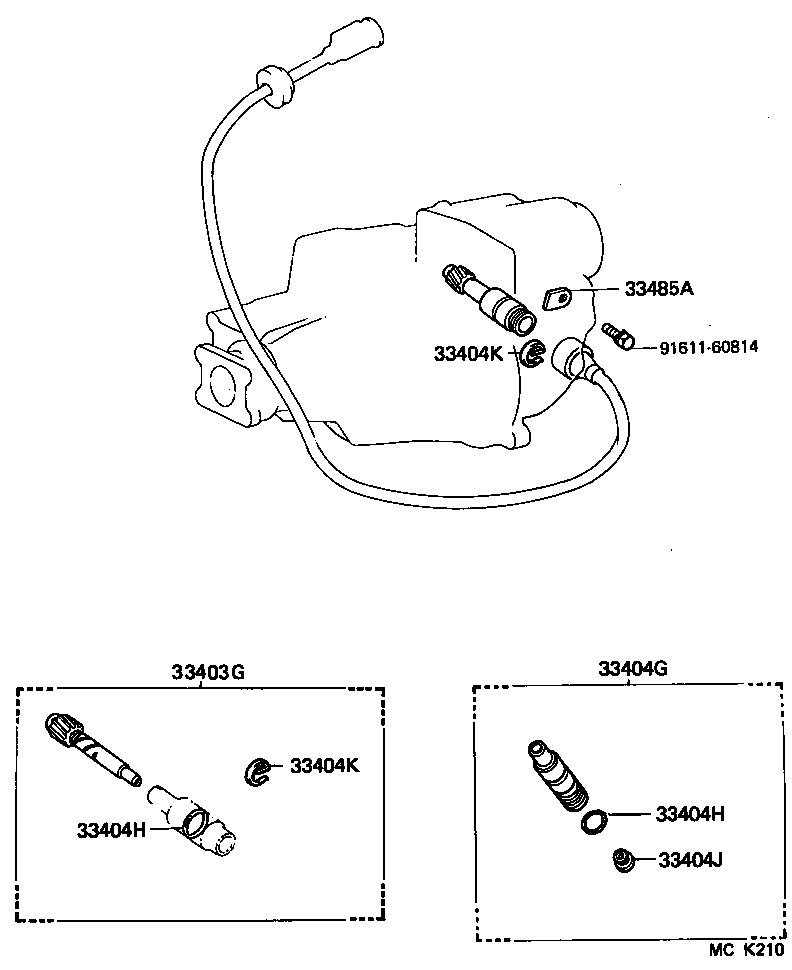

Click highlighted areas on diagram

A440F,A442F

diagram 33403G 33404G 33404H 33404H 33404J 33404K 33404K 33485A 9161160814
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-69205

HDJ80..ATM

N=31,MARK 31:11

 1
33403-69205

FJ80,HDJ80,HZJ80..ATM

N=31,MARK 31:11

 1
33403-69245

FJ80,HDJ80,HZJ80..ATM

N=33,MARK 33:12

 1
33403-69235

HDJ80..LHD..ATM

N=32,MARK 32:12

 1
33403-69205

HDJ80..LHD..ATM

N=31,MARK 31:11

 1
33404G - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)
33404-22010

HDJ80..LHD..ATM

 1
33404-22010

FJ80,HDJ80,HZJ80..ATM

 1
33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
96711-24030

HDJ80..LHD..ATM

 1
96711-24030

FJ80,HDJ80,HZJ80..ATM

 1
33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
96711-24030

HDJ80..LHD..ATM

 1
96711-24030

FJ80,HDJ80,HZJ80..ATM

 1
33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90310-09001

FJ80,HDJ80,HZJ80..ATM

 1
90310-09001

HDJ80..LHD..ATM

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

HDJ80..LHD..ATM

 1
90468-12005

FJ80,HDJ80,HZJ80..ATM

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

HDJ80..LHD..ATM

 1
90468-12005

FJ80,HDJ80,HZJ80..ATM

 1
33485A - PLATE, SPEEDOMETER SLEEVE LOCK (ATM)
33485-30020

HDJ80..LHD..ATM

 1
33485-30020

FJ80,HDJ80,HZJ80..ATM

 1
Common parts
91611-60814
