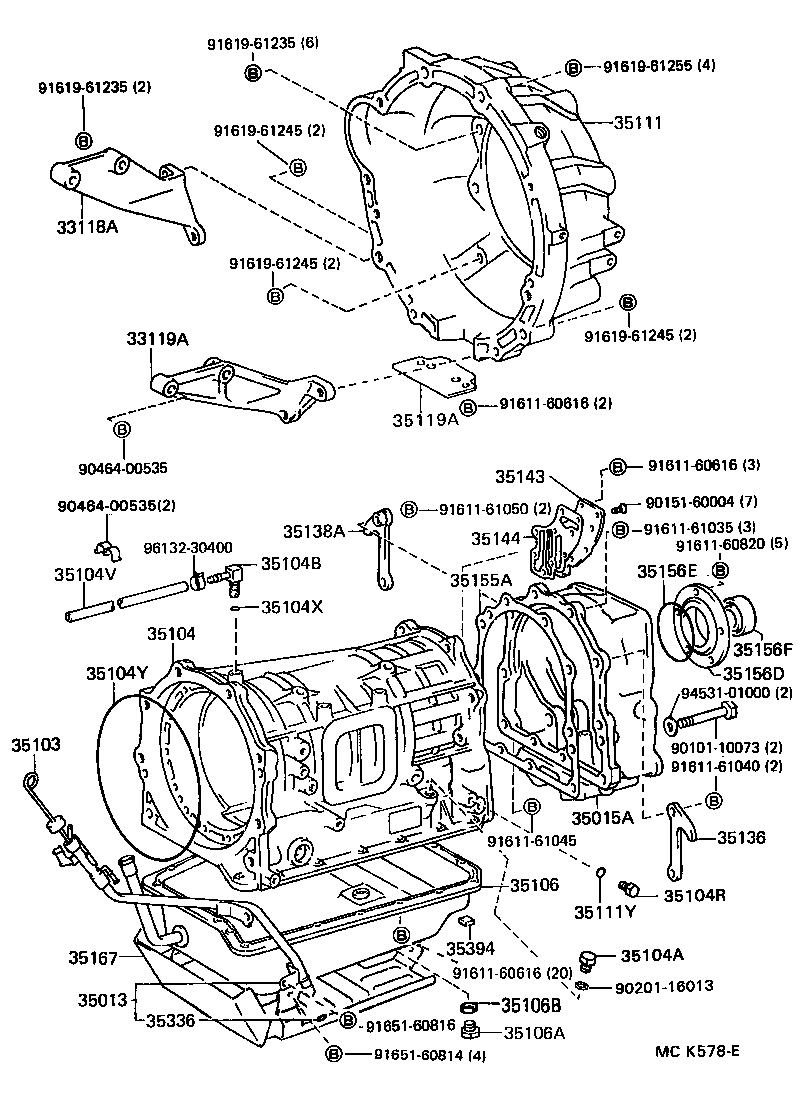

Toyota Land cruiser HDJ80 TRANSMISSION CASE & OIL PAN (ATM)

Part #	Description	Period	Qty
33118A - PLATE, STIFFENER, RH(ATM)
33118-60030	HDJ80,HZJ80..ATM	01/1990 - 01/1995	1
33119A - PLATE, STIFFENER, LH(ATM)
33119-60030	HDJ80,HZJ80..ATM	01/1990 - 11/1991	1
33119-60031	HDJ80..ATM	11/1991 - 01/1995	1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-60060	HDJ80,HZJ80..ATM	01/1990 - 08/1992	1
35015A - ADAPTER SUB-ASSY, TRANSMISSION CASE, REAR
35015-60050	FZJ80,HDJ80..ATM	08/1992 - 01/1995	1
35015-60020	FJ80,HDJ80,HZJ80..ATM	01/1990 - 08/1992	1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-60050	HDJ80,HZJ80..ATM	01/1990 - 10/1996	1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-60020	HDJ80..ATM	01/1990 - 04/1991	1
35104-60021	HDJ80..ATM	04/1991 - 08/1992	1
35104-60080	FZJ80,HDJ80..ATM	08/1992 - 01/1995	1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-16010	FJ80,HDJ80,HZJ80..ATM	01/1990 - 08/1992	1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03094	FJ80,FZJ80,HDJ80,HZJ80..ATM	01/1990 - 01/1998	1
35104R - PLUG, NO.2 (FOR TRANSAXLE CASE)
90341-08001	FJ80,HDJ80,HZJ80..ATM	01/1990 - 08/1992	7
35104V - HOSE (FOR BREATHER PLUG)
90445-11113	HDJ80,HZJ80..ATM	01/1990 - 01/1995	1
35104X - RING, O (FOR BREATHER PLUG)
90301-06005	FJ80,HDJ80,HZJ80..ATM	01/1990 - 08/1992	1
35104Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-99067	HDJ80..ATM	01/1990 - 08/1992	1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-60050	HDJ80,HZJ80..ATM	02/1991 - 08/1992	1
35106-60060	HDJ80..ATM	01/1990 - 02/1991	1
35106-60030	HDJ80..ATM	08/1992 - 01/1995	1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-18057	FJ80,HDJ80,HZJ80..ATM	01/1990 - 08/1992	1
35106B - GASKET, DRAIN PLUG (ATM)
12157-10010	FJ80,FZJ80,HDJ80,HZJ80..ATM	01/1990 - 01/1998	1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-60040	HDJ80,HZJ80..ATM	01/1990 - 01/1995	1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196	FJ80,HDJ80,HZJ80..ATM	01/1990 - 08/1992	7
90301-06196	HDJ80..ATM	08/1992 - 01/1995	6
35119A - COVER, TRANSMISSION HOUSING
35119-36010	FZJ80,HDJ80,HZJ80..ATM	01/1990 - 07/1994	1
35119-36010	HDJ80..ATM	07/1994 - 01/1995	1
35136 - HANGER, TRANSMISSION,NO.1
35136-60020	FJ80,FZJ80,HDJ80,HZJ80..ATM	01/1990 - 01/1998	1
35138A - HANGER, TRANSMISSION, NO.2
35136-60020	FJ80,FZJ80,HDJ80,HZJ80..ATM	01/1990 - 01/1998	1
35143 - COVER, TRANSMISSION CASE, REAR
35143-36010	FJ80,FZJ80,HDJ80,HZJ80..ATM	01/1990 - 07/1994	1
35143-36010	HDJ80..ATM W(*CDL & PTO DRIVE GEAR)	01/1994 - 07/1994	1
35144 - GASKET, TRANSMISSION CASE REAR COVER
35144-36010	HDJ80,HZJ80..ATM	01/1990 - 08/1992	1
35144-60010	FZJ80,HDJ80..ATM	08/1992 - 07/1994	1
35144-60010	HDJ80..ATM W(*CDL & PTO DRIVE GEAR)	01/1994 - 07/1994	1
35155A - GASKET, TRANSMISSION CASE ADAPTER
35182-36010	HDJ80,HZJ80..ATM	01/1990 - 08/1992	1
35156D - COVER, TRANSMISSION CASE REAR ADAPTER
35156-60010	FJ80,FZJ80,HDJ80,HZJ80..ATM	01/1990 - 01/1998	1
35156E - RING, O(FOR TRANSMISSION CASE REAR ADAPTER COVER)
90301-81005	FJ80,HDJ80,HZJ80..ATM	01/1990 - 08/1992	1
35156F - SEAL, OIL(FOR TRANSMISSION CASE REAR ADAPTER COVER)
90311-48016	FJ80,HDJ80,HZJ80..ATM	01/1990 - 08/1992	1
35167 - PROTECTOR, TRANSMISSION OIL PAL
35167-60020	HDJ80..ATM	01/1990 - 02/1991	1
35167-60030	HDJ80..ATM	08/1992 - 01/1995	1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173	FJ80,FZJ80,HDJ80,HZJ80..ATM	01/1990 - 10/1996	1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011	HDJ80..ATM	01/1990 - 02/1991	4
35394-30011	FJ80,HDJ80,HZJ80..ATM	02/1991 - 08/1992	2
Common parts
90101-10073
90151-60004
90201-16013
90464-00535
91611-60616
91611-60820
91611-61035
91611-61040
91611-61045
91611-61050
91619-61235
91619-61245
91619-61255
91651-60814
91651-60816
94531-01000
96132-30400

HDJ80L-GNPEXW (1990)

(9001- )FZJ80,HDJ80,HZJ80..ATM
