HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )ATM

Click highlighted areas on diagram

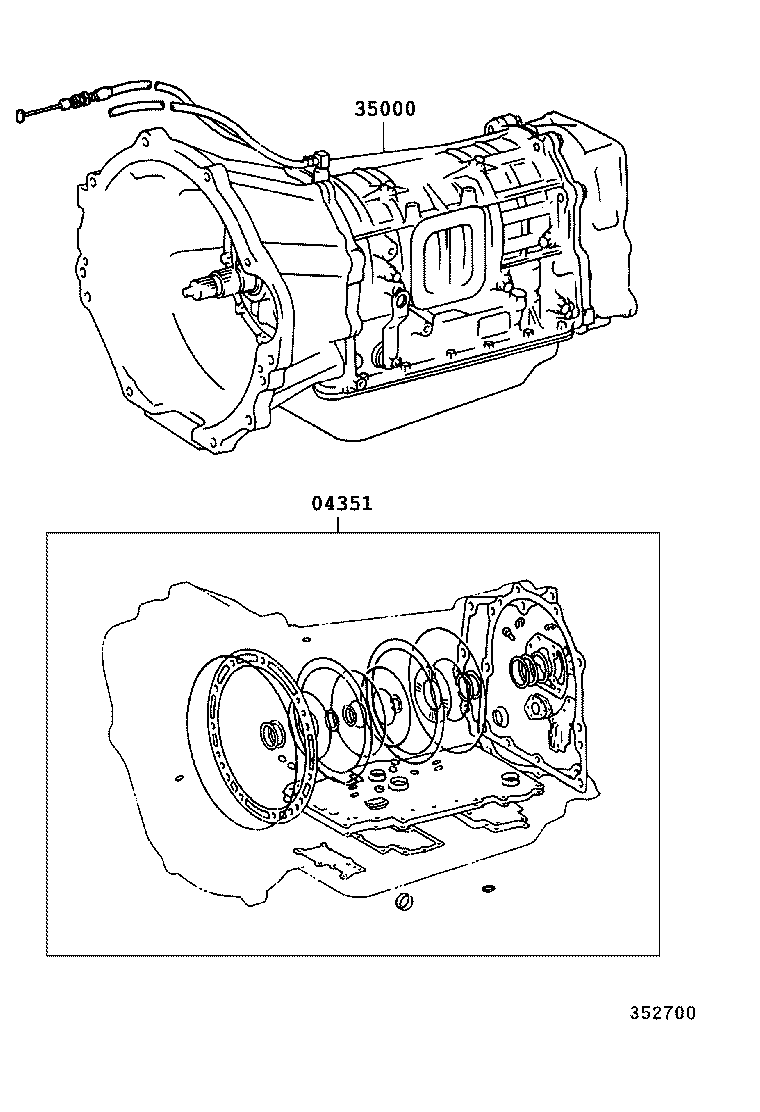

diagram 04351 35000
Part # Description Qty Price
04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-60060

FZJ80,HDJ80..ATM

 1
04351-60020

FJ80,HDJ80,HZJ80..ATM

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-60271

HDJ80..ATM

 1
35000-60270

HDJ80..ATM

 1
35000-60380

HDJ80..ATM

 1
35000-60420

HDJ80..ATM

 1
