HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )ATM

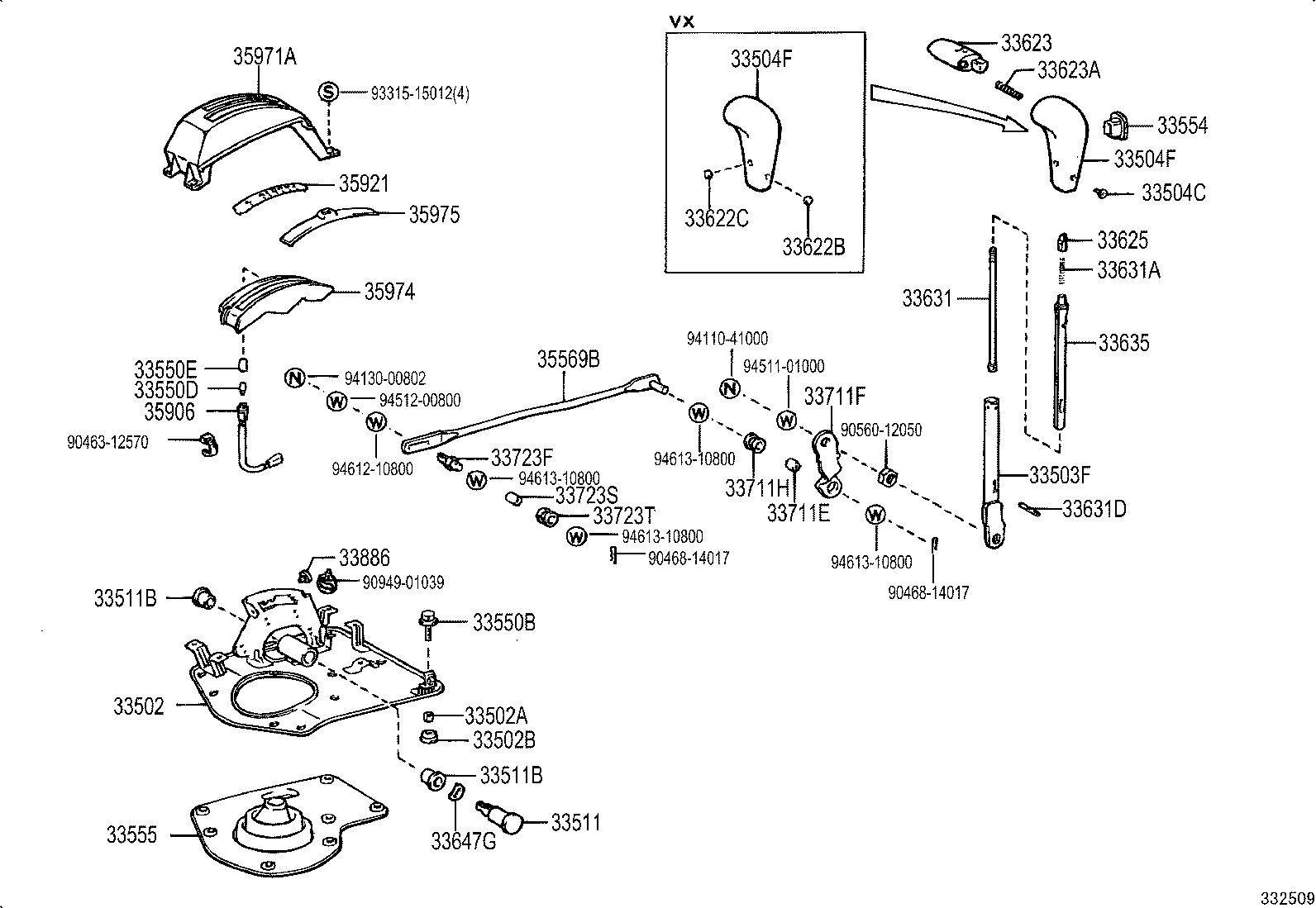

Click highlighted areas on diagram

diagram 33502 33502A 33502B 33503F 33504C 33504F 33504F 33511 33511B 33511B 33550B 33550D 33550E 33554 33555 33622B 33622C 33623 33623A 33625 33631 33631A 33631D 33635 33647G 33711E 33711F 33711H 33723F 33723S 33723T 33886 35569B 35906 35921 35971A 35974 35975 9046312570 9046814017 9046814017 9056012050 9094901039 9331515012 9411041000 9413000802 9451101000 9451200800 9461210800 9461310800 9461310800 9461310800 9461310800
Part # Description Qty Price
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-60071

FJ80,HDJ80,HZJ80..LHD..ATM

 1
33502-60070

FJ80,HDJ80,HZJ80..LHD..ATM

 1
33502A - COLLAR (FOR FLOOR SHIFT SETTING)
90387-06065

FJ80,HDJ80,HZJ80..ATM

OD=8.8

 9
33502B - GROMMET (FOR SHIFT LEVER PLATE)
90480-13018

FJ80,HDJ80,HZJ80..ATM

 2
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-60040

FJ80,HDJ80,HZJ80..LHD..ATM

 1
33055-60020

FZJ80,HDJ80..LHD..ATM

 1
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40109

FJ80,HDJ80,HZJ80..ATM

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-6008001

FJ80,HDJ80..LHD..ATM..VX

BLACK,TRIM1#,4#

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-6008001

FJ80,HDJ80..LHD..ATM..VX

BLACK,TRIM1#,4#

 1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
33511-60090

FZJ80,HDJ80..LHD..ATM

 1
33511-60090

FJ80,HDJ80,HZJ80..LHD..ATM

 1
33511B - BUSH (FOR CONTROL SHAFT)
90386-15003

FJ80,HDJ80,HZJ80..ATM

 2
33511B - BUSH (FOR CONTROL SHAFT)
90386-15003

FJ80,HDJ80,HZJ80..ATM

 2
33550B - BOLT, W/WASHER (FOR FLOOR SHIFT)
90119-06088

FJ80,HDJ80,HZJ80..ATM

 6
33550D - BULB, POSITION INDICATOR LAMP
90981-11018

FJ80,HDJ80,HZJ80..ATM

12V 1.2W W/O SOCKET

 1
33550E - CAP, POSITION INDICATOR LAMP
90339-04014

FJ80,HDJ80,HZJ80..ATM

 1
33555 - BOOT, SHIFT LEVER
33555-60071

FJ80,HDJ80,HZJ80..ATM

 1
33555-60070

FJ80,HDJ80,HZJ80..ATM

 1
33622B - PLUG, SHIFT LEVER KNOB
33622-3205001

FJ80,HDJ80..LHD..ATM..VX

BLACK,TRIM1#,4#

 1
33622C - PLUG, SHIFT LEVER KNOB, NO.2
33622-3206001

FJ80,HDJ80..LHD..ATM..VX

BLACK,TRIM1#,4#

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-3206001

FJ80,HDJ80,HZJ80..LHD..ATM

BLACK,TRIM1#,4#

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07009

FJ80,HDJ80,HZJ80..ATM

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-32010

FJ80,HDJ80,HZJ80..ATM

 1
33631 - ROD, DETENT
33631-30060

FJ80,HDJ80,HZJ80..ATM

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-07074

FJ80,HDJ80,HZJ80..ATM

 1
33631D - PIN, GROOVED (FOR DETENT ROD)
90256-04003

FJ80,HDJ80,HZJ80..ATM

 1
33635 - GUIDE, WIRE (FOR SHIFT LEVER)
33635-60010

FJ80,HDJ80,HZJ80..ATM

 1
33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT)
90206-17001

FJ80,HDJ80,HZJ80..ATM

 1
33711E - BUSH (FOR CONTROL SHAFT LEVER)
90389-08005

FJ80,HDJ80,HZJ80..ATM

 1
33711F - LEVER, CONTROL SHAFT (FOR FLOOR SHIFT)
33711-60030

FJ80,HDJ80,HZJ80..ATM

 1
33711H - GROMMET (FOR CONTROL SHAFT LEVER)
90480-17177

FJ80,HDJ80,HZJ80..ATM

 1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-22010

FJ80,HDJ80,HZJ80..ATM

 1
33723S - BUSH (FOR CONNECTING ROD SWIVEL)
90389-08005

FJ80,HDJ80,HZJ80..ATM

 1
33723T - GROMMET (FOR CONNECTING ROD SWIVEL)
90480-17177

FJ80,HDJ80,HZJ80..ATM

 1
33886 - STOPPER, SHIFT LEVER
33886-16010

FJ80,HDJ80,HZJ80..ATM

 1
35569B - ROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT)
35569-60030

FJ80,HDJ80,HZJ80..ATM

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-60070

FJ80,HDJ80,HZJ80..ATM

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-60060

FJ80,HDJ80,HZJ80..LHD..ATM

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-60060

FJ80,HDJ80,HZJ80..LHD..ATM

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-60060

FJ80,HDJ80,HZJ80..LHD..ATM

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-60060

FJ80,HDJ80,HZJ80..LHD..ATM

 1
Common parts
90463-12570
90468-14017
90560-12050
90949-01039
93315-15012
94110-41000
94130-00802
94511-01000
94512-00800
94612-10800
94613-10800
