HDJ80L-GNPEXW (1990)
Toyota Land Cruiser
ILLUST NO. 2 OF 2(9001-9501)1HDT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22129 - PLUG, SCREW | ||||
| 22129-55110 |
1HD#..HDJ80 |
1 | ||
| 22129A - WASHER, AIR BLEEDER NIPPLE(FOR SCREW PLUG) | ||||
| 90201-12109 |
1HD#..HDJ80 |
1 | ||
| 22143A - SEAT, SPRING UPPER, NO.2 | ||||
| 22143-54260 |
1HD#..HDJ80 |
1 | ||
| 22160A - SCREW SUB-ASSY, OVER FLOW, NO.2 | ||||
| 22160-54262 |
1HDT..HDJ80 |
1 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-55031 |
1HDT..HDJ80 NO.2 |
1 | ||
| 22193-64750 |
1HDT..HDJ80 NO.1 |
2 | ||
| 22193-55031 |
1HDT..HDJ80 NO.2 |
1 | ||
| 22308B - LEVER SUB-ASSY, CONTROL | ||||
| 22308-54140 |
1HDT..HDJ80 |
1 | ||
| 22321A - ROD, PUSH | ||||
| 22321-17140 |
1HDT..HDJ80..ATM |
1 | ||
| 22321-17140 |
1HDT..HDJ80 |
1 | ||
| 22321-17140 |
1HDT..HDJ80 |
1 | ||
| 22327A - SPRING(FOR BELLOWS) | ||||
| 22327-55030 |
1HD#..HDJ80 |
1 | ||
| 22328A - PIN, LEVER CONNECTING | ||||
| 22338-54120 |
1HD#..HDJ80 |
1 | ||
| 22348A - BUSHING, GUIDE | ||||
| 22348-54490 |
1HD#..HDJ80 NO.1 |
1 | ||
| 22348-64360 |
1HD#..HDJ80 NO.2 |
1 | ||
| 22348A - BUSHING, GUIDE | ||||
| 22348-54490 |
1HD#..HDJ80 NO.1 |
1 | ||
| 22348-64360 |
1HD#..HDJ80 NO.2 |
1 | ||
| 22348B - BUSHING, GUIDE(FOR LEVER CONNECTING PIN) | ||||
| 22348-54121 |
1HD#..HDJ80 |
1 | ||
| 22378B - WASHER, DRAIN SCREW | ||||
| 22113-77090 |
1HDT..HDJ80 |
2 | ||
| 22149-6D450 |
1HDT..HDJ80 |
1 | ||
| 22378B - WASHER, DRAIN SCREW | ||||
| 22113-77090 |
1HDT..HDJ80 |
2 | ||
| 22149-6D450 |
1HDT..HDJ80 |
1 | ||
| 22526A - PIN, LEVER SUPPORT | ||||
| 22526-54120 |
1HD#..HDJ80 |
1 | ||
| 22540 - COMPENSATOR SUB-ASSY, BOOST | ||||
| 22540-17140 |
1HDT..HDJ80 |
1 | ||
| 22540-17540 |
1HDT..HDJ80 |
1 | ||
| 22540-17260 |
1HDT..HDJ80..ATM |
1 | ||
| 22540-17260 |
1HDT..HDJ80 |
1 | ||
| 22542 - DIAPHRAGM(FOR BOOST COMPENSATOR) | ||||
| 22542-54260 |
1HD#..HDJ80 |
1 | ||
| 22546 - SPRING, BOOST COMPENSATOR | ||||
| 22546-54261 |
1HDT..HDJ80..ATM K=1.80,L=19.6 |
1 | ||
| 22546-54260 |
1HDT..HDJ80 K=1.60,L=19.8,K=1.60,L=19.8 |
1 | ||
| 22546-54491 |
1HDT..HDJ80 K=2.30,L=19.7 |
1 | ||
| 22546-58780 |
1HDT..HDJ80..ATM K=2.00,L=19.5,K=2.00,L=19.5 |
1 | ||
| 22546-5B013 |
1HDT..HDJ80 K=2.50,L=19.4 |
1 | ||
| 22546-55030 |
1HDT..HDJ80..ATM K=2.20,L=19.5 |
1 | ||
| 22546-54490 |
1HDT..HDJ80 K=2.10,L=20.3 |
1 | ||
| 22547 - SHIM, BOOST COMPENSATOR | ||||
| 22547-54261 |
1HDT..HDJ80 T=2.1 |
1 | ||
| 22547-54265 |
1HDT..HDJ80 T=1.3 |
1 | ||
| 22547-54266 |
1HDT..HDJ80 T=1.5 |
1 | ||
| 22547-54264 |
1HDT..HDJ80 T=2.7 |
1 | ||
| 22547-54263 |
1HDT..HDJ80 T=2.5 |
1 | ||
| 22547-54262 |
1HDT..HDJ80 T=2.3 |
1 | ||
| 22547-54267 |
1HDT..HDJ80 T=1.7 |
1 | ||
| 22547-54490 |
1HDT..HDJ80 T=1.1 |
1 | ||
| 22547-54268 |
1HDT..HDJ80 T=2.9 |
1 | ||
| 22547-64361 |
1HDT..HDJ80 T=3.3 |
1 | ||
| 22547-54260 |
1HDT..HDJ80 T=1.9 |
1 | ||
| 22547-64360 |
1HDT..HDJ80 T=3.1 |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-54490 |
1HDT..HDJ80 NO.2 |
1 | ||
| 22656-54010 |
1HDT..HDJ80 NO.1 |
1 | ||
| 22658A - STOPPER, TIMER SLIDE | ||||
| 22658-64518 |
1HD#..HDJ80 |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-64850 |
1HDT..HDJ80 |
1 | ||
| 22703-64850 |
1HDT..HDJ80 |
1 | ||
| 22703B - COVER, GOVERNOR | ||||
| 22703-17140 |
1HD#..HDJ80 |
1 | ||
| 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 | ||||
| 22739-54120 |
1HD#..HDJ80 |
2 | ||
| 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 | ||||
| 22739-54120 |
1HD#..HDJ80 |
2 | ||
| Common parts | ||||
| 22193-54561 | ||||
| 22395-54263 | ||||
| 22549-17140 | ||||
| 22722-54120 | ||||
| 90092-20608 | ||||
| 90093-00802 | ||||
| 90099-01473 | ||||
| 90099-05156 | ||||
| 90099-05181 | ||||

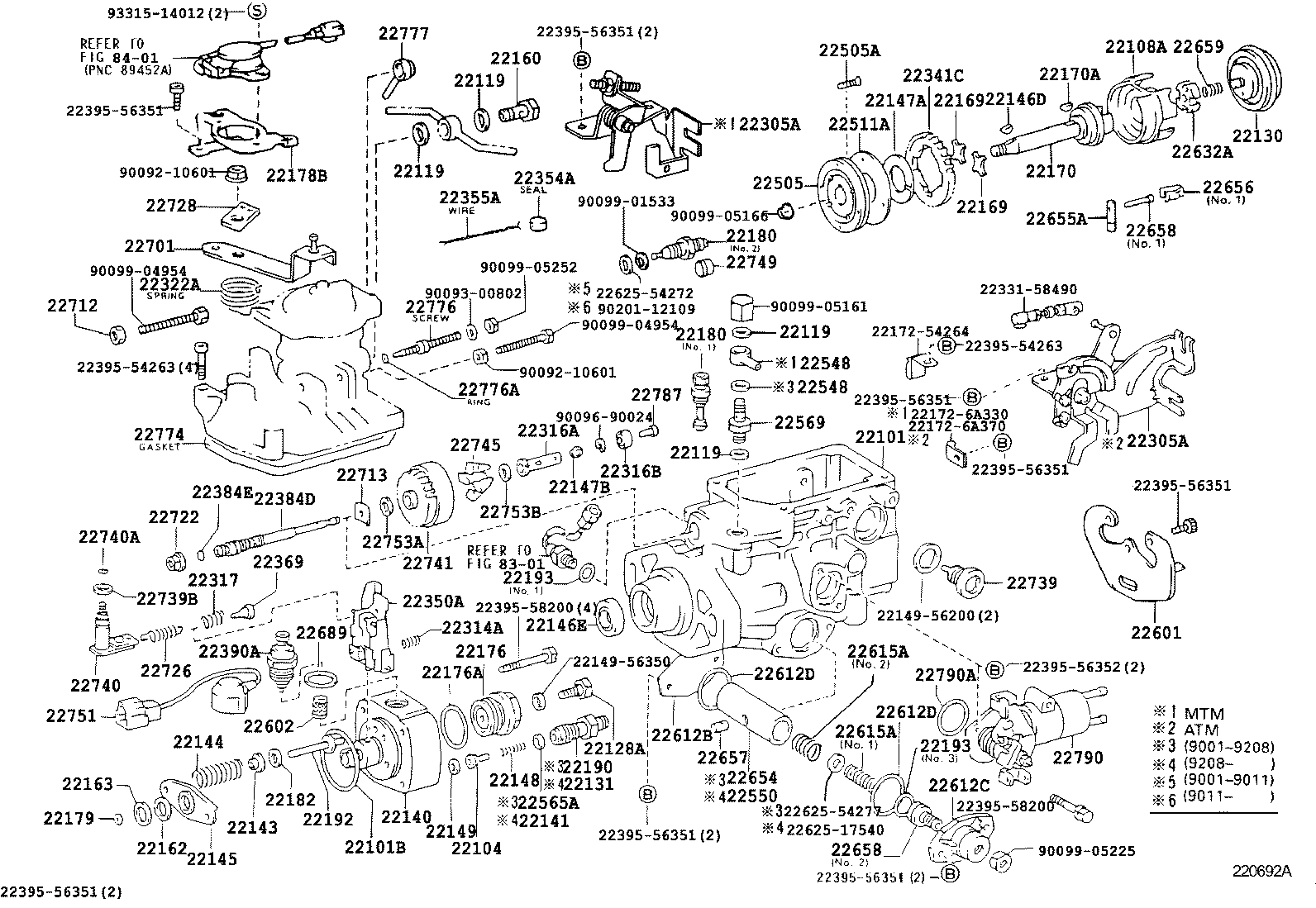

ILLUST NO. 1 OF 2(9001-9501)1HDT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-54260 |
1HDT..HDJ80 |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-17150 |
1HDT..HDJ80 |
6 | ||
| 22104-17540 |
1HDT..HDJ80 |
6 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-17140 |
1HDT..HDJ80 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1HD#,1HZ..HDJ80,HZJ80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1HD#,1HZ..HDJ80,HZJ80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1HD#,1HZ..HDJ80,HZJ80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1HD#,1HZ..HDJ80,HZJ80 |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-56330 |
1HD#..HDJ80 |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-17140 |
1HDT..HDJ80 |
1 | ||
| 22130-17540 |
1HDT..HDJ80 |
1 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-17140 |
1HDT..HDJ80 |
1 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-56350 |
1HD#..HDJ80 |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-17140 |
1HDT..HDJ80 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-56350 |
1HD#..HDJ80 |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-17140 |
1HDT..HDJ80 |
6 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-56351 |
1HDT..HDJ80 |
6 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-56350 |
1HDT..HDJ80 |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
1HD#,1HZ..HDJ80,HZJ80 |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
1HD#,1HZ..HDJ80,HZJ80 |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-56350 |
1HDT..HDJ80 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22178B - BRACKET(FOR INJECTION PUMP ASSY) | ||||
| 22178-17590 |
1HDT..HDJ80..ATM |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-17144 |
1HD#,1HZ..HDJ80,HZJ80 T=2.35 |
1 | ||
| 22179-17143 |
1HD#,1HZ..HDJ80,HZJ80 T=2.25 |
1 | ||
| 22179-17140 |
1HD#,1HZ..HDJ80,HZJ80 T=1.95 |
1 | ||
| 22179-17147 |
1HD#,1HZ..HDJ80,HZJ80 T=2.65 |
1 | ||
| 22179-17148 |
1HD#,1HZ..HDJ80,HZJ80 T=2.75 |
1 | ||
| 22179-17150 |
1HD#,1HZ..HDJ80,HZJ80 T=2.94 |
1 | ||
| 22179-17149 |
1HD#,1HZ..HDJ80,HZJ80 T=2.85 |
1 | ||
| 22179-17142 |
1HD#,1HZ..HDJ80,HZJ80 T=2.15 |
1 | ||
| 22179-17145 |
1HD#,1HZ..HDJ80,HZJ80 T=2.45 |
1 | ||
| 22179-17141 |
1HD#,1HZ..HDJ80,HZJ80 T=2.05 |
1 | ||
| 22179-17154 |
1HD#,1HZ..HDJ80,HZJ80 T=3.14 |
1 | ||
| 22179-17152 |
1HD#,1HZ..HDJ80,HZJ80 T=3.04 |
1 | ||
| 22179-17151 |
1HD#,1HZ..HDJ80,HZJ80 T=2.99 |
1 | ||
| 22179-54011 |
1HD#,1HZ..HDJ80,HZJ80 T=2.0 |
1 | ||
| 22179-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.9 |
1 | ||
| 22179-54014 |
1HD#,1HZ..HDJ80,HZJ80 T=2.3 |
1 | ||
| 22179-54016 |
1HD#,1HZ..HDJ80,HZJ80 T=2.5 |
1 | ||
| 22179-17146 |
1HD#,1HZ..HDJ80,HZJ80 T=2.55 |
1 | ||
| 22179-17153 |
1HD#,1HZ..HDJ80,HZJ80 T=3.09 |
1 | ||
| 22179-54012 |
1HD#,1HZ..HDJ80,HZJ80 T=2.1 |
1 | ||
| 22179-54017 |
1HD#,1HZ..HDJ80,HZJ80 T=2.6 |
1 | ||
| 22179-17155 |
1HD#,1HZ..HDJ80,HZJ80 T=3.19 |
1 | ||
| 22179-54018 |
1HD#,1HZ..HDJ80,HZJ80 T=2.7 |
1 | ||
| 22179-54019 |
1HD#,1HZ..HDJ80,HZJ80 T=2.8 |
1 | ||
| 22179-54013 |
1HD#,1HZ..HDJ80,HZJ80 T=2.2 |
1 | ||
| 22179-54015 |
1HD#,1HZ..HDJ80,HZJ80 T=2.4 |
1 | ||
| 22179-54020 |
1HD#,1HZ..HDJ80,HZJ80 T=2.9 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-17140 |
1HDT..HDJ80..ATM NO.2 |
1 | ||
| 22180-56351 |
1HDT..HDJ80 NO.1 |
1 | ||
| 22180-17540 |
1HDT..HDJ80 NO.1 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-17140 |
1HDT..HDJ80..ATM NO.2 |
1 | ||
| 22180-56351 |
1HDT..HDJ80 NO.1 |
1 | ||
| 22180-17540 |
1HDT..HDJ80 NO.1 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22184-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.0 |
2 | ||
| 22182-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=0.5 |
2 | ||
| 22183-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=0.8 |
2 | ||
| 22188-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=2.0 |
2 | ||
| 22186-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.5 |
2 | ||
| 22187-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.8 |
2 | ||
| 22185-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.2 |
2 | ||
| 22190 - VALVE SUB-ASSY, SNUBBER | ||||
| 22190-17140 |
1HDT..HDJ80 |
6 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-56350 |
1HD#..HDJ80 |
2 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-55031 |
1HDT..HDJ80 NO.2 |
1 | ||
| 22193-64750 |
1HDT..HDJ80 NO.1 |
2 | ||
| 22193-55031 |
1HDT..HDJ80 NO.2 |
1 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-55031 |
1HDT..HDJ80 NO.2 |
1 | ||
| 22193-64750 |
1HDT..HDJ80 NO.1 |
2 | ||
| 22193-55031 |
1HDT..HDJ80 NO.2 |
1 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-17170 |
1H#..HDJ80,HZJ80..ATM |
1 | ||
| 22305-17590 |
1HDT..HDJ80..ATM |
1 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-17170 |
1H#..HDJ80,HZJ80..ATM |
1 | ||
| 22305-17590 |
1HDT..HDJ80..ATM |
1 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
1HD#,1HZ..HDJ80,HZJ80 |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-17171 |
1HDT..HDJ80..ATM ID=0.70 |
1 | ||
| 22316-17175 |
1HDT..HDJ80..ATM ID=0.75 |
1 | ||
| 22316-17170 |
1HDT..HDJ80..ATM ID=0.60 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-54730 |
1HDT..HDJ80..ATM K=0.15,L=7.3 |
1 | ||
| 22317-54730 |
1HDT..HDJ80 K=0.15,L=7.3 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-17170 |
1H#..HDJ80,HZJ80..ATM |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-17140 |
1HDT..HDJ80 |
1 | ||
| 22350-17270 |
1HDT..HDJ80..ATM |
1 | ||
| 22350-17270 |
1HDT..HDJ80 |
1 | ||
| 22350-17540 |
1HDT..HDJ80 |
1 | ||
| 22354A - SEAL, ROD | ||||
| 22354-77050 |
1H#..HDJ80,HZJ80 |
1 | ||
| 22355A - WIRE, GOVERNOR HOUSING SEAL | ||||
| 22355-78030 |
1H#..HDJ80,HZJ80 |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
1HDT,1HZ..HDJ80,HZJ80 |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22380-54020 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-6A510 |
1HDT,1HZ..HDJ80,HZJ80 |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
1HD#,1HZ..HDJ80,HZJ80 |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-58650 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22548 - NIPPLE, SWIVEL | ||||
| 22548-17140 |
1HDT..HDJ80 |
1 | ||
| 22548 - NIPPLE, SWIVEL | ||||
| 22548-17140 |
1HDT..HDJ80 |
1 | ||
| 22550 - PISTON ASSY, TIMER | ||||
| 22550-17420 |
1HDT..HDJ80 |
1 | ||
| 22565A - SEAT, SNUBBER VALVE | ||||
| 22565-17140 |
1HDT..HDJ80 |
6 | ||
| 22569 - SCREW, OVERFLOW | ||||
| 22569-17140 |
1HDT..HDJ80 |
1 | ||
| 22601 - BRACKET SUB-ASSY, IDLE UP | ||||
| 22601-17140 |
1HDT,1HZ..HDJ80,HZJ80 |
1 | ||
| 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22602-56350 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-56350 |
1HDT..HDJ80 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-17140 |
1HDT..HDJ80 |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14105 |
1HDT..HDJ80 |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14105 |
1HDT..HDJ80 |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-17141 |
1HDT..HDJ80 K=1.45 |
1 | ||
| 22615-17144 |
1HDT..HDJ80 K=1.95 |
1 | ||
| 22615-17143 |
1HDT..HDJ80 K=1.80 |
1 | ||
| 22615-17140 |
1HDT..HDJ80 K=1.30 |
1 | ||
| 22615-17141 |
1HDT..HDJ80..ATM K=1.45 |
1 | ||
| 22615-17142 |
1HDT..HDJ80 K=1.60 |
1 | ||
| 22615-17143 |
1HDT..HDJ80..ATM K=1.80 |
1 | ||
| 22615-17140 |
1HDT..HDJ80..ATM K=1.30 |
1 | ||
| 22615-17540 |
1HDT..HDJ80 K=1.08,NO.1 |
1 | ||
| 22615-17541 |
1HDT..HDJ80 K=1.18,NO.1 |
1 | ||
| 22615-17144 |
1HDT..HDJ80..ATM K=1.95 |
1 | ||
| 22615-17142 |
1HDT..HDJ80..ATM K=1.60 |
1 | ||
| 22615-17542 |
1HDT..HDJ80 K=1.27,NO.1 |
1 | ||
| 22615-17543 |
1HDT..HDJ80 K=1.37,NO.1 |
1 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-17141 |
1HDT..HDJ80 K=1.45 |
1 | ||
| 22615-17144 |
1HDT..HDJ80 K=1.95 |
1 | ||
| 22615-17143 |
1HDT..HDJ80 K=1.80 |
1 | ||
| 22615-17140 |
1HDT..HDJ80 K=1.30 |
1 | ||
| 22615-17141 |
1HDT..HDJ80..ATM K=1.45 |
1 | ||
| 22615-17142 |
1HDT..HDJ80 K=1.60 |
1 | ||
| 22615-17143 |
1HDT..HDJ80..ATM K=1.80 |
1 | ||
| 22615-17140 |
1HDT..HDJ80..ATM K=1.30 |
1 | ||
| 22615-17540 |
1HDT..HDJ80 K=1.08,NO.1 |
1 | ||
| 22615-17541 |
1HDT..HDJ80 K=1.18,NO.1 |
1 | ||
| 22615-17144 |
1HDT..HDJ80..ATM K=1.95 |
1 | ||
| 22615-17142 |
1HDT..HDJ80..ATM K=1.60 |
1 | ||
| 22615-17542 |
1HDT..HDJ80 K=1.27,NO.1 |
1 | ||
| 22615-17543 |
1HDT..HDJ80 K=1.37,NO.1 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-56350 |
1HDT..HDJ80 |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22662-17140 |
1HDT..HDJ80 |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
1HDT,1HZ..HDJ80,HZJ80 |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-54490 |
1HDT..HDJ80 NO.2 |
1 | ||
| 22656-54010 |
1HDT..HDJ80 NO.1 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54450 |
1HDT..HDJ80 NO.2 |
1 | ||
| 22658-54010 |
1HDT,1HZ..HDJ80,HZJ80 NO.1 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54450 |
1HDT..HDJ80 NO.2 |
1 | ||
| 22658-54010 |
1HDT,1HZ..HDJ80,HZJ80 NO.1 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-17140 |
1HDT..HDJ80 |
1 | ||
| 22659-58650 |
1HDT..HDJ80 |
1 | ||
| 22689 - WASHER(FOR SWIVEL NIPPLE) | ||||
| 22689-56350 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-17590 |
1HDT..HDJ80..ATM ANGLE=0.0 |
1 | ||
| 22701-17071 |
1HDT..HDJ80..ATM MARK 382 |
1 | ||
| 22701-58491 |
1H#..HDJ80,HZJ80..ATM MARK 290 |
1 | ||
| 22701-17591 |
1HDT..HDJ80..ATM ANGLE=5.0 |
1 | ||
| 22701-17592 |
1HDT..HDJ80..ATM ANGLE=10.0 |
1 | ||
| 22701-17011 |
1HDT..HDJ80;1HZ..HZJ80..MTM MARK 384 |
1 | ||
| 22701-17070 |
1H#..HDJ80,HZJ80..ATM MARK 381 |
1 | ||
| 22712 - NUT, ROCK | ||||
| 22775-77121 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22717-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.85 |
1 | ||
| 22715-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.45 |
1 | ||
| 22714-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.25 |
1 | ||
| 22716-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.65 |
1 | ||
| 22713-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.05 |
1 | ||
| 22722 - NUT, GOVERNOR SHAFT ROCK | ||||
| 22722-54470 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-17140 |
1HDT..HDJ80 K=0.25 |
1 | ||
| 22726-56350 |
1HDT..HDJ80 |
1 | ||
| 22726-18010 |
1HDT..HDJ80 K=0.28 |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
1HD#,1HZ..HDJ80,HZJ80 |
2 | ||
| 22739B - WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) | ||||
| 22378-64010 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-58480 |
1HDT..HDJ80 |
1 | ||
| 22740-21910 |
1HDT..HDJ80 |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 90099-14048 |
1H#..HDJ80,HZJ80 |
1 | ||
| 90099-14048 |
1HDT..HDJ80 |
1 | ||
| 22193-54770 |
1HDT..HDJ80 |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-56350 |
1HD#..HDJ80 |
4 | ||
| 22749 - COLLAR, SMOKE SET ADJUSTING | ||||
| 22749-55050 |
1HDT..HDJ80;1HZ..HZJ80..STD |
1 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-17140 |
1H#..HDJ80,HZJ80..GX,VX |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54020 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 22774-54010 |
1HDT..HDJ80 |
1 | ||
| 22774-54270 |
1HDT..HDJ80 |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-55030 |
1HD#..HDJ80 |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 90099-14047 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22777 - CAP, RUBBER(FOR BELLOWS) | ||||
| 22777-54261 |
1HDT..HDJ80 |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-17141 |
1HDT..HDJ80 L=4.6 |
1 | ||
| 22787-17143 |
1HDT..HDJ80 L=4.9 |
1 | ||
| 22787-17142 |
1HDT..HDJ80 L=4.8 |
1 | ||
| 22787-17140 |
1HDT..HDJ80 L=4.4 |
1 | ||
| 22787-17144 |
1HDT..HDJ80 L=5.0 |
1 | ||
| 22787-17147 |
1HDT..HDJ80 L=5.3 |
1 | ||
| 22787-17145 |
1HDT..HDJ80 L=5.1 |
1 | ||
| 22787-17151 |
1HDT..HDJ80 L=5.7 |
1 | ||
| 22787-17146 |
1HDT..HDJ80 L=5.2 |
1 | ||
| 22787-17148 |
1HDT..HDJ80 L=5.4 |
1 | ||
| 22787-17152 |
1HDT..HDJ80 L=5.8 |
1 | ||
| 22787-56350 |
1HDT..HDJ80 L=5.9 |
1 | ||
| 22787-56351 |
1HDT..HDJ80 L=6.0 |
1 | ||
| 22787-56353 |
1HDT..HDJ80 L=6.2 |
1 | ||
| 22787-56356 |
1HDT..HDJ80 L=6.5 |
1 | ||
| 22787-54035 |
1HDT..HDJ80 L=4.5 |
1 | ||
| 22787-54034 |
1HDT..HDJ80 L=4.3 |
1 | ||
| 22787-56354 |
1HDT..HDJ80 L=6.3 |
1 | ||
| 22787-56355 |
1HDT..HDJ80 L=6.4 |
1 | ||
| 22787-56352 |
1HDT..HDJ80 L=6.1 |
1 | ||
| 22787-54029 |
1HDT,1HZ..HDJ80,HZJ80 L=3.6 |
1 | ||
| 22787-54033 |
1HDT,1HZ..HDJ80,HZJ80 L=4.0 |
1 | ||
| 22787-54031 |
1HDT,1HZ..HDJ80,HZJ80 L=3.8 |
1 | ||
| 22787-64640 |
1HDT,1HZ..HDJ80,HZJ80 L=4.1 |
1 | ||
| 22787-17150 |
1HDT..HDJ80 L=5.6 |
1 | ||
| 22787-64643 |
1HDT,1HZ..HDJ80,HZJ80 L=3.2 |
1 | ||
| 22787-54036 |
1HDT..HDJ80 L=4.7 |
1 | ||
| 22787-17149 |
1HDT..HDJ80 L=5.5 |
1 | ||
| 22787-54027 |
1HDT,1HZ..HDJ80,HZJ80 L=3.4 |
1 | ||
| 22787-64641 |
1HDT,1HZ..HDJ80,HZJ80 L=3.0 |
1 | ||
| 22787-56357 |
1HDT..HDJ80 L=6.6 |
1 | ||
| 22787-64680 |
1HDT,1HZ..HDJ80,HZJ80 L=4.2 |
1 | ||
| 22790 - COVER SUB-ASSY, TIMER | ||||
| 22790-17170 |
1HDT..HDJ80..ATM |
1 | ||
| 22790-17590 |
1HDT..HDJ80..ATM |
1 | ||
| 22790A - RING, O(FOR TIMER COVER) | ||||
| 90099-14105 |
1HDT..HDJ80 |
1 | ||
| 90099-14051 |
1HDT..HDJ80 |
1 | ||
| Common parts | ||||
| 22149-56200 | ||||
| 22149-56350 | ||||
| 22172-54264 | ||||
| 22172-6A330 | ||||
| 22172-6A370 | ||||
| 22331-58490 | ||||
| 22395-54263 | ||||
| 22395-56351 | ||||
| 22395-56352 | ||||
| 22395-58200 | ||||
| 22625-17540 | ||||
| 22625-54272 | ||||
| 22625-54277 | ||||
| 90092-10601 | ||||
| 90093-00802 | ||||
| 90096-90024 | ||||
| 90099-01533 | ||||
| 90099-04954 | ||||
| 90099-05161 | ||||
| 90099-05166 | ||||
| 90099-05225 | ||||
| 90099-05252 | ||||
| 90201-12109 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8301 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
