HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )1HDT,1HZ

Click highlighted areas on diagram

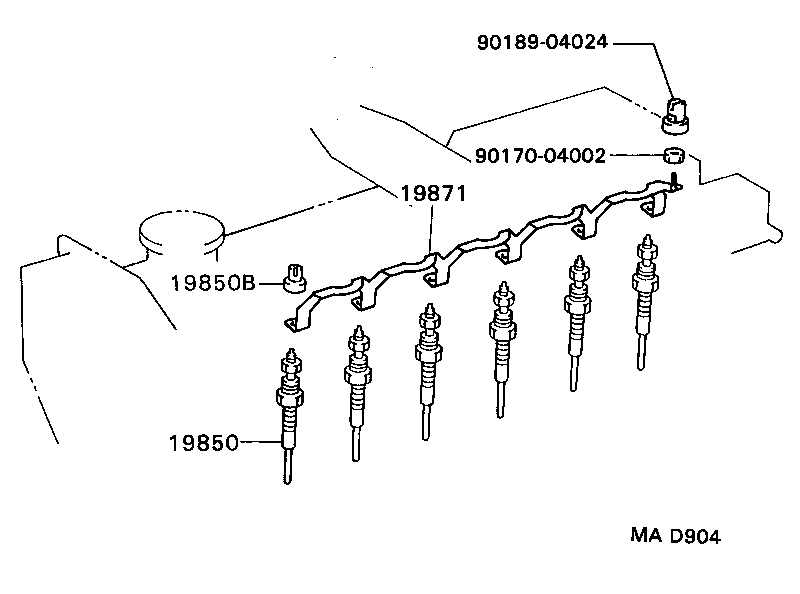

diagram 19850 19850B 19871
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-64031

1HDT,1HZ..HDJ80,HZJ80

*BV-GV=12V-11V

 6
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-04024

1HDT,1HZ..HDJ80,HZJ80

 6
19871 - CONNECTOR, GLOW PLUG NO.1
19871-17021

1HDT..HDJ80

 1
19871-17020

1HDT..HDJ80

 1

(9001- )1HDT

Click highlighted areas on diagram

diagram 19850 19850B 19871 9017004002 9018904024
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-64031

1HDT,1HZ..HDJ80,HZJ80

*BV-GV=12V-11V

 6
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-04024

1HDT,1HZ..HDJ80,HZJ80

 6
19871 - CONNECTOR, GLOW PLUG NO.1
19871-17021

1HDT..HDJ80

 1
19871-17020

1HDT..HDJ80

 1
Common parts
90170-04002
90189-04024
