HDJ80L-GNPEXW (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Jan 1995
Engine
1HDT
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9001-9501)1HDT

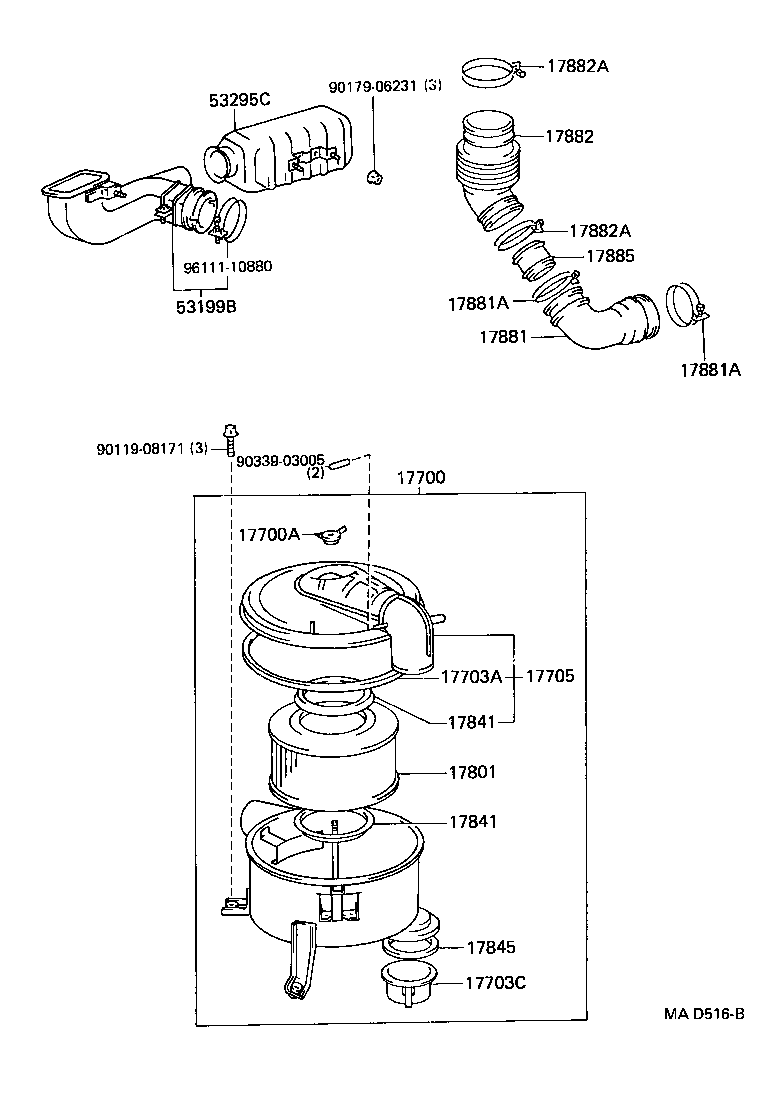

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-17040 |
1HDT..HDJ80 |
1 | ||
| 17700-17041 |
1HDT..HDJ80 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 17703A - GASKET(FOR BOTTOM AIR CLEANER FILTER CASE) | ||||
| 17845-61011 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 17703C - CAP SUB-ASSY, DUST | ||||
| 17703-68010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-17010 |
1HDT..HDJ80 |
1 | ||
| 17705-17100 |
1HDT..HDJ80 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-68030 |
1HD#..HDJ80 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
1HD#,1HZ..HDJ80,HZJ80 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
1HD#,1HZ..HDJ80,HZJ80 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-68030 |
1H#..HDJ80,HZJ80 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-17010 |
1HD#..HDJ80 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
1HD#..HDJ80 PIPE SIDE |
1 | ||
| 96111-10800 |
1HD#..HDJ80 AIR CLEANER SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
1HD#..HDJ80 PIPE SIDE |
1 | ||
| 96111-10800 |
1HD#..HDJ80 AIR CLEANER SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-17010 |
1HD#..HDJ80 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
1HD#..HDJ80 PIPE SIDE |
1 | ||
| 96111-10900 |
1HD#..HDJ80 AIR CLEANER SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10780 |
1HD#..HDJ80 PIPE SIDE |
1 | ||
| 96111-10900 |
1HD#..HDJ80 AIR CLEANER SIDE |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-17010 |
1HD#..HDJ80 |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-60030 |
HDJ80,HZJ80 |
1 | ||
| 53207-60101 |
HDJ80,HZJ80 |
1 | ||
| 53295C - SILENCER, COOL AIR INTAKE | ||||
| 53295-60020 |
HDJ80 |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-06231 | ||||
| 90339-03005 | ||||
| 96111-10880 | ||||
