HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )1HD#,1HZ

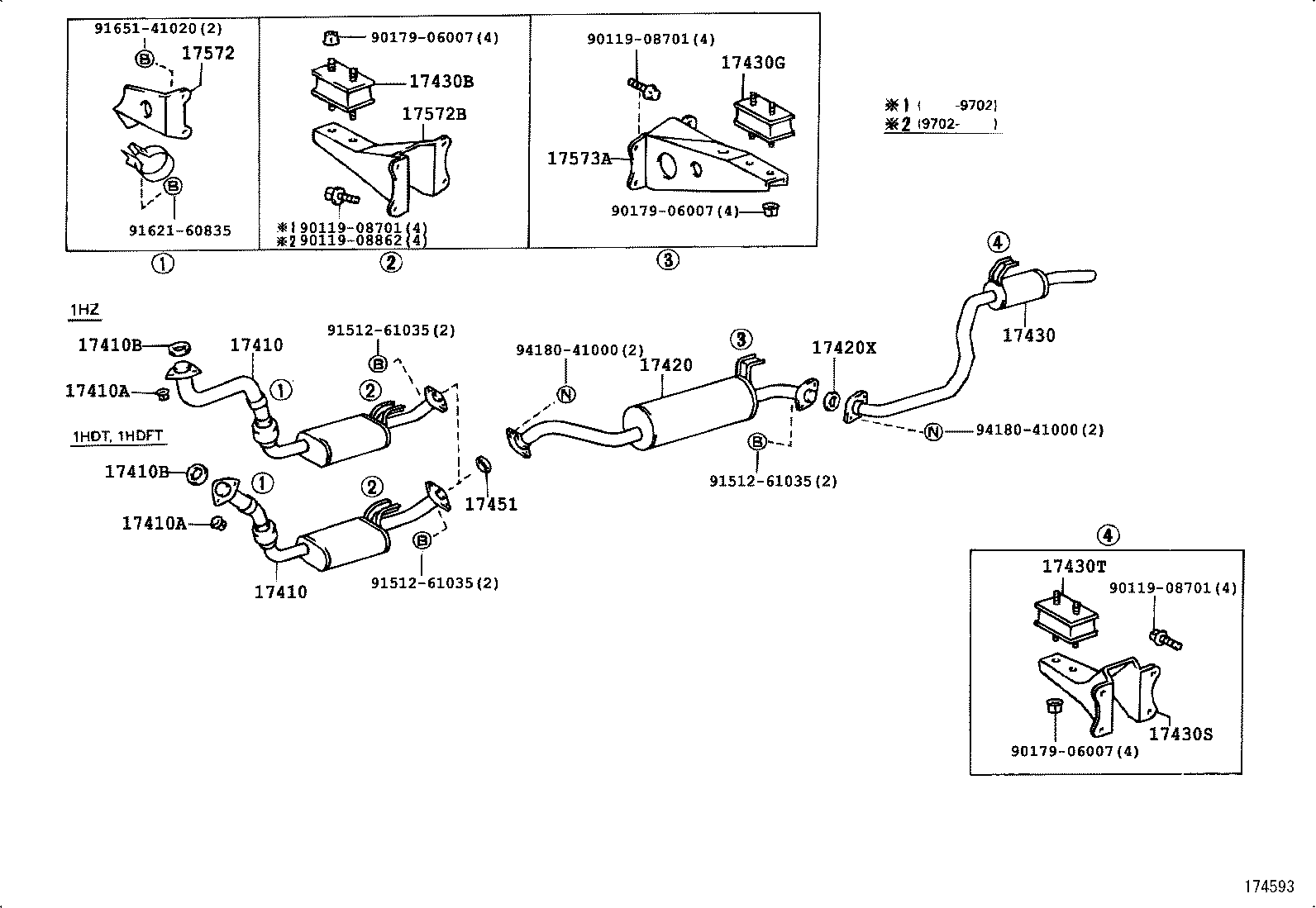

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17420 17420X 17430 17430B 17430G 17430S 17430T 17451 17572 17572B 17573A 9011908701 9011908701 9011908701 9011908862 9017906007 9017906007 9017906007 9151261035 9151261035 9151261035 9162160835 9165141020 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-17050

1HDT..HDJ80

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-17050

1HDT..HDJ80

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1HD#,1HZ..HDJ80,HZJ80

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1HD#,1HZ..HDJ80,HZJ80

 3
17410B - GASKET, EXHAUST PIPE
90917-06056

1HDT..HDJ80

 1
17410B - GASKET, EXHAUST PIPE
90917-06056

1HDT..HDJ80

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-17040

1HD#..HDJ80

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06054

1H#..HDJ80,HZJ80

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-17020

1HD#,1HZ..HDJ80,HZJ80

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
17567-17010

1FZFE,1HD#,1HZ..FZJ80,HDJ80,HZJ80

 1
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
17567-17010

1FZFE,1HD#,1HZ..FZJ80,HDJ80,HZJ80

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-61080

1FZFE,3FE,1HD#,1HZ..FJ80,FZJ80,HDJ80,HZJ80

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-17010

1FZFE,1HD#,1HZ..FZJ80,HDJ80,HZJ80

 1
17451 - GASKET, EXHAUST PIPE
90917-06076

1H#..HDJ80,HZJ80

 1
90917-06054

1H#..HDJ80,HZJ80

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-17020

1HD#..HDJ80

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-17010

1HD#,1HZ..HDJ80,HZJ80

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-61060

1FZFE,3FE,1HD#,1HZ..FJ80,FZJ80,HDJ80,HZJ80

 1
Common parts
90119-08701
90119-08862
90179-06007
91512-61035
91621-60835
91651-41020
94180-41000
