HDJ80L-GNPEXW (1990)
Toyota Land Cruiser

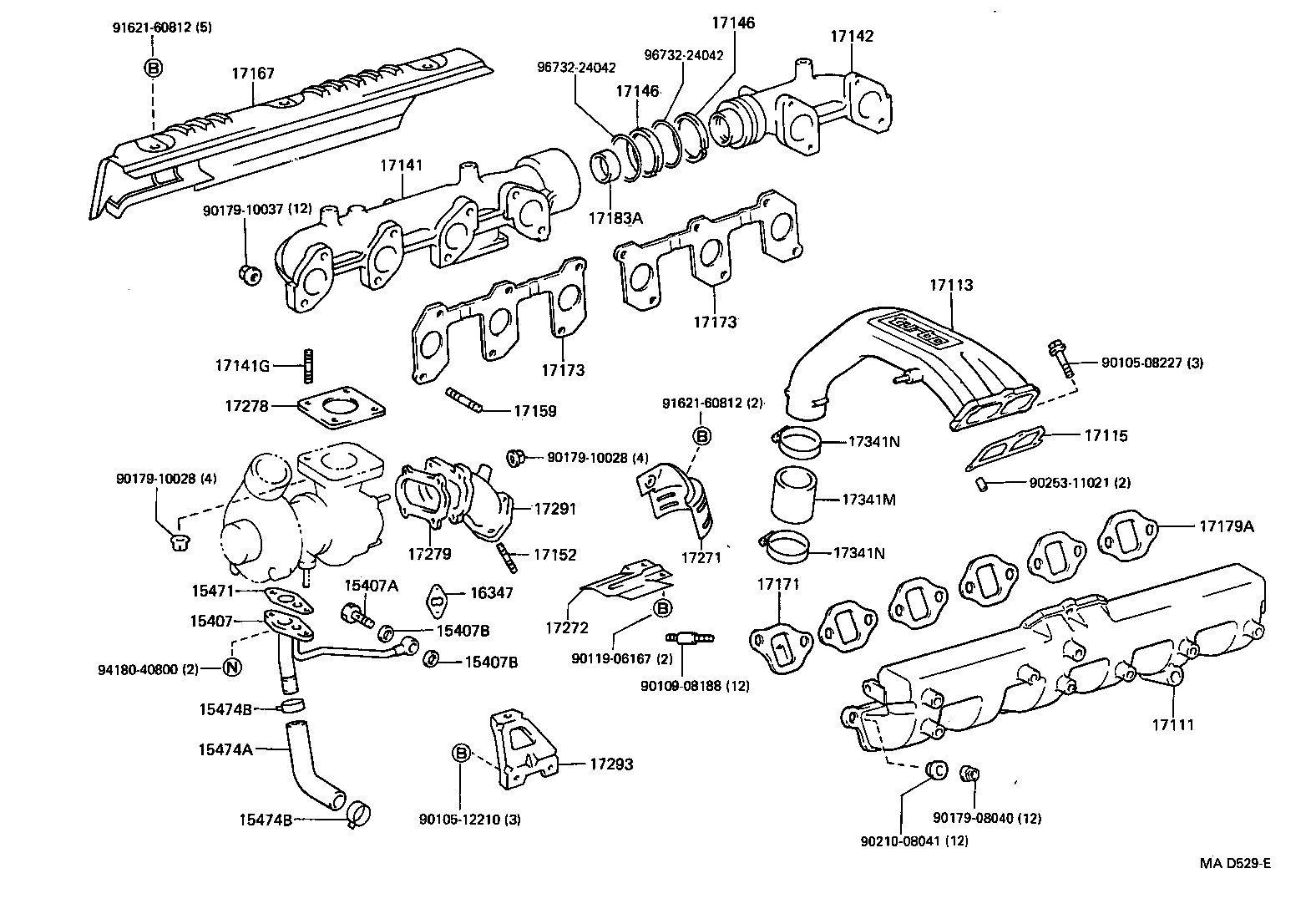

ILLUST NO. 1 OF 2(9001-9501)1HDT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-17010 |
1HDT..HDJ80 |
1 | ||
| 15407-17011 |
1HDT..HDJ80 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-12097 |
1HD#..HDJ80 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-12221 |
1HD#..HDJ80 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-12221 |
1HD#..HDJ80 |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-58010 |
1HD#..HDJ80 |
1 | ||
| 15474A - HOSE, TURBO OIL OUTLET | ||||
| 90910-05206 |
1HD#..HDJ80 |
1 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-26001 |
1HD#..HDJ80 |
2 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-26001 |
1HD#..HDJ80 |
2 | ||
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-42020 |
1HD#..HDJ80 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-17010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-17020 |
1HDT..HDJ80 |
1 | ||
| 17113-17021 |
1HDT..HDJ80 |
1 | ||
| 17115 - GASKET, INTAKE MANIFOLD HOLE COVER | ||||
| 17115-17010 |
1HDT,1HZ..HDJ80,HZJ80 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-17020 |
1HDT..HDJ80 |
1 | ||
| 17141G - BOLT, STUD(FOR TURBOCHARGER) | ||||
| 90116-10117 |
1HD#..HDJ80 |
4 | ||
| 17142 - CASE, EXHAUST MANIFOLD, NO.2 | ||||
| 17142-17010 |
1HDT,1HZ..HDJ80,HZJ80 |
1 | ||
| 17146 - RING, EXHAUST MANIFOLD | ||||
| 17151-17010 |
1HD#,1HZ..HDJ80,HZJ80 |
2 | ||
| 17146 - RING, EXHAUST MANIFOLD | ||||
| 17151-17010 |
1HD#,1HZ..HDJ80,HZJ80 |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10087 |
1H#..HDJ80,HZJ80 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10025 |
1H#..HDJ80,HZJ80 |
12 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-17021 |
1HDT..HDJ80 |
1 | ||
| 17167-17020 |
1HDT..HDJ80 |
1 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-17010 |
1HDT,1HZ..HDJ80,HZJ80 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-17010 |
1HDT,1HZ..HDJ80,HZJ80 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-17010 |
1HDT,1HZ..HDJ80,HZJ80 |
2 | ||
| 17179A - GASKET, INTAKE MANIFOLD, NO.2 | ||||
| 17179-17010 |
1HDT,1HZ..HDJ80,HZJ80 |
5 | ||
| 17183A - COLLAR, MANIFOLD | ||||
| 17183-17010 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-17010 |
1HD#..HDJ80 |
1 | ||
| 17272 - INSULATOR, TURBO, NO.2 | ||||
| 17272-17010 |
1HDT..HDJ80 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-88380 |
1HDT..HDJ80 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-17010 |
1HDT..HDJ80 |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-17010 |
1HD#..HDJ80 |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-17010 |
1HD#..HDJ80 |
1 | ||
| 17341M - HOSE, AIR, NO.1 | ||||
| 17341-17010 |
1HDT..HDJ80 |
1 | ||
| 17341-17011 |
1HDT..HDJ80 |
1 | ||
| 17341N - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-65004 |
1HDT..HDJ80 |
2 | ||
| 17341N - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-65004 |
1HDT..HDJ80 |
2 | ||
| Common parts | ||||
| 90105-08227 | ||||
| 90105-12210 | ||||
| 90109-08188 | ||||
| 90119-06167 | ||||
| 90179-08040 | ||||
| 90179-10028 | ||||
| 90179-10037 | ||||
| 90210-08041 | ||||
| 90253-11021 | ||||
| 91621-60812 | ||||
| 94180-40800 | ||||
| 96732-24042 | ||||

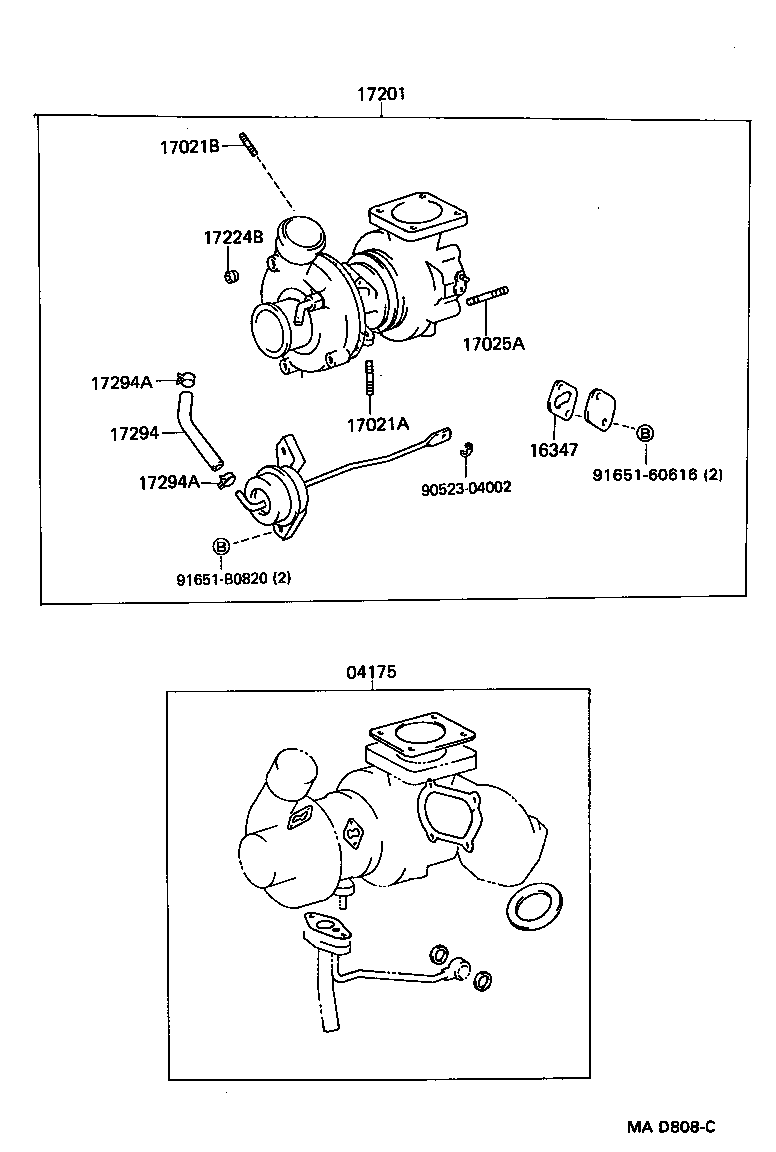

ILLUST NO. 2 OF 2(9001- )1HDT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-17010 |
1HDT..HDJ80 |
1 | ||
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-42020 |
1HD#..HDJ80 |
1 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
1HD#..HDJ80 |
2 | ||
| 17021B - BOLT, STUD | ||||
| 90116-06048 |
1HD#..HDJ80 |
2 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-10125 |
1HD#..HDJ80 |
4 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-17010 |
1HDT..HDJ80 |
1 | ||
| 17224B - PLUG, TAPER SCREW | ||||
| 90344-51014 |
1HDT..HDJ80 |
1 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 17294-28010 |
1HDT..HDJ80 |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-41100 |
1HD#..HDJ80 |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-41100 |
1HD#..HDJ80 |
2 | ||
| Common parts | ||||
| 90523-04002 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
